iCarsoft diagnostic coverage guide
Full system vs all system scanner is usually a question about product wording, not two reliably different grades of diagnostic capability. Both labels can describe access beyond generic engine-emissions data. The useful comparison is which modules, data, tests, and service procedures the exact tool supports on your vehicle.
Is There a Difference Between Full-System and All-System Scanners?
Neither term, by itself, gives you a vehicle-by-vehicle specification. Sellers may use full-system, all-system, complete-system, or multi-system to describe overlapping capabilities. Treat each as an invitation to inspect the coverage details, not as a universal technical tier.
The CR Pro S product page, for example, uses both full-system and all-system language for the same tool. That illustrates why ranking products by those two words alone is unreliable. The meaningful distinction is between access to supported modules and the particular operations available within them.
| Label | What it may describe | What it does not establish | Ask instead |
|---|---|---|---|
| Full-system / all-system | Broad access to supported vehicle control modules. | Every module and function on every car. | Can this tool access my required module and task? |
| Four-system | Often engine, transmission, ABS, and SRS coverage. | Body, climate, steering, or advanced service coverage. | Which four systems and functions are actually listed? |
| Multi-brand | Software covering more than one vehicle make. | Equal diagnostic depth across all makes. | What is supported for each vehicle I own? |
| OE-level | A claim of manufacturer-specific diagnostic depth. | Full dealership equivalence, programming, or security access. | Which documented functions reproduce my required workflow? |
A tool can cover many brands but only a narrow set of functions on a particular model. Conversely, a brand-focused tool can provide useful depth for one vehicle family. Brand count and module count answer different questions; neither replaces confirmation of the job you intend to perform.
How Is Full-System Diagnosis Different From Generic OBD2?
Generic OBD2 primarily provides standardized emissions-related diagnostics. Enhanced, manufacturer-specific diagnosis can add access to other vehicle systems and additional data. A scanner connecting successfully through the diagnostic port does not prove it has both kinds of access.
Snap-on’s OBD-II introduction makes this distinction explicitly: generic OBD-II data concerns emissions diagnostics, while other system data and enhanced diagnostics use vehicle-specific scanner software. Generic access can remain useful even when enhanced software does not support a vehicle.
For example, a check-engine-light investigation may begin with generic trouble codes, readiness information, and supported engine data. An ABS warning calls for access to the brake-control module; an airbag warning calls for the relevant restraint module. A generic “no codes” result should not be read as a clean bill of health for those other systems.
Use the menu context when interpreting a result. “No emissions codes found” is a narrower statement than “every installed controller was scanned successfully.” The first may be perfectly accurate while an unrelated body or chassis fault is still present.
Which Vehicle Systems Should a Full-System Scanner Cover?
The important systems are the ones installed on your car and relevant to your work. Common coverage categories include engine, transmission, anti-lock brakes, restraints, steering, body electronics, and climate control. Actual controllers and their names vary with vehicle architecture and equipment.
- Powertrain: engine and transmission controllers, with supported codes and operating data.
- Chassis: ABS, stability control, steering, or suspension controllers where fitted and supported.
- Restraints: airbag/SRS modules; reading a fault is not authorization to handle an airbag circuit.
- Body and comfort: body control, door modules, lighting, climate control, and instruments.
- Specialized systems: hybrid/EV, driver-assistance, or other controllers require explicit coverage checks and appropriate training.
Do not expect one module for every feature. Several functions can share a controller, while one vehicle system can involve multiple controllers. A count displayed by one scanner may therefore differ from another tool’s count without proving that either tool has deeper access.
Similarly, an equipment package can change the expected scan list. A car without adaptive suspension should not be treated as faulty simply because a scanner’s broad vehicle menu contains that option. Use the vehicle’s actual configuration and service information to decide which modules should be present.
Does All-System Access Include Active Tests, Coding, or Programming?
No. Being able to communicate with a module does not automatically mean the tool can command its outputs, change its configuration, or install software. These operations have different support requirements and risks.
Consider three requests involving the same ABS controller: read a trouble code, display wheel-speed data, and run an automated bleed routine. A coverage statement for the first operation does not settle the other two. The service routine can require specific conditions, equipment, and a procedure that is not part of normal code reading.
Snap-on’s scanner documentation presents codes, data, and functional tests as distinct scanner operations and notes that options depend on the selected vehicle. Use that same distinction when comparing any tool: ask about the operation, not simply whether a module name appears in a list.
Topology is another separate feature. A network diagram can help organize a scan, but the picture is not proof that every controller supports every test. Likewise, an automatic VIN read helps select software; it is not a comprehensive functional compatibility certificate.
How Do You Verify Actual Scanner Coverage Before Buying?
Verify coverage as a match between a vehicle, a module, and a task. Keep the confirmation specific enough that you can compare it with the menu and result after the tool arrives. Our scanner compatibility checklist explains the broader connection and access checks.
-
Identify the vehicle.
Record make, model, model year, engine or powertrain, market, and VIN. Mention imports, retrofits, and replaced modules.
-
Name the controller.
Specify ABS, transmission, body control, or another target; include a controller identifier if known.
-
Name the operation.
Separate reading codes, viewing a particular parameter, running an output test, and performing a named service procedure.
-
Check access requirements.
Ask about the correct software version, protocol hardware, adapters, and any supported authorization process.
-
Request task-specific confirmation.
Provide the scanner model and exact job through iCarsoft’s pre-purchase support. Keep the response with your purchase notes.
-
Verify safely after delivery.
Start with read-only checks and compare supported menus with the confirmation. Report discrepancies before attempting write or actuation functions.
A screenshot from another vehicle can show how a workflow looks, but cannot confirm your coverage. Even matching model names can conceal different engines, markets, controller revisions, or security requirements. A precise written question is more useful than a generic list of hundreds of brands or services.
If an essential task is not confirmed, treat support as unknown—not as a promised feature. Do not buy on the assumption that a future update will add it. Current evidence should support the current purchase decision.
What Does a Complete Vehicle Scan Actually Tell You?
A complete vehicle scan is a report of the modules the tool attempted to query and the information those modules returned under the scan conditions. It is a useful starting record, not a mechanical inspection or a guarantee that the vehicle is fault-free.
Preserve the initial scan before clearing anything. Note controller names, trouble-code status, communication failures, ignition state, and observed symptoms. Then distinguish a controller that returned no codes from one that did not respond. Those are not interchangeable outcomes.
A missing response can have several explanations: the controller is not fitted, the wrong vehicle variant was selected, access is unsupported, an authorization condition is unmet, or the vehicle has a power or network problem. The scan report identifies an investigation point; it does not isolate the cause on its own.
Where data is available, compare relevant parameters with the symptom and vehicle-specific specifications. The live-data reading guide explains why a focused group of related values is more informative than a long list of unexplained numbers.
Do not clear an entire vehicle just to make the report look clean. Clearing may remove information needed for diagnosis, and some faults will return until their underlying cause is repaired. Safety-related warnings need proper investigation even if a scanner can erase the stored record.
Which Diagnostic Level Fits Your Actual Work?
Choose the least complicated tool that supports the jobs you genuinely need, with room for realistic future use. A broad system label is not a reason to buy capabilities you cannot verify or do not intend to use.
Basic emissions checks
A compatible generic OBD2 reader may be enough to retrieve emissions-related codes, readiness, and supported engine data. Confirm the required features rather than assuming all basic readers provide the same displays or recording options.
Recurring DIY work across several systems
A full-system tool becomes more useful when your tasks involve ABS, restraint, transmission, and body modules. Read-only access is a sensible starting point. Add active tests and service procedures only when the exact jobs are supported and you can follow the relevant repair instructions.
Workshop and advanced service work
Frequent diagnosis may justify more convenient reporting, larger displays, broader software, or specialized functions. Programming, protected operations, and calibration need separate evaluation. More hardware does not remove training, service-information, or vehicle-coverage requirements.

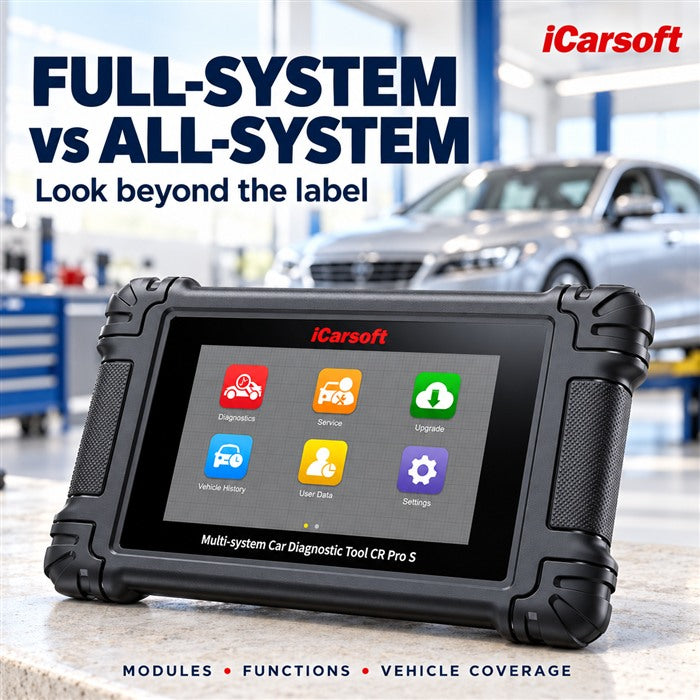

CR Pro S: a compact full-system example
The official listing describes a 5-inch touchscreen, full-system diagnosis, and bidirectional functions. Treat those as capabilities to investigate for your specific vehicle—not a blanket guarantee. Browse the iCarsoft multi-brand scanner range, then confirm the module and function before ordering.
The best comparison ends with a short list of confirmed jobs: which controller, which information, which operation, and under which conditions. Once those are clear, “full-system” versus “all-system” stops being the deciding question.
Frequently Asked Questions
Is an all-system scanner better than a full-system scanner?
Not because of the label alone. Both terms can describe broad module access. Compare the exact vehicle, controller, and operation each tool supports, plus any software, adapter, and authorization requirements.
Can a full-system scanner read ABS and airbag codes?
Many full-system products list ABS and SRS coverage, but support must be confirmed for the exact vehicle and module. Generic emissions-only OBD2 access does not by itself establish ABS or airbag access.
Does full-system diagnosis include ECU programming?
No. Reading vehicle systems does not establish software-programming capability. Coding, service routines, active tests, and programming require their own coverage and procedure checks.
Why does a scanner miss a module during an automatic scan?
The module may not be fitted, may be unsupported, or may need a different selection or access condition. Vehicle power or network faults can also prevent communication. Compare the scan with the actual equipment and service information before deciding the cause.
What should I send support to confirm coverage?
Send the scanner model, vehicle VIN, year, engine or powertrain, market, target module, and exact function. If you already own the scanner, also include its software version, menu path, error message, and a screenshot with unnecessary personal information removed.
Sources
- Snap-on: generic OBD-II introduction
- Snap-on: scanner functions and vehicle-specific options
- iCarsoft: CR Pro S product information
- iCarsoft: pre-purchase compatibility support
Source review: September 29, 2026. Product features and coverage can change. Illustrations are AI-generated, not diagnostic test evidence.
