Quick Answer
The P0177 code means fuel composition sensor circuit range/performance. It does not prove the fuel is contaminated, the fuel composition sensor is defective, or the engine uses the same fuel strategy as another vehicle. Save the scan, identify the exact architecture, and test the physical and electrical paths before selecting a repair.
What Does the P0177 Code Mean?
P0177 is standardized as Fuel Composition Sensor Circuit Range/Performance. It names a monitored result, not a guaranteed failed part. The reporting module, suffix and companion faults determine the relevant test branch.
Where fitted, a fuel composition sensor can encode fuel-content and sometimes temperature information in a signal interpreted for fueling strategy. Range/performance means the reported behavior failed a rationality or performance test under its enable conditions. The label alone does not distinguish fuel quality, wiring, sensor output or learned-data context.
Read each suffix as its exact monitor classification, not a universal physical direction. Confirm the designation, units, signal source and test state before comparing scan data with an external measurement.
Audi's A6/S6 quick-reference book lists P0177 as Fuel Composition Sensor Circuit Range/Performance. Its application-specific criteria demonstrate why frequencies, pulse widths and thresholds must not be transferred to another VIN.
Separate P0177 from adjacent fault families
| Code | General description | Key distinction |
|---|---|---|
| P0177 | Fuel composition sensor circuit range/performance | Implausible behavior or performance on the composition-sensor path. |
| P0176 | Fuel composition sensor circuit | General circuit classification. |
| P0178 | Fuel composition sensor circuit low | Low signal classification. |
| P0179 | Fuel composition sensor circuit high | High signal classification. |
Record the complete P0177 description. The suffix, reporting module and companion faults can change the diagnostic path. Current manufacturer evidence governs when the queue wording conflicts.
P0177 Symptoms and Likely Causes
P0177 symptoms depend on fault status and the fallback strategy. Record what the driver and modules reported. A symptom list is not a parts list.
Save fuel-content, fuel-temperature and trim data before clearing.
Check companion mixture and pressure faults before blaming fuel composition.
Record fuel source, grade and amount without declaring contamination from timing alone.
Confirm the vehicle has the sensor and tool coverage before drawing a conclusion.
Practical cause-checking order
- Accessible connection: Loose, wet, corroded or spread terminals at the composition sensor or related harness.
- Circuit or shared path: Open, short, poor supply, poor ground or unstable signal in the encoded output path.
- Supporting system: Recent refueling, mixed fuel or actual contamination that must be proven with the approved sampling method.
- Named component: Fuel composition sensor that fails the manufacturer's signal and response tests.
- Controller or software: ECM calibration, learned-data or input-processing fault after fuel and external circuits pass.
Did P0177 appear after recent refueling, fuel-system, battery, sensor, connector, harness or controller work? Recheck disturbed connectors, grounds, hoses, fluids, part numbers and setup steps for the fuel composition sensor signal and fuel-content interpretation. Record battery and software history; a post-repair code does not prove the new part is defective.
How Serious Is P0177, and Can You Drive?
Arrange diagnosis promptly. When the warning is steady, operation remains normal and the owner's manual permits it, a short light-load trip to a repair facility may be reasonable. Avoid demanding use until the fuel composition sensor signal and fuel-content interpretation is understood. P0177 does not provide a universally safe distance.
Record temperature, load, speed, start state and recent service. Do not reproduce a severe symptom on public roads; another warning can make the situation more urgent.
Stop and arrange a tow if a fuel leak or strong vapor appears, the engine stalls or misfires severely, power loss is unsafe, the MIL flashes, or fuel handling cannot be performed with proper ventilation and fire control.
Fuel can be pressurized, flammable and harmful to skin or eyes. Work in ventilation away from heat and sparks, use the prescribed pressure-relief and sampling procedure, and contain fuel in an approved vessel.
How to Diagnose P0177 in the Right Order
-
Save the complete fault record
Scan before clearing. Save P0177 wording, suffix, reporting module, status, freeze frame, companion codes, supply voltage and available data for the fuel composition sensor signal and fuel-content interpretation. Record failure order, recent repairs and restart behavior for later comparison.
-
Identify the VIN-specific monitor and architecture
Use the VIN, engine, transmission and equipment codes to obtain the current wiring diagram, connector views, monitor description and bulletins. Where fitted, a fuel composition sensor can encode fuel-content and sometimes temperature information in a signal interpreted for fueling strategy. Range/performance means the reported behavior failed a rationality or performance test under its enable conditions. The label alone does not distinguish fuel quality, wiring, sensor output or learned-data context. Confirm software identifiers and service-action eligibility directly; a bulletin for one application does not establish coverage for another.
-
Inspect the accessible physical path
Follow the safety procedure, then inspect connectors, locks, seals, terminals, clips and harness routing for the fuel composition sensor signal and fuel-content interpretation. Look for heat, abrasion, fluid entry, corrosion, tension and unsuitable prior repairs. Check the supporting mechanical, air, exhaust, fluid or vacuum path named in the service information. Photograph evidence before correcting it.
-
Prove circuits and physical conditions
Use the high-impedance meter, suitable oscilloscope and approved fuel-sampling equipment required by the VIN-specific procedure as the exact procedure requires. Prove feeds, grounds and references under the specified load, then test signal or control integrity at the correct states. Isolate components before resistance tests. Never bridge a controller pin to battery or ground, and do not substitute a continuity beep for a load, pressure or waveform test.
-
Compare supported command and response
Record supported fuel composition, fuel temperature, trims, commanded equivalence ratio and companion sensor data. Compare a stable scan signal with the physical encoded waveform and refueling history; a plausible display does not prove signal integrity. Compare scan evidence with the external measurement and companion faults. A command does not prove physical movement, pressure, current, temperature or torque. A missing PID or active test is a coverage limitation, not evidence that the vehicle component failed. Stop any test if operation becomes unsafe.
-
Choose the supported repair and setup
Repair the failed path and correct the reason for damage. Confirm part application, required setup authorization and any relearn. Consider a controller only after its powers, grounds, inputs, outputs and service information pass.
Specifications are vehicle-specific. There is no universal voltage, resistance, current, pressure, waveform, timing, temperature, percentage, learned value or drive cycle for P0177. Test state, connector location and system design change what a valid value means. Use only specifications for the exact VIN and do not transfer the OEM example in this article to another application.
P0177 Repairs and Typical Costs
The correct P0177 repair follows the failed test. Wiring, a physical repair, a proven component, software and controller work are different outcomes. Do not replace an assembly from the generic code alone.
After installation, recheck connector seating, harness clearance, fluid or mechanical setup and every required learn. If an OEM bulletin appears relevant, document vehicle eligibility, installed calibration and prescribed action. The existence of the bulletin in the references does not promise warranty, free repair or a software cure for other vehicles.
| Possible path | Current US estimate |
|---|---|
| Restore composition-sensor connector, supply, ground or signal wiring | VIN-specific quote |
| Correct proven contaminated or incorrect fuel using the manufacturer's procedure | VIN-specific quote |
| Replace the composition sensor only after its waveform or response test fails | VIN-specific quote |
| Perform an eligible calibration or fuel-learning procedure only for the exact application | VIN-specific quote |
There is no single national P0177 repair price because these rows are alternative outcomes. Ask for an itemized estimate showing diagnostic time, parts, labor, fluids, service-information access and verification. Location, taxes, related damage and warranty eligibility change the total. Do not add the rows together or authorize an assembly without the supporting failed test.

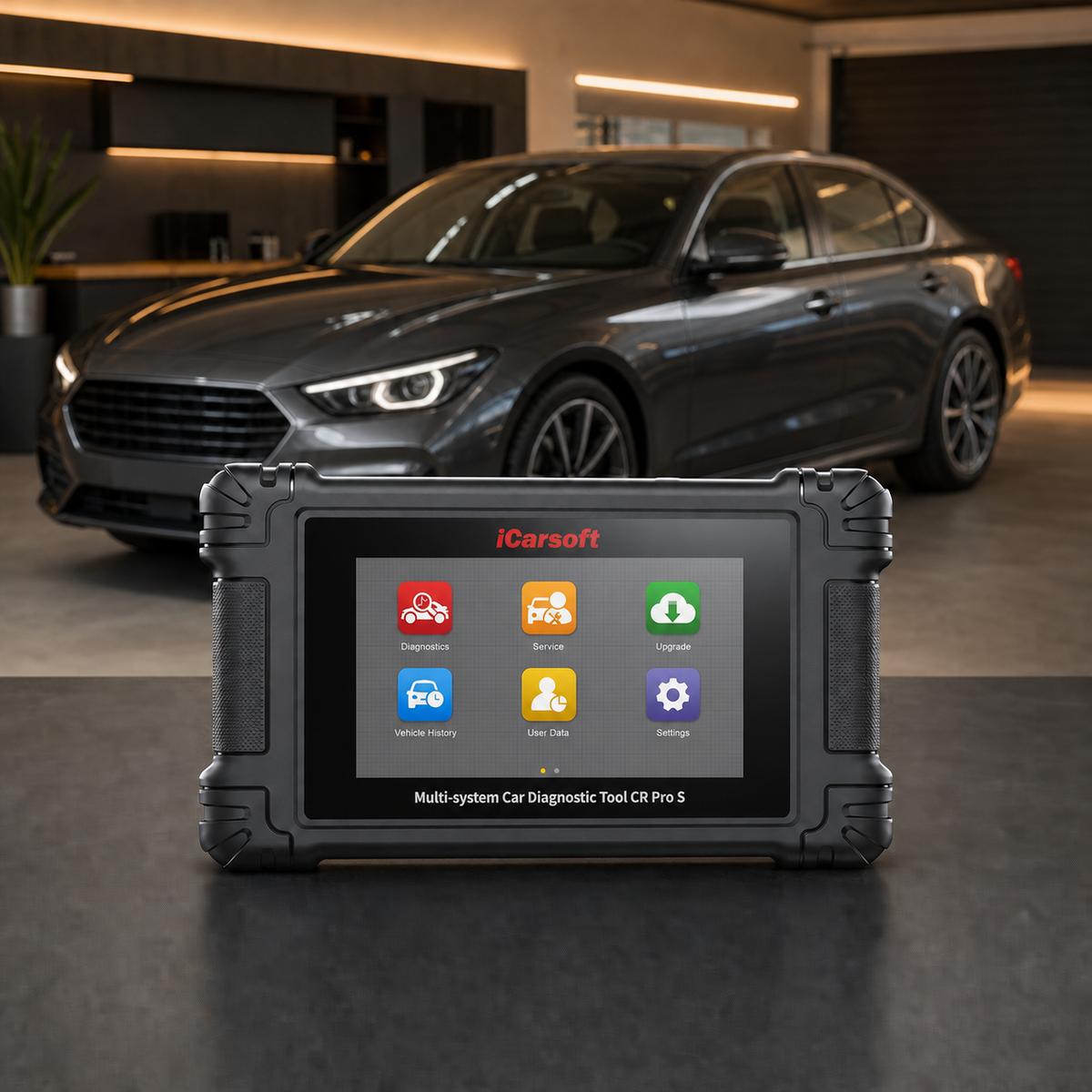

Using iCarsoft CR Pro S for P0177
On a supported vehicle, iCarsoft CR Pro S can retrieve accessible module faults, save available freeze frame, display ECU-provided live data and create a diagnostic report. For P0177, preserve the original evidence and compare related modules before clearing an erasable record.
Preserve the fuel composition sensor signal and fuel-content interpretation evidence
iCarsoft CR Pro S
Review supported codes and relevant live data together. Confirm the exact VIN, controller access, PIDs and any requested active test with iCarsoft before purchase; generic product capabilities do not guarantee a P0177-specific function.
Check current CR Pro S price and availabilityCheck CR Pro S compatibility by VINThe official product page describes full-system diagnosis, available freeze frame/live data, reports and supported active tests; every function remains vehicle, ECU and software dependent. Supported topology and coding availability varies by vehicle and ECU and requires VIN confirmation. Follow OEM prerequisites and stop for abnormal operation.
Know the measurement boundary. The scanner reports information supplied by the vehicle. It does not directly prove terminal tension, circuit load capacity, leakage, pressure, temperature, mechanical travel or internal condition in the fuel composition sensor signal and fuel-content interpretation. It also cannot replace the high-impedance meter, suitable oscilloscope and approved fuel-sampling equipment required by the VIN-specific procedure when the OEM procedure requires them. Interpret commanded and reported values alongside measured evidence.
Verify the P0177 Repair
After repair, verify connectors, harness clearance, setup and controller supply. Save post-repair findings, then clear only erasable records through the approved procedure. Battery disconnection is not a repair.
Run the manufacturer's applicable verification conditions in a safe workshop or route. Compare the original operating state with current data for the fuel composition sensor signal and fuel-content interpretation, and check current and pending faults in related modules. One clean start or idle period does not prove that every conditional monitor has completed.
If P0177 returns, compare its suffix, status, failure order and operating conditions with the saved baseline before replacing another part. Revisit the failed branch and inspect anything disturbed. Keep mechanical repair, monitor completion, readiness and local inspection eligibility as separate outcomes.
A permanent P0177 can remain immediately after a successful repair. If the vehicle stores it as a permanent DTC, a scan tool or battery disconnect cannot erase it. Once current and pending faults are absent, the OBD system removes the permanent record only after the applicable monitor reruns and passes.
Related Fuel Composition Sensor Signal And Fuel-Content Interpretation Code Guides
P0177 Frequently Asked Questions
Does P0177 mean the named component is bad?
No. P0177 describes fuel composition sensor circuit range/performance, not a confirmed part. It also does not prove the fuel is contaminated, the fuel composition sensor is defective, or the engine uses the same fuel strategy as another vehicle. Test accessible wiring, supplies, grounds and supporting physical conditions, then follow the exact monitor tree. Replace a component only when its branch fails or an applicable OEM action specifically supports it.
What should I check first for P0177?
Save every module's codes and freeze frame before clearing. Confirm the full definition, suffix and VIN architecture. Then inspect recent refueling, fuel-system, battery, sensor, connector, harness or controller work, connectors and shared supplies. Those facts determine whether the next test needs the high-impedance meter, suitable oscilloscope and approved fuel-sampling equipment required by the VIN-specific procedure or a manufacturer-specific functional procedure.
Can I drive with the P0177 code?
Only consider a short light-load trip when operation is normal and the owner's manual permits it. Stop if a fuel leak or strong vapor appears, the engine stalls or misfires severely, power loss is unsafe, the MIL flashes, or fuel handling cannot be performed with proper ventilation and fire control. The code number cannot establish a safe mileage allowance, and another warning can make the situation more urgent.
Why did P0177 return after a part was replaced?
The original circuit or supporting-system fault may remain, the part or setup may be wrong, or the first diagnosis may have confused a monitored result with a failed component. Compare the new failure conditions with the saved record and recheck every disturbed connection before buying another part.
How much does a P0177 repair cost?
A VIN-specific estimate is required because diagnosis may lead to wiring, a supporting physical repair, a verified component, software or a controller. Ask which failed test supports the quote and whether diagnosis, taxes, setup and post-repair verification are included.
Can CR Pro S diagnose and clear P0177?
On a supported vehicle, CR Pro S can organize available faults, freeze frame, live data and reports, and can clear erasable records after repair. Confirm exact ECU coverage. It cannot force-clear a permanent DTC or replace physical measurements for the fuel composition sensor signal and fuel-content interpretation.
The iCarsoft Official Store Technical Team maintains the store's fault-code library. This guide organizes published manufacturer evidence and verified product information; it does not document a hands-on test of a particular vehicle or claim an individual engineer's review.
Technical and cost references
- Audi A6/S6 Quick Reference Specification Book, September 2013. Lists P0177 as Fuel Composition Sensor Circuit Range/Performance and shows application-specific monitor criteria.
- SAE J2012 Recommended Practice, March 1999 USPTO exhibit. Lists P0177 Fuel Composition Sensor Circuit Range/Performance and its adjacent low and high input classifications.
- California Bureau of Automotive Repair — On-Board Diagnostic Test Reference. Permanent DTCs are removed by the vehicle after applicable verification, not by a scan-tool erase command.
