Quick answer
Trouble code P0422 means “Main Catalyst Efficiency Below Threshold (Bank 1).” The ECU has decided that Bank 1’s catalytic converter is no longer scrubbing pollutants well enough to pass its self-test. That doesn’t automatically mean a new $1,200 cat — in roughly a third of cases the catalyst is fine and the real culprit is a downstream O2 sensor, an exhaust leak, or a fuel-trim issue feeding it.
P0422 is almost always treated as “new catalytic converter time” — but the data says only about a third of these codes actually need one. The other two-thirds trace back to a failing downstream O2 sensor, an exhaust leak, or an upstream fuel-trim issue that’s slowly killing the cat from the front. This guide shows how to tell those apart with the iCarsoft CR Eagle before you spend a dollar on parts, what the real costs are, and how to clear the code and re-arm the monitor once you’re done.
1What Does the P0422 Code Mean?
The catalytic converter is a vital part of your vehicle’s emissions system — it reduces harmful pollutants in the exhaust before they leave the tailpipe. The ECU watches it by comparing the upstream O2 sensor (in front of the cat) against the downstream sensor (behind it). A healthy cat buffers the oxygen swings, so the downstream sensor reads almost flat. When the downstream sensor starts mirroring the upstream sensor, the ECU concludes the cat is no longer doing its job and sets P0422.
P0422 is the Bank 1 version of this fault. “Bank 1” is the side of the engine containing cylinder #1. Defined by the SAE J2012 standard, it applies to every OBD-II vehicle. Left untreated, it typically leads to a failed emissions inspection, slightly reduced fuel economy, and — eventually — damage to the downstream O2 sensor as untreated exhaust contaminates it.
Pro insight: before you condemn the catalytic converter, rule out the cheap stuff. A bad downstream O2 sensor can mimic a dying cat exactly — and the sensor is a tenth of the cost. The CR Eagle’s live O2 graph tells you the difference in about 90 seconds at idle.
2Symptoms of P0422
P0422 is sneaky — you often won’t feel anything wrong until inspection day. The most common signs:
- Check engine light on, usually a steady (not flashing) MIL.
- Failed emissions / state inspection, especially the catalyst-efficiency readiness monitor.
- Slight drop in fuel economy — typically 5–10% on a long-failing cat.
- Faint sulfur (rotten-egg) smell from the tailpipe at idle on some vehicles.
- Slight loss of throttle response if the substrate has collapsed and is restricting flow.
3Common Causes of P0422
Ranked by what actually shows up when P0422 sets on customer cars — work the cheap items first:
| Cause | Frequency | Notes |
|---|---|---|
| Failed catalytic converter | ~35% | Substrate cracks, melts or ages out past 120k+ miles — often accelerated by a history of misfires or rich fuel trims. |
| Downstream O2 sensor faulty | ~25% | A slow or biased Bank 1 downstream sensor mimics catalyst failure. The cheapest fix here — verify it before swapping the cat. |
| Pre-cat exhaust leak | ~15% | A pinhole or cracked gasket ahead of the cat lets in atmospheric oxygen, so the ECU’s math shows a “dead” cat that’s actually healthy. |
| Chronic misfire / fuel-trim error | ~12% | Persistent rich or lean running, or unburnt fuel reaching the cat, poisons the substrate. Fix the upstream problem before the new cat dies the same death. |
| Coolant or oil consumption | ~8% | Burning coolant (head gasket) or oil (rings/valve seals) coats the catalyst with phosphorus and silicates that permanently kill efficiency. |
| ECU calibration / software | ~5% | A known false-positive on some models — check OEM TSBs for a calibration update before changing parts. |
4How Serious Is P0422? Can You Keep Driving?
Drive-soon, not drive-now-forever: drivability is usually normal, so short trips are fine. But running for long with a failing catalyst risks contaminating the downstream O2 sensor, failing your emissions inspection, and (if the substrate collapses) restricting exhaust flow. Address the code within a few weeks.
The one exception is a physically broken-up substrate: if you feel a clear loss of power or hear rattling from the converter, stop driving it — loose substrate can block the exhaust and overheat the system.
5How to Diagnose P0422 with the iCarsoft CR Eagle
This sequence isolates the real fault before you spend money on parts. Follow it in order — skipping steps is the #1 reason people replace a perfectly good catalytic converter and get the code back two weeks later.
- Pull codes & freeze-frame. Plug the CR Eagle into the OBD-II port (under the dash, driver’s side). Read every stored and pending code, and capture the freeze-frame for P0422 — RPM, coolant temp, short- and long-term fuel trim, and the downstream O2 voltage at the moment it set.
- Read live O2 sensor data. Bring the engine to full operating temperature (the catalyst monitor only runs hot). Graph the upstream and downstream Bank 1 O2 sensors side by side. A healthy cat shows a fast-switching upstream sensor (0.1–0.9 V, ~1 Hz) and a near-flat downstream sensor pinned around 0.6–0.8 V. If the downstream sensor mirrors the upstream one, the cat is no longer storing oxygen.
- Check fuel trims. Watch short- and long-term fuel trim on the live-data screen. Anything outside ±8% at idle is an upstream problem you must fix first — otherwise a new cat will fail again.
- Inspect the exhaust. Look from the manifold to the cat for leaks, cracks and bad gaskets. A pinhole ahead of the cat sets P0422 with a perfectly good converter. Cold: listen for ticking; warm: watch for soot streaks at the joints.
- Temperature-delta test. At ~2,500 RPM under light load, measure inlet and outlet temperature with an IR thermometer. A working cat runs the outlet 50–100°F hotter than the inlet. Equal or cooler outlet = dead substrate, confirmed.
- Confirm & reset. Once you’ve found the real fault, repair it, then use the CR Eagle to clear the DTC and re-arm the catalyst-efficiency monitor. Drive two complete cycles before re-checking — the monitor doesn’t run on every trip.
6P0422 Repair Cost
Match the spend to what the data proved was failing — don’t shotgun parts:
| Repair | Parts | Labor | Typical total |
|---|---|---|---|
| Downstream O2 sensor | $30–$150 | $50–$120 (~1 h) | $80–$270 |
| Exhaust leak / gasket repair | $10–$80 | $80–$200 | $90–$280 |
| Upstream fix (plugs, coils, MAF, vacuum) | $20–$300 | $50–$250 | $70–$550 |
| Catalytic converter (OE / CARB-compliant) | $200–$1,500 | $100–$300 (2–4 h) | $300–$1,800 |
| ECU software update (TSB) | dealer flash | varies | |
A $30 generic reader can’t tell a dead catalyst from a slow O2 sensor — and that’s a $1,000 difference. The diagnosis below is what protects you from buying the wrong part.
7Solutions for P0422
Match the fix to what the data proved was failing:
- Replace the catalytic converter — only if the temperature-delta test and live O2 data both confirmed a dead substrate. Use an OE-grade or CARB-compliant cat that meets your state’s emissions requirements.
- Replace the downstream O2 sensor — if the cat looked healthy on the IR test but the downstream sensor was slow, biased or reading implausibly. Use OEM or known-good aftermarket; cheap sensors often fail in 6–12 months.
- Repair exhaust leaks — weld pinholes, replace gaskets, and re-clamp loose joints anywhere upstream of the cat.
- Fix the upstream fuel/misfire issue first — spark plugs, coils, injectors, MAF or vacuum leaks. Any new cat installed behind an engine running rich will die early.
- Check for an ECU software update — some platforms have OEM TSBs for false P0422 codes that a flash will fix without parts.
8How to Clear P0422 & Reset the Monitor
With a scan tool (recommended): after the repair is verified, use the CR Eagle to clear the DTC and re-arm the catalyst-efficiency monitor, then drive two complete drive cycles before re-checking. Use OBD-II Mode 6 to read the catalyst-monitor result directly, not just the pass/fail of the DTC.
Don’t just disconnect the battery — it wipes the code without fixing anything, resets your learned fuel adaptations, and the monitor will simply set P0422 again on the next qualifying drive. Confirm the fix held by re-scanning for both stored and pending codes.
9Preventing P0422 in the Future
- Run quality fuel — Tier 1 detergent gasoline reduces the carbon buildup that ages the cat early.
- Address misfires immediately — replace plugs and coils at the OEM interval; never “drive through” a rough-running engine.
- Inspect the exhaust annually — catching a $20 gasket can save $1,000 of catalyst over time.
- Watch fuel trims — a quarterly scan with the CR Eagle catches a drifting MAF or vacuum leak long before it kills the cat.
- Don’t ignore other DTCs — misfire (P0300s), lean (P0171) or O2 codes almost always precede a P0422.
10Related Trouble Codes
11The Right Scan Tool for P0422
A basic code reader only tells you P0422 exists. To find the real fault you need live, side-by-side O2 sensor graphs, real-time fuel-trim data, Mode 6 access to the catalyst-monitor result, and the bi-directional ability to reset the monitor after the repair. The iCarsoft CR Eagle does all four on Bank 1 (and Bank 2 on a V-engine), so you fix the actual fault the first time, not the easy guess.
Recommended for P0422

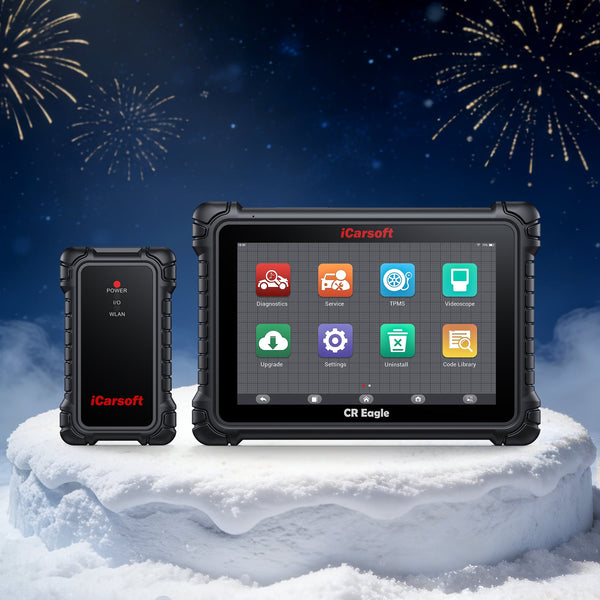

iCarsoft CR Eagle
Live O2 sensor graphs, fuel-trim analysis, Mode 6 catalyst-monitor results and bi-directional monitor reset — on a 10″ Wi-Fi tablet with CAN FD/DoIP, 49+ resets and 140+ vehicle brands. Pays for itself the first time it stops you replacing a good cat.
$849.95
Shop CR Eagle Compare pro scanners- Live O2 sensor graphing for both banks, side by side — the single most useful screen for catalyst diagnosis.
- Full OBD-II Mode 6 access to read the catalyst-efficiency monitor result, not just the DTC.
- Bi-directional control — clear codes, reset monitors, and command emissions, EVAP and fuel tests.
- Broad coverage — 140+ vehicle brands with full-system access, not just powertrain.
12P0422 — Frequently Asked Questions
Is it safe to drive with P0422?
Short trips, yes — drivability is usually normal. Running long with a failing catalyst risks O2-sensor contamination, a failed emissions inspection, and downstream damage, so address the code within a few weeks. If you feel a power loss or hear the converter rattling, stop driving it.
What’s the difference between P0420 and P0422?
Both mean “catalyst efficiency below threshold (Bank 1).” P0420 is the general catalyst-system code; P0422 specifies the main converter. They share the same causes and diagnosis — verify the downstream O2 sensor, exhaust and fuel trim before replacing the cat in either case.
Will P0422 clear itself after I replace the cat?
Not always. The catalyst-efficiency monitor only runs once per drive cycle, under specific conditions. Use the iCarsoft CR Eagle to clear the DTC, then complete two full drive cycles before re-checking.
Could a P0422 be caused by something other than the cat?
Yes — a failing downstream O2 sensor, a pinhole exhaust leak ahead of the cat, chronic misfires, or a rich/lean fuel trim can all set P0422 with a perfectly good catalyst. Rule those out before condemning a $400–$1,500 part.
How long does the repair take?
Diagnosis 30–60 minutes. Downstream O2 sensor replacement about 1 hour. Catalytic converter replacement 2–4 hours, depending on vehicle access.
How much does a P0422 repair cost?
Parts run $30–$1,500 — a downstream O2 sensor is $30–$150, an OE-grade catalytic converter $200–$1,500 depending on vehicle. Total job (parts plus labor) typically lands between $150 (sensor only) and $1,800 (cat replacement at a shop).
13References
- SAE International, J2012 — Diagnostic Trouble Code Definitions (the standard that defines P0422).
- California Air Resources Board, On-Board Diagnostic (OBD) Program.
- Wikipedia, Catalytic converter — background on how the catalyst and its monitoring work.
