P0524 – Engine Oil Pressure Too Low

🔍 What Does Code P0524 Mean?

The P0524 code indicates that your vehicle’s engine oil pressure is lower than the manufacturer’s recommended range. This diagnostic trouble code (DTC) is part of the OBD-II system and typically triggers the check engine light or oil pressure warning light.

In simpler terms, P0524 means the engine isn’t getting enough lubrication pressure — which can cause accelerated wear or even catastrophic engine failure if ignored. Drivers often describe this issue as: “low oil pressure warning on startup” or “P0524 code after oil change.”

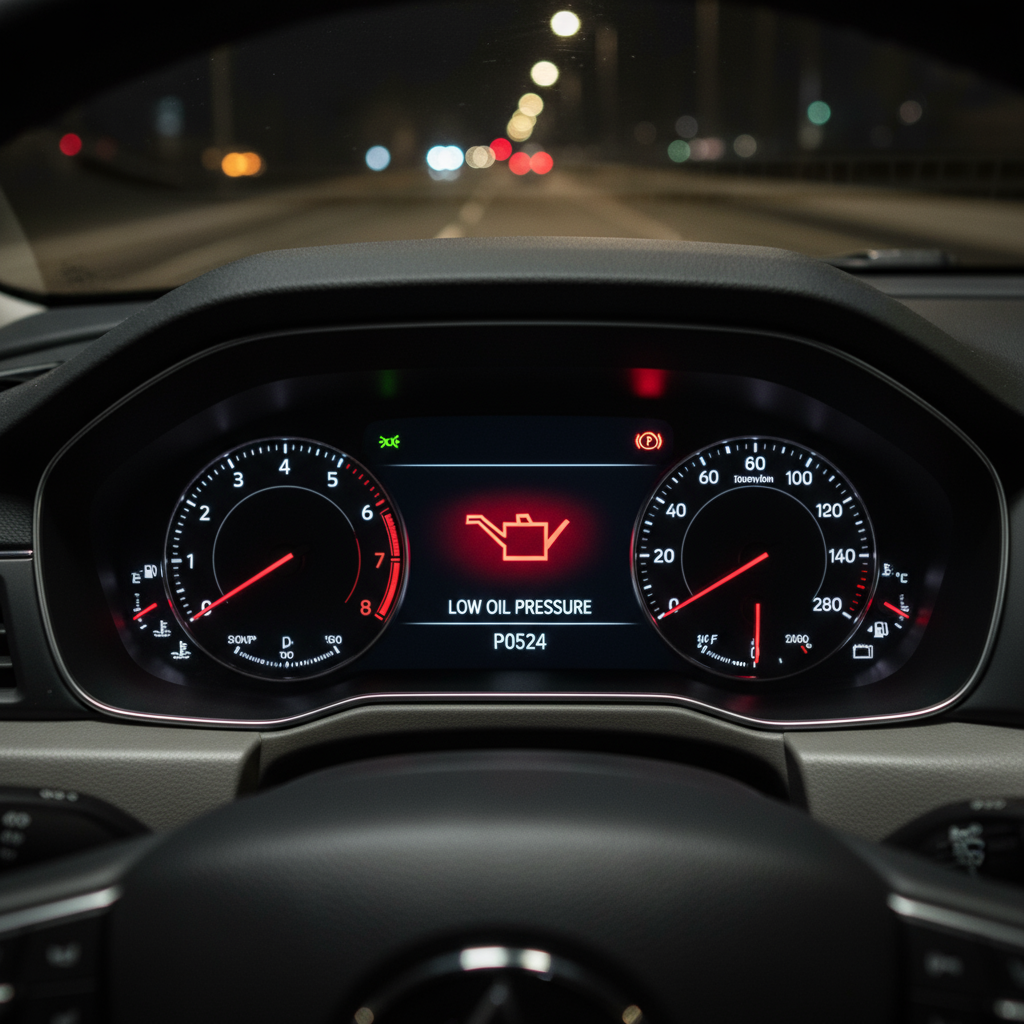

⚠️ Common Symptoms of P0524

• Oil pressure warning light illuminated

• Check engine light (CEL) with P0524 stored
• Ticking or knocking engine noise
• Loss of power or limp mode activation
• Code returning after oil service (P0524 code won’t clear)

In some GM and Dodge models, the code can appear even after an oil change if the wrong viscosity oil is used or the oil pressure sensor malfunctions.

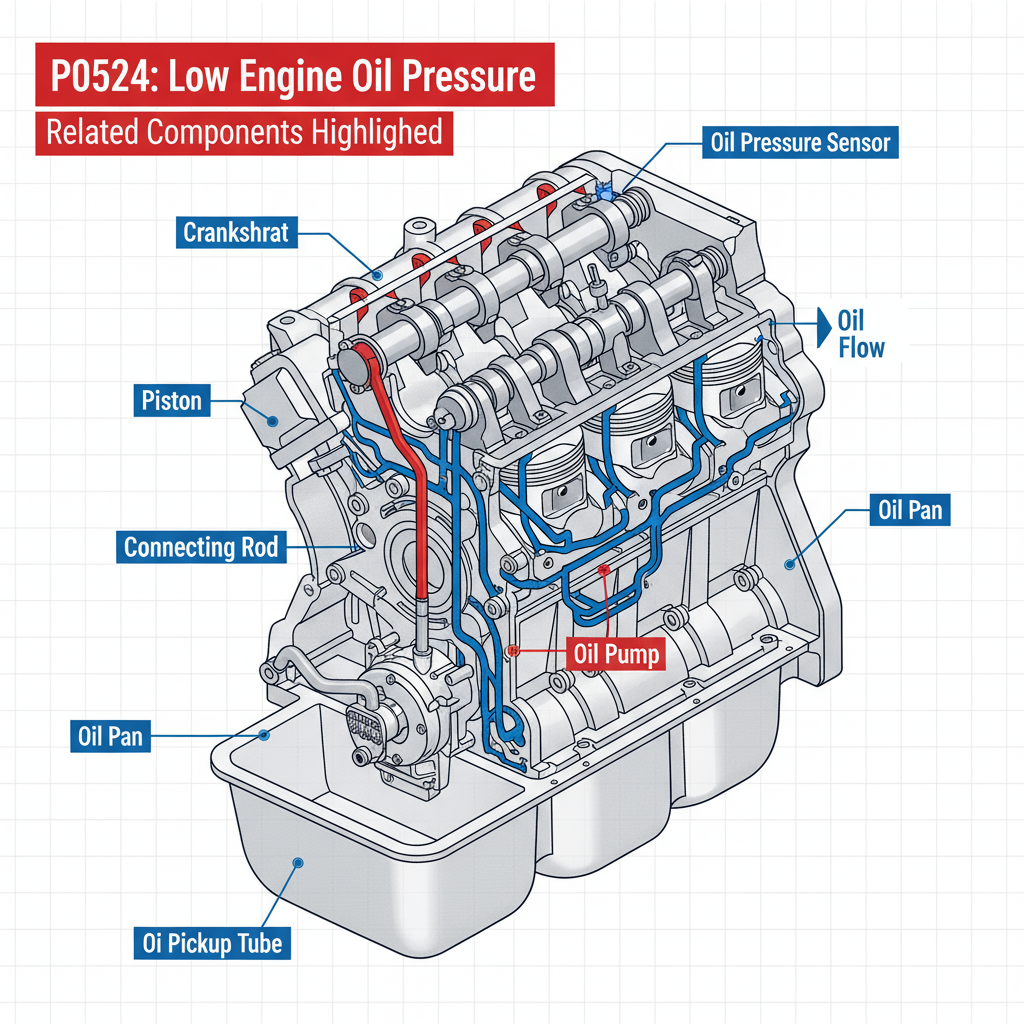

🔧 Common Causes of P0524

• Low or contaminated engine oil
• Faulty oil pressure sensor or sending unit
• Blocked oil passage or clogged oil filter
• Worn-out oil pump or pickup tube O-ring leak
• Incorrect oil viscosity (too thin for ambient temperature)
• Internal engine wear (bearings, lifters, etc.)

Many technicians find that a failed oil pressure sensor or dirty oil pickup screen is the root cause — not always the oil pump itself.

🧰 How to Diagnose P0524 Using iCarsoft CR MAX

1. Connect your iCarsoft CR MAX scan tool to the OBD-II port.
2. Run a full system scan and confirm the presence of P0524 – Engine Oil Pressure Too Low.
3. Go to “Live Data” and select Engine Oil Pressure to monitor the real-time reading.
4. If pressure is fluctuating abnormally (e.g. 0–5 psi at idle), shut off the engine immediately.
5. Inspect oil level and condition; top off or replace if dirty.
6. Perform an “Oil Pressure Sensor Test” under Special Functions to validate sensor response.
7. If readings stay low, install a mechanical gauge to confirm actual oil pressure.

This process helps you determine whether you’re dealing with a true oil pressure problem or a faulty sensor signal.

🧩 Real Case Example

A 2018 Chevrolet Silverado 5.3L came in with P0524 and the “Low Oil Pressure” warning. Using iCarsoft CR MAX, the mechanic found the oil pressure sensor showing 5 psi at idle. A mechanical gauge confirmed 30 psi — indicating a sensor fault, not actual pressure loss. After replacing the oil pressure sensor and clearing codes, the issue was resolved permanently.

Similar cases have been reported on Mercedes M274 engines and Chrysler 5.7 HEMI platforms — both prone to clogged oil pressure ports causing false low readings.

💬 FAQ: Understanding and Fixing P0524

Q1: Is it safe to drive with code P0524?

No. Driving with low oil pressure risks major engine damage. If the warning appears, shut off the engine immediately and verify pressure with a gauge.

Q2: Can the P0524 code appear after an oil change?

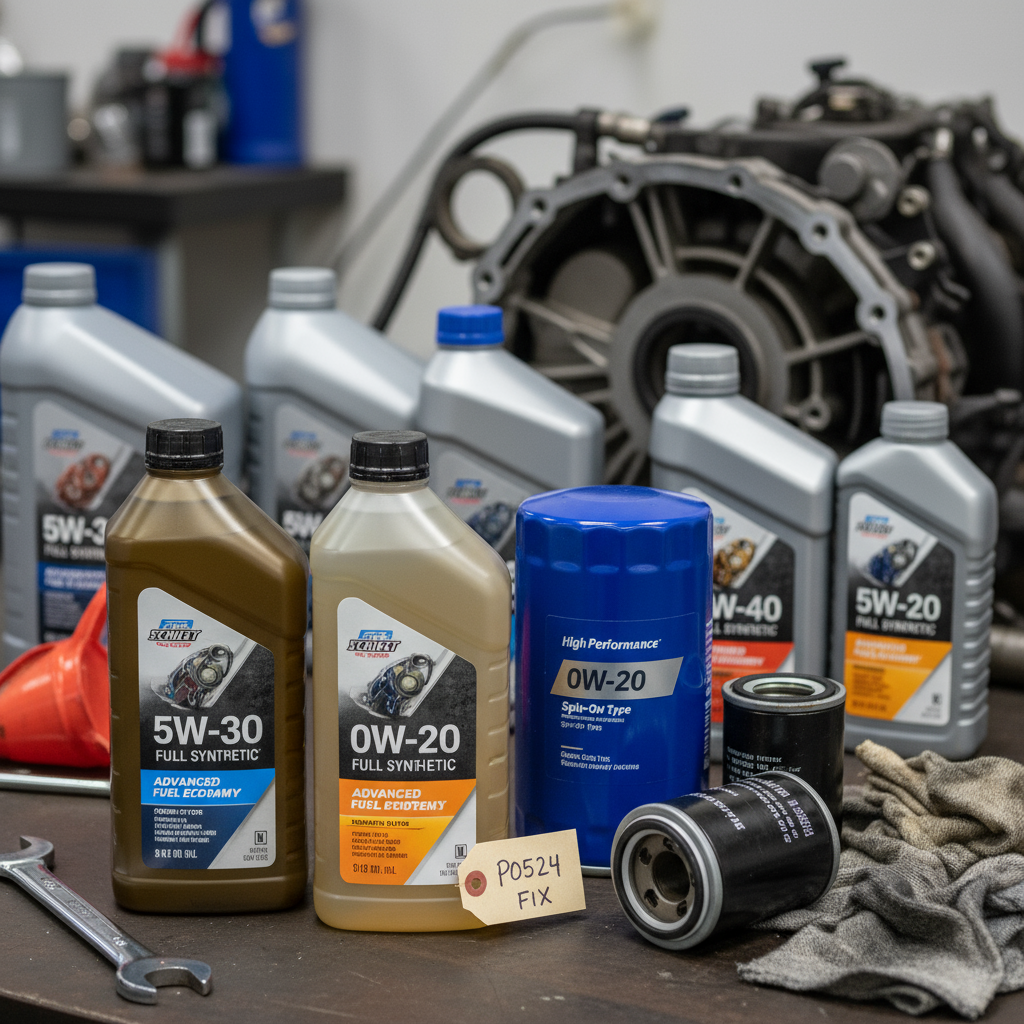

Yes. If the wrong oil viscosity (e.g., 0W-20 instead of 5W-30) or a poor-quality filter is used, the pressure may drop temporarily, triggering the code.

Q3: How do I know if it’s the sensor or actual pressure?

Use the iCarsoft CR MAX live data feature to read the pressure signal. Then verify it with a manual gauge. If actual pressure is normal but the scan tool reads low, replace the sensor.

Q4: What oil should I use after fixing P0524?

Always use manufacturer-approved oil (e.g., Dexos 5W-30 for GM, MB 229.5 for Mercedes). Using the correct viscosity ensures stable pressure at all temperatures.

Q5: What if the P0524 code won’t clear?

Persistent codes may indicate residual oil sludge or a damaged oil pressure relief valve. Perform a full system clean and recheck with iCarsoft CR MAX before replacing parts.
