iCarsoft CR Unicorn S OE-Level Professional Automotive Car and Truck Diagnostic Tool

Name: iCarsoft CR Unicorn S OE-Level Professional Automotive Car and Truck Diagnostic Tool
Brand: iCarsoft Official Authorized Store
Price: 3499.99 USD
Availability: InStock

$3,499.99

Shipping calculated at checkout.

The Ultimate One-Stop Diagnostic & Cloud Programming Platform for Both Passenger Cars and Heavy-Duty Trucks

The iCarsoft CR Unicorn S is a premium, ultimate flagship intelligent diagnostic tool engineered for professional technicians and advanced car enthusiasts. Driven by a high-performance MT8788 Octa-Core 2.0GHz processor and an expansive, vibrant 13.3-inch Full HD touchscreen display, this platform delivers unmatched speed and clarity for comprehensive one-click full-system code scanning. Equipped with a massive 18600mAh battery for long-lasting, uninterrupted workshop performance, the CR Unicorn S features built-in J2534 Pass-Thru protocol support, enabling seamless cloud-based online programming for 13 leading car brands alongside full compatibility with OEM factory software. It comes with 2 years of free software upgrades. Elevate your workshop capabilities with unprecedented vehicle coverage, intelligent topology mapping, and professional-grade maintenance.

OE-Level Diagnostics
J2534 Pass-Thru & Cloud ECU Programming
Intelligent Topology Mapping
40 Service & Maintenance Functions
Bi-Directional Control (Active Test)
2 Years Free Updates

J2534 Pass-Thru

Built-in

13.3" Full HD

Octa-core

200+ Makes

Worldwide

Before You Buy

Shipping Policy>

Refund Policy>

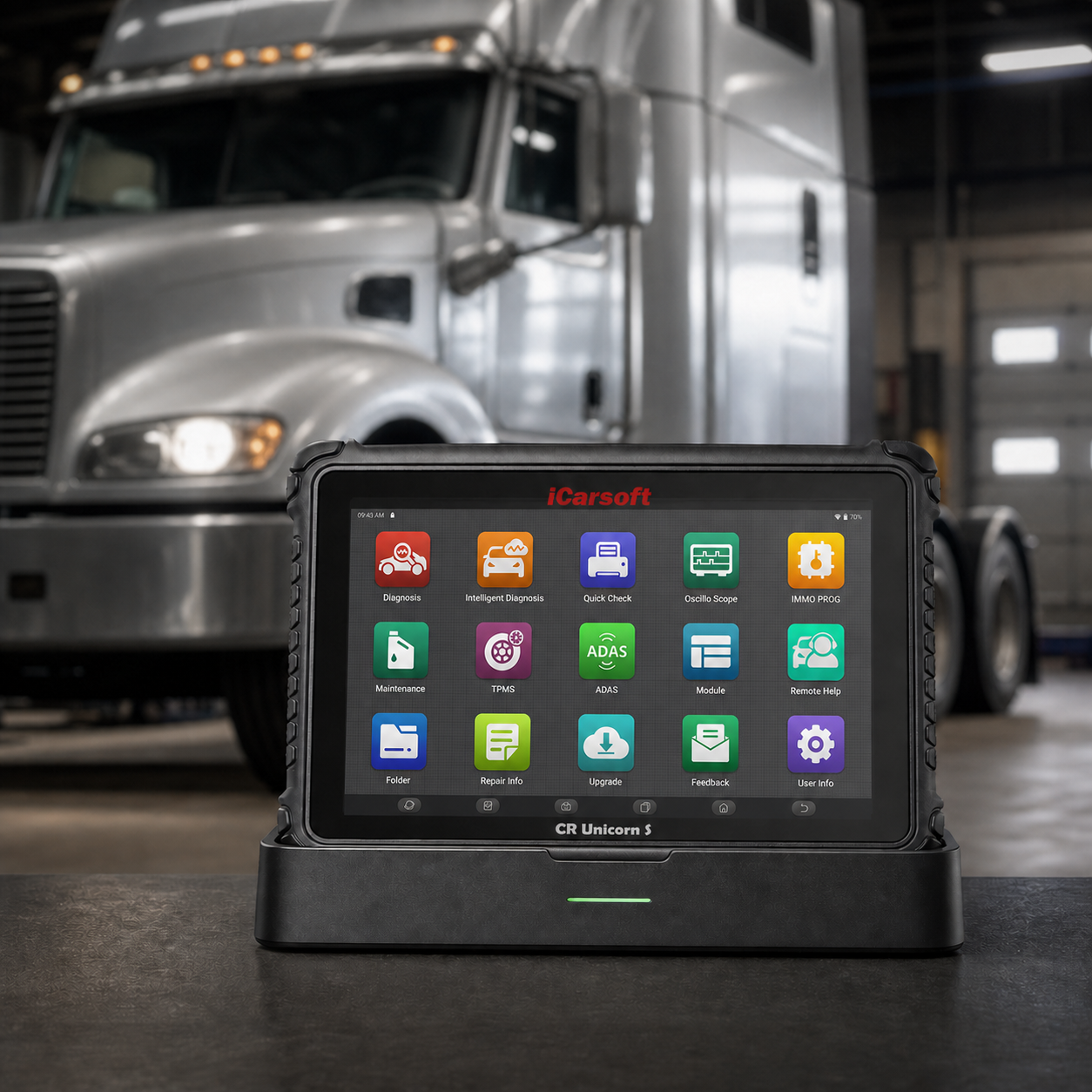

The Ultimate Flagship

One platform for the daily driver and the heavy-duty fleet.

A high-performance MT8788 octa-core engine, an expansive 13.3-inch Full HD display and a massive 18600mAh battery — paired with built-in J2534 pass-thru, cloud ECU programming, intelligent topology mapping and 40 service functions, covering both passenger cars and heavy-duty trucks. The flagship that talks to OEM factory software.

Built-in J2534 Pass-Thru

The CR Link wireless J2534 VCI bridges the vehicle to PC-based OEM factory software — no brand-specific hardware needed.

Cloud ECU Programming

High-end online programming and coding for 13 premium brands — flash the latest OEM software straight to the ECU.

Intelligent Topology Mapping

The whole ECU network drawn as a live, color-coded map — spot a faulted module or bus dropout at a glance.

2 Years of Free Updates

Stay current with the newest vehicle models, J2534 definitions and software enhancements — with no hidden fees.

01J2534 Pass-Thru Protocol & Cloud-Based Online Programming

Bridge to OEM factory software — flash like the dealer.

Two ways to reprogram and code, in one platform: a standards-compliant J2534 pass-thru bridge to OEM factory software, plus high-end cloud programming for the world’s top brands.

J2534 Standard Compliance

Built-in support for the SAE J2534 (Pass-Thru) protocol. This allows the CR Link Wireless J2534 VCI to act as a bridge between the vehicle electronics and PC-based OEM factory diagnostic/programming software, saving thousands on brand-specific hardware.

Online ECU Programming

Supports high-end cloud programming for 13 premium vehicle brands, including Audi, BMW, Porsche, Mercedes-Benz, and Volkswagen, enabling flashing of the latest OEM software to replace existing software/firmware in the ECUs.

AudiBMWPorscheMercedes-BenzVolkswagen+ 8 more premium brands

Expert ECU Coding & Personalization: Modifies control module parameters to customize vehicle performance, improve drivability integration, and activate new features:

Performance Restoring & Adaptation

Restores standard engine power curves and fuel injection efficiency by flashing verified factory update files.

Vehicle Personalization

Unlocks hidden high-end features (e.g., customized daytime running lights, start-stop memory) and deactivates unwanted factory settings.

Component Adaptation

Matches, codes, and initializes newly replaced modules for seamless hardware-to-vehicle integration.

Advanced Troubleshooting

Deep-scans all systems with smart topology mapping, clears complex fault codes, and resolves software-induced drivability issues.

Note: Always read and back up the original module’s data before executing coding/programming functions.

02OE-Level Global Vehicle Coverage (Passenger & Commercial)

200+ makes — passenger cars and heavy-duty trucks alike.

From everyday drivers to heavy-duty fleets, the CR Unicorn S reaches every onboard module with factory-grade accuracy — and speaks the newest passenger and commercial protocols out of the box.

Extensive Compatibility

Supports comprehensive, dealership-level diagnostic scanning for over 200 vehicle makes worldwide, delivering full-system integration for both passenger cars and heavy-duty commercial fleets (trucks, buses, and construction machinery).

Advanced Protocols

Native compatibility with next-generation communication protocols including in-vehicle buses: CAN FD, LIN, DoIP; software interface standards: SAE J2534, ISO 22900 (D-PDU), TMC RP1210. Native protocol support (no protocol adapter needed); heavy-duty vehicles connect via the included truck adapter kit and Connector Box.

Global Database

Delivers deep-dive diagnostics and specialized coding parameters for mainstream American, European, Asian, exotic car models, and heavy-duty commercial vehicles.

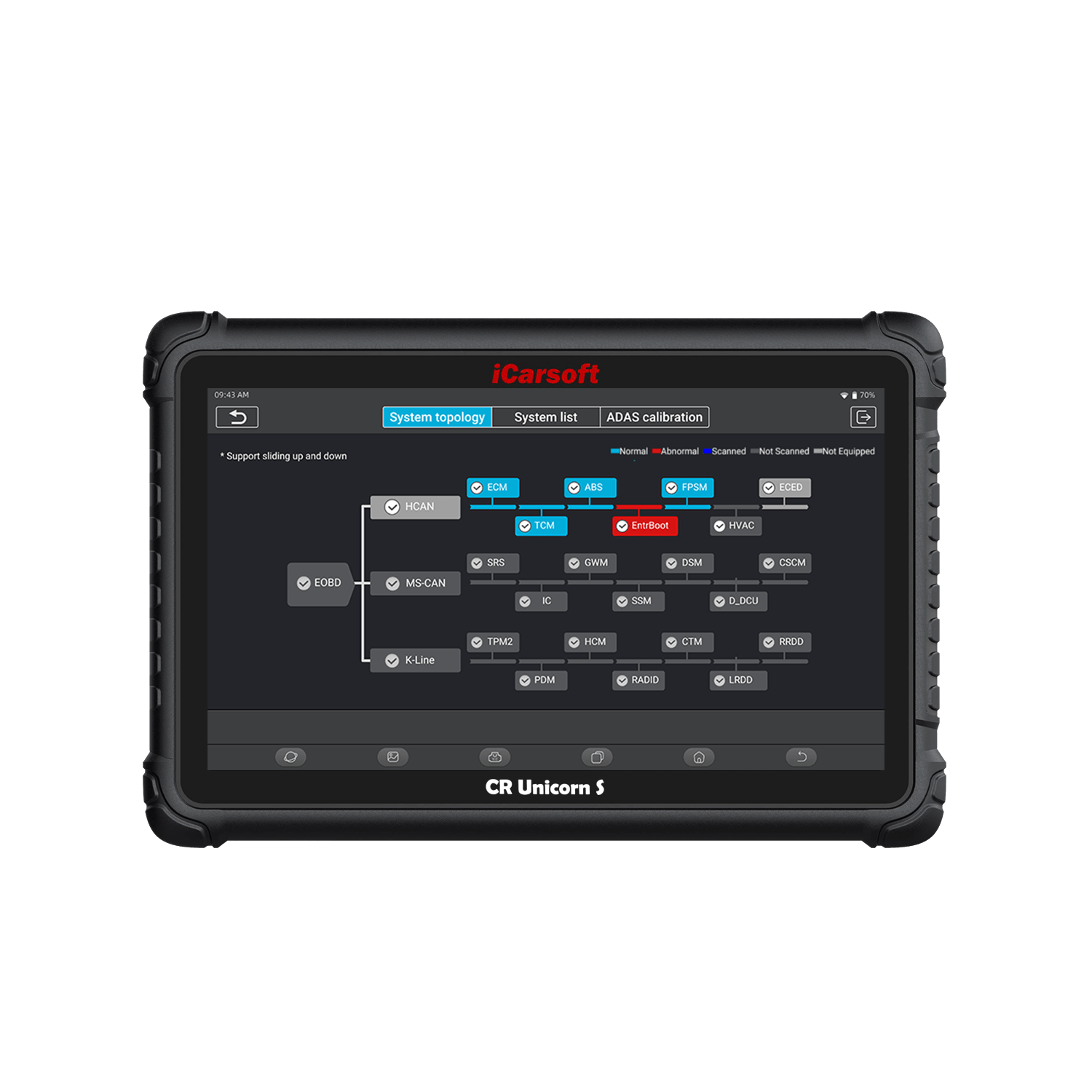

03Intelligent Automotive Topology Mapping

Watch the whole network light up.

Visual Network Architecture: Transforms complex raw ECUs and automotive communication networks into a clear, interactive visual tree or grid.

Instant Fault Spotting: Uses smart color-coded indicators (Green for normal, Red for fault codes) to display system-wide health. Technicians can pinpoint bus disconnects or faulted modules at a glance, saving hours of manual diagnostic time.

Normal Fault code

Engine

ABS

SRS

TCM

BCM

Gateway

HVAC

EPS

04FCA SGW Secure Gateway Access and AutoAuth Registration

Unlock late-model FCA straight through the OBDII port.

Native AutoAuth integration opens the secure gateway on modern FCA vehicles — full repair authorization, no bypass cables.

Authorized Secure Gateway Access Solution

Provides native AutoAuth integration to seamlessly access and unlock the secure network on modern Fiat, Chrysler, Dodge, Jeep, RAM, and Alfa Romeo vehicles (2018–Present).

Direct OBDII Control

Unlocks full authorization to clear diagnostic fault codes, stream live data, execute bi-directional active tests, and perform all 40 service resets directly through the standard OBDII port—eliminating the need for external bypass cables.

FiatChryslerDodgeJeepRAMAlfa Romeo2018–Present

Note: Requires an active AutoAuth user account and subscription (additional fee applies).

05Powerful Bi-Directional Control and Active Tests

Command the component. Stop guessing, start testing.

Send live commands straight to the vehicle and confirm a part is good — or prove it’s the fault — without the trial-and-error.

Activation Tests

Directly triggers electronic actuators to verify components, such as remote key fobs, hazard lights, or alarm systems.

Sensor Testing

Monitors live inputs from temperature, pressure, and wheel-speed sensors to guarantee accurate operational reporting.

Actuator Verification

Validates physical components like power windows, sunroofs, mirrors, and climate control flaps.

System Calibration

Calibrates critical vehicle stability networks, including Steering Angle Sensors, braking electronics, and airbag modules.

06Premium 2 Years of Free Software Updates

Two full years of upgrades, on the house.

While standard industry tools charge for updates after just 1 year, the iCarsoft CR Unicorn S includes 2 years of free software updates, keeping your tool equipped with the latest vehicle models, J2534 definitions, and software enhancements without hidden fees.

Year 1

Free

Year 2

Free

No hidden fees. Latest models, J2534 definitions and enhancements — every update.

0740 Service & Maintenance Functions

Forty resets for everyday service and deep repair.

From a simple oil-light reset to high-voltage battery diagnostics, the CR Unicorn S carries the service functions a modern bay relies on — search the full list below.

(Please note: Function availability is dynamically determined by the specific vehicle make, model, and manufacturing year.)

OIL (Oil Maintenance Light)

Resets the engine oil life system and turns off the oil service light after an oil change.

ETS (Throttle Matching)

Initializes the throttle actuators to restore default learned parameters for stable idling.

SAS (Steering Angle Reset)

Calibrates the steering angle sensor to ensure accurate feedback for electronic stability control.

BMS (Battery Matching)

Registers a new battery to the ECU to clear low-battery faults and optimize charging control.

BLEEDING (ABS Bleeding)

Bleeds air out of the ABS system to restore a firm, safe, and responsive braking performance.

BRAKE (EPB Reset)

Deactivates and activates the brake control system to safely replace and reset brake pads.

DPF (DPF Regeneration)

Triggers forced PM burning to clear blockages and stabilize performance in diesel filters.

GEAR (Tooth Learning)

Performs crankshaft position sensor learning to stop false engine misfire diagnostics.

IMMO (Anti-theft Matching)

Erases lost car key data and programs new transponder keys or remote fobs.

INJEC (Injector Coding)

Writes new injector codes into the ECU for precise cylinder fuel injection control.

TPMS (Tire Pressure Reset)

Relearns tire pressure sensor IDs and turns off the TPMS warning light after tire service.

SUS (Suspension Calibration)

Calibrates the vehicle body height sensor to level electronic air suspension systems.

AFS (Adaptive Front-lighting)

Initializes the adaptive headlamp system to automatically adjust illumination angles based on steering.

GEAR BOX (A/T Learning)

Relearns transmission adaptive values after repairs to improve gear shifting quality.

SUN (Sunroof Initialization)

Resets the sunroof control unit to restore anti-pinch protection, one-touch control, and memory.

EGR (EGR Adaption)

Relearns the exhaust gas recirculation valve operating parameters after cleaning or replacement.

ODO (Odo Reset)

Synchronizes or writes odometer data into new modules during dashboard/cluster replacements.

AIR BAG (Airbag Reset)

Resets the airbag module to clear crash data and warning lights after part replacement.

TRANSPORT (Transport Mode)

Deactivates logistics/transport mode to unlock full electrical functionalities for vehicle delivery.

A/F (A/F Reset)

Sets or relearns Air/Fuel ratio parameters to maintain optimal engine combustion efficiency.

STOP/START (Stop/Start Reset)

Configures or resets the automatic engine start-stop system activation parameters.

NOX (NOx Sensor Reset)

Resets the NOx sensor adaptation values stored in the ECU to ensure emission compliance.

ADBLUE (SCR Urea System)

Resets and bleeds the SCR (Selective Catalytic Reduction) urea system after fluid refills or service.

SEATS (Seat Calibration)

Relearns the travel limits and memory positions of electric power seats.

COOLANT (Coolant Bleeding)

Activates the electronic water pump to bleed air out of cooling systems to prevent overheating.

TYPE (Tire Reset)

Configures tire dimensions after size upgrades to maintain accurate speedometer readings.

WINDOWS (Windows Calibration)

Restores the automatic one-touch lift and anti-pinch functions of door windows.

LANGUAGE Change

Changes the system display language on the dashboard instrument cluster and infotainment unit.

AC System Relearn

Initializes climate control actuators and air flaps to optimize cabin ventilation.

Engine Power Balance

Monitors individual cylinder power contributions to isolate misfires and performance drops.

Gas Particulate Filter

Triggers forced regeneration for the GPF to reduce exhaust backpressure.

High Voltage Battery

Analyzes State of Health (SoH), cell voltage consistency, and insulation safety for EV/HEV batteries.

Intelligent Cruise Control

Calibrates radar and camera sensors for the Adaptive Cruise Control (ACC) system.

Motor Angle Calibration

Calibrates the rotor position sensor of the hybrid/EV traction motor for smooth power delivery.

Clutch Matching

Calibrates the clutch engagement points for smoother gear transitions in AMT and DCT gearboxes.

ECU Reset

Resets the Electronic Control Unit to clear internal adaptation memories and restore defaults.

FRM Matching

Repairs and resynchronizes corrupted Footwell Modules (FRM) to restore body electronics.

Gateway Module Data

Synchronizes and calibrates data between the central gateway and other vehicle network ECUs.

Rainfall Light Sensor

Calibrates the sensitivity of automatic rain and light sensors after a windshield replacement.

Turbocharging Matching

Relearns the turbocharger actuator limits to ensure precise boost pressure management.

No service functions match your search.

08Turnkey Hardware Add-ons Included as Standard

A complete shop in the case — every add-on bundled.

No extra shopping list. The CR Unicorn S ships with the professional hardware most shops buy separately — ready to work out of the box.

Included

CR Link Smart J2534 VCI

Dual-purpose wireless vehicle communication interface. Functions as a heavy-duty diagnostic VCI module. Acts as an SAE J2534-compliant programming interface.

Included

Thermal Printer Module

Connects via USB for immediate workshop data logging. Prints physical vehicle diagnostic and health reports on the spot.

Included

Digital Inspection Videoscope

Premium snake camera for close-up component inspections. Allows clear viewing of internal engine and hard-to-reach areas.

Included

T-wand9000 Programming Tool & Sensors

Includes the professional TPMS S2000 activation tool. Comes standard with 4 premium programmable TPMS sensors.

Included

Battery Test Clip Set

Enables standalone comprehensive automotive battery health checks. Delivers accurate state of health and charging system reports.

Included

Passenger OBDI Adapters Kit

Complete set of legacy vehicle adapters included as standard. Ensures immediate out-of-the-box scanning for older car models.

Included

13 Heavy-Duty Commercial Truck Adapters & Connector Box

Dedicated commercial heavy-duty adapter assortment paired with a specialized Connector Box. Delivers immediate out-of-the-box system linkage for mainstream commercial truck fleets, buses, transit vehicles, and construction machinery (includes proprietary interfaces for Benz, Volvo, Iveco, MAN, Renault, Isuzu, Caterpillar, and Deutsch).

09Modular Add-on Ecosystem (Sold Separately)

Add a scope and ADAS rig when you’re ready.

Expand the CR Unicorn S into a total-shop diagnostic hub with specialized hardware:

Optional

4-Channel Oscilloscope Box

Captures and analyzes electronic circuit waveforms. Essential for precision automotive electrical troubleshooting.

Optional

ADAS Calibration Kit

Enables professional structural re-alignment for smart sensors. Calibrates radar and cameras after windshield or body repairs.

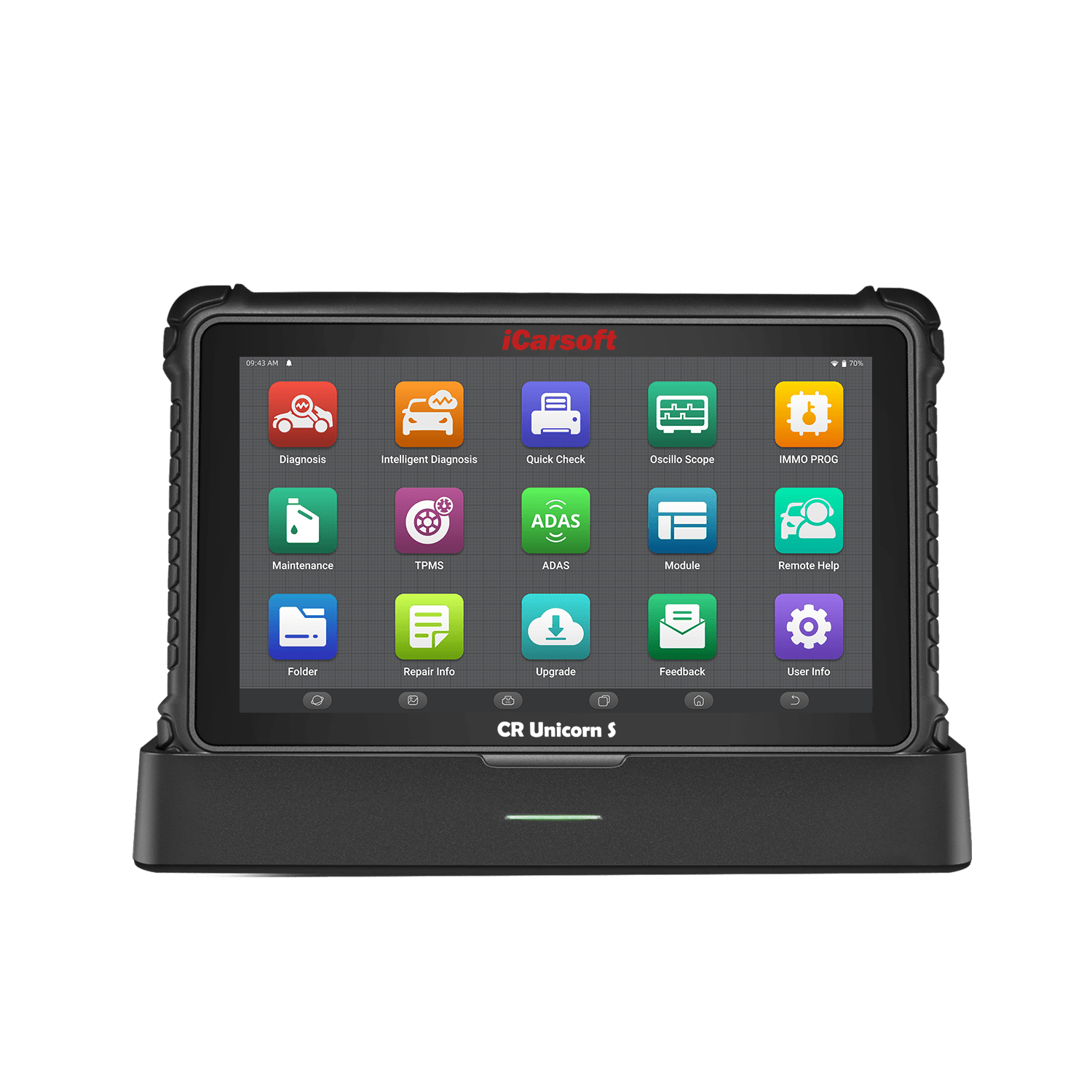

10Hardware Architecture and Protocols

Octa-core power on a 13.3-inch Full HD canvas.

An ultimate-flagship platform engineered for speed, clarity and uninterrupted workshop performance.

13.3"

Full HD Touch Screen

8Core

MT8788 @ 2.0GHz

18600mAh

Battery Capacity

8+256GB

RAM + ROM

Operating SystemAndroid 9 (Open system)

ProcessorMT8788 Octa-Core (8 cores), 2.0GHz High-Performance

Memory & Storage8GB RAM + 256GB ROM

Display13.3-inch Vivid Full HD Touch Screen (1920 by 1080 Resolution)

ConnectivityWi-Fi 802.11 ac/a/b/g/n, Bluetooth BT5.0

Battery Capacity3.8V 18600mAh (Long-lasting workshop performance)

I/O InterfaceUSB Type-C, USB Type-A, HDMI

SD Card SlotSupports expansion up to 512GB

Camera13.0 MP Rear-Facing Camera with Auto-Focus

AudioHigh-Fidelity Built-in Speakers

Supported ProtocolsJ2534 Pass-Thru, CAN FD, DoIP, LIN, K-Line, PWM, VPW, and more

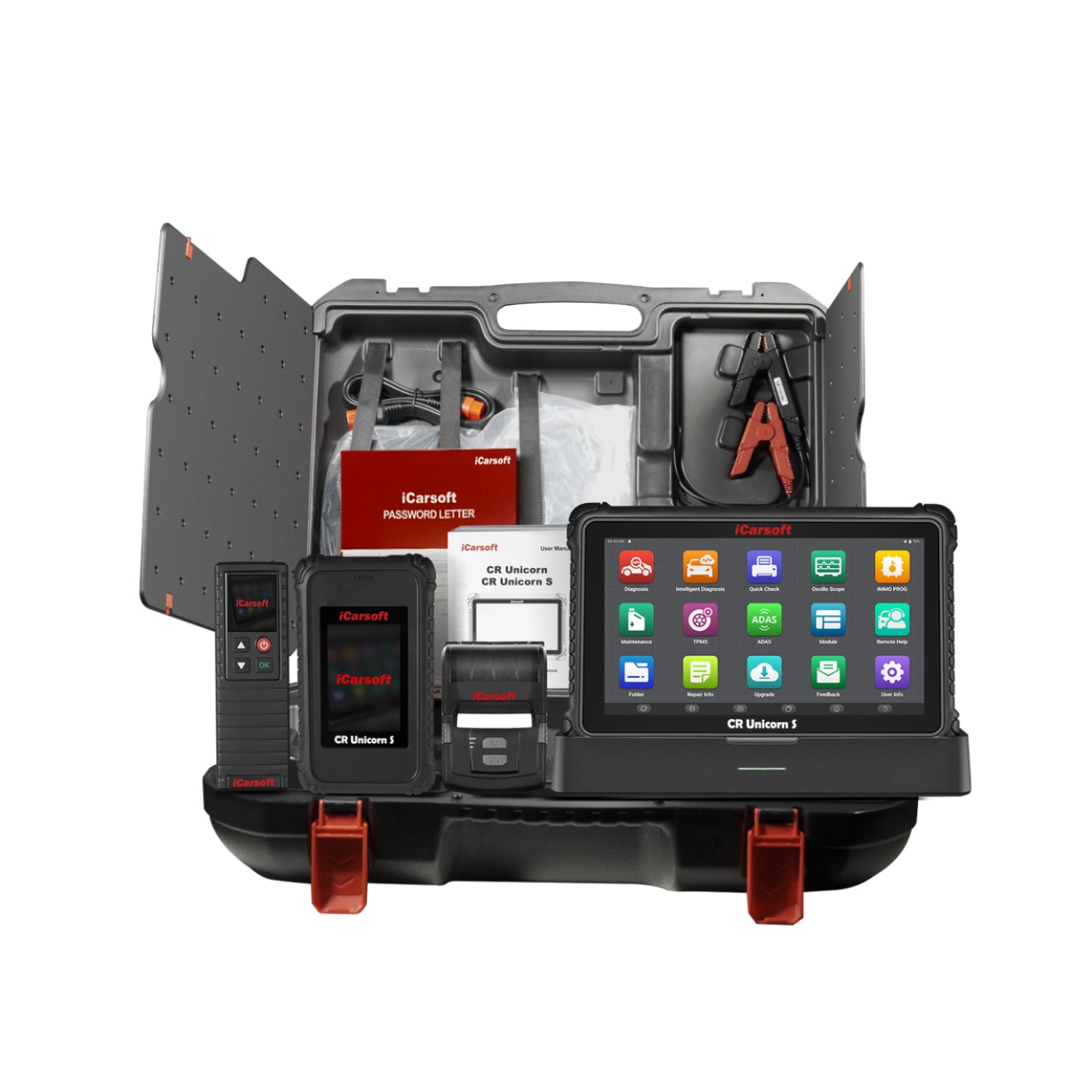

11Packing List

Everything in the case, accounted for.

Unbox a complete, workshop-ready kit — here’s every item that ships with the CR Unicorn S.

1 x CR Unicorn S Main Unit (13.3-inch Flagship Tablet)

1 x CR Link Wireless J2534 VCI

1 x Thermal Printer Module (USB)

1 x Digital Inspection Camera / Videoscope Module

1 x T-wand9000 Programming Tool

1 x Battery Test Clip / Tester Set

4 x TPMS Sensors

1 x Intelligent Charging Stand

1 x Power Adapter

1 x AC Power Cables Set (Includes AU, EU, UK, and US Wall Plugs)

1 x Male-to-Male Main Diagnostic Cable

1 x USB Type-A to Type-B Cable

1 x USB Type-A to Type-C Cable

1 x Clipper Cable (Battery Clamps)

1 x Cigarette Lighter Cord

1 x Mini HDMI to HDMI Cable

1 x RJ45 Network Adapter Cable

4 x Fuses (5x20mm)

2 x Fuses (6x30mm)

1 x User Manual

1 x Password Letter

1 x Packing List

2 x Carry Cases

1 x OBDI Main Block Adapter

1 x BMW 20-Pin Adapter

1 x Mercedes-Benz 38-Pin Adapter

1 x Mercedes-Benz 14-Pin Adapter

1 x Toyota 17-Pin Adapter

1 x Toyota 22-Pin Adapter

1 x Nissan 14+16 Pin Adapter

1 x Fiat 3-Pin Adapter

1 x Mitsubishi/Hyundai 12+16 Pin Adapter

1 x Honda 3-Pin Adapter

1 x GM/VAZ 12-Pin Adapter

1 x Chrysler 6-Pin Adapter

1 x Audi 2+2 Pin Adapter

1 x Ford 6+1 Pin Adapter

1 x Kia 20-Pin Adapter

1 x Subaru 9-Pin Adapter

1 x Suzuki 3-Pin Adapter

1 x Universal 3-Pin Adapter

1 x GAZ Adapter

1 x Benz 14-Pin Truck Adapter

1 x Volvo 8-Pin Truck Adapter

1 x Iveco 30-Pin Truck Adapter

1 x Iveco 38-Pin Truck Adapter

1 x MAN 12-Pin Truck Adapter

1 x MAN 37-Pin Truck Adapter

1 x Renault 12-Pin Truck Adapter

1 x Isuzu 3-Pin Truck Adapter

1 x Isuzu 20-Pin Truck Adapter

1 x Caterpillar 9-Pin HD Adapter

1 x Deutsch 6-Pin HD Adapter

1 x Deutsch 9-Pin HD Adapter

1 x OBD-16 Heavy-Duty Adapter

Compare the Range

Find where the CR Unicorn S fits.

See how the CR Unicorn S lines up against the CR Ultra, CR Ultra P and CR Unicorn across hardware, coverage and capability.

Feature	iCarsoftCR Ultra	iCarsoftCR Ultra P	iCarsoftCR UnicornPassenger Vehicles	This ModeliCarsoftCR Unicorn SPassenger & Commercial
Screen size	10.1 inches	10.1 inches	13.3 inches	13.3 inches
Resolution	1280*800	1280*800	1920*1080	1920*1080
CPU	MT6761 Core 4, 2.0GHZ	MT6761 Core 4, 2.0GHZ	MT8788, Core 8, 2.0GHz	MT8788, Core 8, 2.0GHz
RAM	4GB	4GB	8GB	8GB
ROM	128GB	128GB	256GB	256GB
WiFi	802.11 ac/a/b/g/n	802.11 ac/a/b/g/n	802.11 ac/a/b/g/n	802.11 ac/a/b/g/n
Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0
Battery	12600mAh / 3.8v	12600mAh / 3.8v	18600mAh / 3.8v	18600mAh / 3.8v
I/O Interface	USB Type C / USB Type A / Pogo Pin	USB Type C / USB Type A / Pogo Pin	USB Type C / USB Type A / HDMI	USB Type C / USB Type A / HDMI
VCI	Common VCI	CR Link	CR Link	CR Link
Camera	800MP (Rear)	800MP (Rear)	1300MP (Rear)	1300MP (Rear)
SD Card Slot	—	—	500G	512G
Adapters for Passenger Vehicle	10 included	10 included	18 included	18 included
Adapters for Commercial Vehicle	—	—	—	13 included
Modules	Battery Tester / Oscilloscope (Optional) / TPMS Gun (Optional)	Battery Tester / Oscilloscope (Optional) / TPMS Gun (Optional)	Printer / Videoscope / TPMS Gun / Battery Test Clip / Oscilloscope (Optional)	Printer / Videoscope / TPMS Gun / Battery Test Clip / Oscilloscope (Optional)
OS	Android 10	Android 10	Android 9 (Open system)	Android 9 (Open system)
Diagnosis	Full systems Full functions	Full systems Full functions	Full systems Full functions	Full systems Full functions
Online programming
ADAS
CANFD
DoIP
J2534	—
Maintenance RESET	40	40	40	40
Passenger Vehicles Diagnosis
Commercial Vehicles Diagnosis	No (Needs to buy HD2000)	Optional	Optional
EV & Battery Pack Diagnosis	—	Optional	Optional	Optional

“Optional” items are available as add-ons. Specifications are drawn from the CR Ultra / CR Ultra P / CR Unicorn / CR Unicorn S comparison sheet; function availability varies by vehicle make, model and year.

Frequently Asked Questions

Everything you need to know.

How big is the CR Unicorn S display and how powerful is it?

The CR Unicorn S runs on a high-performance MT8788 Octa-Core 2.0GHz processor with an expansive, vibrant 13.3-inch Full HD (1920 by 1080) touchscreen, plus 8GB RAM + 256GB ROM and a massive 18600mAh battery for long-lasting workshop performance.

What does built-in J2534 Pass-Thru let me do?

The CR Link Wireless J2534 VCI acts as a bridge between the vehicle electronics and PC-based OEM factory diagnostic/programming software, saving thousands on brand-specific hardware. It also supports cloud programming for 13 premium brands.

How long are software updates free?

The iCarsoft CR Unicorn S includes 2 full years of free online software updates, keeping your tool equipped with the latest vehicle models, J2534 definitions, and software enhancements without hidden fees.

What hardware is included in the box?

As standard the CR Unicorn S includes the CR Link wireless J2534 VCI, a Thermal Printer Module, a Digital Inspection Videoscope, the T-wand9000 programming tool with 4 premium TPMS sensors, a Battery Test Clip Set and a Passenger OBDI Adapters Kit.

Product support

Before & after you buy

iCarsoft CR Unicorn S OE-Level Professional Automotive Car and Truck Diagnostic Tool

The Ultimate One-Stop Diagnostic & Cloud Programming Platform for Both Passenger Cars and Heavy-Duty Trucks

J2534 Pass-Thru

13.3" Full HD

200+ Makes

Before You Buy

iCarsoft CR Unicorn S OE-Level Professional Automotive Car and Truck Diagnostic Tool

41 Function Description of iCarsoft CR Unicorn S Car and Heavy Duty Truck Scanner

2.Integrated Thermal Printer

3.Comprehensive Battery Testing

4.Digital Inspection Camera

5.VCI Specifications

6.Three Optional Device

7.What's in the Box of iCarsoft CR Unicorn S Car and Heavy Duty Truck Scanner？

Choose options
