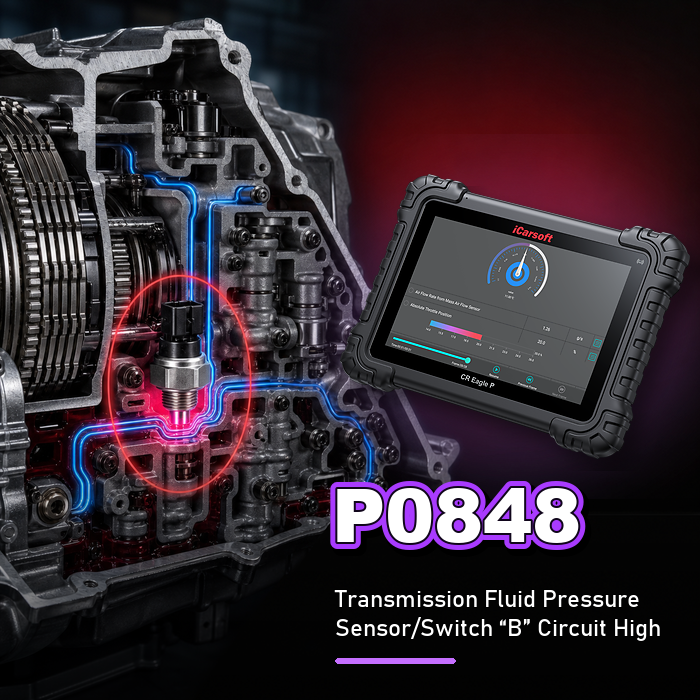

P0848 Code : Transmission Fluid Pressure Sensor B Circuit High

P0848 Code : Transmission Fluid Pressure Sensor B Circuit High

Quick answer

P0848 means Transmission Fluid Pressure Sensor/Switch “B” Circuit High. The TCM or PCM detected a B-channel voltage, digital state or feedback value above the calibrated electrical limit, or a high state that was invalid during the monitor window. It does not automatically mean actual transmission fluid pressure is too high. First identify what “B” means for the exact VIN and transmission, preserve the scan evidence, then test the correct reference, signal, ground or switch circuit before considering internal hydraulic repairs.

SystemOEM-defined transmission fluid pressure sensor or switch B input circuit.
Not the same asP0847 circuit low, P0846 range/performance, or P0869 actual pressure high.
Possible designsDiscrete switch, analog sensor, internal switch manifold, valve body or mechatronic unit.
Typical US costAbout $122–$233 to diagnose; the proven architecture determines the repair.

P0848 sits at the boundary between electronics and hydraulics. A pressure switch may report only ON or OFF, while a three-wire sensor may report changing voltage that the TCM translates into pressure. Some assemblies place the device outside the case; others integrate several switches into a manifold or the entire sensor into a valve body. That variation is why the five-character code is a starting point, not a component-replacement instruction.

1What Does the P0848 Code Mean?

The standardized definition is “Transmission Fluid Pressure Sensor/Switch B Circuit High.” “High” describes the electrical input or state seen by the controller. It does not, by itself, describe hydraulic pressure inside the transmission.

The letter B is an OEM channel label. On one transmission it may be a clutch pressure switch with an internally pulled-up circuit: when the switch or wire remains open, the controller sees a high state. On another, B may be a three-wire analog sensor whose signal is near its upper electrical limit. Ford documents B as the even-clutch pressure sensor on one dual-clutch transmission. GM/Allison applications may call it pressure switch 2 inside a pressure-switch manifold. Mitsubishi examples map it to a clutch 2 pressure sensor or an integrated mechatronic assembly.

Never infer that B is the second external sensor, that high always means an open wire, or that one voltage threshold applies to every vehicle. Use the VIN, transmission identification, software calibration and current OEM diagrams to identify the channel, connector, reference supply, ground, signal logic and monitor conditions.

2How the Sensor/Switch B Monitor Works

The TCM can compare the B input with commanded gear or clutch state, requested pressure, input and output speed, fluid temperature and a calibrated timer. A switch circuit may be expected to change from high to low when hydraulic pressure closes the contacts. An analog sensor should remain within an electrical window and respond plausibly to commanded pressure. An internal switch manifold may report several hydraulic states through an assembly-specific circuit.

P0848 architecture identification and diagnostic branches Three possible Sensor B architectures feed a TCM comparison of command, signal, speed and fluid temperature. An invalid high state sets P0848, then companion codes, electrical proof and mechanical pressure evidence determine the correct branch. P0848: identify what “B” means before judging pressure VIN-SPECIFIC SENSOR / SWITCH ARCHITECTURE Discrete pressure switchClutch or shift hydraulic circuitON / OFF state to the TCMHIGH may mean open / OFF Analog pressure sensorReference • signal • groundVoltage converted to pressureHIGH = output above limit Internal switch manifoldValve body or mechatronic unitMay combine several channelsB remains OEM-defined TCM / PCM validates the B inputCommanded gear or pressure • B state or voltageInput/output speed • fluid temperature • timerUse only the exact OEM enable conditions Invalid HIGH during the monitorP0848 may be stored Shared-code branchReference, power, ground or CANProve shared circuits first Electrical-high branchMechanical pressure is plausibleTest circuit and B input Hydraulic-evidence branchMechanical pressure also abnormalRun OEM hydraulic tests Do not transfer B location, pinout, voltage limit or switch logic from another transmission.
P0848 can describe different hardware. Confirm the architecture first, then separate an electrically high input from a true hydraulic problem.

Do not use a universal voltage or pressure threshold. A published Jeep CVT example uses an application-specific high-voltage limit; Honda switch logic, a Ford dual-clutch sensor and an Allison switch manifold behave differently. Transfer only the diagnostic principle, never the number.

3Common P0848 Symptoms

Warning lamps or messages

The MIL, transmission warning, flashing gear indicator or PRNDL can appear. Some vehicles initially show only a stored code.

Fail-safe or fixed gear

The controller may limit available gears, hold one gear, prevent an upshift or reduce torque to protect the transmission.

Harsh or delayed shifts

Shift shock, delayed engagement or abnormal timing can occur when the controller cannot trust the B pressure state.

Companion faults

Pressure, solenoid, gear-ratio, reference-voltage or communication codes can reveal which diagnostic branch should come first.

Slipping, overheating and loss of drive are possible in some applications, but they are not guaranteed by P0848 alone. Conversely, normal driving today does not prove the fault is harmless: an intermittent connector or internal switch can trigger fail-safe behavior on the next drive.

4Possible Causes of P0848

  • Failed pressure sensor or switch B. A switch may remain open/OFF, or an analog sensor can output an electrical value above its calibrated window.
  • Open signal circuit on a pulled-up switch design. The controller's internal pull-up can make an unplugged switch or broken wire appear high.
  • Signal shorted to reference voltage or power. This is a leading branch for a three-wire analog sensor.
  • Sensor ground or switch-ground problem. An open or resistant ground can drive the reported voltage high.
  • Connector or terminal damage. Fluid intrusion, water, corrosion, loose locks, backed-out pins, poor tension or a wrong repair can distort the input.
  • External or internal harness damage. Chafing, pinching, heat, an internal lead-frame problem or incorrect terminal placement may be responsible.
  • Shared reference, power, ground or network fault. Multiple sensor or communication codes should move this branch earlier.
  • Pressure-switch manifold, valve body or mechatronic fault. This applies only when B is integrated into that assembly and tests prove the branch.
  • Hydraulic or mechanical fault. Low fluid, contamination, pump, leak, stuck valve or clutch pressure belongs on the list only when the OEM monitor and physical pressure evidence support it.
  • TCM/PCM software or hardware fault. Consider it last, after power, grounds, circuit, sensor, pressure and applicable bulletins are verified.

Real OEM examples show the range. One GM bulletin identifies a specified pressure-switch manifold condition; a Peterbilt bulletin corrects mis-pinned transmission wiring; one Mitsubishi dual-clutch procedure leads to a mechatronic assembly. None authorizes applying the same repair to another VIN.

5Can You Drive with P0848?

There is no universal safe distance. If only the MIL is on, shifts are normal, the fluid is not leaking or overheating, and no fail-safe warning is active, the shortest careful trip to diagnosis may be reasonable. Avoid towing, heavy load and high-speed driving until the fault is understood.

Stop driving and arrange a tow if the gear display flashes, the transmission is stuck in one gear, it slips, bangs into gear, will not upshift, loses forward or reverse, overheats, leaks fluid, smells burned or shows a stop-driving message. Continuing can turn a circuit or switch fault into clutch damage.

Transmission fluid and the case can cause severe burns. Set the parking brake, use wheel chocks and support the vehicle with rated equipment. Do not loosen a sensor, switch, pressure port or valve-body component while the system is hot or pressurized. A running-wheel test belongs on a suitable lift with trained personnel.

6How to Diagnose P0848 Step by Step

  1. Preserve the complete fault record

    Before clearing, scan all available modules and save current, pending, history and permanent DTCs, full suffixes, freeze frame, ECU identification and the transmission report. Record the warning and shift behavior as found.

  2. Confirm the exact transmission architecture

    Use the VIN, model year, powertrain code and transmission identification. Determine whether B is a switch, analog sensor, internal manifold, lead frame, valve-body sensor or mechatronic input.

  3. Prioritize companion codes

    Check reference-voltage, power, ground, CAN, fluid-temperature, solenoid, ratio and pressure codes. P0700 only reports that the transmission controller requested the MIL; retrieve the TCM's specific faults.

  4. Check bulletins and configuration

    Search by VIN for harness routing, terminal placement, software and assembly bulletins. Apply a bulletin only to its stated model, transmission, build range and symptoms.

  5. Inspect fluid by the OEM procedure

    Look for leakage first. Check level and condition only at the specified temperature, engine state, gear sequence and fluid type. P0848 is electrical-high, so a fluid service is not a generic fix.

  6. Inspect connectors and harnesses

    Check locks, terminal tension, pin fit, corrosion, fluid intrusion, chafing, pinching, wrong pin placement and prior repairs. Include internal harness access only when the service procedure requires it.

  7. Graph the data the vehicle exposes

    Compare B switch ON/OFF state or sensor voltage/pressure with commanded gear or pressure, actual gear, input/output speed and fluid temperature. Recreate the enable condition only when the vehicle is safe.

  8. Test the correct electrical design

    For a discrete switch, verify the expected state change and circuit continuity using the OEM test. For an analog sensor, test reference, sensor ground and signal, including shorts to power or ground. Never use a test light or arbitrary jumper on a low-current module input.

  9. Compare scan data with mechanical pressure when required

    Use only the specified pressure port, gauge range, fluid temperature, gear and operating condition. A scan value is not an independent pressure measurement. Leave hazardous running-wheel or internal hydraulic tests to a transmission professional.

  10. Prove the failed layer

    Repair wiring or terminals when the circuit fails. Replace an external switch only when its state fails the correct test. Consider an internal manifold, valve body, mechatronic unit or TCM only after the external circuit and actual pressure evidence support it.

  11. Clear, relearn and verify

    Complete required programming, adaptation or relearn, then repeat the enabling conditions. Confirm normal engagement and shifts, plausible B data, no current or pending P0848, and no new pressure or ratio code.

7P0848 Repair Paths

An external switch or sensor can be a straightforward repair when its circuit and state are proven, but access varies. Some transmissions require fluid draining, a new seal or washer, an exact torque and a fluid-level procedure. Wiring repairs must restore terminal grip, sealing, routing and shielding. If a connector is wet with ATF, identify whether fluid is passing through the component or migrating through the harness.

An internal pressure-switch manifold, valve-body sensor, lead frame or mechatronic unit is a different repair tier. It may require pan removal, filter and fluid, cleanliness controls, programming or adaptation. A valve body, rebuild or complete transmission should never be sold from P0848 alone. Confirm independent hydraulic, ratio, clutch or mechanical evidence first.

The correct fix restores agreement. The B electrical state, commanded gear or pressure, actual pressure evidence and transmission behavior must agree under the VIN-specific confirmation conditions.

8Using iCarsoft CR Eagle P for P0848

On a supported vehicle, CR Eagle P can access the TCM, preserve DTC status and freeze frame, identify the control unit and graph OEM-exposed data such as TFPS B voltage or state, commanded and reported pressure, gear, input/output speed and ATF temperature. Supported solenoid tests, transmission functions and adaptations vary by VIN, ECU and software.

iCarsoft CR Eagle P diagnostic tablet for P0848 transmission pressure-sensor diagnosis

Recommended diagnostic platform for P0848

iCarsoft CR Eagle P 2026 Car Diagnostic Tool

Use supported TCM scanning, freeze frame and live-data graphing to preserve the electrical and operating evidence behind P0848. Confirm TFPS B PIDs, solenoid tests and transmission functions by VIN before purchase.

Check current price & availability · lifetime Wi-Fi updates

View CR Eagle PCheck compatibility by VIN

Tool boundary: CR Eagle P cannot measure ATF level or condition, mechanical pressure, reference voltage, continuity or voltage drop; identify the physical B component without OEM information; or guarantee a PID, active test or relearn. Use a DVOM, pressure gauge, breakout leads and physical inspection where the OEM procedure requires them.

9P0848 Repair Cost in the US

These are planning ranges, not quotes. Each row is a different confirmed repair path. Do not add the rows together.

Typical United States P0848 repair planning ranges Six rectangular bars show professional diagnosis, wiring repair, external pressure switch, internal sensor or manifold service, valve-body or integrated control service, and complete transmission replacement ranges. Paths are independent and not additive. Typical US estimate: one confirmed repair path Professional transmission diagnosis$122–$233 Accessible connector / wiring repair$120–$400 External pressure sensor / switch$190–$550 Internal sensor / switch manifold$350–$900 Valve body / integrated control unit$800–$2,500 Complete transmission replacement$6,166–$6,685 average VIN, access, fluid, programming, region and taxes change the quote. Do not add rows.
Electrical proof should precede internal transmission work. P0848 alone does not authorize a valve body, rebuild or transmission replacement.
Confirmed repair path Typical US planning range
Professional transmission and electrical diagnosis $122–$233
Accessible connector, terminal or external wiring repair $120–$400
Separately serviceable external pressure sensor or switch $190–$550
Pan-access internal sensor, switch or pressure-switch manifold service $350–$900
Proven valve body, mechatronic or integrated control assembly $800–$2,500
Complete transmission replacement national average $6,166–$6,685

Diagnosis and complete replacement use current national RepairPal planning figures. Parts-and-labor guidance supports the broader switch, wiring and valve-body paths. Actual cost depends on whether the B device is external or internal, whether a complete assembly is required, fluid and filter needs, programming or adaptation, local labor and taxes. A rebuild may fall around $2,000–$3,500 or more, but belongs only to a separately proven mechanical failure.

10Repair Verification and Prevention

After repair, confirm the connector is locked and dry, the harness is routed correctly, the fluid level is set at the required temperature and any programming or adaptation is complete. Graph the B state or signal through the enabling condition, verify actual gear and input/output speed, repeat safe engagement and shift checks, and rescan for current and pending codes.

Use only the specified ATF, fluid-level procedure, seals and fastener torque. Repair leaks and connector contamination promptly, preserve harness clips and shields, and avoid pressure-washing transmission connectors. There is no universal fluid-change interval or relearn routine; follow the owner's manual and current service information for the exact VIN.

Also distinguish P0849: it identifies an intermittent or erratic sensor/switch B circuit result rather than the sustained circuit-high result described by P0848.

12P0848 FAQ

What does P0848 mean?

P0848 means Transmission Fluid Pressure Sensor/Switch B Circuit High. The controller detected an electrically high voltage or state, or a high state that was invalid during the calibrated monitor. It does not automatically prove actual fluid pressure is high.

Where is transmission pressure sensor or switch B?

Its location is transmission-specific. B may be an external switch, a three-wire sensor, an internal switch manifold, a valve-body sensor or part of a mechatronic unit. Use the VIN, transmission model and OEM diagrams.

Can low or dirty transmission fluid cause P0848?

P0848 is an electrical-high code. Fluid level, contamination or hydraulic faults matter only when the OEM monitor and independent evidence support that branch. A fluid change will not repair an open ground, short-to-power or failed switch.

Can I drive with P0848?

Only consider the shortest careful service trip if shifts are normal and there is no transmission or fail-safe warning, leakage or overheating. Stop and tow for fail-safe mode, a flashing gear display, slipping, harsh impacts, loss of a gear, no drive, overheating or a burned odor.

Does P0848 mean the transmission must be replaced?

No. Causes range from a connector, ground, signal wire or external switch to an internal manifold or valve body. Replacement or rebuilding requires separate hydraulic, ratio, clutch or mechanical evidence.

What can CR Eagle P check for P0848?

On supported vehicles, CR Eagle P can access the TCM, save DTC status and freeze frame, and graph exposed B sensor/switch, pressure, gear, speed and fluid-temperature data. PIDs, active tests and relearns vary by VIN.

How do I verify a P0848 repair?

Repeat the OEM monitor conditions, confirm a plausible B state or signal, normal engagement and shifts, correct fluid level, and no current or pending P0848. Complete any required programming, adaptation or drive cycle.

KB
Kevin Boyd

Diagnostic Engineer · iCarsoft · Transmission and chassis diagnostics

Kevin reviews transmission pressure-sensor, solenoid, valve-body and hydraulic-control faults with an emphasis on VIN-specific architecture, electrical proof and safe repair verification. View Kevin's author profile.

Technical and cost references
  1. BMW Technical Information SAE P-Code List for the standardized P0845–P0849 sensor/switch B descriptors.
  2. Ford 2024 OBD System Operation Summary for an even-clutch pressure sensor B example and separate electrical, performance and actual-pressure results.
  3. GM PIP5378, Peterbilt bulletin 27-010 and Mitsubishi TC-SST diagnostics for application-specific manifold, harness-terminal and mechatronic branches.
  4. GM/Allison DTC information for the pressure switch 2 circuit-high mapping, plus Allison fluid-service guidance for safety and exact-fluid requirements.
  5. RepairPal diagnosis, PartCatalog pressure-switch guidance, PartCatalog valve-body guidance, ConsumerAffairs rebuild guidance, RepairPal transmission replacement and the official CR Eagle P product page for current planning context; actual costs and coverage vary.

Educational information only. This article does not replace the VIN-specific repair manual, fluid and pressure procedure, safety instructions or diagnosis by a qualified transmission technician. Incorrect testing, fluid level or operation on a lift can cause injury or expensive damage.
