P2000 Code: NOx Adsorber Efficiency Below Threshold, Bank 1

P2000 NOx adsorber efficiency below threshold Bank 1 diagnosis with iCarsoft CR Pro S

Quick Answer

P2000 means NOx Adsorber Efficiency Below Threshold, Bank 1. The controller’s monitored result indicates insufficient performance of the specified NOx-storage function. It does not automatically identify a bad NOx sensor, an empty DEF tank, or a clogged DPF. Confirm the exact emissions hardware and full fault record, then validate the monitor inputs and operating conditions before replacing the adsorber.

Standard descriptionGeneric powertrain efficiency DTC
Affected functionNOx storage/adsorber, Bank 1
First checksEmissions layout, companion faults, sensor plausibility
Do not assumeA DPF regeneration is a universal P2000 fix

What Does the P2000 Code Mean?

A NOx adsorber, also called a NOx-storage catalyst or lean NOx trap, performs a nitrogen-oxide treatment function. P2000 records an efficiency result for Bank 1. The code describes what the controller concluded from its monitoring strategy; it does not prove which component caused that result.

Identify the actual exhaust layout before choosing a repair. A vehicle can have several catalysts, temperature sensors, oxygen sensors, pressure sensors, and other treatment components. Similar-looking cans under the car do not establish which one is monitored. Use the VIN, engine code, emissions configuration, and component-location information to map the system.

NOx storage, selective catalytic reduction, and particulate filtration are different functions. SCR systems can meter DEF/AdBlue, while a DPF manages particulate matter. Some vehicles combine technologies, but that does not make a DEF refill or a particulate-filter regeneration a universal remedy for a NOx-storage efficiency code.

The Audi A3 Quick Reference Specification Book dated October 2012 lists P2000 separately from P2002 particulate-trap efficiency. This application example is a useful code distinction. Its monitoring criteria must not be copied as universal temperature, oxygen-signal, or reductant thresholds for another engine.

P2000 versus DPF, SCR, and sensor faults

Code General description Key distinction
P2000 NOx adsorber efficiency, Bank 1 Evaluate the specified NOx-storage function.
P2002 Particulate-filter efficiency, Bank 1 A different monitored function; do not equate it with NOx storage.
P20EE / P20E8 SCR catalyst efficiency / reductant pressure low Relevant only to the fitted system and companion evidence.
P2201 NOx sensor circuit range/performance Validate the sensor path before trusting an efficiency conclusion.

A pair of similar upstream/downstream readings does not by itself prove a bad sensor or catalyst. Sensor type, location, warm-up, transport delay, operating state, and the OEM evaluation method affect interpretation.

P2000 Symptoms and Likely Causes

A steady warning light may be the first sign. Other symptoms depend on companion faults and the engine’s response. Record warning text and operating restrictions exactly; do not infer a universal restart countdown or limp-mode behavior from P2000 alone.

MIL with normal operation

An efficiency monitor can fail without an obvious drivability change. Save the complete report before clearing it.

Fault returns after a qualifying drive

The monitor may need particular operating conditions. A clean scan immediately after clearing is inconclusive.

Additional exhaust-system faults

Sensor, temperature, engine-control, or treatment faults can change the diagnostic order and the validity of data.

Vehicle-specific warning or restriction

Follow the displayed instructions and owner’s manual. Treat unsafe power loss or separate serious warnings urgently.

Practical cause-checking order

  • Invalid or incomplete monitor inputs: A sensor fault, circuit issue, or data plausibility problem can undermine the efficiency calculation. Diagnose relevant companion faults rather than comparing unsupported or substitute readings as if they were valid measurements.
  • Exhaust leaks or physical damage: Inspect the relevant exhaust path, joints, wiring, sensor mounting, and visible damage using the OEM method. A leak or damaged harness can affect the conditions being monitored without proving the adsorber itself is worn out.
  • Engine operating problems: Combustion, air handling, fuel control, or temperature problems may alter exhaust conditions. Investigate recorded engine faults and service history before assigning every aftertreatment code to a catalyst.
  • Incomplete required treatment operation: The system may need a specified operating state or service procedure. Confirm what the exact engine requires; do not confuse a NOx-storage routine with DPF soot regeneration or an SCR dosing test.
  • Adsorber deterioration or contamination: Reduced catalyst performance is possible, but replacement needs valid inputs, appropriate operating conditions, and the prescribed efficiency test. Check applicable OEM information and VIN-specific coverage before authorizing an expensive assembly.

Do not disable emissions equipment or repeatedly force a high-temperature service routine as a diagnostic shortcut. Follow the exact system procedure and its prerequisites.

How Serious Is P2000, and Can You Drive?

With a steady MIL and otherwise normal operation, arrange diagnosis promptly and follow the owner’s manual. The code does not by itself prove that the engine or turbocharger is about to fail. However, it indicates an emissions-control problem that needs a verified repair.

Pay attention to companion warnings, temperature messages, smoke, abnormal engine operation, or restrictions. Those can change the immediate decision. An efficiency code and an unsafe mechanical symptom must be assessed separately; do not continue driving solely because an online guide calls P2000 moderate.

Stop and arrange a tow Stop safely and obtain help for overheating, smoke, fire risk, fuel leakage, a flashing MIL with severe misfire, or unsafe power loss. Follow any manufacturer stop or restart restriction exactly as displayed.

Exhaust components and service regeneration processes can become extremely hot. Keep combustible materials away, provide approved ventilation, and follow the prescribed location and equipment requirements. Let components cool before inspection. Do not perform a forced routine in an enclosed garage or around dry vegetation.

How to Diagnose P2000 in the Right Order

  1. Save the complete fault and identify the emissions package

    Record the VIN, engine code, model year, controller identity, P2000 status, and all companion faults before clearing anything. Save available freeze-frame and environmental records. Note recent exhaust, sensor, software, fuel-system, or engine work and any warning messages that appeared before the code.

    Use current vehicle information to identify the emissions configuration and the component named by the full manufacturer record. Check applicable service bulletins, campaigns, and component coverage by VIN. A model name alone cannot establish whether the vehicle uses a NOx trap, SCR, a DPF, or a combination.

  2. Map the monitored component and its required inputs

    Locate the NOx-storage component and the sensors actually used by its monitor. Identify upstream and downstream positions from the correct diagram rather than assuming every sensor measures NOx. Confirm which PIDs the ECU exposes and what each reported value represents before building a comparison graph.

    Separate treatment commands, actual sensor feedback, calculated values, and monitor results. A requested routine is not proof that the physical process occurred. If a needed input is unavailable or a sensor reports a default value, document the limitation instead of treating that reading as measured exhaust chemistry.

  3. Resolve circuit faults and inspect the exhaust path

    Prioritize relevant sensor, heater, supply, communication, and engine-control faults according to the OEM diagnostic sequence. Inspect accessible wiring, connector seals, sensor installation, and exhaust joints after cooling. Look for disturbed connections and damage associated with recent service, but confirm defects with the prescribed tests.

    Use approved electrical and leak-testing methods for the fitted system. Do not apply battery power to unidentified sensor pins or use unrestricted air pressure to test the exhaust. A visual inspection is a starting point; it cannot prove sensor accuracy, heater performance, or a leak-free system under operating conditions.

  4. Validate live data under the specified conditions

    Review available temperatures, oxygen or NOx values, engine conditions, and treatment status during the safe OEM test. Check plausibility and whether each input has reached its required operating state. Compare data with the correct service criteria, including timing and sensor location, rather than a universal ppm or temperature rule.

    Similar readings on two channels can occur for several reasons, including unsuitable test conditions or different reporting behavior. A flat trace is not automatic proof of a failed sensor. Use the prescribed circuit or functional test to verify the suspect input before relying on it to judge catalyst efficiency.

  5. Run only the matching manufacturer diagnostic routine

    If the service procedure calls for an efficiency test, regeneration, desulfurization, or another operation, confirm the exact routine, prerequisites, supported equipment, and safety conditions. Some procedures may be unavailable on a particular scan tool or blocked by another fault. Resolve the reason instead of repeatedly forcing an incomplete process.

    Keep DPF, NOx-storage, and SCR functions distinct. A menu labeled regeneration is not sufficient identification. Record whether the commanded operation actually completed and what measured or monitor result followed. Do not use an unsupported adaptation reset to conceal an unresolved efficiency failure.

  6. Choose the proven repair and verify the monitor

    Repair the confirmed circuit, leak, operating problem, or failed component. Replace the adsorber only when the current service tests support that decision. Confirm the correct emissions-specific part, required seals, sensor handling, and any prescribed setup or learned-value procedure before installation.

    After assembly, repeat the applicable tests and confirm valid sensor operation. Clear erasable faults only after evidence is saved and the repair is complete. Perform the qualifying operating conditions safely and recheck current, pending, and monitor results. A temporary absence of P2000 after erasing memory is not proof of restored efficiency.

Specifications are vehicle-specific. Use the exact vehicle’s monitoring criteria, sensor test limits, exhaust-temperature prerequisites, routine identification, and drive conditions. There is no universal P2000 NOx ratio, temperature, regeneration duration, or replacement threshold.

P2000 Repairs and Cost Factors

P2000 repairs should address the confirmed cause. That may involve a connection, sensor, leak, engine operating fault, required OEM service procedure, or proven adsorber deterioration. Keep each possibility tied to its test result; the code alone cannot select a new catalyst.

If a replacement component requires a prescribed setup or learned-value procedure, include it in the repair plan. Do not assume every reset is needed or supported. Software work should follow applicable manufacturer direction, and emissions equipment must retain the correct approved function.

Possible path US quote requirements
Diagnostic evaluation Include emissions-layout identification, input validation, and monitor testing.
Sensor or harness repair Name the failed input and the test proving the defect.
Exhaust-path repair Identify the leak or physical damage and required access work.
NOx adsorber replacement Quote the exact emissions-specific assembly, hardware, setup, and verification.

Obtain a written local quote using the VIN and confirmed fault. Sensor access, exhaust corrosion, assembly design, and required service procedures change the work involved. Ask whether diagnosis, parts, labor, taxes, setup, and the qualifying monitor check are included. Verify warranty or campaign eligibility by VIN rather than assuming all catalysts have identical coverage.

Using iCarsoft CR Pro S for P2000

The official CR Pro S page lists diagnostic and bidirectional capabilities. Confirm the exact engine, ECU, software, available live data, and required aftertreatment routine before purchase. Generic OBD communication does not guarantee support for every NOx-storage service test or adaptation.

Use the scanner to organize the supported evidence: companion faults, environmental information, operating data, and monitor status. Compare before and after records under suitable conditions. Keep physical circuit, exhaust-leak, and component tests alongside the report instead of asking one screen value to establish the entire diagnosis.

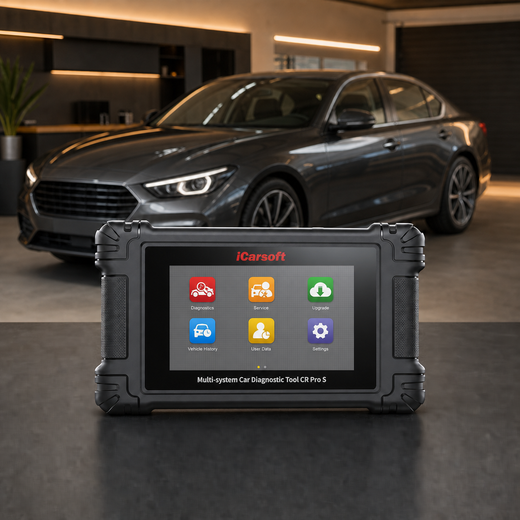

iCarsoft CR Pro S diagnostic scanner for P2000 code checks

Save evidence before choosing a repair

iCarsoft CR Pro S

On a supported vehicle, the CR Pro S helps record the full fault context and relevant exhaust-system data before a repair decision.

Check current CR Pro S price and availabilityCheck CR Pro S compatibility by VIN

Do not advertise a universal P2000 regeneration, catalyst cleaning, or emissions reset. Run a service function only when it matches the fitted system, is supported for the VIN, and is required by the OEM procedure. Tool coverage and vehicle repair specifications answer different questions.

Know the measurement boundary. A scan tool cannot physically measure exhaust leakage, sensor supply voltage, current, catalyst chemistry, or internal substrate damage. It reports supported controller information and commands; external instruments and inspections provide the other evidence.

Verify the P2000 Repair

Confirm that relevant sensor and engine faults are resolved and the monitor has valid operating inputs. Inspect any repaired exhaust connection, wiring, and component mounting. Save the post-repair report and repeat the qualifying conditions specified for the vehicle.

Check current and pending faults together with readiness and available monitor results. A permanent emissions DTC, if supported and stored, clears only through the vehicle’s own qualifying monitor requirements. Battery disconnection or a scanner erase cannot force that record away.

A permanent P2000 can remain immediately after a successful repair. If the vehicle stores it as a permanent DTC, a scan tool or battery disconnect cannot erase it. Once current and pending faults are absent, the OBD system removes the permanent record only after the applicable monitor reruns and passes.

P2000 Frequently Asked Questions

Does P2000 mean the NOx sensor is bad?

No. It is an adsorber efficiency result. Validate the exact sensors used by the monitor, their circuits, and the operating conditions before choosing a sensor or catalyst.

Will adding DEF fix P2000?

Not automatically. Identify whether the vehicle has SCR/DEF hardware and whether any companion fault calls for that branch. NOx storage and DEF dosing are different functions.

Is P2000 the same as a clogged DPF?

No. P2000 concerns NOx adsorber efficiency, while particulate-filter faults involve a different treatment function. Combined hardware does not make the diagnostic procedures interchangeable.

Do matching NOx readings prove catalyst failure?

No. Sensor validity, warm-up, exhaust travel delay, operating state, and the OEM evaluation method matter. A simple matching-number rule cannot establish the failed component.

Can a forced regeneration clear the problem?

Only a matching, required, supported OEM procedure is appropriate. A DPF routine is not a universal NOx-storage repair. Confirm completion and monitor results rather than repeatedly forcing heat into the exhaust.

How is a P2000 repair confirmed?

Restore valid inputs, complete the applicable tests and qualifying operating conditions, and confirm the monitor result and code status. Readiness and any permanent DTC must be checked separately from a newly cleared warning light.

IC
iCarsoft Technical Team
Vehicle diagnostics and scan-tool guidance

The iCarsoft Technical Team explains diagnostic evidence and scan-tool workflows. Confirm repair specifications and tool coverage for your vehicle.

Editorial note: Use current manufacturer instructions for your VIN and qualified help for work beyond your training. A code identifies a test result, not a confirmed failed part.
