Quick Answer
P0097 means Intake Air Temperature Sensor 2 Circuit Low. The controller has detected an input below its calibrated electrical limit. It does not establish that the intake air is cold or that the sensor needs replacing. Save the complete scan and freeze frame, identify the correct sensor by VIN, and inspect its connector and circuit before buying parts.

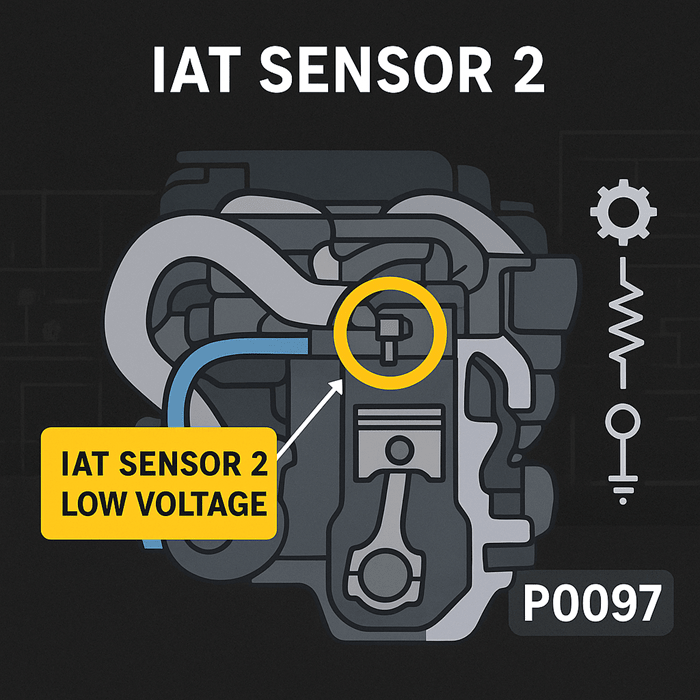

What Does the P0097 Code Mean?
The P0097 code concerns the second intake-air-temperature input identified by the manufacturer. The engine controller uses temperature information alongside other measurements to manage the engine. A circuit-low result describes the monitored input, not an independent measurement of actual intake-air temperature.
Many temperature sensors use a negative-temperature-coefficient thermistor: resistance falls as temperature rises. In a conventional pull-up circuit, an unusually low signal can be interpreted as very hot air. A short to ground, an internally shorted sensor or a circuit problem may produce that result. Confirm the actual circuit design before applying this explanation.
Sensor 2 is not automatically the second connector you see, an oxygen sensor or the sensor nearest the air filter. Depending on the engine, the temperature element may be separate or incorporated into another intake or pressure-sensing assembly. Use the engine code, connector view and parts diagram to identify it.
For a Chevy Cruze or other GM vehicle showing P0097-00, save the complete code and the ECU description. Do not transfer a sensor location, pin number or resistance chart from a different engine. A suffix displayed by a manufacturer-aware scanner provides context; it does not turn a generic description into a confirmed parts diagnosis.
P0097 versus other intake-temperature codes
| Code | General description | Key distinction |
|---|---|---|
| P0097 | IAT sensor 2 circuit low | An electrical low-input classification; identify IAT 2 first. |
| P0098 | IAT sensor 2 circuit high | The opposite electrical classification, with a different test branch. |
| P0096 | IAT sensor 2 range/performance | An implausible response can exist without a hard circuit-low fault. |
| P0112 | IAT sensor 1 circuit low | Similar wording, but a different sensor designation. |
| P2199 | IAT sensor 1/2 correlation | The controller sees disagreement between temperature inputs. |
Verified GM service example: Bulletin PI1009, dated July 2013, describes P0097 and companion codes after MAF disconnection during service on specified 2013–2014 GM vehicles with listed 3.0L/3.6L engines. It directs technicians to recheck connector engagement. It does not establish the same cause or sensor layout for every Cruze or Equinox.
P0097 Symptoms and Likely Causes
A warning light may be the only symptom. The controller may substitute a temperature value, so a normal-looking live-data number does not by itself prove the circuit is healthy. Use code status, recorded conditions and electrical evidence together.
A current, pending or stored P0097 may appear alone or alongside airflow and temperature codes.
The temperature may be fixed, unexpectedly hot, erratic or replaced by a default value.
Hesitation, rough operation or reduced power can occur, depending on the engine and companion faults.
Normal operation does not rule out an intermittent connector or harness defect.
Practical cause-checking order
- Recent service or poor connector engagement: check the locking tab, backed-out terminals and wiring disturbed during nearby work. A connector that looks attached may still have poor contact.
- Signal wiring touching ground: inspect routing against brackets, intake parts and sharp edges. Heat or abrasion can expose a conductor only when the engine moves.
- Moisture or terminal damage: contamination, weakened terminal tension and an incorrect previous splice can change the signal or make it intermittent.
- A defective sensor or integrated assembly: consider replacement only after its signal behavior and the external circuit have been tested.
- Shared-circuit or controller issues: companion codes may identify a common reference, ground or connector problem. Follow the OEM procedure before considering the controller.
A dirty air filter is not evidence of an electrical short. Replace a filter when maintenance or inspection calls for it, but do not present filter replacement or sensor cleaning as a proven P0097 repair.
How Serious Is P0097, and Can You Drive?
With a steady warning light and otherwise normal operation, the owner’s manual may permit a short, gentle trip for diagnosis. Avoid high loads until the fault is understood. An isolated P0097 code does not justify a universal “safe for a week” or “engine damage is certain” statement.
Stop and arrange a tow if the engine stalls repeatedly, loses power unpredictably, misfires severely, shows a flashing malfunction light, overheats or displays an oil-pressure warning. These symptoms need their own diagnosis; do not assume they are harmless consequences of a temperature sensor.
Work on a cool engine with the ignition state specified by the service procedure. Keep hands and test leads away from belts and automatically operated fans. Do not insert oversized probes, bridge sensor pins or measure resistance on a powered circuit.
How to Diagnose P0097 in the Right Order
-
Save the full scan and original conditions
Read all accessible modules and record P0097 status, suffix, companion codes and available freeze-frame data. Note the engine temperature, operating state and any recent repair. Save the report before clearing anything; clearing can remove the evidence that distinguishes a one-time service event from a recurring fault.
Check whether the code is current or merely stored. If it followed disconnected intake components, inspect that work before assuming a new sensor failed. Do not keep erasing a code that returns immediately.
-
Identify the exact IAT 2 sensor and diagram
Confirm VIN, engine and ECU identification. Obtain the correct connector pinout, sensor location and OEM P0097 test. Distinguish the temperature element from pressure, airflow and other circuits sharing the housing. A physically compatible plug does not prove two sensors use the same signal arrangement.
For GM vehicles, check applicable bulletins by model and engine. Treat the PI1009 example as a reason to investigate service history, not permission to follow a bulletin outside its listed applications.
-
Inspect the connector and harness before replacing parts
Look for incomplete latching, moisture, bent or pushed-back terminals, damaged insulation and harness strain. Follow the loom to the areas moved during recent work. Inspect any connector seals and repair splices using the manufacturer’s terminal-service guidance.
If a controlled harness-movement test is specified, secure the vehicle and keep away from moving or hot parts. A reproducible scan-data change helps locate a defect, but does not identify a sensor as bad without further testing.
-
Prove the signal and reference paths with a meter
Use the prescribed high-impedance meter, connector adapters and circuit test conditions. Check the relevant supply or pull-up, low reference, signal continuity and shorts in the order given by the wiring diagram. A voltage reading at one unplugged connector is only one piece of evidence.
If the procedure calls for sensor isolation, compare the before-and-after response with the manufacturer’s expected behavior. Do not assume every unplugged sensor must produce one universal temperature or voltage, and never jumper an ECU pin to battery power.
-
Compare scan readings with plausible physical conditions
View supported IAT 1, IAT 2, coolant and ambient-related data under the conditions required by the OEM test. After sufficient cooling, large unexplained disagreement is a useful clue. Heat soak and different sensor locations can produce real differences, so exact equality is not a universal rule.
Compare the ECU-provided temperature with independent measurements and circuit results. An unavailable PID is a coverage limitation, not evidence that the vehicle’s sensor or controller is faulty.
-
Confirm the repair path and retest the original fault
Replace the sensor only when the test isolates it from the wiring and controller. If it is integrated into an assembly, confirm the correct service part and installation procedure. Repair damaged terminals or routing with approved materials rather than twisting wires together.
Save the repaired readings, reconnect everything securely and complete any required setup. Then use the actual monitor conditions to establish whether P0097 returns. One normal start cannot exclude a fault that only appears with heat or engine movement.
Specifications are vehicle-specific. Use the resistance-versus-temperature chart, input limits and enable conditions for the exact engine. Ford’s published examples describe specific applications; their voltage limits and timing are not universal GM, Chevrolet or other-brand specifications.
P0097 Repairs and Typical Costs
The right P0097 fix follows the failed test. A loose connection may need terminal or locking-tab repair; a chafed signal wire needs proper insulation, routing and support; a confirmed failed temperature element needs the correct sensor or integrated assembly. Correct shared-circuit faults before replacing several sensors.
Ask the repairer to explain which measurement isolated the fault and whether the estimate includes an integrated assembly rather than a standalone IAT sensor. Keep the original scan, photographs and invoice together so a returning intermittent problem can be compared with the original condition.
| Possible path | Current US estimate |
|---|---|
| Standalone intake-air-temperature sensor replacement, when applicable | $119–$142 |
| Integrated MAF/MAP/temperature assembly after confirmed failure | VIN-specific quote |
| Connector, terminal or harness repair | VIN-specific quote |
| Diagnosis of shared circuits or a suspected controller | VIN-specific quote |
RepairPal’s standalone IAT sensor replacement estimate was $119–$142, updated September 3, 2026 and checked September 24, 2026. It is context for that named service, not a guaranteed IAT 2 or complete P0097 repair price. Integrated assemblies may require a different estimate.
Taxes, fees, location and related work are excluded from that published range. The rows represent alternative repair outcomes, not charges to add together. Request a diagnosis-led quote for your VIN before authorizing parts.
Using iCarsoft CR MAX for P0097
On a supported vehicle, iCarsoft CR MAX can help read engine faults, preserve available freeze-frame information and display ECU-provided live data. For a P0097 investigation, useful information may include code status and the temperature channels the vehicle actually exposes.
Select the exact vehicle and engine where enhanced diagnostics are required. Keep a before-and-after record under comparable conditions rather than declaring success because the warning light went out after clearing. The scanner assists diagnosis; it does not perform the wiring inspection for you.
Save evidence before choosing a repair
iCarsoft CR MAX
Use supported ECU data and stored-code evidence to investigate the IAT 2 circuit. Confirm the exact vehicle coverage before purchase.
Check current CR MAX price and availabilityCheck CR MAX compatibility by VINAn active test is not automatically needed for a passive temperature-sensor fault. Use only functions supported by the selected ECU and specified by the repair procedure. Missing enhanced data should prompt a coverage check or a different approved diagnostic method.
Know the measurement boundary. CR MAX displays values reported by the vehicle. It does not physically measure connector voltage, terminal resistance, wire continuity or the temperature at the sensor. Use a suitable multimeter, temperature measurement and the OEM circuit procedure alongside scan data.
Verify the P0097 Repair
After documenting the repair, clear erasable codes using the prescribed procedure. Recheck the temperature reading under appropriate cold and warm conditions, verify connector engagement and inspect for newly introduced companion codes. A substituted value must not be mistaken for a tested working sensor.
Safely reproduce the conditions that originally triggered the problem. Check current and pending codes and the applicable monitor result, where available. Readiness is a record of monitor completion, not a promise that every component has been independently tested.
A permanent P0097 can remain immediately after a successful repair. If the vehicle stores it as a permanent DTC, a scan tool or battery disconnect cannot erase it. Once current and pending faults are absent, the OBD system removes the permanent record only after the applicable monitor reruns and passes.
Related Intake Air Temperature Code Guides
P0097 Frequently Asked Questions
Does P0097 mean the IAT sensor 2 is bad?
No. P0097 identifies a low-input circuit result. A shorted signal wire, damaged connector, shared-circuit problem or defective sensor can produce it. Test the external circuit and the sensor response before deciding which part needs repair.
Where is IAT sensor 2 on a Chevy Cruze?
The location depends on the model year, engine and intake arrangement. Use the VIN-specific component diagram and connector view. Do not identify it solely by counting sensors or applying an Equinox or another Cruze engine’s diagram.
Why does the scanner show hot air with a circuit-low code?
On a conventional negative-temperature-coefficient circuit, a low signal voltage can be interpreted as high temperature. That can result from an electrical defect rather than actually hot air. Some ECUs also substitute a default reading after detecting the fault.
Can I drive with a P0097 code?
A short trip for diagnosis may be possible with a steady warning light and normal operation, subject to the owner’s manual. Stop for stalling, severe misfire, flashing MIL or unsafe power loss. Diagnose companion faults as well.
How much does a P0097 repair cost?
There is no single code-based price. A standalone IAT replacement estimate differs from a combined sensor assembly, connector repair or intermittent wiring diagnosis. Use the cost section as service context and obtain a quote for the proven failure on your vehicle.
Can CR MAX clear P0097 after repair?
On supported vehicles it can clear erasable engine codes after the fault has been repaired and evidence saved. The monitor must then verify the repair. If a permanent record is supported, the vehicle’s OBD system must remove it; clearing is not a repair.
Technical and cost references
- Ford OBD System Operation Summary, gasoline MY 2024–2025: IAT 2 circuit monitoring; revision April 16, 2024
- GM PI1009: Diagnostic Tips for DTCs P0097, P00F4, P0113, P2229 and/or P0102 Set — July 2013
- RepairPal: Intake Air Temperature (IAT) Sensor Replacement Cost Estimate — updated September 3, 2026
- California BAR: Permanent Diagnostic Trouble Codes — Fall 2019
Product information: Official iCarsoft CR MAX page.
Editorial note: Use current manufacturer instructions for your VIN and qualified help for work beyond your training. A code identifies a test result, not a confirmed failed part.
