P0109 Manifold Absolute Pressure/Barometric Pressure Circuit Intermittent - Comprehensive Guide

The P0109 trouble code is an OBD-II diagnostic code signaling an intermittent issue with the Manifold Absolute Pressure (MAP) or Barometric Pressure (BARO) sensor circuit, which can disrupt engine performance and fuel efficiency in trucks like the Ford F-150. This article delves into P0109, including its definition, causes, symptoms, diagnostic steps, and solutions for how to diagnose P0109 in Jeep Wrangler or fix P0109 in Chevrolet Silverado. Backed by real-world user case studies—such as intermittent wiring faults in the Ford F-150 and sensor glitches in other models—this guide provides practical advice for vehicle owners and mechanics to resolve the issue using the iCarsoft CR MAX scanner. For related low or high input issues, check our guides on P0107 code and P0108 code.

1. What is P0109 Manifold Absolute Pressure Circuit Intermittent?

P0109 is an OBD-II diagnostic trouble code (DTC) defined as "Manifold Absolute Pressure/Barometric Pressure Circuit Intermittent." It means the Engine Control Module (ECM) or Powertrain Control Module (PCM) has detected an inconsistent or intermittent voltage signal from the MAP or BARO sensor, which doesn't stay within the expected range steadily. This intermittency can confuse the ECM's calculations for air-fuel mixture in vehicles like the Jeep Wrangler, leading to sporadic performance problems.

Role of the MAP/BARO Sensor in Vehicle Operation

The MAP sensor monitors intake manifold pressure to help the ECM adjust fuel injection and ignition timing based on engine load. The BARO sensor measures atmospheric pressure for altitude compensation. An intermittent signal from a faulty circuit can cause erratic readings, triggering P0109 and issues like hesitation in high-altitude driving for off-road vehicles.

Common Trigger Conditions for P0109 Code

• Intermittent voltage fluctuations in the MAP/BARO sensor circuit due to loose connections.
• Damaged or corroded wiring causing sporadic signal drops or spikes.
• Faulty MAP/BARO sensor that works intermittently in models prone to P0109 like Ford F-150.

2. Potential Causes and Specific Issues of P0109 OBD-II Code

P0109 often arises from intermittent electrical problems, particularly in rugged vehicles like the Jeep Wrangler where vibrations exacerbate wiring issues. Below is a detailed list of common causes, supported by real-world user examples for fixing P0109 in Chevrolet Silverado or diagnosing P0109 in Honda Accord:

• (1) Faulty MAP/BARO Sensor
  Issue: The sensor intermittently fails to send consistent signals.
  User Example: In a 2018 Ford F-150 owned by a trucker from Arizona, the MAP sensor glitched after 100,000 miles due to heat exposure, causing random 0.2V drops and triggering P0109 during highway drives.
  Cause: Internal sensor degradation or contamination.
• (2) Wiring or Connector Issues
  Issue: Loose, corroded, or damaged wiring leads to intermittent connections.
  User Example: A 2019 Jeep Wrangler owner in Colorado reported P0109 from a loose connector in the MAP harness after off-roading, resulting in sporadic power loss on trails.
  Cause: Vibration, moisture, or corrosion in exposed wiring.
• (3) Vacuum Leaks
  Issue: Intermittent vacuum leaks affect pressure readings sporadically.
  User Example: In a 2020 Chevrolet Silverado from a farmer in Texas, P0109 appeared due to a loose vacuum hose that shifted during towing, causing inconsistent idle and fuel economy drops.
  Cause: Worn hoses or fittings in heavy-duty use.
• (4) Contaminated or Blocked MAP Sensor
  Issue: Dirt or debris causes partial blockages leading to intermittent signals.
  User Example: A 2016 Honda Accord driver in humid Georgia experienced P0109 because of carbon buildup on the MAP sensor from poor air filters, leading to hesitation only under load.
  Cause: Inadequate maintenance in polluted environments.
• (5) ECM/PCM Malfunction
  Issue: Software glitches or internal faults cause misinterpretation of signals.
  User Example: A 2021 Toyota Tacoma user in Washington had P0109 from an ECM firmware issue during cold weather starts, resolved with an update, with symptoms appearing randomly.
  Cause: Outdated software or electrical interference.
• (6) Additional User-Reported Cause: Ground Faults in Electrical System
  Issue: Poor grounding leads to intermittent voltage instability.
  User Example: A 2017 Ram 1500 owner fixed P0109 by cleaning corroded grounds after noticing it only in rainy conditions, restoring consistent sensor readings.
  Cause: Corrosion in underbody wiring for trucks.

3. Symptoms of P0109 MAP Sensor Intermittent Signal

Symptoms of P0109 are erratic due to the intermittent nature, often mimicking other codes like P0107 or P0108 in vehicles like the Ford F-150. Here are common signs and causes for quick troubleshooting:

• Check Engine Light On Intermittently
  Symptom: MIL flashes or stays on sporadically.
  Cause: ECM detects inconsistent MAP/BARO signals, frequent in Jeep Wrangler off-road use.
• Erratic Engine Performance
  Symptom: Random hesitation, surging, or power loss.
  Cause: Unstable air-fuel adjustments from intermittent data in Chevrolet Silverado.
• Rough or Unstable Idle
  Symptom: Idle fluctuates or engine stalls occasionally.
  Cause: Inconsistent pressure readings affecting idle control in Honda Accord.
• Increased Fuel Consumption
  Symptom: Sporadic drops in MPG.
  Cause: ECM over-fuels during signal glitches in daily drivers.
• Black Exhaust Smoke Occasionally
  Symptom: Intermittent rich mixture smoke.
  Cause: Erratic manifold pressure interpretation in Toyota Tacoma.
• Additional Symptom: Difficulty Starting or Throttle Response Issues
  Symptom: Engine cranks but hesitates to respond to accelerator.
  Cause: BARO sensor intermittency affecting cold starts in Ram 1500.

4. Vehicles Prone to P0109 and Expanded User Case Studies

P0109 frequently affects vehicles with exposed sensors or heavy vibration, such as the Ford F-150 in towing scenarios. Below are examples with detailed user case studies for P0109 sensor replacement cost and fixes:

• Ford F-150 (2015-2020)
  Issue: Faulty MAP sensor intermittency.
  User Case Study: 2018 F-150 owner with 120,000 miles faced random surging; OEM replacement cost $70, fixed in 45 minutes using iCarsoft CR MAX for live monitoring.
• Jeep Wrangler (2014-2019)
  Issue: Loose wiring from off-roading.
  User Case Study: 2019 Wrangler enthusiast secured connectors for $40, eliminating trail-side power loss; multimeter confirmed stability.
• Chevrolet Silverado (2016-2021)
  Issue: Vacuum hose shifts during loads.
  User Case Study: 2020 Silverado farmer replaced hose for $30, improving towing efficiency by 10% after repair.
• Honda Accord (2013-2018)
  Issue: Contaminated MAP sensor.
  User Case Study: 2016 Accord commuter cleaned with iCarsoft-recommended spray for $12, stopping highway hesitations.
• Toyota Tacoma (2016-2021)
  Issue: ECM software glitch.
  User Case Study: 2021 Tacoma user received free dealer update, clearing intermittent P0109 without parts.
• Additional: Ram 1500 (2014-2019)
  Issue: Corroded grounds.
  User Case Study: Owner cleaned grounds for $50, resolving rain-induced symptoms and restoring reliability.

5. Steps to Diagnose P0109 Using iCarsoft CR MAX Scanner

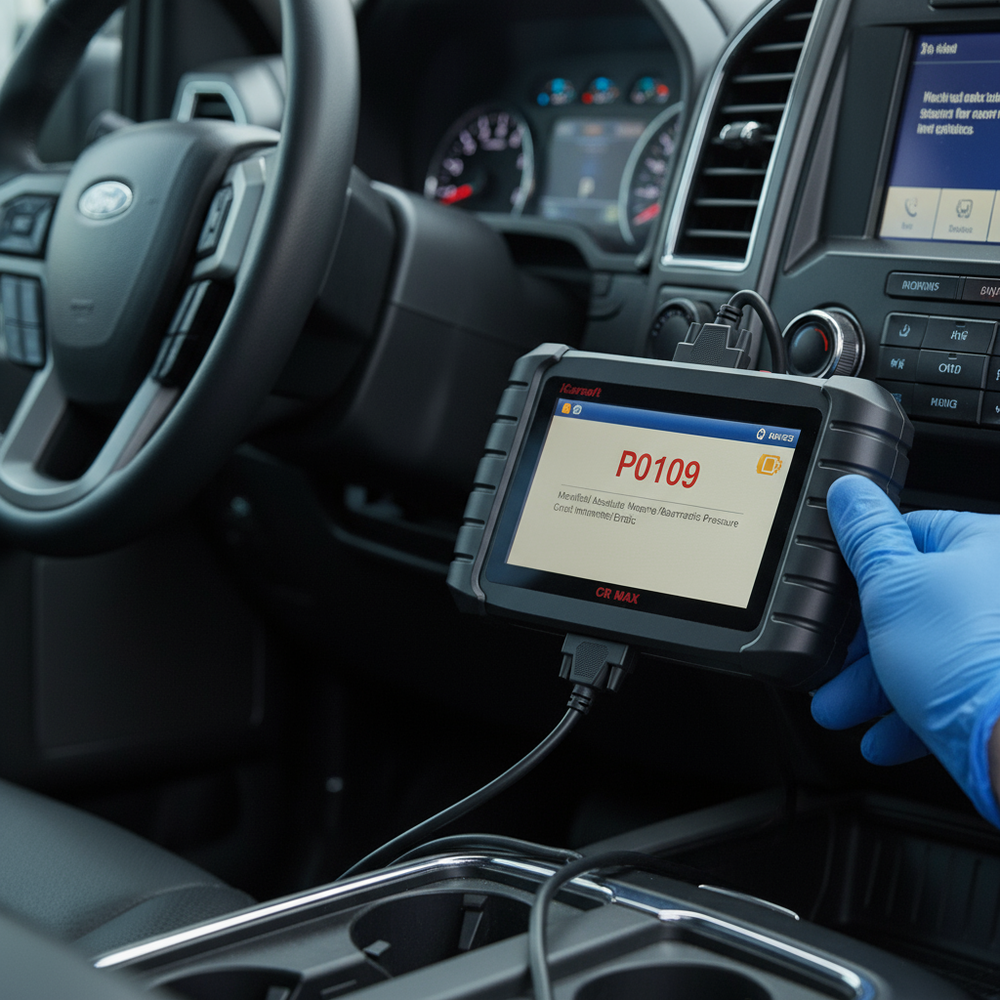

Diagnosing P0109 involves monitoring for intermittency, ideal for how to fix P0109 in Ford F-150. Use the iCarsoft CR MAX OBD-II scanner for real-time data capture:

Step 1: Read Trouble Codes and Data Stream
Tool: iCarsoft CR MAX scanner.
Action: Connect to OBD-II port, scan for P0109, and log live MAP/BARO data over time.
Key Data:

1. MAP voltage: Should fluctuate steadily 0.5-4.5V with load; watch for drops/spikes.
2. BARO pressure: Consistent at key-on, engine-off (~100 kPa at sea level).

Example: The F-150 logged intermittent 0.2V drops using iCarsoft CR MAX.

Step 2: Visual Inspection
Checkpoints:

1. MAP/BARO sensor and connectors: Check for looseness or corrosion.
2. Wiring harness: Inspect for chafing or intermittent breaks.
3. Vacuum lines: Look for loose or cracked hoses.

Example: The Wrangler's loose connector was spotted visually.

Step 3: Test the MAP/BARO Sensor
Tool: Multimeter and vacuum pump.
Action:

1. Monitor voltage over time: Tap/wiggle wires to induce intermittency.
2. Apply vacuum: Ensure consistent response without glitches.

Example: The Accord's sensor glitched when tapped.

Step 4: Check for Vacuum Leaks
Action:

1. Perform smoke test on intake system.
2. Vary engine load to provoke leaks.

Example: The Silverado's hose shifted under simulated load.

Step 5: Inspect for Contamination
Action:

1. Remove sensor and clean if dirty.
2. Test post-cleaning for stability.

Example: The Accord's buildup was cleared successfully.

Step 6: Verify ECM/PCM
Action:

1. Swap with known-good sensor to isolate.
2. Update firmware via dealer tools.

Example: The Tacoma's update eliminated glitches.

6. Solutions and Implementation for P0109 Fixes

Based on diagnostics, implement these repairs, including P0109 MAP sensor replacement cost details:

• Replace the MAP/BARO Sensor
  Part: Ford OEM MAP sensor (~$60-$120).
  Steps: Disconnect, replace, secure connections, clear codes with iCarsoft CR MAX.
  Example: The F-150's replacement ended random surges.
• Repair Wiring or Connectors
  Method: Tighten, solder, or replace faulty sections.
  Example: The Wrangler's securement fixed off-road issues.
• Repair Vacuum Leaks
  Part: Chevrolet vacuum hose (~$25-$60).
  Example: The Silverado's fix improved load handling.
• Clean the MAP Sensor
  Part: Sensor cleaner (~$10-$25).
  Example: The Accord avoided replacement costs.
• Update ECM Software
  Tool: Dealer or iCarsoft CR MAX compatible.
  Example: The Tacoma's update was cost-free.
• Additional Solution: Clean or Replace Grounds
  Method: Inspect and treat corrosion (~$40-$100).
  Example: The Ram 1500's cleaning resolved weather-related faults.

7. Repair Costs and Precautions for P0109 Diagnosis

• MAP Sensor Replacement Cost: $60-$150 (parts/labor).
• Wiring Repair: $50-$200 based on damage.
• Vacuum Hose Fix: $25-$60 for DIY.
• Sensor Cleaning: $10-$25 with iCarsoft products.
• ECM Update: $0-$150 at dealer.
• Ground Cleaning: $40-$100 for trucks.

Precautions for Long-Term Stability

• Secure all connectors against vibration in Jeep Wrangler.
• Apply protective coatings to wiring in wet climates like Georgia.
• Regularly log data with iCarsoft CR MAX to detect early intermittency.

8. Preventive Measures to Avoid P0109 Code

• Inspect wiring and connectors every 15,000 miles in off-road vehicles.
• Clean MAP sensor every 40,000 miles to prevent buildup in Honda Accord.
• Use rugged air filters to minimize contamination in Ford F-150.
• Update ECM software promptly with iCarsoft CR MAX tools.
• Check grounds annually in trucks like Ram 1500 exposed to elements.

9. FAQ: Common Questions About P0109 Manifold Absolute Pressure Circuit Intermittent

Summary

The P0109 trouble code points to an intermittent issue in the MAP/BARO sensor circuit, commonly from wiring faults, sensor glitches, or vacuum leaks in vehicles like the Ford F-150. With in-depth user case studies—such as the wiring looseness in the 2019 Jeep Wrangler or contamination in the 2016 Honda Accord—and precise diagnostics using the iCarsoft CR MAX scanner, this guide helps you troubleshoot and repair efficiently. Promptly addressing P0109 enhances reliability, fuel economy, and drivability. For similar issues, explore our P0107 code and P0108 code articles. Tools like the iCarsoft CR MAX from www.icarsoft-us.com offer advanced scanning for optimal results.
