iCarsoft CR Max P — Bi-Directional Scan Tool with Topology Mapping for 58 Car Brands
See the Whole Vehicle Network. Find Faults at a Glance.
Visualize every control module in one network, identify fault and communication status faster, and go directly from the topology map to system diagnostics. CR Max P combines full-system scanning, active tests, ECU coding, and 50 service functions in one professional platform.
- NEW · Visual Topology Mapping
- CAN-FD & DoIP
- 10" Android Touchscreen
- Lifetime Free Updates
Couldn't load pickup availability
1-Year Warranty
Hardware coverage
120+ Countries
Global support
Return Policy
Return Policy
iCarsoft CR Max P — Bi-Directional Scan Tool with Topology Mapping ...
One tool. The whole garage.
From European marques to American muscle to Asian imports — CR Max P speaks the language of 58+ vehicle makes, natively. No paid brand unlocks, no extra downloads. Filter by region or search your brand below.
The flagship, without the dealer price.

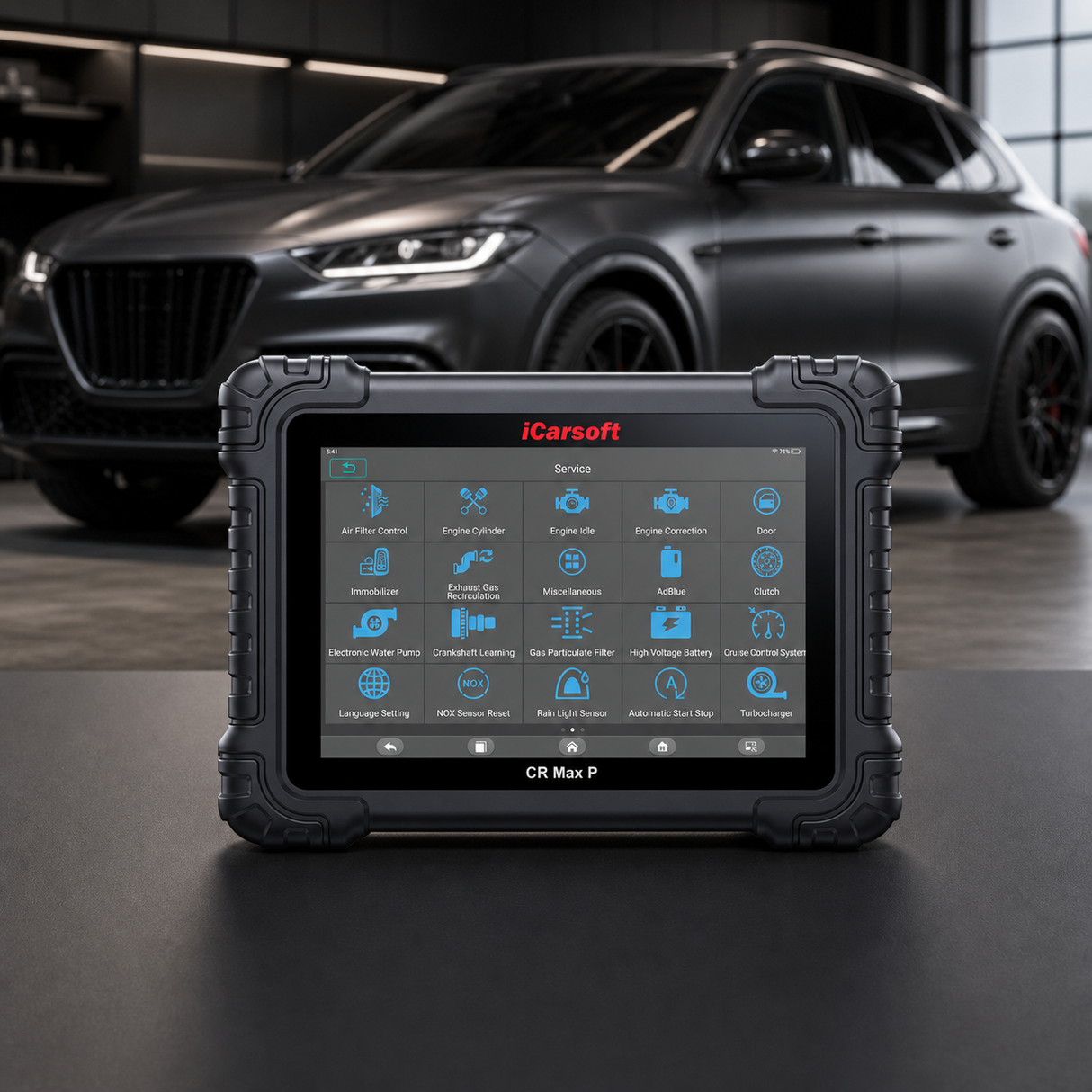

iCarsoft CR Max P diagnostic tool features a 10-inch Ultra HD touchscreen. Powered by a 1.3GHz quad-core processor and Android system, it comes with 64GB storage and a 10000mAh battery, supporting up to 8 hours of continuous operation. Boasting an intuitive interface, it delivers seamless vehicle diagnosis performance.
Pay once. Upgrade forever.
Unlike other OBD scan tools on the market that require annual subscription fees, the CR Max P offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
Pay Once. Upgrade Forever. · No subscriptions, no surprise fees.
CAN-FD (Controller Area Network – Flexible Data-rate) and DoIP (Diagnostic Communication over Internet Protocol) are next-generation automotive communication protocols adopted by today's modern cars: CAN-FD, compatible with 2020- G.M & Chrysler Models; DoIP, compliant cars including Volvo, Land Rover/Jaguar, BMW F/G chassis, etc.
Compatible with 2020- G.M & Chrysler Models.
Compliant cars including Volvo, Land Rover/Jaguar, BMW F/G chassis, etc.

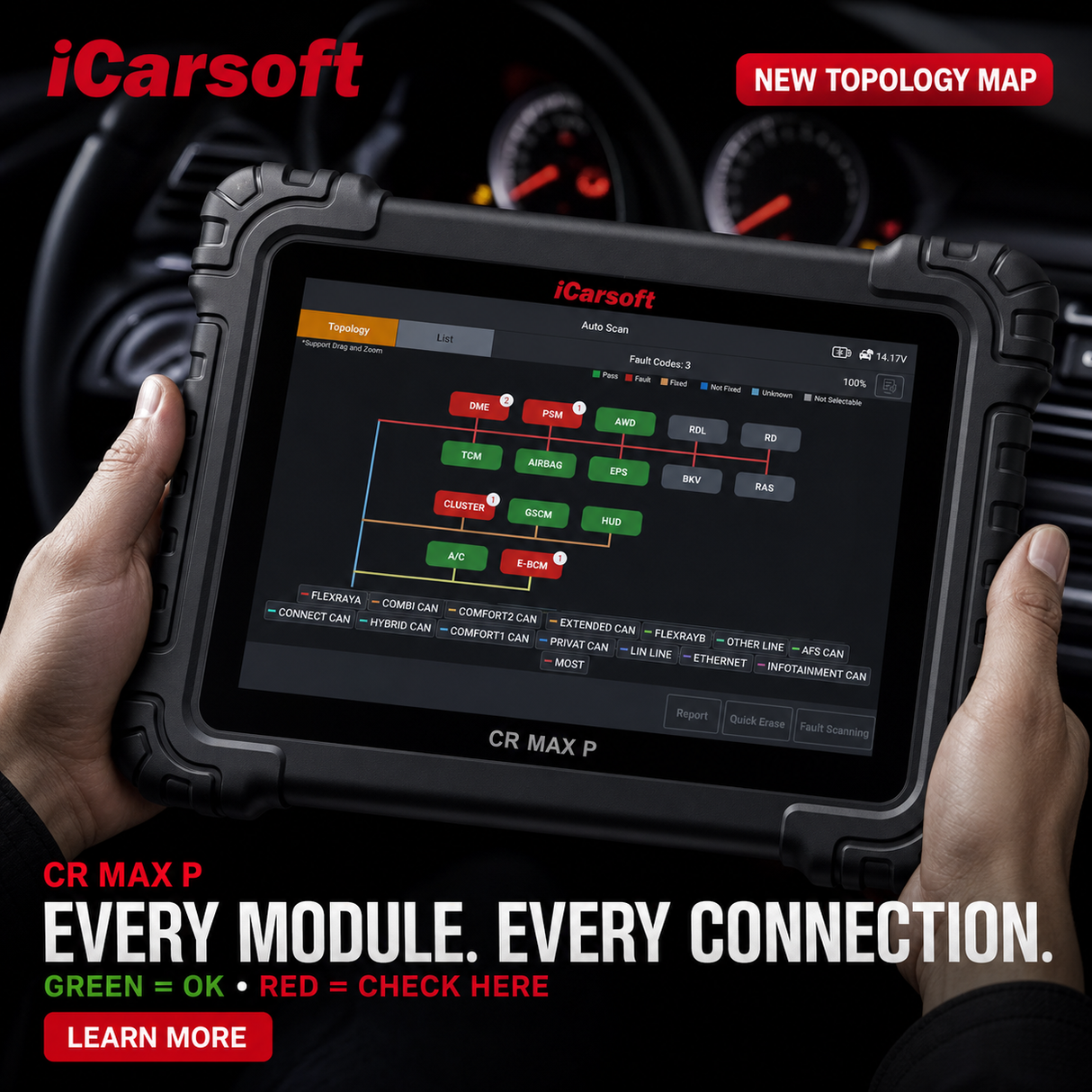

Start with a visual map of every detected control module. Spot fault and communication status at a glance, then open the corresponding ECU for codes, live data, and deeper diagnosis.
Visualize every detected ECU in one network map, quickly identify fault and communication status, and enter the corresponding system for further diagnosis.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.
The CR Max P goes beyond reading codes. With full bidirectional control, you can command individual components and watch them respond in real time — actuate the left low beam, run window regulators, activate the fuel pump, open the throttle, and run output tests on almost every onboard module. Pinpoint the faulty part in minutes, without trial-and-error.
Command the ABS pump and watch it respond in real time.
Activate window regulators and output tests on almost every module.
Trigger the fuel pump on demand to confirm a fault in minutes.
Open the throttle and run output tests — no trial-and-error.
Drive the valve open and closed to clear carbon causing a rough idle.
Cut or drive individual injectors in real time to isolate misfires.
Switch high and low fan speeds on demand to verify relays and motors.
Cycle shift solenoids one by one to pinpoint slippage and harsh shifts.
Advanced ECU Coding: Unlock Your Vehicle's Full Potential
Maximize your workshop's capabilities with our professional-grade ECU Coding feature. Seamlessly bridge the gap between component replacement, software troubleshooting, and personalized driving experiences across 8+ major car groups.
Smart ECU Troubleshooting & Data Recovery
Seamless Component Matching & Data Migration
Precision Parameter Calibration
Premium Personalization & Hidden Feature Activation
| Vehicle Make / Group | Supported Years | Primary Application | Diagnostics Entry Path |
|---|---|---|---|
| #01BMW | 2006 Now |
ECU Troubleshooting & Data Recovery |
Main Menu ➔ Coding |
| #02V.A.GVW · Audi · Skoda · Seat | 2010 Now |
Component Adaptation & Parameter Calibration |
Main Menu ➔ Coding |
| #03Hyundai / KIA | 2010 Now |
Module Matching & Data Migration (Backup/Clone) |
Service ➔ Variant Coding |
| #04Ford | 2003 2023 |
Hidden Function Activation & Personalization |
Programming ➔ Programmable Parameters |
| #05Mazda | 2003 2020 |
Hidden Function Activation & Personalization |
Programming ➔ Programmable Parameters |
| #06Renault | 2005 Now |
Comfort Features & System Customization |
Service ➔ Configure Function |
| #07Chrysler / Jeep / Dodge | Specific Years |
Alert Logic & Basic Vehicle Settings |
Service ➔ Coding |
| #08Subaru | 2014 Now |
Warning Systems & Functional Toggles |
Service ➔ VSP Category |
Plug in. Identified in seconds.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
Speaks your language.
The universal OBD scanner CR Max P speaks your language — right out of the box.
Far more than a code reader.
The CR Max P is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 41 advanced professional functions for complex repair tasks.
Oil Reset
57 makesAllows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
Electronic Throttle Control
56 makesRelearns throttle valve control parameters after resetting or replacing the throttle body.
EPB Brake-Pad Reset
53 makesRetracts the electric parking brake calipers and resets the brake pads after replacement.
Steering Angle Reset (SAS)
57 makesCalibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
DPF Regeneration
54 makesPerforms DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Injector Coding
54 makesRelearns the injector control parameters when an injector is renewed or replaced.
ABS Bleeding
53 makesBleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Air Suspension Service
22 makesSupports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Battery Management (BMS)
48 makesEvaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
Same trusted platform. Flagship-grade everything else.
The CR Max P is the direct successor to the legendary CR MAX BT — same iCarsoft DNA, but redesigned around a bigger screen, doubled battery, and the protocols modern cars actually speak in 2026. If you've trusted the BT, here's exactly what changed.
CR Max P is the flagship of the line and the direct upgrade of the CR MAX BT.
| Feature | CR MAX7" · cabled | CR MAX BT7" · wireless | CR Max P10" · this model |
|---|---|---|---|
| Coverage | 58 vehicle makes | 58 vehicle makes | 58 vehicle makes |
| Display Size | 7 inches | 7 inches | 10 inches |
| System Access | Full systems | Full systems | Full systems |
| Connection Type | OBD 16-Pin cable | Wireless Bluetooth | Wireless Bluetooth |
| CAN-FD | ✓Supported | ✓Supported | ✓Supported |
| DoIP | Optional | Optional | ✓Standard |
| Bi-Directional / Active Test | ✓ | ✓ | ✓ |
| AutoVIN Identification | ✓ | ✓ | ✓ |
| Core Service ResetsOil · SAS · EPB · ETC · DPF · Injector · ABS Bleed · BMS · TPMS | ✓ | ✓ | ✓ |
| Service Functions | 50 | 50 | 50 |
| Free Lifetime Updates | ✓ | ✓ | ✓ |
| Visual Topology Mapping | —— | —— | ✓ NEW |
Same diagnostic engine as CR Max P — Eagle adds pro hardware: TPMS sensors, OBDI adapters, videoscope & more storage.
| Feature | CR Max Pthis model | CR Eagle+ TPMS kit | CR Eagle Pfull kit |
|---|---|---|---|
| Coverage | 58 vehicle makes | 58 vehicle makes | 58 vehicle makes |
| Display Size | 10 inches | 10 inches | 10 inches |
| Connection Type | Wireless Bluetooth | Wi-Fi | Wi-Fi |
| Storage | 64 GB | 128 GB | 128 GB |
| Protocols (CAN-FD · DoIP) | ✓ | ✓ | ✓ |
| J2534 Protocol | — | ✓ | ✓ |
| Core DiagnosticsFull-system · Bi-Directional · ECU Coding (8 makes) · AutoVIN · 50 Functions | ✓ | ✓ | ✓ |
| Included OBDI Adapters | Optional | 4 · Benz 38 · BMW 20 · Audi 2+2 · Sprinter 14 | 14 · adds FCA, Honda, Fiat, Chrysler, Nissan, Mitsubishi, Ford/Mazda, Kia, Porsche |
| Videoscope | Optional | ✓Included | ✓Included |
| Battery Clips | Optional | ✓Included | ✓Included |
| 4× TPMS Sensors | — | ✓Included | ✓Included |
| Free Lifetime Updates | ✓ | ✓ | ✓ |
Trusted the platform. Now upgrade the experience.
If your daily workflow already runs on a CR MAX BT, the CR Max P is the natural next step — same iCarsoft DNA, twice the battery, a bigger screen, ready for the protocols your shop will see tomorrow.
Even the classics.
The smart auto diagnostic tool CR Max P also supports Mercedes-Benz models (with the 38-pin adapter), early BMW models (with the 20-Pin adaptor) and Sprinter vans (with the 14-pin adapter). The corresponding iCarsoft adapters are available separately.
38-Pin Adapter
20-Pin Adapter
Support Diagnostic History and Report printing
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports. Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Quick History Access
Users can quickly access previously tested vehicle systems — every past scan, code reading, and live data session stays at your fingertips.
Save, Share & Print Reports
Save, share, and print diagnostic reports. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
Built-in Feedback Channel
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.
Every spec, on one page.

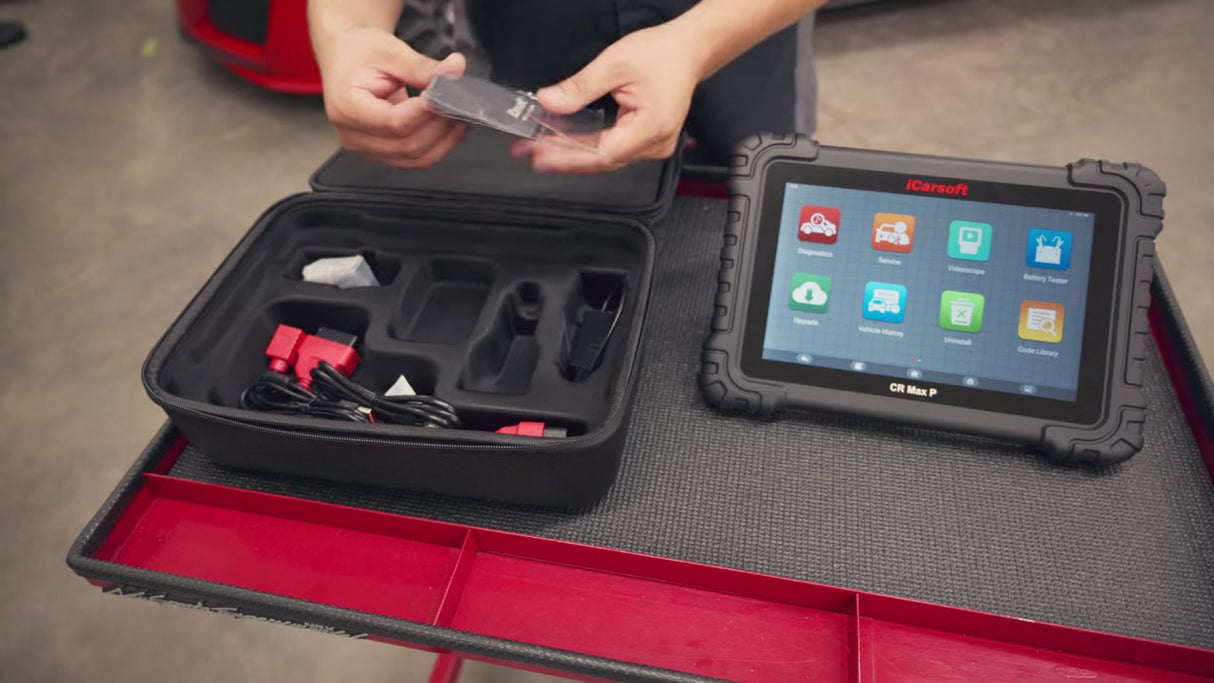

Packing List
Everything you need to start diagnosing — straight out of the case. Brand adapters available as optional add-ons.
