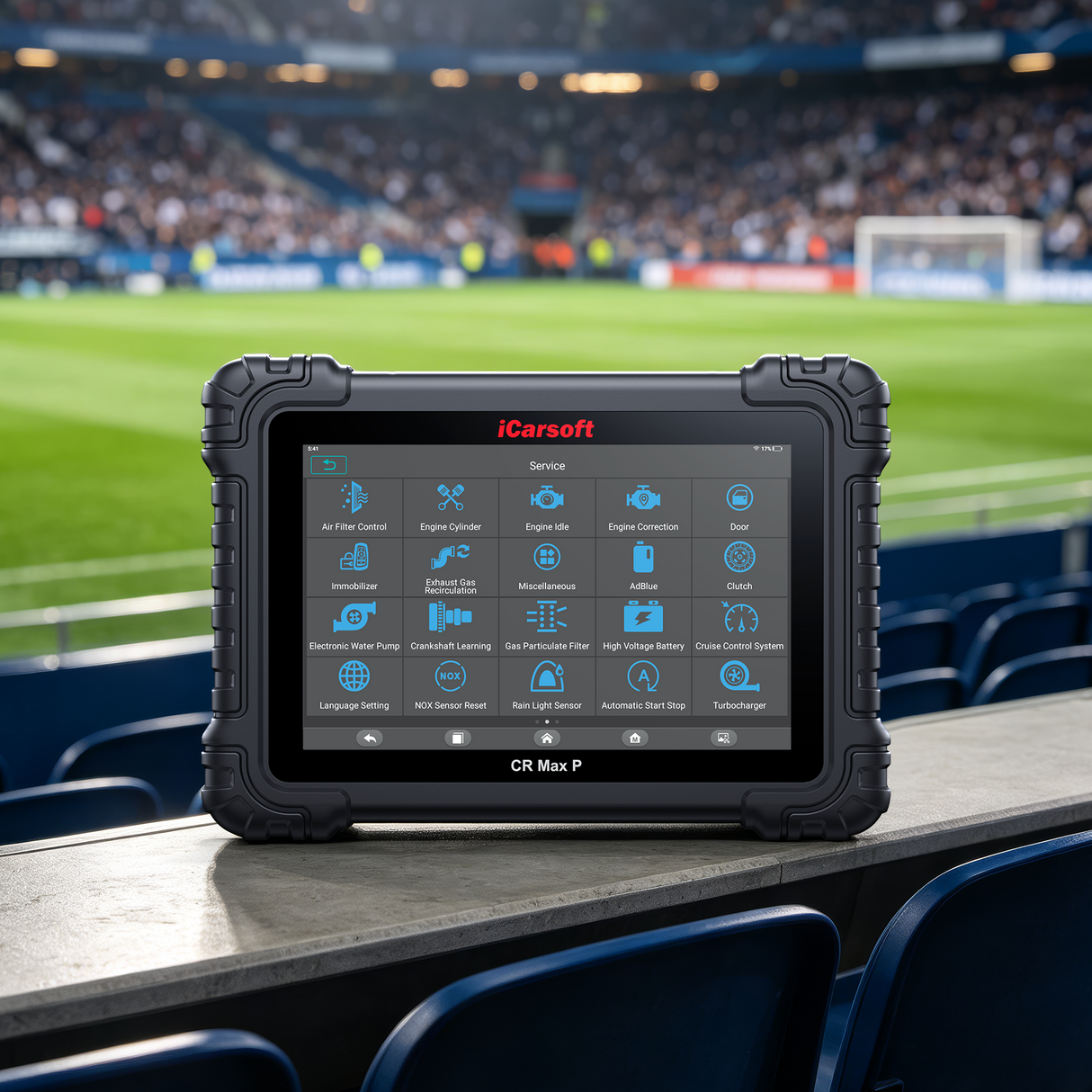

Name: iCarsoft CR Max P — Pro Bi-Directional Auto Scan Tool for 58 Car Brands
Brand: iCarsoft Official Authorized Store
Price: 599.99 USD
Availability: InStock
Rating: 4.75 (4 reviews)

0

Service Functions

+

Vehicle Brands

0

Languages

GB

Storage

h

Battery Life

$0

Update Fees

01Worldwide Vehicle Coverage

One tool. The whole garage.

From European marques to American muscle to Asian imports — CR Max P speaks the language of 58+ vehicle makes, natively. No paid brand unlocks, no extra downloads. Filter by region or search your brand below.

02The Ultimate High-Ticket Flagship Upgrade

The flagship, without the dealer price.

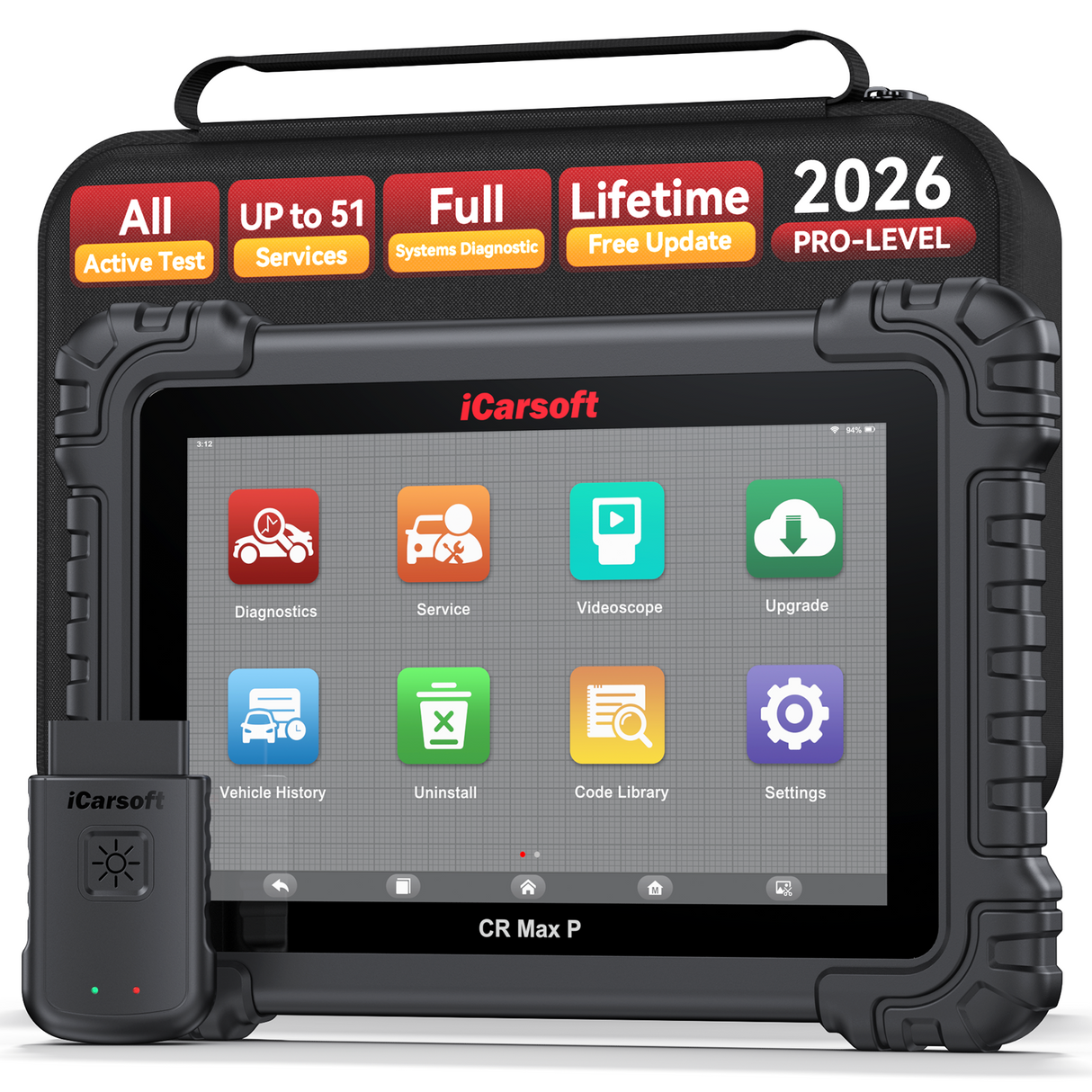

iCarsoft CR Max P diagnostic tool features a 10-inch Ultra HD touchscreen. Powered by a 1.3GHz quad-core processor and Android system, it comes with 64GB storage and a 10000mAh battery, supporting up to 8 hours of continuous operation. Boasting an intuitive interface, it delivers seamless vehicle diagnosis performance.

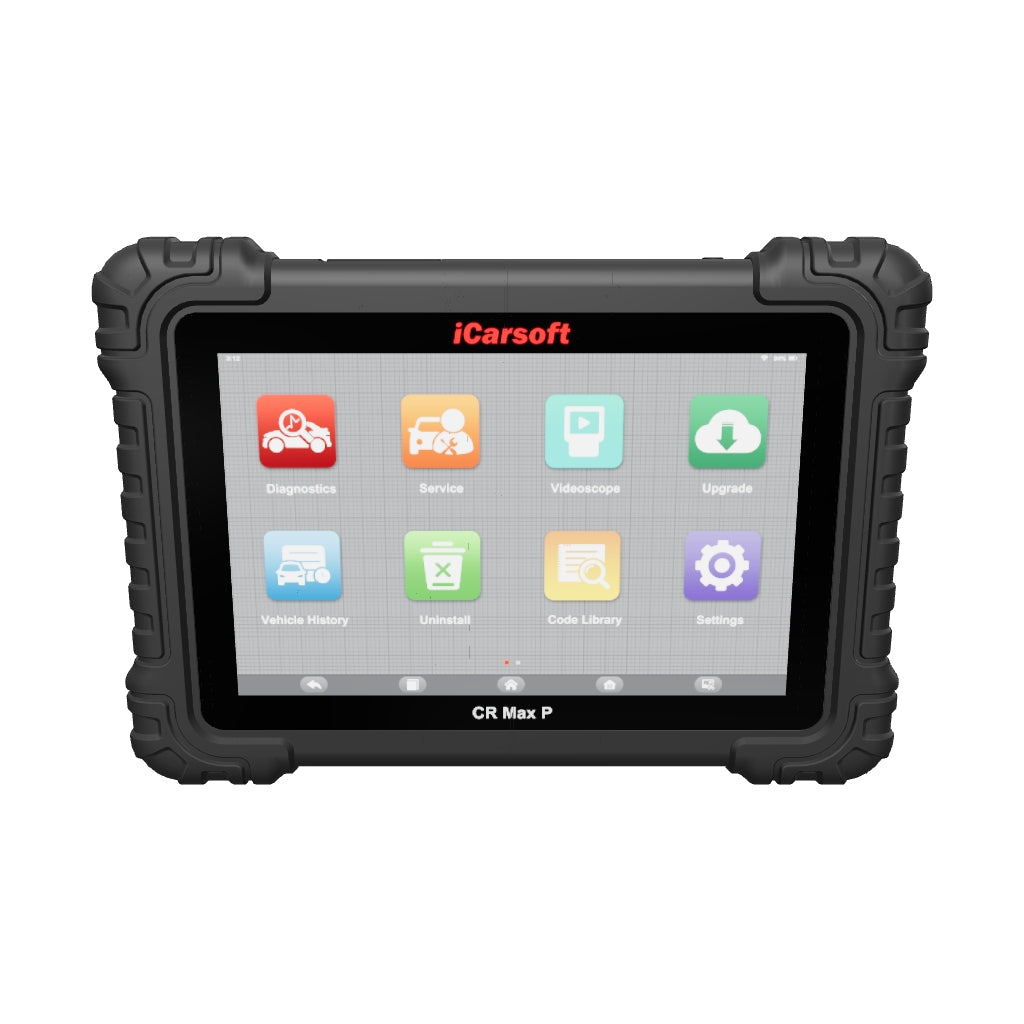

CR Max P diagnostic tablet — white background 3/4 angle

Display

10″ Ultra HD

1280×800

Operating System

Android

Latest version

Processor

Quad-Core

1.3 GHz

Storage

1GB + 64GB

Storage

Battery

10000mAh

~8 hrs continuous

03Lifetime Free Software Upgrades

Pay once. Upgrade forever.

Unlike other OBD scan tools on the market that require annual subscription fees, the CR Max P offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.

$0

Year 1

Out of the box

$0

Year 3

New protocols

$0

Year 5

Future models

$0

Year 10+

Still free

Pay Once. Upgrade Forever. · No subscriptions, no surprise fees.

04Supports the Latest CAN-FD and DoIP Protocol

Ready for tomorrow's cars.

CAN-FD (Controller Area Network – Flexible Data-rate) and DoIP (Diagnostic Communication over Internet Protocol) are next-generation automotive communication protocols adopted by today's modern cars: CAN-FD, compatible with 2020- G.M & Chrysler Models; DoIP, compliant cars including Volvo, Land Rover/Jaguar, BMW F/G chassis, etc.

CAN-FD

Controller Area Network – Flexible Data-rate

Compatible with 2020- G.M & Chrysler Models.

DoIP

Diagnostic Communication over Internet Protocol

Compliant cars including Volvo, Land Rover/Jaguar, BMW F/G chassis, etc.

05Advanced Bi-Directional Control

It doesn't just read. It commands.

The CR Max P goes beyond reading codes. With full bidirectional control, you can command individual components and watch them respond in real time — actuate the left low beam, run window regulators, activate the fuel pump, open the throttle, and run output tests on almost every onboard module. Pinpoint the faulty part in minutes, without trial-and-error.

Actuate the left low beam

Sends an active command to the left headlight circuit and watches the real component respond in real time — bypassing the physical headlight switch entirely.

Actuate the left low beam

Run window regulators

Activate the fuel pump

Open the throttle

Run output tests on almost every onboard module

06Advanced ECU Coding

Advanced ECU Coding: Unlock Your Vehicle's Full Potential

Maximize your workshop's capabilities with our professional-grade ECU Coding feature. Seamlessly bridge the gap between component replacement, software troubleshooting, and personalized driving experiences across 8+ major car groups.

Smart ECU Troubleshooting & Data Recovery

Glitch Repair · Performance Restoration

Fix Software GlitchesInstantly repair corrupted ECU data caused by sudden voltage drops or power loss.

Restore PerformanceEliminate unresolved drivability issues, unexplained mechanical faults, and poor fuel economy with custom software refreshes.

Seamless Component Matching & Data Migration

Module Coding · Backup & Clone

OE-Level Module CodingWrite original vehicle data into newly installed modules (ECU, EPB, HCU, Powertrain) to instantly clear "mismatch" fault codes.

One-Click Backup & CloneSafely backup old ECU data and migrate it to the new module without data loss (Exclusive for Hyundai/Kia).

Precision Parameter Calibration

Hardware Sync · OEM Re-indexing

Hardware SynchronizationAdjust baseline vehicle parameters following repairs or upgrades, including body style, transmission type, steering position, and wheelbase.

Factory-Level Re-indexingRe-calibrate critical vehicle safety and driver-assist parameters directly to OEM standards.

Premium Personalization & Hidden Feature Activation

Feature Unlock · Alerts · Aftermarket Tuning

Unlock Comfort UpgradesEasily activate high-end hidden features like auto-folding mirrors, remote engine start, one-touch window control, and welcome lighting.

Customize Alerts & DisplaysToggle annoying seatbelt chimes, modify dashboard language/units, and customize audible/visual warning triggers.

Aftermarket Tuning CalibrationFine-tune vehicle parameters after modifications, such as recalibrating the speedometer for larger tire sizes or custom axle ratios.

Vehicle Make / Group	Supported Years	Primary Application	Diagnostics Entry Path
#01BMW	2006 Now	ECU Troubleshooting & Data Recovery	Main Menu ➔ Coding
#02V.A.GVW · Audi · Skoda · Seat	2010 Now	Component Adaptation & Parameter Calibration	Main Menu ➔ Coding
#03Hyundai / KIA	2010 Now	Module Matching & Data Migration (Backup/Clone)	Service ➔ Variant Coding
#04Ford	2003 2023	Hidden Function Activation & Personalization	Programming ➔ Programmable Parameters
#05Mazda	2003 2020	Hidden Function Activation & Personalization	Programming ➔ Programmable Parameters
#06Renault	2005 Now	Comfort Features & System Customization	Service ➔ Configure Function
#07Chrysler / Jeep / Dodge	Specific Years	Alert Logic & Basic Vehicle Settings	Service ➔ Coding
#08Subaru	2014 Now	Warning Systems & Functional Toggles	Service ➔ VSP Category

07Fast AutoVIN Identification

Plug in. Identified in seconds.

Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.

1

Plug into the OBD port

Connect the VCI — that's the only setup.

2

Auto-detect in seconds

CR Max P reads and decodes the VIN automatically.

3

Start diagnosing

Exact make, model and year — ready to scan.

08Supports 15 Global Languages

Speaks your language.

The universal OBD scanner CR Max P speaks your language — right out of the box.

0950 Comprehensive Service Functions

Far more than a code reader.

The CR Max P is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 41 advanced professional functions for complex repair tasks.

Oil Reset

57 makes

Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.

Electronic Throttle Control

56 makes

Relearns throttle valve control parameters after resetting or replacing the throttle body.

EPB Brake-Pad Reset

53 makes

Retracts the electric parking brake calipers and resets the brake pads after replacement.

Steering Angle Reset (SAS)

57 makes

Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.

DPF Regeneration

54 makes

Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.

Injector Coding

54 makes

Relearns the injector control parameters when an injector is renewed or replaced.

ABS Bleeding

53 makes

Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.

Air Suspension Service

22 makes

Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.

Battery Management (BMS)

48 makes

Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.

The specific diagnostic service functions vary by vehicle brand, model, production year, and ECU configuration.

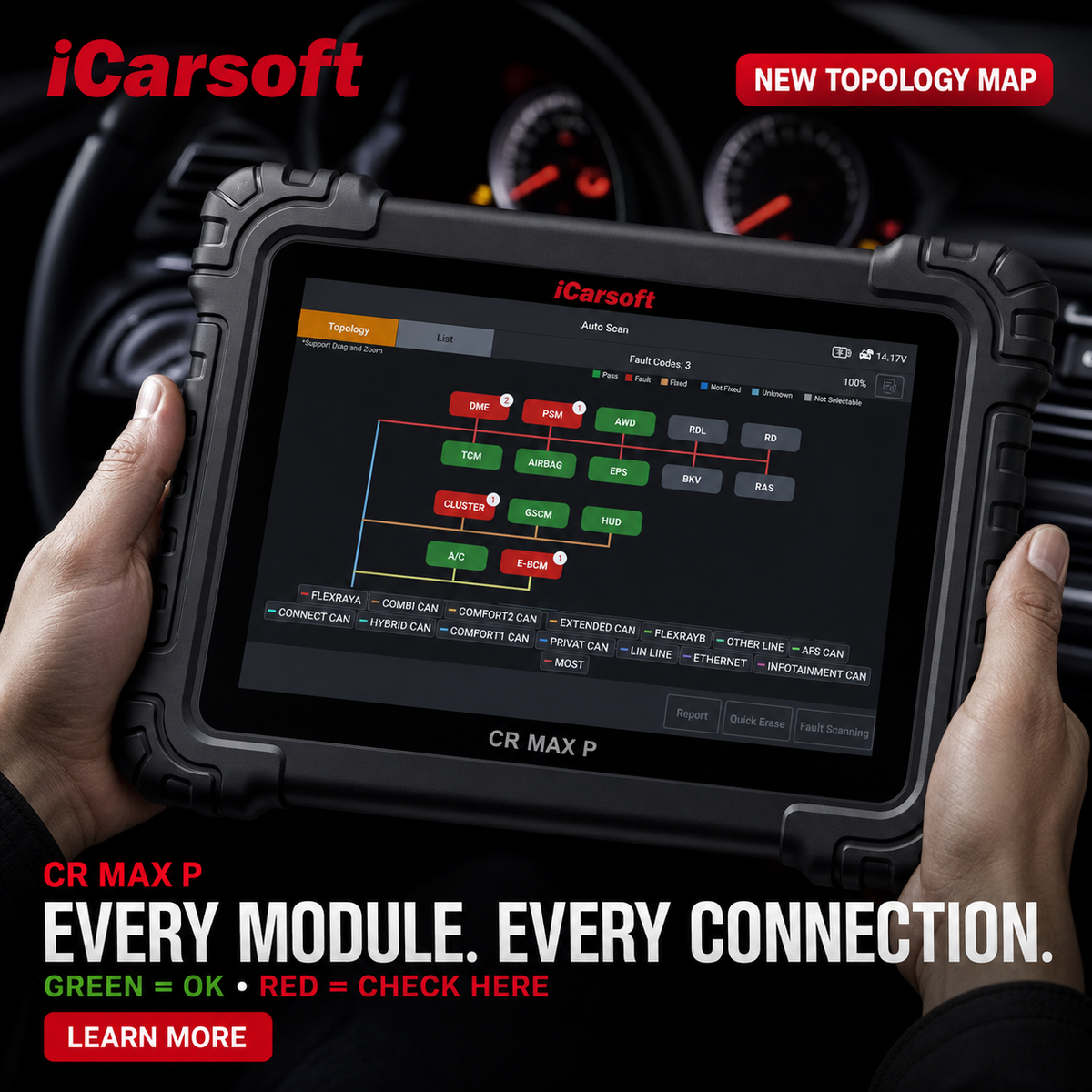

10Powerful Full Systems Diagnostics

Beyond the four basics. Into every module.

In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the CR Max P provides diagnostic coverage for more complex vehicle systems.

Read and Clear DTCs

Read and Clear DTCs across the engine, transmission, ABS, SRS/Airbag and more — pinpointing faults and resetting warning lights in seconds.

Full OBD2 Test Modes — Emission-Ready

Emission-Ready · 1996+ OBDII / EOBD / JOBD / KOBD / CAN / CAN-FD

Read CodesErase CodesI/M ReadinessLive DataFreeze FrameVehicle InformationO2 Monitor TestOn-Board Monitor TestEVAP System TestPending Codes

Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.

11The Upgrade Story · CR MAX BT → CR Max P

Same trusted platform. Flagship-grade everything else.

The CR Max P is the direct successor to the legendary CR MAX BT — same iCarsoft DNA, but redesigned around a bigger screen, doubled battery, and the protocols modern cars actually speak in 2026. If you've trusted the BT, here's exactly what changed.

Previous Generation · 2020

CR MAX BT

All-in-One Handheld · 7"

UPGRADE

Flagship · 2026

CR Max P

10" Tablet + Wireless VCI

From 7"

10″

2.5× Screen Area

From 5000 mAh

10000mAh

2× Battery · 8h Use

New · Standard

DoIP

RJ45 + F-Chassis · Future Cars

New · Standard

CAN-FD

2020+ GM & Chrysler

CR Max P is the flagship of the line and the direct upgrade of the CR MAX BT.

Feature	CR MAX7" · cabled	CR MAX BT7" · wireless	CR Max P10" · this model
Coverage	58 vehicle makes	58 vehicle makes	58 vehicle makes
Display Size	7 inches	7 inches	10 inches
System Access	Full systems	Full systems	Full systems
Connection Type	OBD 16-Pin cable	Wireless Bluetooth	Wireless Bluetooth
CAN-FD	✓Supported	✓Supported	✓Supported
DoIP	Optional	Optional	✓Standard
Bi-Directional / Active Test	✓	✓	✓
AutoVIN Identification	✓	✓	✓
Core Service ResetsOil · SAS · EPB · ETC · DPF · Injector · ABS Bleed · BMS · TPMS	✓	✓	✓
Service Functions	50	50	50
Free Lifetime Updates	✓	✓	✓

Same diagnostic engine as CR Max P — Eagle adds pro hardware: TPMS sensors, OBDI adapters, videoscope & more storage.

Feature	CR Max Pthis model	CR Eagle+ TPMS kit	CR Eagle Pfull kit
Coverage	58 vehicle makes	58 vehicle makes	58 vehicle makes
Display Size	10 inches	10 inches	10 inches
Connection Type	Wireless Bluetooth	Wi-Fi	Wi-Fi
Storage	64 GB	128 GB	128 GB
Protocols (CAN-FD · DoIP)	✓	✓	✓
J2534 Protocol	—	✓	✓
Core DiagnosticsFull-system · Bi-Directional · ECU Coding (8 makes) · AutoVIN · 50 Functions	✓	✓	✓
Included OBDI Adapters	Optional	4 · Benz 38 · BMW 20 · Audi 2+2 · Sprinter 14	14 · adds FCA, Honda, Fiat, Chrysler, Nissan, Mitsubishi, Ford/Mazda, Kia, Porsche
Videoscope	Optional	✓Included	✓Included
Battery Clips	Optional	✓Included	✓Included
4× TPMS Sensors	—	✓Included	✓Included
Free Lifetime Updates	✓	✓	✓

Trusted the platform. Now upgrade the experience.

If your daily workflow already runs on a CR MAX BT, the CR Max P is the natural next step — same iCarsoft DNA, twice the battery, a bigger screen, ready for the protocols your shop will see tomorrow.

Upgrade to CR Max P

12Older Vehicle Connection Extensions

Even the classics.

The smart auto diagnostic tool CR Max P also supports Mercedes-Benz models (with the 38-pin adapter), early BMW models (with the 20-Pin adaptor) and Sprinter vans (with the 14-pin adapter). The corresponding iCarsoft adapters are available separately.

Optional

38-Pin Adapter

Pre-2003 Mercedes-Benz

C-Class W202 (up to 2000), E-Class W210 (up to 2002), S-Class W140 (up to 1998), CLK-Class W208 (up to 2003), SLK-Class R170, SL-Class R129 (up to 2002) and other similar models.

Shop Adapter

Optional

20-Pin Adapter

Pre-2001 BMW models

For BMW E30, E36, Early E46, E34, Early E39, E32, E38, E36 Z3, E52, Early E53, E31, E28, E24, E23.

Shop Adapter

Optional

iCarsoft 14-Pin adapter for Sprinter vans

14-Pin Sprinter Adapter

1995–2006 Sprinter models

For Sprinter T1N & early NCV3 vans.

Shop Adapter

ℹ️ Older Mercedes-Benz models and Sprinter vans may require an optional adapter.

13Diagnostic History & Report Printing

Support Diagnostic History and Report printing

Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports. Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.

Quick History Access

Users can quickly access previously tested vehicle systems — every past scan, code reading, and live data session stays at your fingertips.

Save, Share & Print Reports

Save, share, and print diagnostic reports. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.

Built-in Feedback Channel

Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance.

14Product Specifications

Every spec, on one page.

Operating System

Android

Processor

Quad Core 1.3 GHz

Storage

64GB

Display

10-inch HD touchscreen, 1280×800

Connectivity

Mini USB 2.0 / USB2.0 / Wi-Fi / Bluetooth / OBDII

Battery Capacity

3.8V 10000mAh 38Wh

Tested Battery Life

Up to 8 hours of continuous use

Type C Input

5V / 2A

Power Consumption

600mA (LCD on, default brightness, Wi-Fi on) @3.8V

Operating Temp.

0 to 40°C (32 to 104°F)

Storage Temp.

-20 to 70°C (-4 to 158°F)

Operating Humidity

5% – 95% non-condensing

Dimensions

309.5 × 218.5 × 33 mm (12.19 × 8.16 × 1.30 in)

Net Weight

≈ 1199 g

Supported Protocols

ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW/PWM, ISO 11898 (HS/MS/LS/Single-wire CAN), CAN-FD, SAE J2610, G.M UART, UART Echo Byte, Honda Diag-H, TP2.0, TP1.6

Packing List

Everything you need to start diagnosing — straight out of the case. Brand adapters available as optional add-ons.

EVA Carrying Case

CR Max P Tablet

VCI

Charge Adaptor

OBDII Connector

RJ45 Network Cable

F-Chassis

USB2.0 to Network Cable

Screen Cleaning Cloth

USB-C Cable

User Manual

?Support

Questions, answered.

Is the software updated regularly? Are updates free?

Yes. CR Max P includes lifetime free Wi-Fi software upgrades. No annual subscription required.

What's the difference between CR Max P and the CR MAX BT?

CR Max P is the update version of CR MAX BT. Hardware upgrade: 10-inch touchscreen, Android OS, Quad-Core processor, 1GB RAM + 64GB storage, 10000mAh battery. Protocol upgrade: CR Max P is standard-equipped with RJ45 Network Cable, F-Chassis and USB2.0-to-Network Cable for the DoIP protocol. More advanced functions will be added to CR Max P over time. → See the full comparison table above.

AutoVIN can't recognize my vehicle — is the device faulty?

Not necessarily. Send your VIN to our support team and we'll confirm AutoVIN compatibility within 24 hours. In the meantime, you can manually select your vehicle model — all diagnostic functions will still work normally. We'll add your VIN to our database in the next update.

DTCs read fine but won't clear, or reappear after clearing — why?

Keep ignition on and engine off. Record freeze frame data before clearing codes. Persistent hardware faults need physical repair prior to code clearance. Some fault codes (SRS, ABS) can only be cleared after finishing bidirectional tests.

How do I pair the Bluetooth VCI?

Step 1 — Insert the VCI into the vehicle OBD port, turn ignition to ON.Step 2 — Enable Bluetooth on tablet, search and connect "CR Max P VCI".Step 3 — A green VCI icon means successful pairing.Step 4 — Select Bluetooth connection to start diagnosis.

	Dealer Scan	Generic OBD2	CR Max P
Cost per use	$150 – $250	$30 one-time	$599 one-time
Vehicle brands	1 (their brand)	All (basic only)	58 makes (full system)
Bi-directional control	Yes	No	Yes — 99% coverage
Service functions	OEM only	Few or none	49+ professional
CAN-FD (2024+ cars)	Yes	No	Yes
Wireless	N/A	No	Bluetooth + WiFi
Subscription fees	Per visit	None	None — lifetime free

Display	10-inch capacitive touchscreen · 1280 × 800 resolution
Processor	Quad Core · Android
Storage	64 GB internal storage
Connectivity	Wireless Bluetooth · WiFi · USB 2.0 · OBD2
Battery	3.8 V · 10,000 mAh Li-Po · ~8 hours continuous use
Dimensions	309.5 × 218.5 × 33 mm · 1199 g
Operating temp	0 – 40 °C (32 – 104 °F)
Languages	English, Deutsch, French, Dutch, Spanish, Italian, Portuguese, Czech, Swedish, Russian, Hungarian, Norwegian, Polish, Danish, Finnish
Protocols	ISO9141-2 · ISO14230-2 · ISO15765 · K/L-Line · SAE J1850 VPW/PWM · ISO11898 (all CAN variants) · CAN FD · SAE J2610 · GM UART · Honda Diag-H · TP2.0/TP1.6

iCarsoft CR Max P — Pro Bi-Directional Auto Scan Tool for 58 Car Brands

Dealer-Level Diagnostics. Trusted by Technicians Worldwide.

1-Year Warranty

120+ Countries

Return Policy

One tool. The whole garage.

The flagship, without the dealer price.

Pay once. Upgrade forever.

Advanced ECU Coding: Unlock Your Vehicle's Full Potential

Smart ECU Troubleshooting & Data Recovery

Seamless Component Matching & Data Migration

Precision Parameter Calibration

Premium Personalization & Hidden Feature Activation

Plug in. Identified in seconds.

Speaks your language.

Far more than a code reader.

Oil Reset

Electronic Throttle Control

EPB Brake-Pad Reset

Steering Angle Reset (SAS)

DPF Regeneration

Injector Coding

ABS Bleeding

Air Suspension Service

Battery Management (BMS)

Beyond the four basics. Into every module.

Read and Clear DTCs

Full OBD2 Test Modes — Emission-Ready

Same trusted platform. Flagship-grade everything else.

Trusted the platform. Now upgrade the experience.

Even the classics.

38-Pin Adapter

20-Pin Adapter

14-Pin Sprinter Adapter

Support Diagnostic History and Report printing

Quick History Access

Save, Share & Print Reports

Built-in Feedback Channel

Every spec, on one page.

Packing List

Questions, answered.

iCarsoft CR Max P — Pro Bi-Directional Auto Scan Tool for 58 Car Brands

iCarsoft CR Max P — Pro Wireless Diagnostic Scanner for 58 Car Brands

Why CR Max P is worth the upgrade

All-system diagnostic scan across global vehicle makes

How CR Max P stacks up against the alternatives

9 most-used service functions — daily maintenance resets covered

Excellent bi-directional control — active tests on modules and components

10-inch HD touchscreen, wireless Bluetooth, and one-tap WiFi updates

40 advanced service functions for professional technicians

58 vehicle makes covered — global coverage in one professional diagnostic tool

European Luxury

European Volume

Asian Imports

American

Built on serious hardware — Android tablet, Bluetooth + WiFi, 8-hour battery

Optional accessories — expand the toolkit

🔦 VDSP2000 Videoscope

🔋 BT900 Battery Tester

Full OBD2 / EOBD test modes — fix most check-engine-light issues

What's in the box

Why iCarsoft

CR Max P FAQ — Compatibility, Service Functions & Vehicle Coverage

Add to cart and stop paying for diagnostics.
