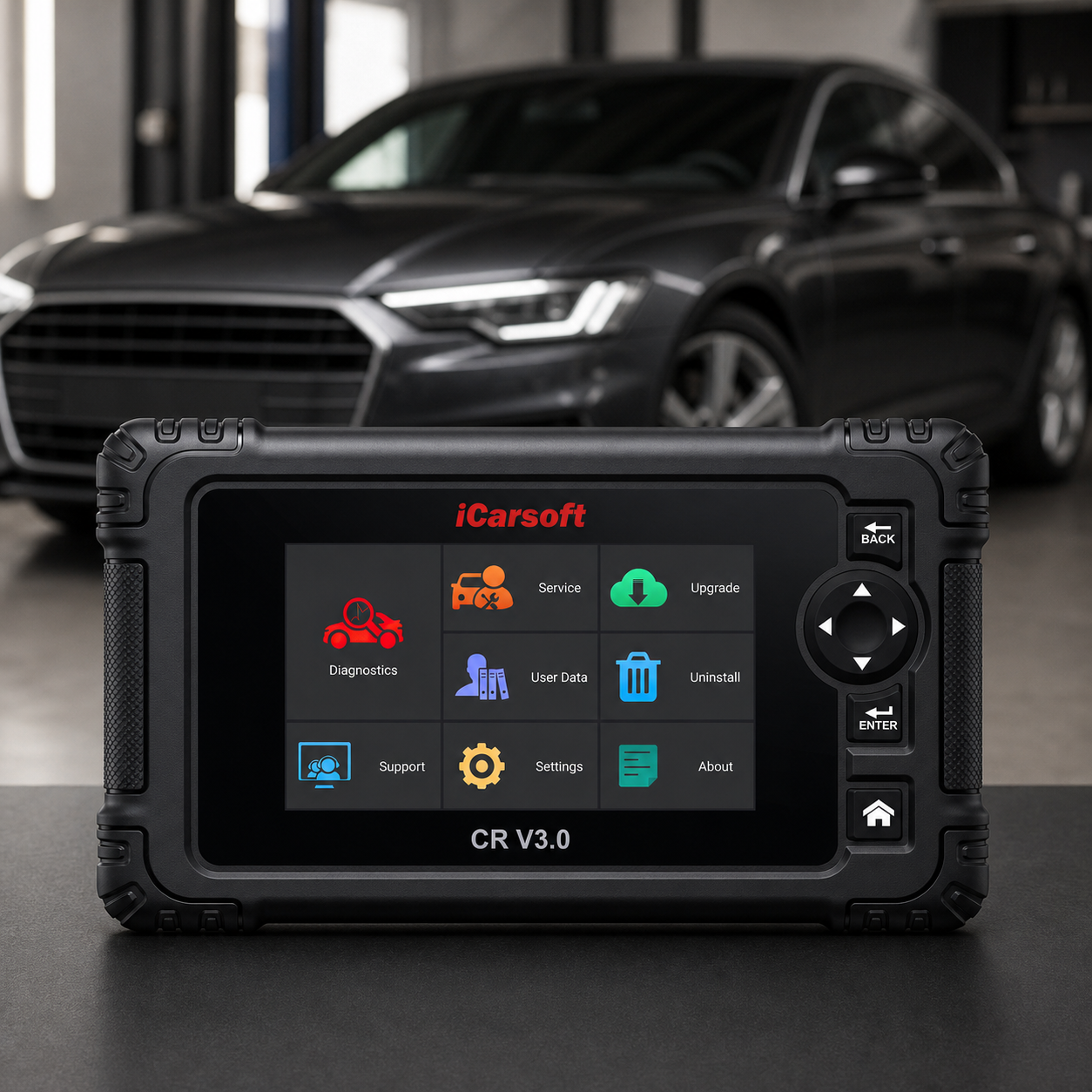

iCarsoft CR V3.0 Car Diagnostic Tool

Name: iCarsoft CR V3.0 Car Diagnostic Tool
Brand: iCarsoft
SKU: 44609054474292
Price: 289.95 USD
Availability: InStock
Rating: 4.89 (9 reviews)

$289.95 ~~$311.99~~

Shipping calculated at checkout.

(9)

Return Policy

Learn More

Warranty Terms

This warranty applies only to users and distributors who purchase iCarsoft products through normal procedures. Within one year from the date of delivery, iCarsoft warrants its electronic products for damages caused by defects in materials or workmanship. Damages to the equipment or components because of abuse, unauthorized modification, use for non - designed purposes, operation in a manner not specified in the instructions, etc. are not covered by this warranty. The compensation for dashboard damage caused by the defect of this equipment is limited to repair or replacement. iCarsoft does not bear any indirect and incidental losses. iCarsoft will judge the nature of the equipment damage according to its prescribed inspection methods. No agents, employees or business representatives of iCarsoft are authorized to make any confirmation, notice or promise related to iCarsoft products.

Products tutorial, videos, Q&A and coverage list are available on iCarsoft official website.

Delivery and Shipping

3-7 days delivered

Key Features

1.Hardware Specifications
*A Quad-core 1.3GHz processor and 16GB of memory, delivers fast and efficient diagnostics.
*5-inch high-resolution LCD touchscreen provides a clear and easy-to-read interface.
*A 5000mAh battery, operate for up to 5 hours on a single charge.
*The sturdy build and compact design make it ideal for on-the-go diagnostics.

2.Free Choice for 10 Vehicle Makes
The iCarsoft CR V3.0 Full ECU Diagnostic Tool offers exceptional diagnostic coverage for US, Asian, and European vehicles (since 1996 and 2001 respectively).

To optimize performance and storage, the initial software load is blank. You have the flexibility to choose and download software for 10 vehicle makes of your choice. This allows you to customize the tool to your specific needs and avoid unnecessary storage consumption.

3.Comprehensive OBD II Diagnostics
The iCarsoft CR V3.0 offers a wide range of OBD II diagnostic functions, including reading and clearing codes, accessing vital vehicle data, performing vehicle identification, retrieving special codes, monitoring MIL status, and reading PCM data. This comprehensive suite of diagnostic tools features full ECU diagnosis,empowers technicians to accurately assess and address vehicle issues efficiently.

4.45+ Maintenance and 38 Extra Functions
The CR V3.0 goes beyond basic OBD II diagnostics, offering OE-level full system diagnostics for comprehensive vehicle assessments, including:
*45+Useful Vehicle Mintenance Services:26 Service Functions+119 Newest Maintenance Services.
*38+ Extra Vehicle Maintenance Functions:For BENZ/SPRINTER/SMART,For JAGUAR/LANDROVER,For VAG,For VOLVO/SAAB.

5.Auto VIN Scan or Manual Selection
*Auto VIN Scan: This innovative feature automatically retrieves your vehicle's VIN with a single touch, streamlining the diagnostic process. It then identifies all compatible ECUs (Electronic Control Units) and allows you to select the specific system for diagnosis.

*Manual Selection: For vehicles incompatible with Auto VIN Scan, you can manually enter the VIN or browse by vehicle make and model.

6.Bidirectional Test/Active Test
The iCarsoft CR V3.0 Full ECU Diagnostic Tool offers a comprehensive suite of bidirectional control tests, allowing technicians to actively test various vehicle components.
Including:injector, fuel pump, ignition coil, EVAP valve, HVAC system, idle air control valve, ABS pump motor, door locks, and horn,etc. Please note that specific test availability may vary depending on the vehicle's make, model, and year.

7.Enhance User Experience
*Comprehensive Diagnostic Reports
Generates detailed diagnostic reports,These reports can be printed for easy reference or record-keeping.
*Real-time Data Visualization:4-in-1 graphic live data feature, you can monitor key engine parameters in real-time, including:Calculated Load Value、Engine Coolant Temperature、Short Term Fuel Trim B1、Fuel Rail Pressure.
*One-Click Updates:Lifetime Free Updates: Stay up-to-date with the latest vehicle coverage and diagnostic features through convenient one-click updates.
*Supports 15 languages:Making it accessible to technicians worldwide,including:English, German, French, Dutch, Spanish, Czech, Swedish, Russian, Hungarian, Norwegian, Portuguese, Italian, Polish, Danish, and Finnish.

8.Connect Your Way
The iCarsoft CR V3.0 Full ECU Diagnostic Tool offers unparalleled connectivity options. Whether you prefer the traditional USB connection, the wireless freedom of Bluetooth, the stability of Wi-Fi, or the direct vehicle link of OBD II, this tool adapts to your needs.

9.Support Protocol
*Physical layer: KL-LINE.
*Data link layer: ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN), SAE-J1850 VPW, SAE-J1850 PWM, IS09141-2, 1S014230-2.
*Application layer: TP2.0, TP1.6.
*Others: IS015765, Flashing Code, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol.

Graphic Live Datas Accurate, Dynamic, Real-time

FULL Bidrectional Control Tests/ Active Tests

SMART AUTO VIN & AUTO SCAN Auto Dectect VlN Info in Seconds

45+Useful Vehicle Maintenance Services:
26 Service Functions：

OIL Reset、D-P-F Calibration、Engine idle Calibration、Battery Reset( battery registration included)、Injector Reset、Headlamp Reset、Airbag Reset、Fuel Pump Reset、Air Suspension Reset、Engine Reset、Door-win-roof Reset、Engine cylinder、Door Reset、SAS Reset、E-G-R Calibration、EPB Reset、ABS Bleeding、Air conditioning Reset、Transmission Reset、Odometer Calibration、TPMS Reset、Air Filter Reset、Immobilizer Reset、Body Stability Calibration、Seat Reset、Miscellaneous.

19 Newest Maintenance Services:

Ad blue、High voltage batter、Rain Sensor、Radar/Camera、Control Unit Reset、Seat belt、Clutch、Cruise control system、Stop and Start、Vehicle Setup、Oxygen sensor、Water Pump、Language setting、Turbo charger、Cylinder Shutoff Test、Crank shaft、NOx sensor、HeadUp Display、Speed Limit Assist.

38+ Extra Special Services for iCarsoft CR V3.0 Full ECU Diagnostic Tool：

*For BENZ/SPRINTER/SMART：
Teach-in of drive authorization system、Teach-in of position for camshafts、Adjustment of intake valves、Oxygen sensor upstream of catalytic converter、Replace component NO.x storage catalytic converter、Reset learned values of components NO.x sensor upstream of S-C-R、Teach-in process after replacement of component NO.x sensor downstream of S-C-R catalytic converter、Resetting of Adjustment values、Teach in component 'Pedal angle sensor、Teach-in of intake port shutoff、Teach-in of camshaft positions、Write wheel electronics identification number.

*For JAGUAR/LAND ROVER：
Yaw Rate Sensor Adjustment、Power train Configuration Reset、Stepper Motor Initialization、Re-program All Stepper Motors Service、Reset Air Conditioning Compressor Service.

*For VAG：
Basic Settings、Adaption、Coding/Code ll、Security Login.

*For PORSCHE：
Standardizing power windows、Combination sensor Adjustment、AHBA Adjustment、Headlight beam adjustment、longitudinal acceleration sensor Adjust、Fuel-level Adjust 、Rear lid Adjust、Seat Adjust Speed sensor test、Steering column adjustment、Swirl-flap actuator.

*For VOLVO/SAAB：
Swirl-flap actuator、Gear Indication Activating、Oil Pressure Pump Bleeding、Fuel Trim Adaptation、Oil Level Sensor Adaptation、Turbo Adaptation Fuel Pressure Adaptation、EGR Adaptation、IMU (Inertial Measurement Unit Adjust）、Brake Pedal Position Adjust、Gear Position Adjust.

FULL Bidrectional Control Tests /Active Tests

Injector Test、Fuel Pump Test、Ignition Coil Test、EV-AP Valve Test、
HVAC Test、Idle Air Conctrol Valve Test、ABS Pump Motor Test、
Throttle Position Actuator Test、Cooling Fan Test、A/C Compressor Test、ETC Actuator Test、Window Test、Headlight Test、Wiper Test、Dood Lock Test、Horn Test.

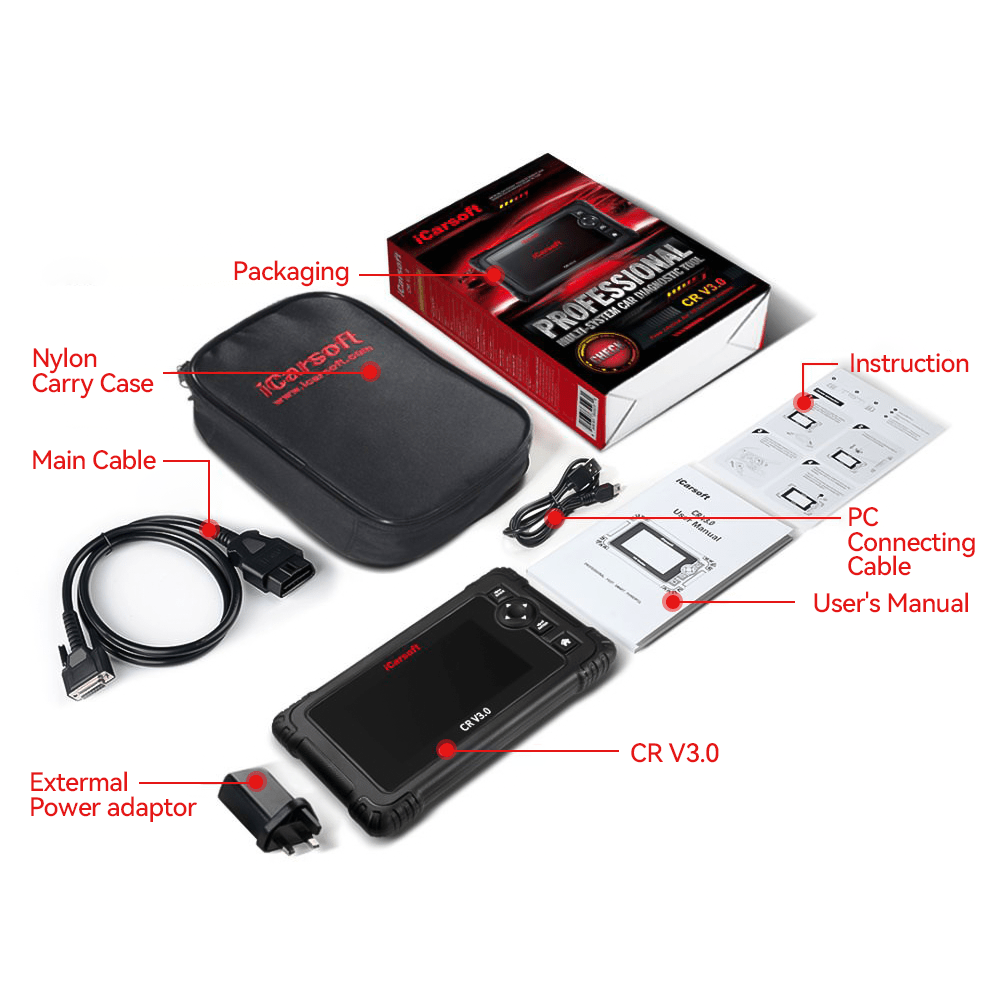

What's in the Box of iCarsoft CR V3.0 Full ECU Diagnostic Tool?

1*CR V3.0 ECU Diagnostic Tool.
1*Packaging.
1*Nylon Carry Case.
1*PC Connecting Cable:Connects the Display Tablet to the PC or DC external power adapter.

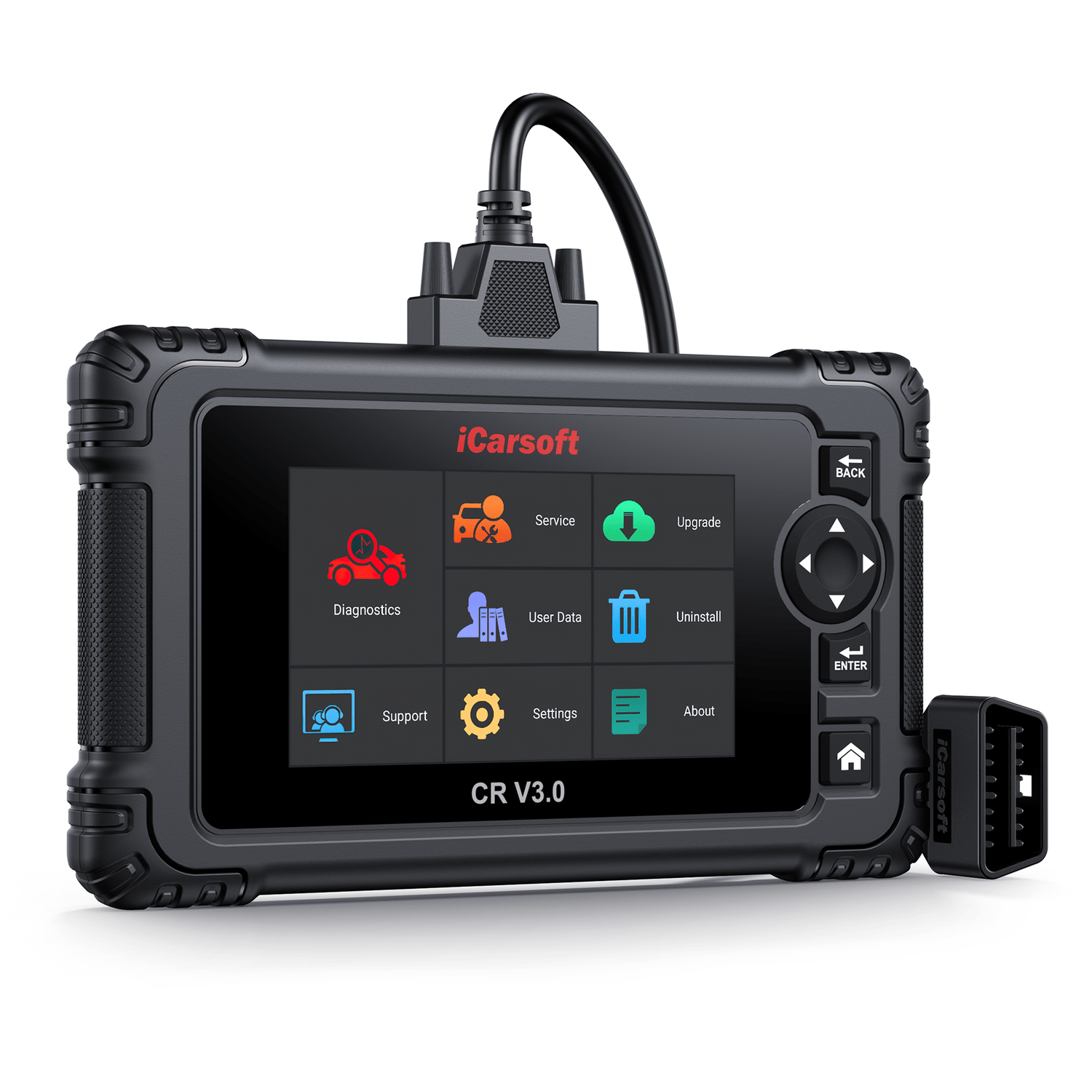

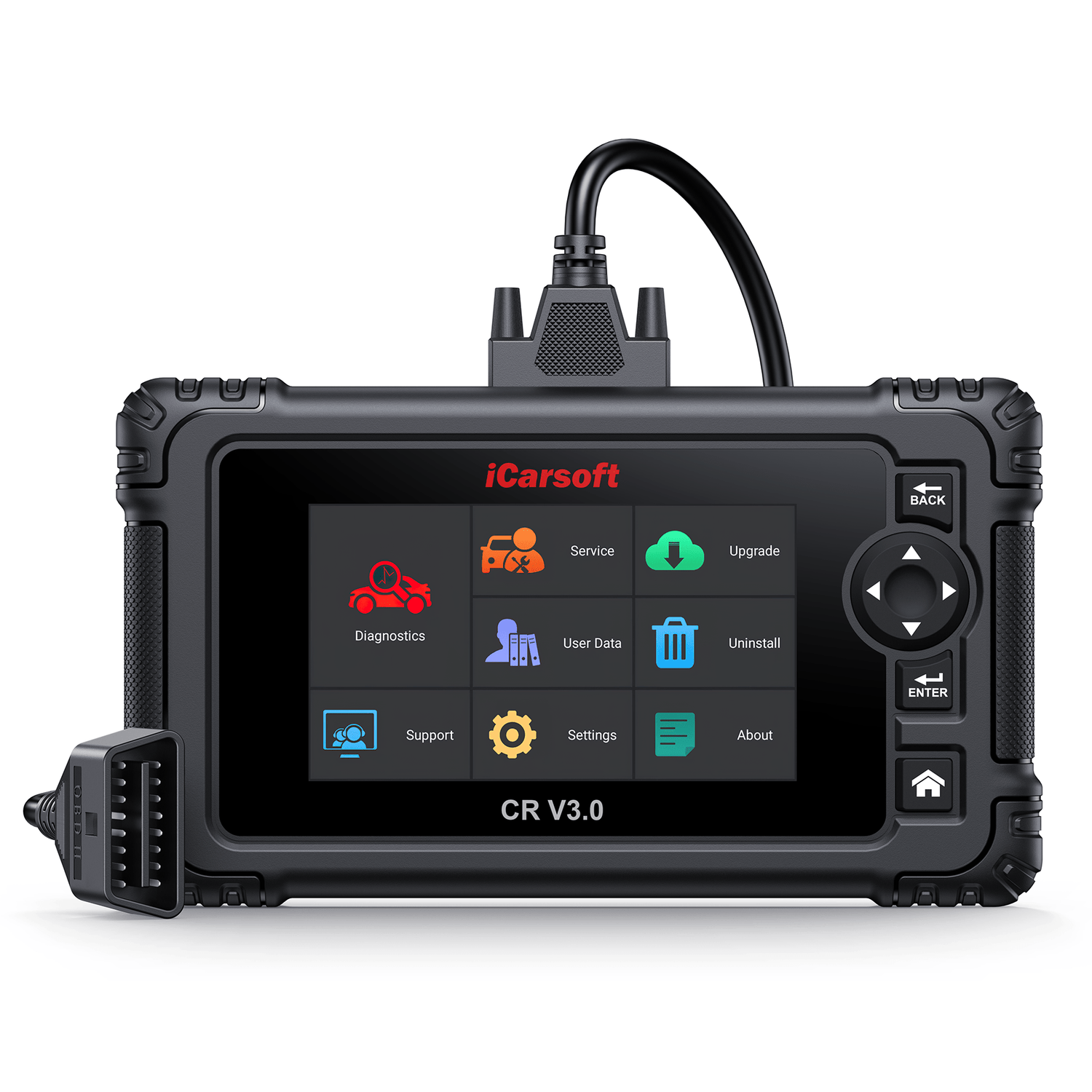

1*Main Cable:The Main Cable connects the Display Tablet to the vehicle’s data link connector (DLC).
1*External power adaptor:Together with the USB cable, connects the Display Tablet to the external DC power port for power supply.
1*Instructions:Device connection and product unpacking list, product description, etc.
1*User's Manual:Tool operations instructions.

Operating System

Android 8.1.0
Processor

Quad Core 1.3GHz
ROM

16GB
Display

5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity

MINI USB 2.0/ WI-FI/ BLUETOOTH/OBD II
Body Color

Black
Power and Battery

OBD DLC Voltage Range: 9-18V
Charges VIA 5 VDC Power Supply

3.7 V/5000MAH Uithium-Polymer Battery
Tested Battery Life

Around 5 Hours Of Continuous Use
Battery Charger

5V/2A
Power Consumption

500MA(LCD On With Default Brightness,WI-FI On)@3.7 V
Temp

0℃~40℃ (32~104 °F)
Storage Temp

-20℃~70℃ (-4~158°F)
Humidity

5%-95% Non-Condensing
Dimensions(W*H*D)

210mm*120mm*31 mm
Net Weight

510g

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ease of use

works good

CR V3.0 is a great scanner!

When I was looking for a more advanced scanner, youtubers recommended iCarsoft to me. Yes, I purchased it. it met all my need though it need to download software of my car brand first and it did work well.It was fast to get the data from the vehicle. The auto-scan found the trouble codes of my car, I took it to clear the code and did a bodycheck to my car. The live data was very handy and helpful. all the data of my car could be made a live graph for easy understanding.The seller told me the scanner had some special cool functions, my Toyota looked to have no connction with cool functions, but my volvo did the try, really helpful.It is a great scanner, at least I think so, though I'm not a professional mechanic,with it I can do most work even it is a job for a professional mechanic.Great scanner.

So many more features than my older device

This is really well-built. Doesn't seem like it would be easily damaged. The number of features and the ease-of-use is incredible. My old device was relatively simple. This one seems like it has just about everything a person could ask for. To be clear, I'm not a mechanic, just a guy who likes to check in to see what's going on in my car. For the everyday driver, this is amazing.

Nice scan tool, but with strange arbitrary limitations

This is the most feature-rich scan tool I have used to date. It is also the first one that I've owned that is effectively a self-powered Android tablet. Where this becomes important is that a lot of less expensive scan tools are 100% powered by the OBDII port, so every time you toggle the ignition switch on and off, the tool loses power and has to reboot, but that does not happen with this tool since it has its own power source. That alone saves a bunch of time not waiting for the tool to re-initialize over and over.The tool is definitely built to withstand abuse, with a very rugged case that should handle drops. Screen brightness and clarity is fantastic. Part of me wants to complain that it charges with a Mini USB cable instead of USB-C, but I suppose in the ruggedness department, an old-school Mini USB connector is going to be a lot more durable in the long run.The main thing I don't like about this tool is how it comes loaded with the OS, but no actual car-specific software, so it is not usable out of the box. Then, they limit how many makes you can download. The claim is that having all of them would overload the storage, but given that the onboard storage is at least 16GB, and each of the car make software modules average around 100MB, downloading software for 10 makes would only be about 1GB, and there is plenty more on-board storage available. The thing I have not been able to figure out yet (and am hesitant to experiment with for the possible risk of losing access to items I need) is if the limit of 10 is "the first 10 you download," or if you could delete some modules and then download software for other makes if you need to in the future, if you buy different cars (or want to use your tool to help out a friend, etc.)

Bought it for volvo XC90 abs system and dpf recalibration

I have a volvo XC90 and this works great for my car. I really want to make a ful health checking to my car, so when I need to do DIY calibration of abs system and dpt I purchase this CR V3.0.To do the full checking, it need to use many special functions on my volvo XC90 and this tool has been able to successfully perform them. From air suspension recalibration, headlight adjustment to testing fan, AC and much more. it provides live data, uses intuitive real-time data graphing for easy to read. Yes, the whole118 car data are diagnosed out and reasonably fast, the UI is well designed too. this tool is feature packed and meet my need.By the way, the customer service is also amazing! I have not yet get the scanner package and I get iCarsoft official service email first, it is the very warm service to customer.You do have to send an email because of support being in a different time zone of the world, but they are very prompt to respond and thorough in their responses.This tool allows me to complete car checking successfully just like a dealer would have done. Very happy for its performance so far.

1 2

PRODUCT COMPARE

A table comparing the facets of 2 products
Facet	iCarsoft CR V3.0 Car Diagnostic Tool View details	iCarsoft CR V2.0 Car Diagnostic Tool View details
By
By	iCarsoft	iCarsoft
Price
Price	$289.95 ~~$311.99~~	$199.95
For which Brands
For which Brands	10 brands available. See product details for more	10 brands available. See product details for more
Service
Service	49+	9+

You may also want to know?

Is the upgrade free of charge?

Yes, iCarsoft support free update all the time.（CR Ultra, CR Unicorn, CR Unicorn s, CR Legend, CR IMMO only update free 3 years）

Which vehicles can iCarsoft's tool diagnosis?

Supports most vehicles with OBD II standardization
Such as：
Vehicles sold in the U.S. after 1996
Vehicles sold in the Europe after 2001
Vehicles sold in the Japan after 2002

Can the diagnostic tool still be used if the vehicle cannot start?

If the vehicle battery is charged, you can diagnose it, but not all features. We propose that you charge the battery and start the vehicles.

What kind of tool is suitable for me?

This depends on your needs; you can check our upcoming blog updates or ask us for more details.

Can iCarsoft tools do oil reset?

Except for MASERATI, the majority of our products support most brands of vehicle oil resets; however, some, like the i820 and i800 Plus, only offer OBDII functions. Therefore, please select the tool that will actually assist you in performing an oil reset.
