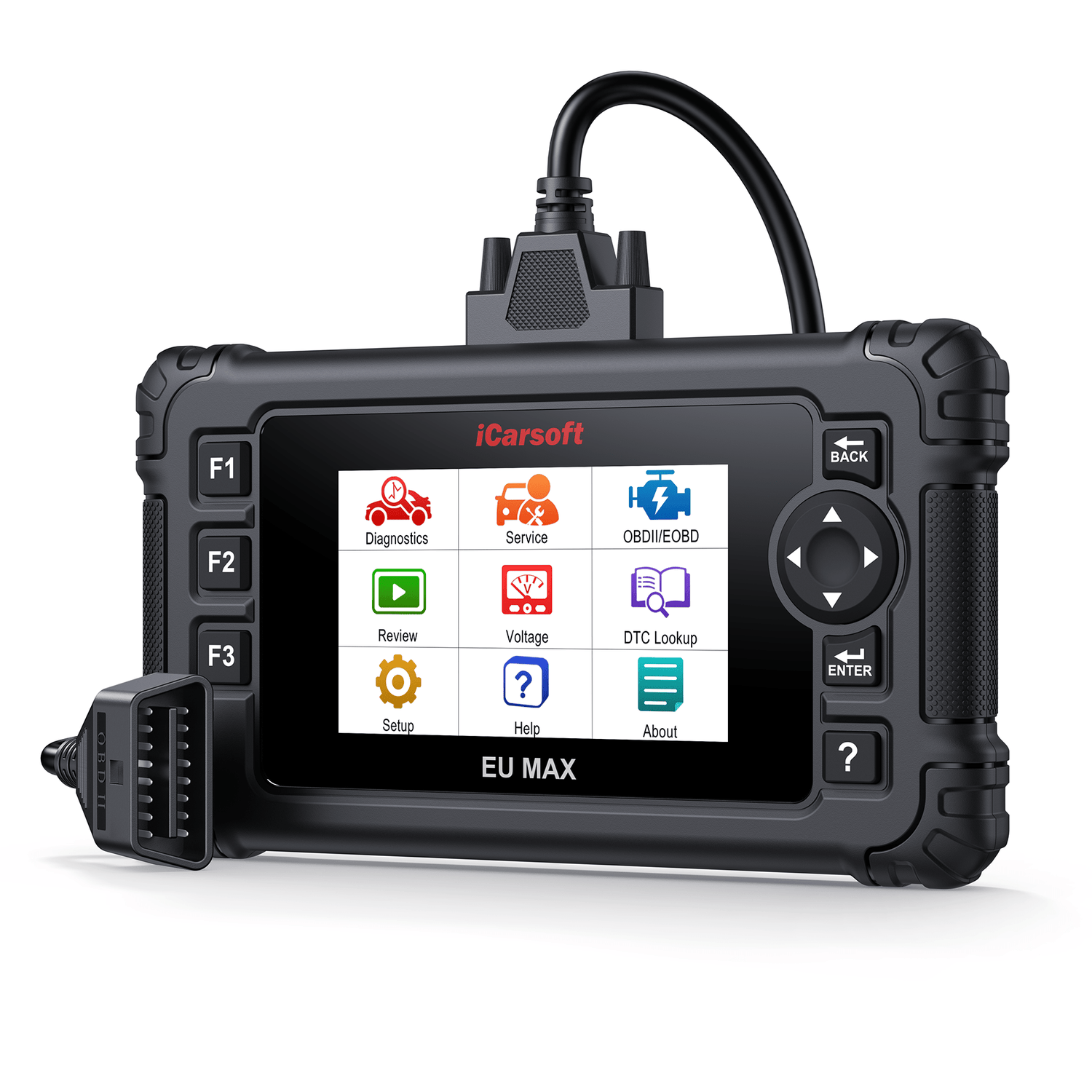

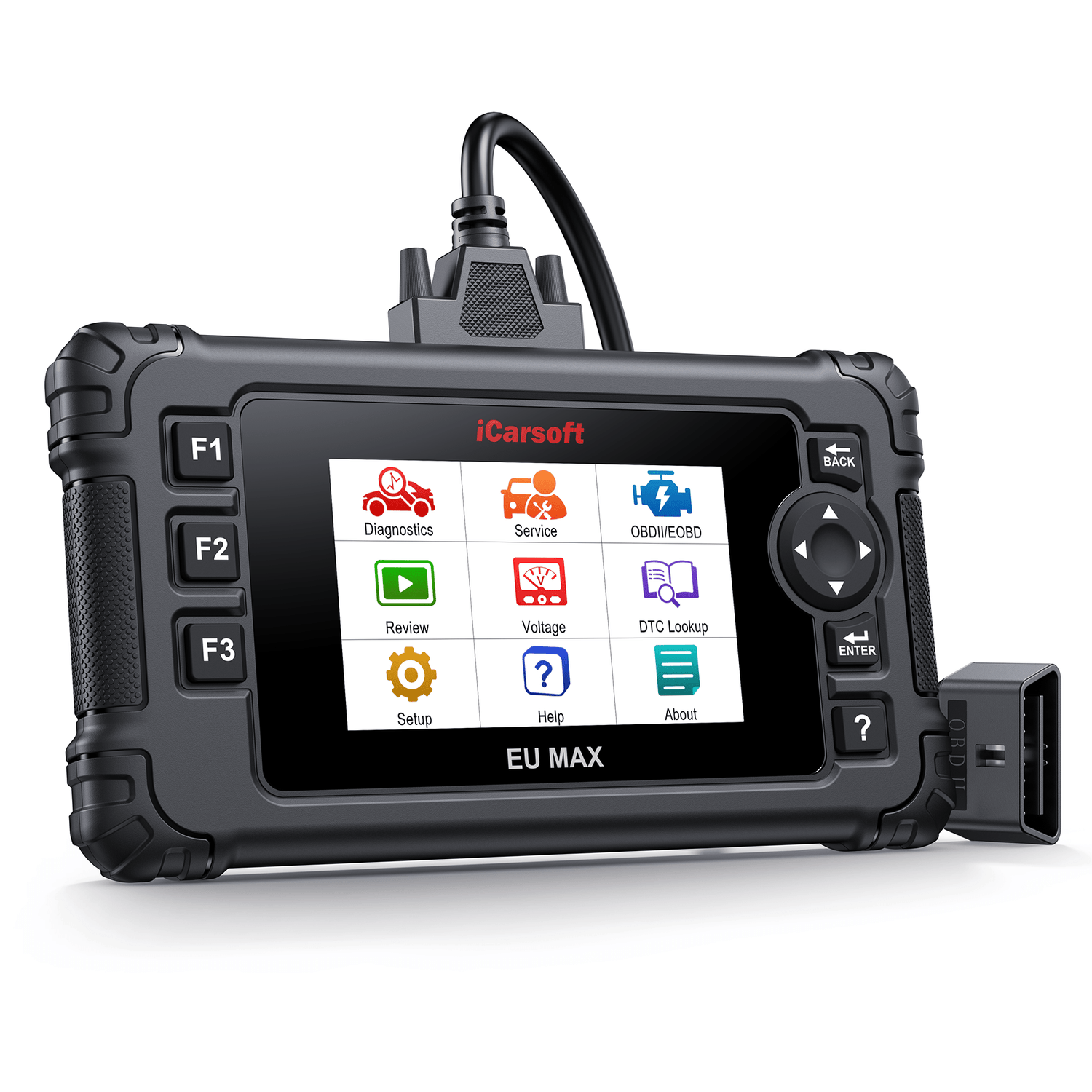

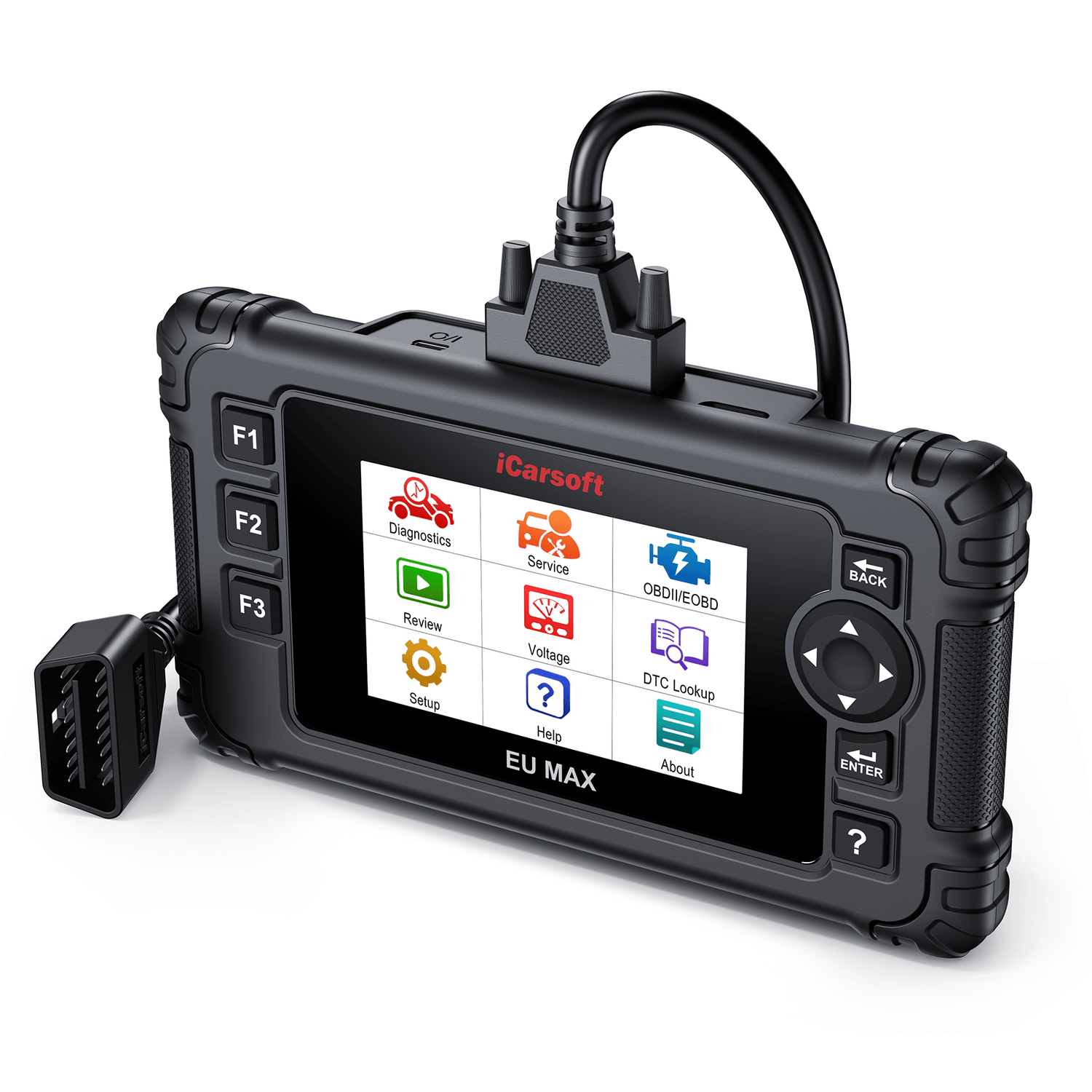

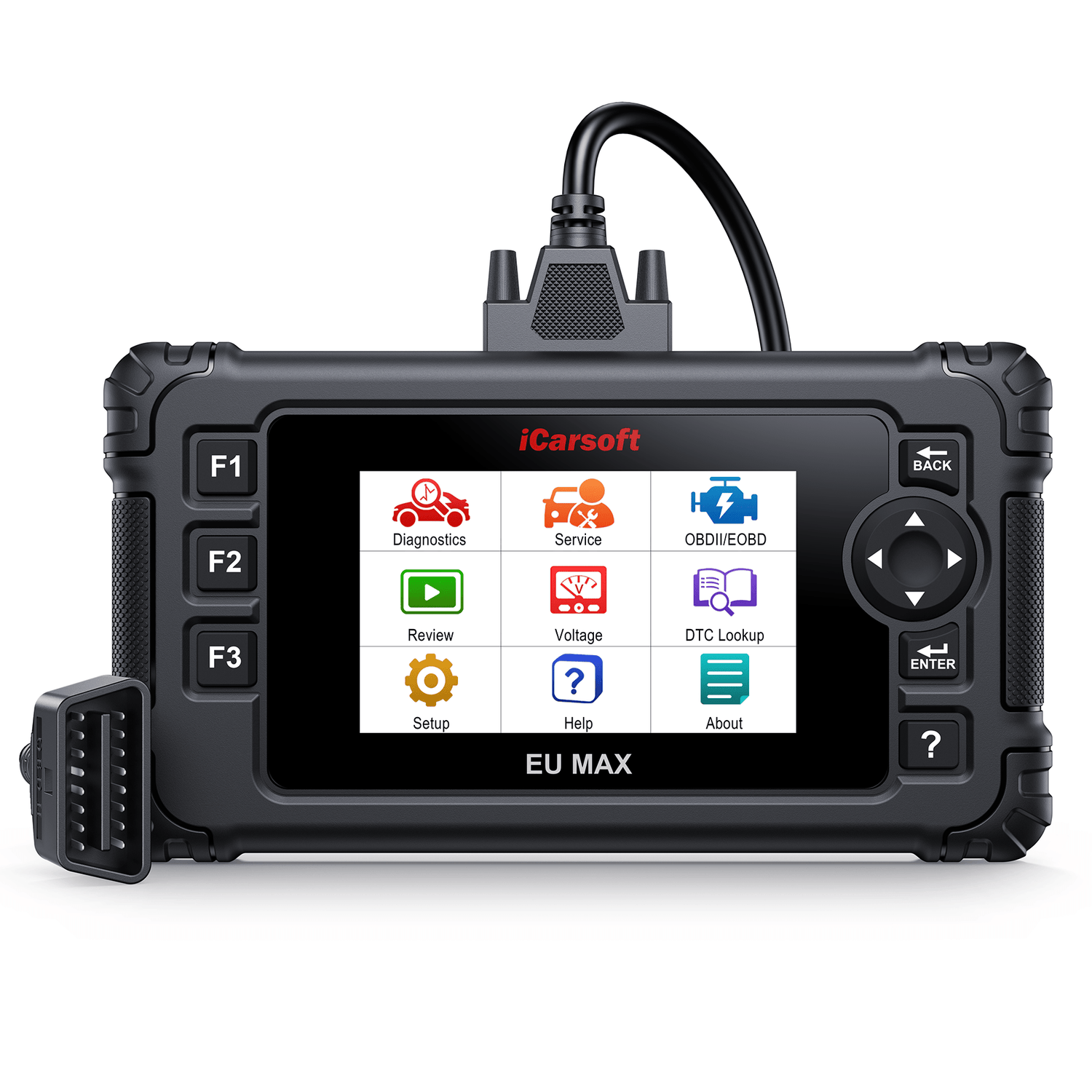

iCarsoft EU MAX Car Diagnostic Tool
Dealer-Level European Car Diagnostics. Trusted Worldwide.
The iCarsoft EU MAX delivers comprehensive diagnostics across every onboard ECU — including the engine, transmission, ABS, and SRS/Airbag. Built strictly for serious DIYers and independent repair shops, it goes far beyond basic code reading — delivering OE-level ECU coding, advanced adaptations, and full bi-directional control.
- Advanced Bi-Directional Control
- CAN-FD Supported
- 47 Service Functions
- Lifetime Free Updates
iCarsoft EU MAX Car Diagnostic Tool is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
1-Year Warranty
Hardware coverage
OE-Level ECU Coding
Dealer-grade
16-Pin OBD2
Direct cable link
Before You Buy
Before You Buy
iCarsoft EU MAX Car Diagnostic Tool
Dealer-grade muscle for the German, British and French electronics generic readers skip.
Most generic code readers go shallow the moment you plug into a Mercedes, a BMW or a VW. The EU MAX is the opposite — built for European-market ECUs, with full bi-directional control, OE-level coding and 47 service functions in a tough, pocket-ready handheld.
Advanced Bi-Directional Control
Command the fuel pump, ABS pump motor, window regulators and throttle, and watch each part respond in real time — pinpoint the faulty component in minutes.
OE-Level ECU Coding
Reprogram, configure and unlock hidden features across BMW, V.A.G and Renault — coding capability normally reserved for the dealer.
CAN-FD Ready
Speaks the next-generation Flexible Data-rate protocol increasingly adopted by modern European vehicles — future-proof from day one.
Lifetime Free Updates
New coverage and protocols delivered via the included card reader and your PC — zero annual subscription fees, ever.
One European line, two ways to work. Find your fit.
The EU Pro and EU MAX share the same 37-make European coverage, lifetime free updates and proven button hardware. The EU Pro is the dedicated diagnostics-and-service workhorse; the EU MAX steps up with bi-directional control and a far larger service-function set when your work calls for it.
| Feature | Best ValueEU Pro | This modelStep UpEU MAX |
|---|---|---|
| Vehicle Coverage | 37 EU makes | 37 EU makes |
| Display Size | 4 inches | 4.3 inches |
| Interaction | Physical Buttons | Physical Buttons |
| System Access | Full systems | Full systems |
| Update Method | USB | USB |
| Free Lifetime Updates | ||
| AutoVIN Identification | ||
| Bi-Directional / Active Test | — | |
| Oil Service Reset | ||
| SAS Reset | ||
| EPB / Brake-Pad Reset | ||
| Electronic Throttle Control | ||
| DPF Regeneration | ||
| Injector Coding | ||
| ABS Bleeding | ||
| BMS Reset | ||
| TPMS Reset | ||
| 38 High Level Service Functions | — |
The two marked rows are where the EU MAX steps beyond the EU Pro — newly added bi-directional control (actuation tests) plus a greatly expanded set of high-level service functions. Everything else — full-system coverage, the core service resets, CAN-FD, AutoVIN and lifetime free updates — is shared by both.
From the Stuttgart saloon to the Paris hatchback.
No diluted "global" menus. Every line of the EU MAX's software is dedicated to the European-market marques below — for Mercedes-Benz, for Maybach, for BMW, for Mini, for Rolls-Royce, for Abarth, for Fiat, for Lancia, for Alfa Romeo, for Ferrari, for Maserati, for Ford, for Jaguar, for Land Rover, for MAN Light-Duty, for Opel, for Vauxhall, for Porsche, for Citroen, for DS, for Peugeot, for Dacia, for Renault, for Renault-Samsung, for Saab, for Smart, for Sprinter, for Audi, for Bentley, for Bugatti, for Lamborghini, for SEAT, for Skoda, for VW, for VW CV, for VW LT3, and for Volvo — so you get deeper system access and more reliable connections on the cars you actually work on.

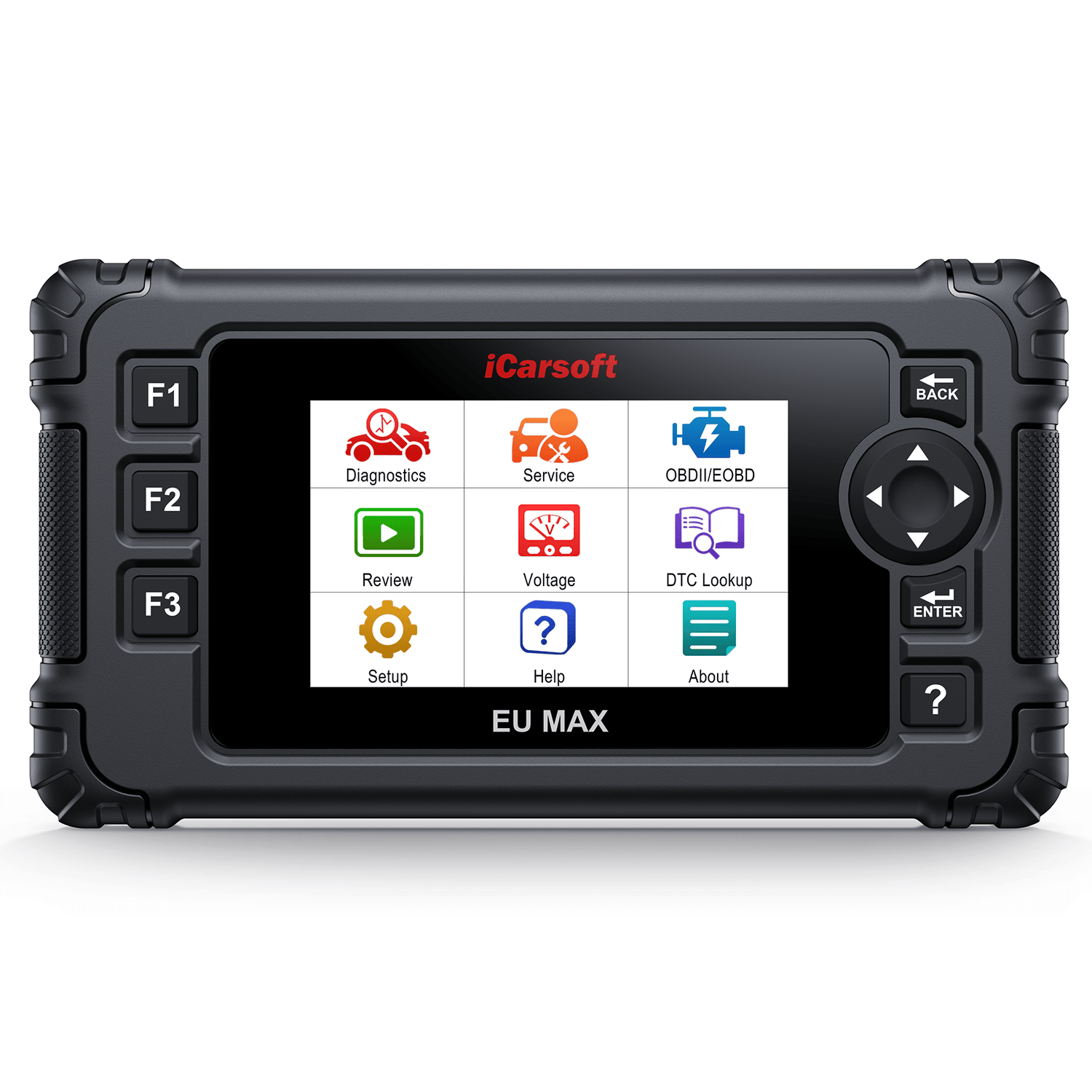

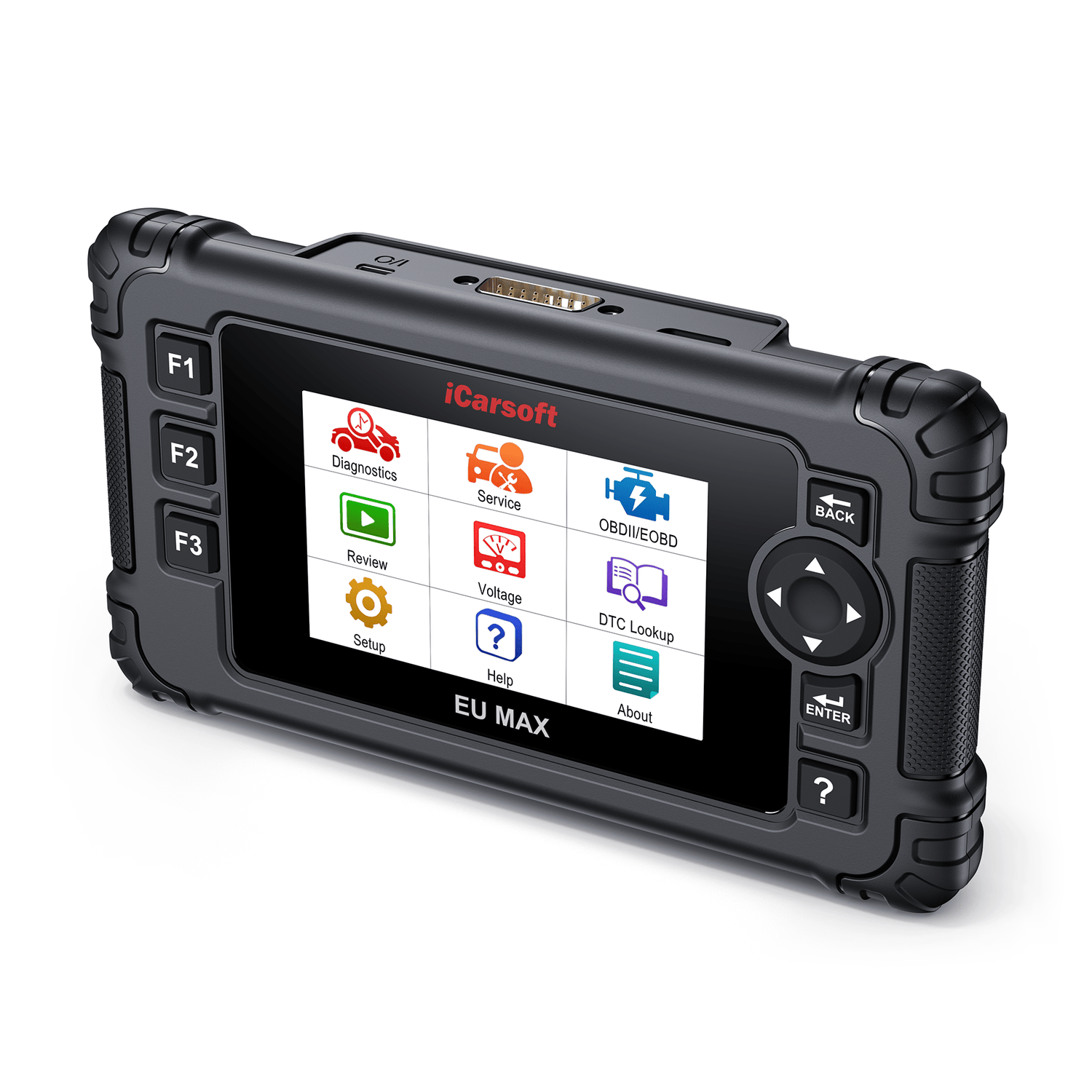

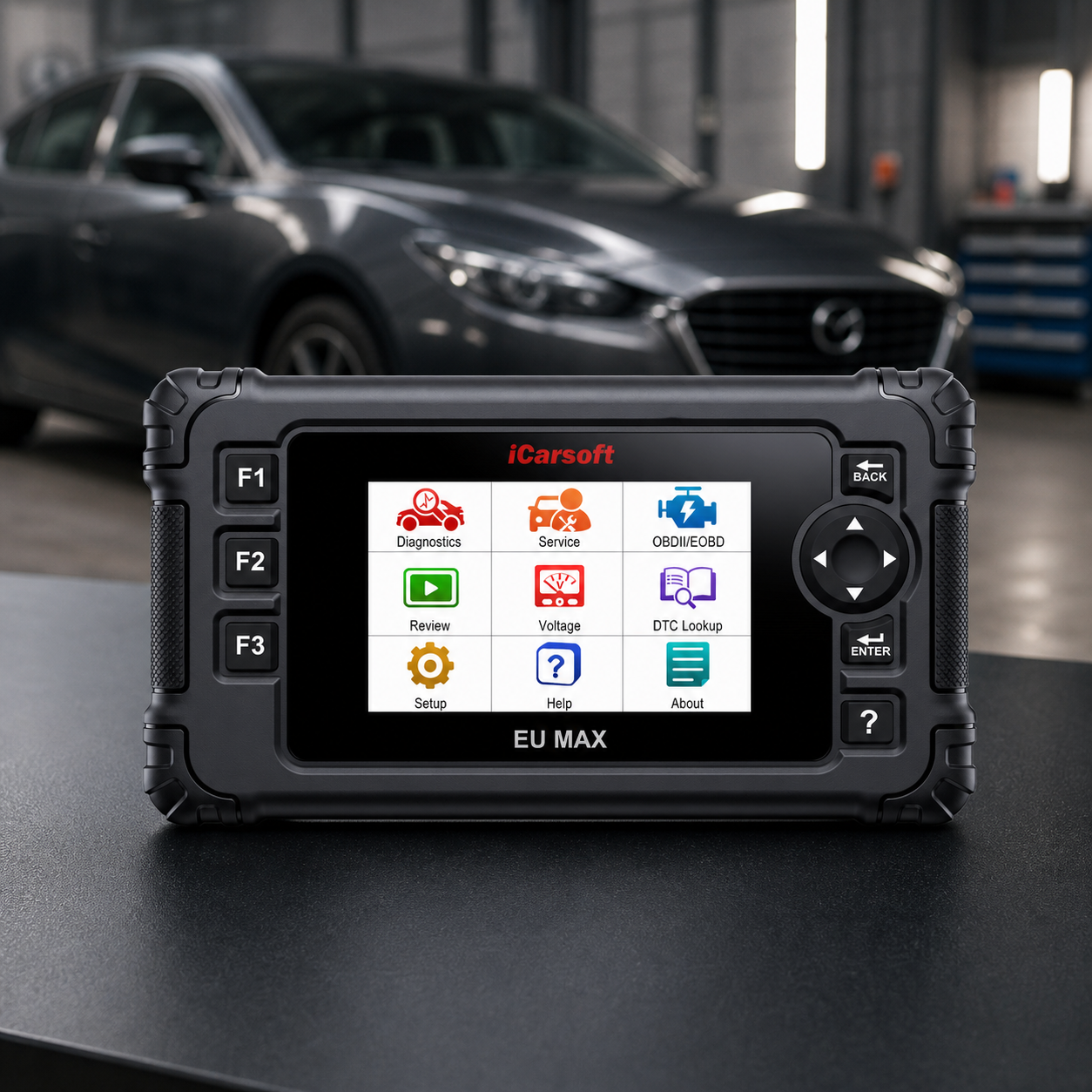

A 4.3-inch workhorse that goes where the fault is.
The iCarsoft EU MAX features a vibrant 4.3-inch screen and intuitive button navigation for quick, effortless menu browsing. It also comes standard with a dedicated card reader, making software and vehicle database updates entirely seamless via your PC. No Wi-Fi needed — update anytime via the included card reader and your PC.
Pay once. Upgrade forever.
Unlike other OBD scan tools on the market that require annual subscription fees, the EU MAX offers lifetime free software upgrades.
Fluent in the language your newest cars already speak.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation communication protocol increasingly adopted by modern European vehicles. The EU MAX supports CAN-FD protocol, so it stays fluent with the newest models arriving in your bay — no compatibility gap as the European fleet modernizes.
CAN-FD
Compatible with the latest European vehicles — Mercedes-Benz, BMW, V.A.G and more with CAN-FD ECUs.
Don't just read the fault — command the part.
The iCarsoft EU MAX goes beyond reading codes. With full bi-directional control, you can command individual components and watch them respond in real time — cycle the ABS pump motor, run window regulators, activate the fuel pump, open the throttle, and run output tests on almost every onboard module. Pinpoint the faulty part in minutes, without trial-and-error.
ABS Pump Motor
Cycle the pump and run wheel-channel output tests on demand.
Fuel Pump
Activate the fuel pump and confirm a real response instantly.
Window Regulators
Drive windows up and down to verify motor and module health.
Throttle Opening
Open the throttle and run output tests across nearly every module.
Reprogram, adapt and personalize like the factory tool.
Maximize your workshop's capabilities with our professional-grade ECU Coding feature. Seamlessly bridge the gap between component replacement, software troubleshooting, and personalized driving experiences across BMW and V.A.G car groups.
| Vehicle Make / Group | Supported Years | Primary Application | Software Diagnostics Entry Path |
|---|---|---|---|
| For BMW | 2006 – Present | ECU Troubleshooting & Data Recovery | Main Menu ➔ Coding |
| For V.A.G (VW, Audi, Skoda, Seat) | 2010 – Present | Component Adaptation & Parameter Calibration | Main Menu ➔ Coding |
| For Renault | 2005 – Present | Onboard Personalization & Hidden Features | Service ➔ Configuration |
ECU Coding for BMW
E-Chassis to G-Chassis Support
DME/DDE Repair & Data Recovery
BMW-Specific Troubleshooting
ECU Coding for V.A.G
Vehicle Configuration & Customization
Module Replacement & Synchronization
Hidden Feature Unlocking & Personalization
ECU Coding for Renault
Onboard Personalization Settings
Hidden Feature Unlocking & Module Activation
Plug in. It already knows your car.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
Diagnostics that speak your language, wherever you work.
9 everyday resets. 38 pro procedures. One handheld.
The EU MAX is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 38 advanced professional functions for complex repair tasks.
Reach every ECU — not just the four standard systems.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the EU MAX provides diagnostic coverage for more complex vehicle systems.
For Engine
Pull and erase engine trouble codes, stream live sensor data in real time, and switch off the check-engine light. Catch faults such as misfires, failing oxygen sensors and poor fuel economy early — before they grow into a costly engine repair.
Coverage beyond the four standard systems.
Emission-ready, so you clear the test the first time.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.
Got a modern classic in the bay? Keep it covered.
The smart auto diagnostic tool EU MAX also supports Mercedes-Benz models (with the 38-pin adapter), early BMW models (with the 20-Pin adapter) and Sprinter vans (with the 14-pin adapter). The corresponding iCarsoft adapters are available separately.
20-pin BMW Adapter
For BMW E30, E36, Early E46, E34, Early E39, E32, E38, E36 Z3, E52, Early E53, E31, E28, E24, E23. Pre-2001 BMW models.
Shop Adapter
38-pin Adapter
Compatible with pre-2003 Mercedes-Benz passenger vehicles: C-Class W202 (up to 2000), E-Class W210 (up to 2002), S-Class W140 (up to 1998), CLK-Class W208 (up to 2003), SLK-Class R170, SL-Class R129 (up to 2002) and other similar models.
Shop Adapter
Every job documented, saved and ready to print.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports. Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.

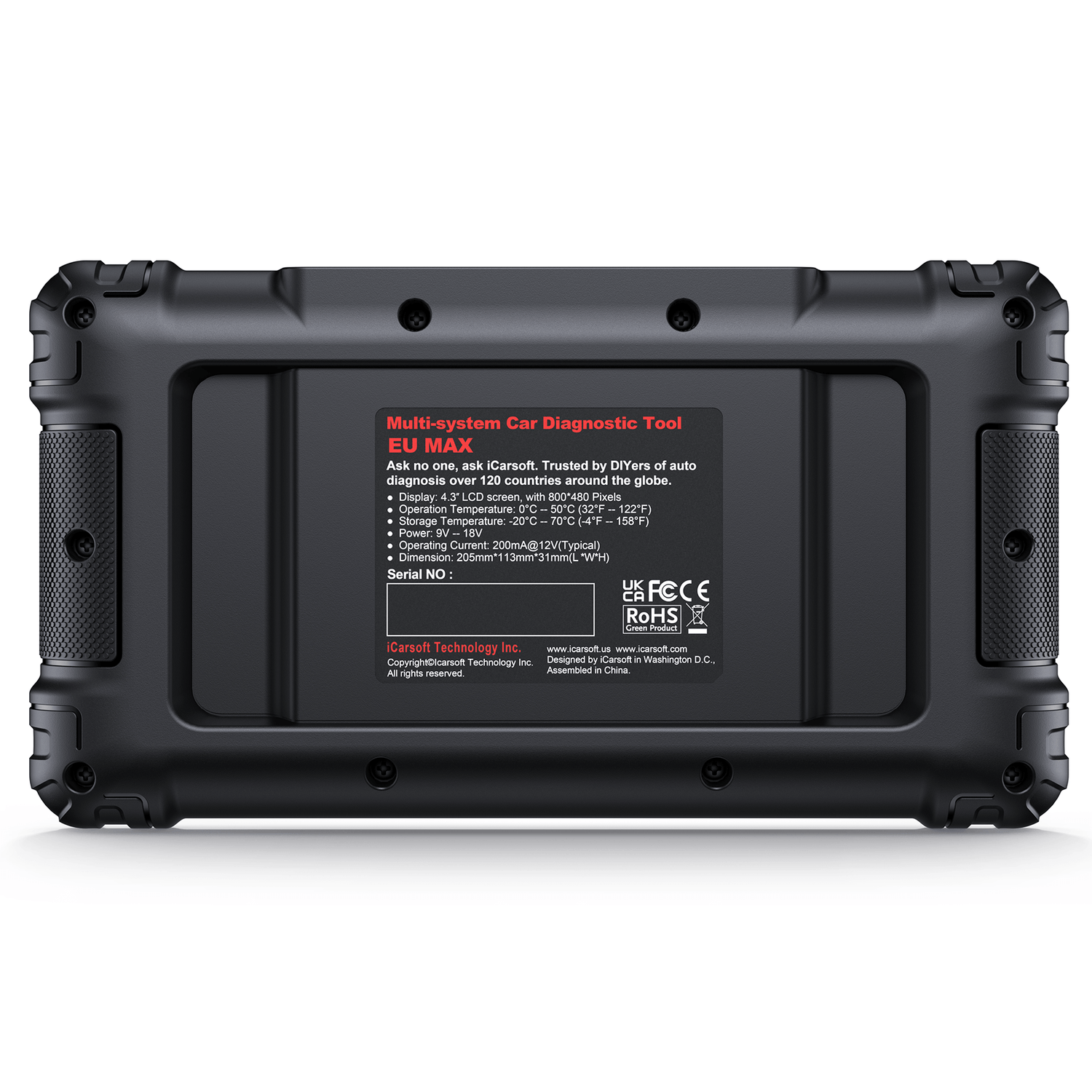

The complete technical rundown.

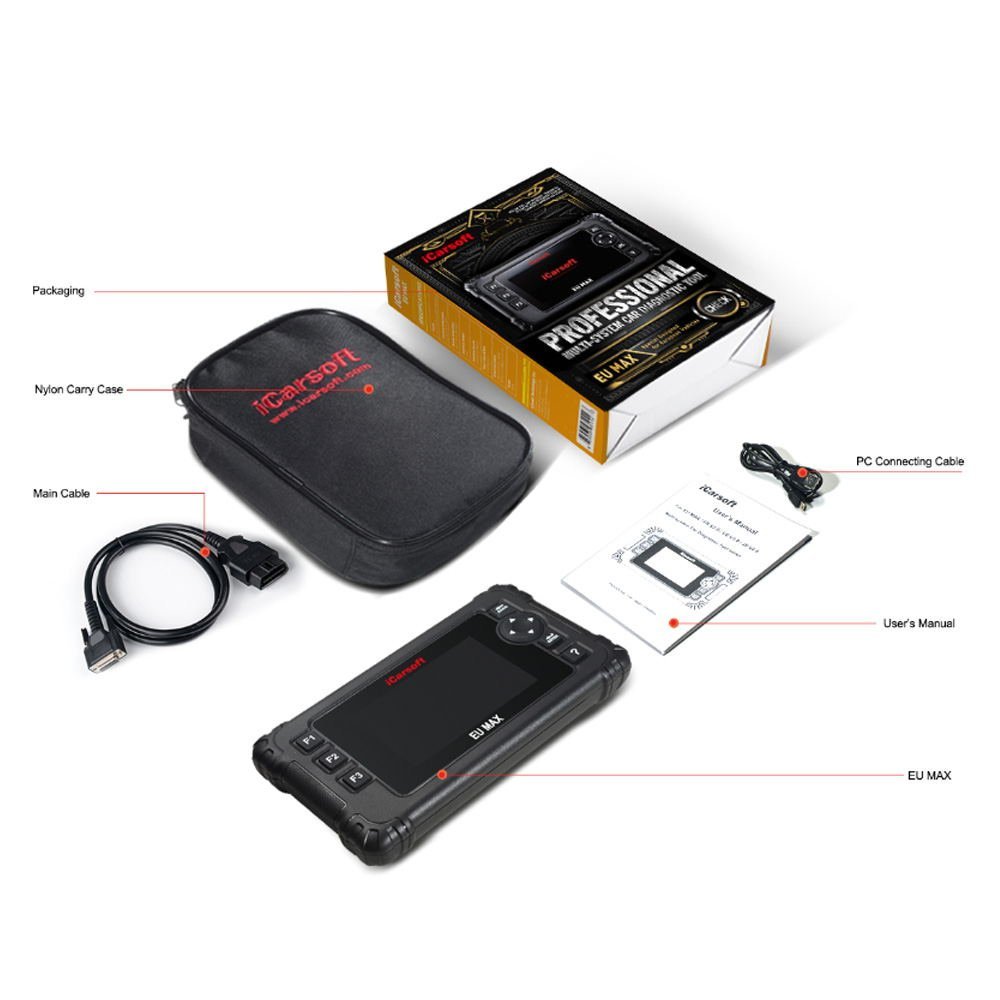

Open the box — everything's accounted for.
Good to know before you buy.
Yes! The iCarsoft EU MAX includes lifetime free software upgrades. There are zero annual subscription fees or hidden costs. You pay once and get continuous software updates forever.
Not at all. AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, simply use the Manual Selection mode—all diagnostic and service functions will work perfectly. Meanwhile, please send your VIN to our support team; we will verify it and add it to our database in the next software update.
Please keep ignition on and engine off. Record freeze frame data first before clearing codes.
Persistent hardware faults need physical repair prior to code clearance.
Some fault codes of systems like SRS and ABS can only be cleared after finishing bi-directional tests.
Please check the following steps to troubleshoot:
- Check Vehicle Compatibility: Ensure your vehicle is covered by the EU MAX, please kindly refer to the vehicle coverage of EU MAX.
- Turn Off Power-Saving: Disable any eco/battery-saving modes on the vehicle that might shut down modules during diagnosis.
- Update Device: Update both the firmware and vehicle software to the latest versions.
- Check Ignition: Ensure the vehicle key is turned to the "ON" position.
Yes. The EU MAX supports a wide range of BMW generations — from modern G-chassis and F-chassis models back to most E-chassis vehicles. Pre-2001 E-chassis models (such as E30/E36/early E46) use a 20-pin round port and require the optional 20-pin adapter. For exact compatibility, please send us your VIN.
The ultimate upgrade of the EU MAX over the EU Pro is its newly added Bi-Directional Control (Actuation Tests) capability and a significantly expanded range of service reset functions, both of which are completely unsupported on the older EU Pro.
