iCarsoft LR V4.0 for Jaguar / Land Rover Diagnostic Scanner
Unit price
/
Unavailable
Shipping calculated at checkout.
Dealer-Level Diagnostics. Built for Owners and Professionals.
The LR V4.0 covers every Jaguar / Land Rover system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bidirectional control, 38 service functions, and lifetime free software updates. Compatible with Jaguar / Land Rover models from 1996 to 2025.
- 5" Android Touchscreen
- CAN-FD Supported
- 15 Languages
- Lifetime Free Updates
iCarsoft LR V4.0 for Jaguar / Land Rover Diagnostic Scanner is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
1-Year Warranty
Hardware coverage
120+ Countries
Global support
Before You Buy
Before You Buy
iCarsoft LR V4.0 for Jaguar / Land Rover Diagnostic Scanner
Unit price
/
Unavailable
38
Service functions
3
Vehicle make groups
1996–2025
Model year coverage
∞
Lifetime updates
01
One Device Covers 3 Vehicle Make Groups
Pre-installed for Jaguar & Land Rover. Add 2 more free.
The iCarsoft LR V4.0 comes pre-installed with software for Jaguar / Land Rover, making it ready to use right out of the box. 2 further vehicle groups can be downloaded when you need it free of charge.
iCARSOFT
LR V4.0
CORE SYSTEM
PRE-INSTALLED
Jaguar / Land Rover
1996 — present
+ 2 FREE DOWNLOADS
Slot 01 — Your pick
e.g. BMW / BENZ / V.A.G
Slot 02 — Your pick
e.g. Ford / Honda / Opel

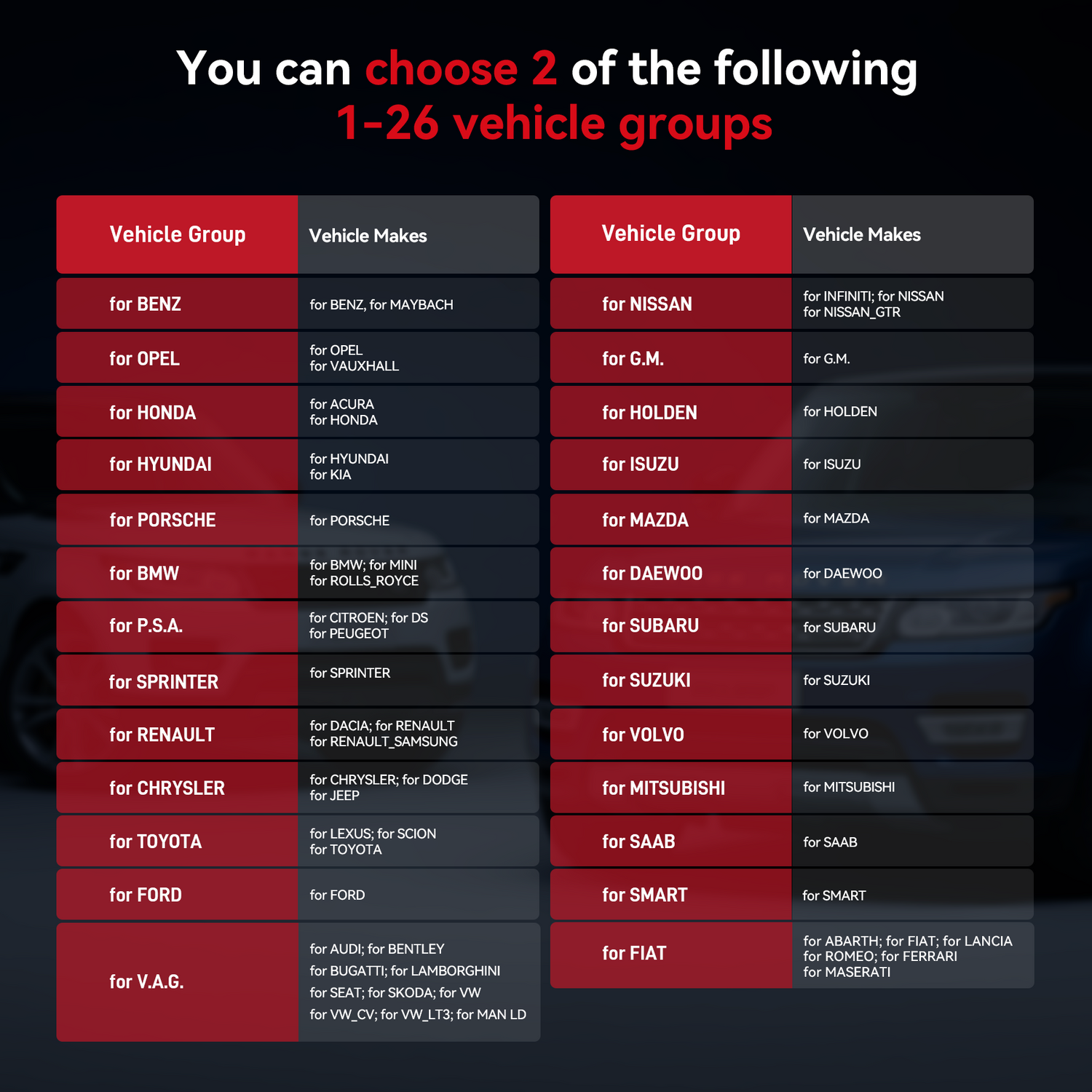

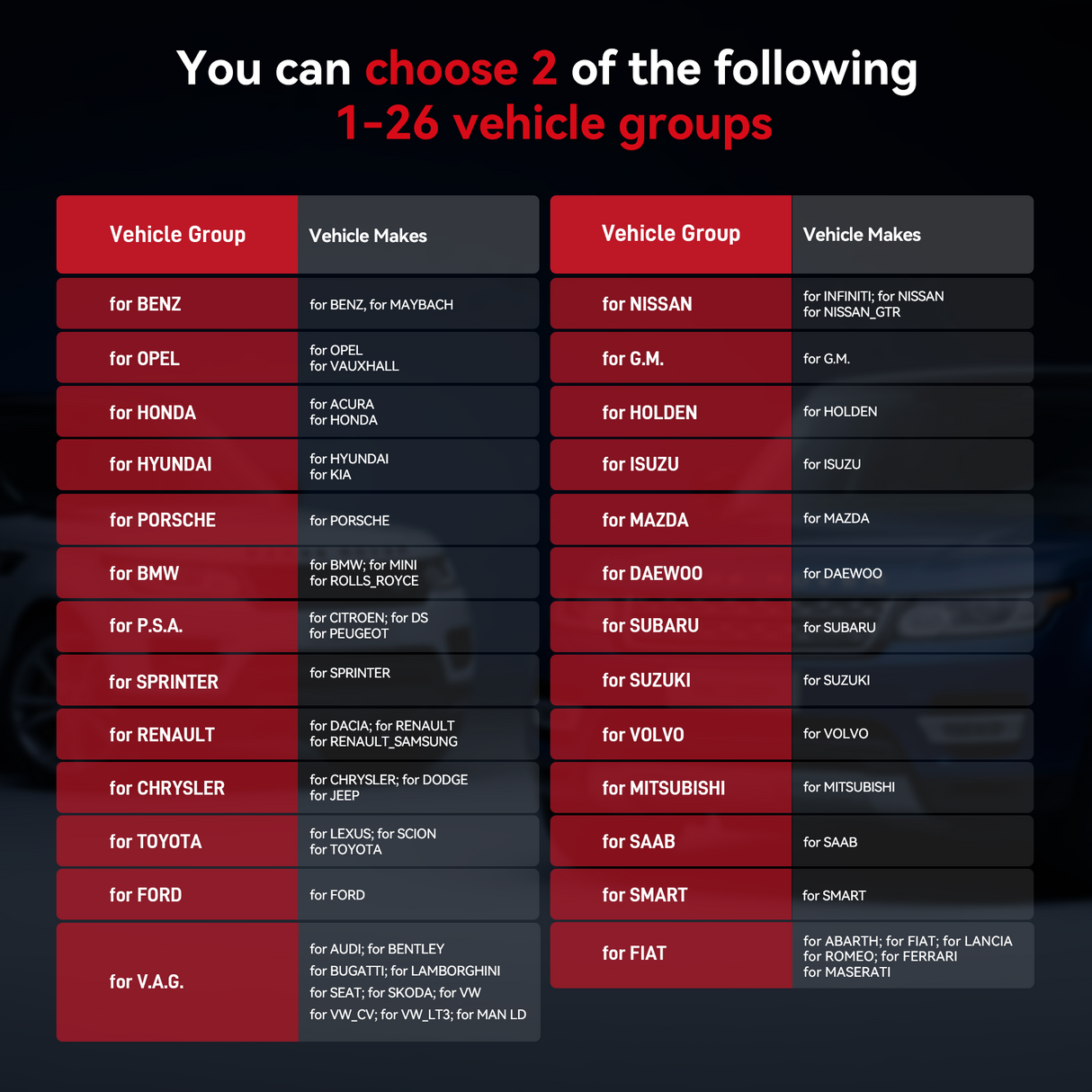

Choose from 26 supported vehicle make groups. Install over Wi-Fi. Free, forever.
For BMW
For BMW / For Mini / For Rolls-Royce
For BENZ
For Mercedes Benz / Maybach
For Sprinter
For Sprinter
For Smart
For Smart
For Chrysler
For Chrysler / For Dodge / For Jeep
For Daewoo
For Daewoo · Full coverage of all models and production years
For Fiat
For Abarth / For Fiat / For Lancia / For Alfa Romeo / For Ferrari / For
Maserati
For Ford
For Ford
For G.M
For G.M
For Holden
For Holden
For Honda
For Acura / For Honda
For Hyundai
For Hyundai / For KIA
For Isuzu
For Isuzu
For Porsche
For Porsche
For Mazda
For Mazda
For Mitsubishi
For Mitsubishi
For Nissan
For Infiniti / For Nissan / For Nissan GT-R
For Opel
For Opel / For Vauxhall
For P.S.A
For Citroen / For DS / For Peugeot
For Renault
For Dacia / For Renault / For Renault Samsung
For Saab
For Saab
For Subaru
For Subaru
For Suzuki
For Suzuki
For Toyota
For Lexus / For Scion / For Toyota
For V.A.G
For Audi / For Bentley / For Bugatti / For Lamborghini / For Seat / For
Skoda / For VW / For VW Commercial Vehicles / For VW LT3 / For MAN Light-Duty
For Volvo
For Volvo
02
Advanced Bi-Directional Control
Read codes? Anyone can do that. Send commands? That's the LR V4.0.
01 / Concept
What is Bi-Directional Control?
The LR V4.0 doesn't just read codes — it talks directly to your car. This professional-grade scanner sends active commands straight to individual vehicle modules and watches them respond in real time, bypassing the cabin switches entirely.
02 / The Problem
Why do you need it?
Imagine a power window won't roll up. Is it a broken door switch, a blown fuse, or a dead motor? Instead of ripping apart the door panel to test wires, you just tap the screen on your LR V4.0. If the window rolls down, you know the motor is perfectly fine and the switch is the culprit. No more guesswork, no more buying parts you don't need.
03 / The Power
What can you do with it?
Direct, real-time control of the actuators that matter most for daily diagnostic work.
Cycle the ABS pump motor
Purge trapped air during brake bleeding without leaving the driver's seat.
Command window regulators
Drive them up and down to isolate a bad switch cluster vs. a failed motor.
Kick on the fuel pump
Activate it instantly to verify fuel-pressure-drop conditions in seconds.
Modulate throttle opening
Sweep the throttle to check for sticking carbon deposits on the body.
Trigger door locks & mirrors
Pinpoint body control module glitches by exercising individual actuators.
Run dynamic output tests
Hit virtually any onboard actuator or solenoid — in minutes, not hours.
03
Powerful Hardware

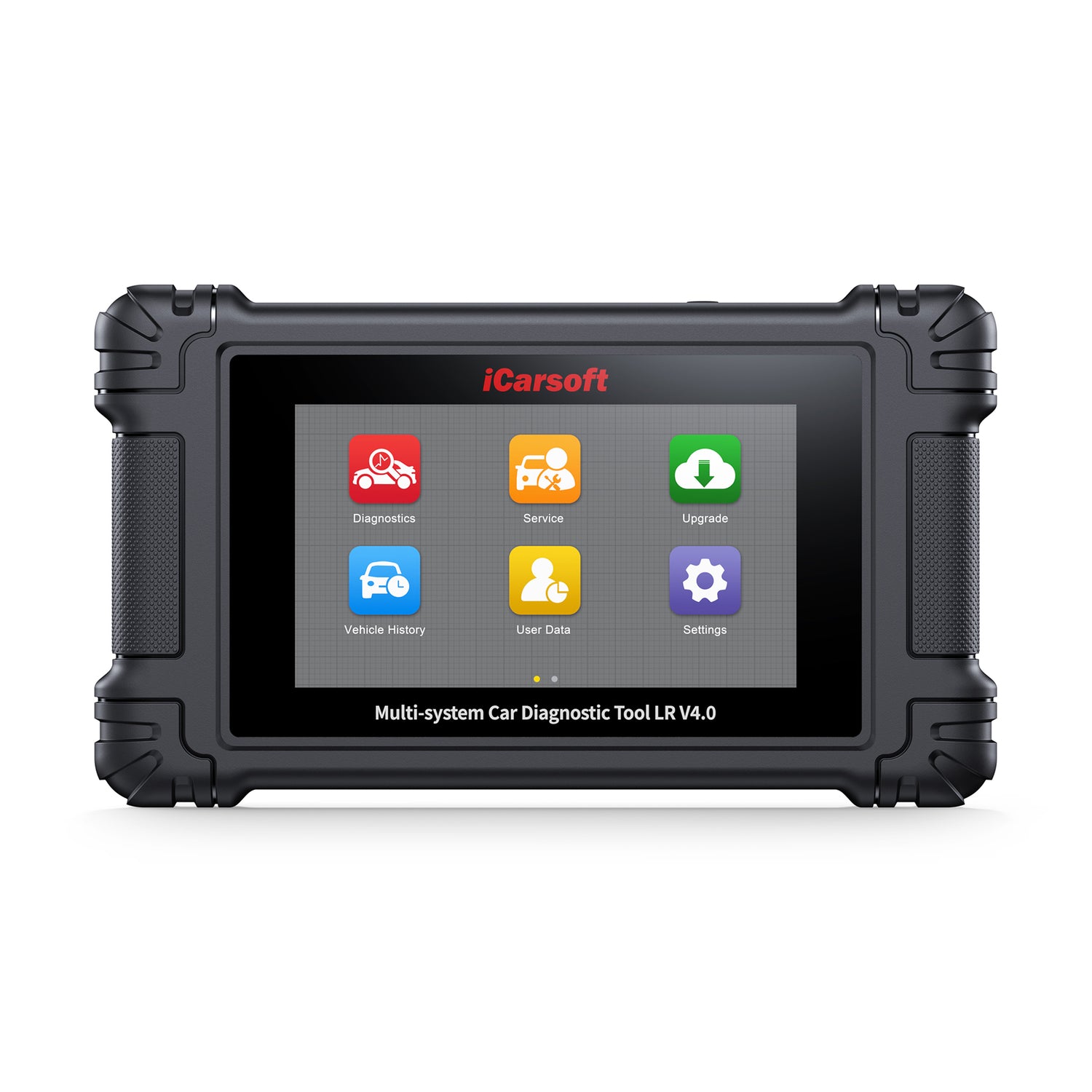

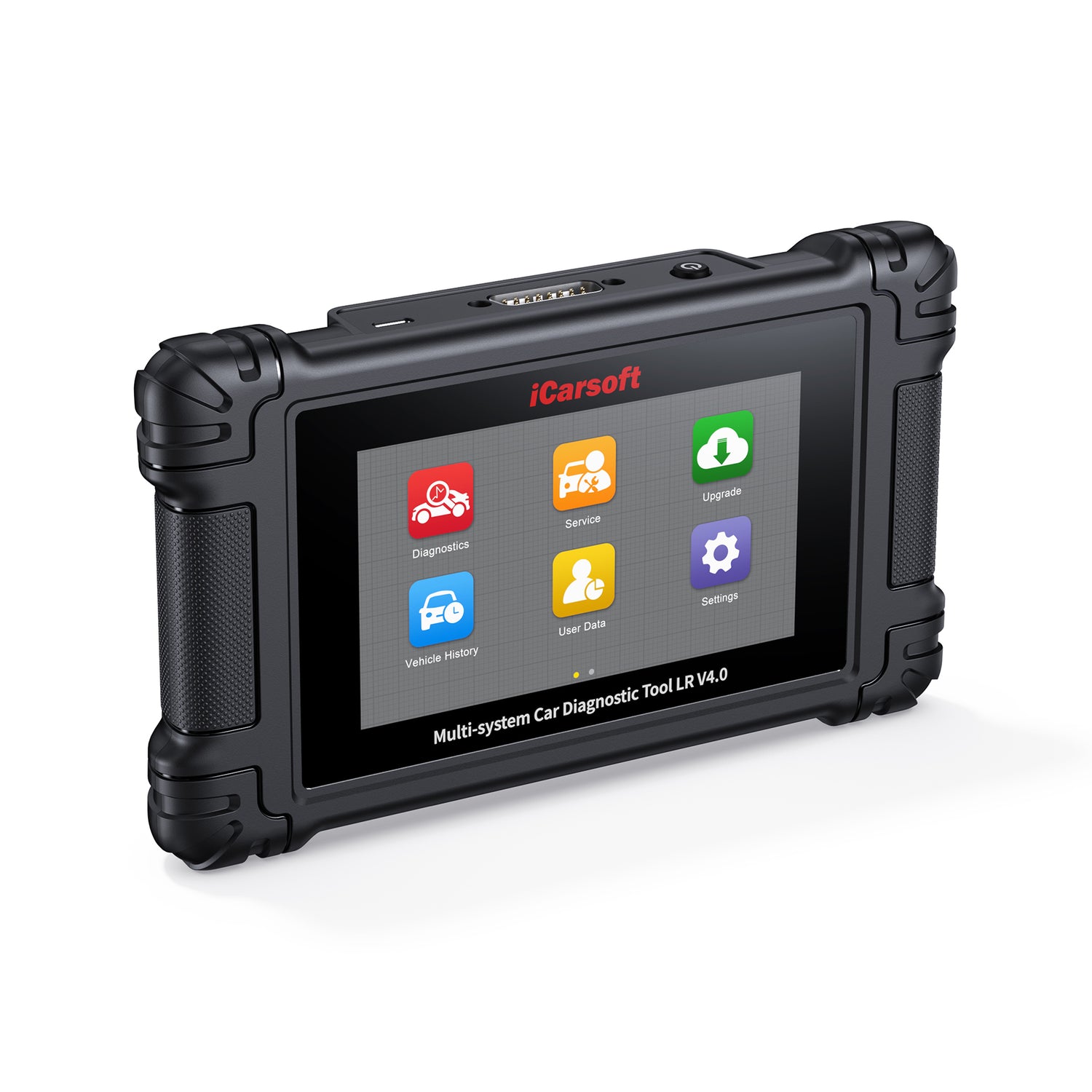

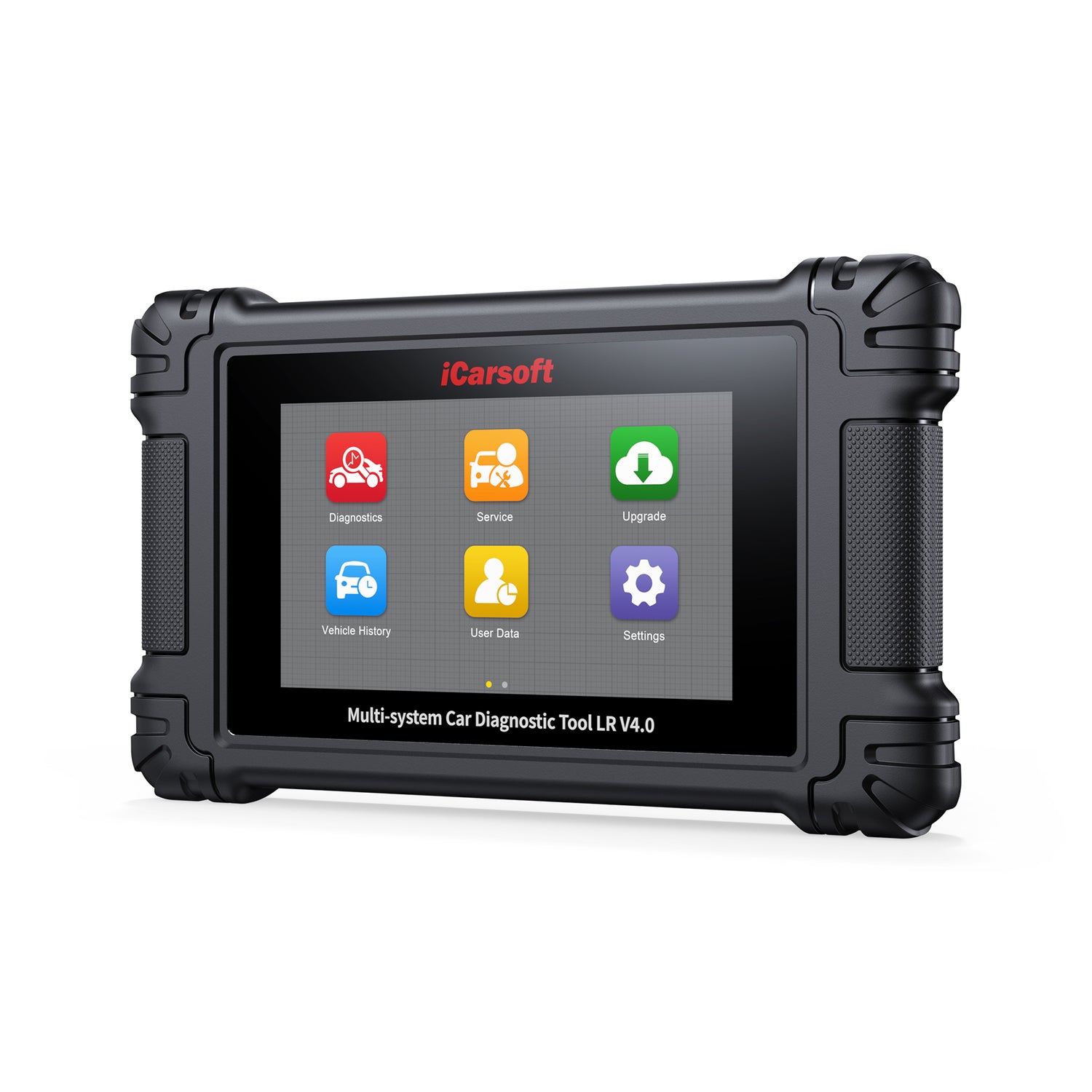

A 5-inch Android tablet, built to work.
iCarsoft LR V4.0 car diagnostic tool is equipped with a 5-inch HD Touch Screen, Android operating system, Quad Core 1.3 GHz processor, 64GB memory and a 5000mAh battery for around 6 hours of continuous use. It offers a user-friendly interface and an ultra-smooth diagnostic experience.
5"
HD Touch
1.3G
Quad-Core
64GB
Memory
~6h
5000 mAh
04
Lifetime Free Software Upgrades
Pay once. Upgrade forever.
Unlike other OBD scan tools on the market that require annual subscription fees, the LR V4.0 offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
$0
YEAR 1Wi-Fi
update
$0
YEAR 3New
protocols
$0
YEAR 5Future
models
$0
YEAR 10+Still
free
No subscriptions. No surprise fees. No
expired licenses.
05
Supports the Latest CAN-FD Protocol
CAN-FD ready for Jaguar & Land Rover.
PROTOCOL SUPPORT
CAN-FD
Flexible Data-rate
Built for the next generation of Jaguar & Land Rover.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Jaguar and Land Rover.
Range Rover Vogue
Range Rover Sport
Range Rover Evoque
Range Rover Velar
Discovery
06
Fast AutoVIN Identification
Plug in. Three seconds. Identified.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
07
15 global languages
For owners and shops, in every market.
EN
English
DE
Deutsch
FR
Français
NL
Nederlands
ES
Español
CZ
Čeština
SV
Svenska
RU
Русский
HU
Magyar
NO
Norsk
PT
Português
IT
Italiano
PL
Polski
DA
Dansk
FI
Suomi
08
38 comprehensive service functions
Far more than a code reader.
The LR V4.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 29 advanced professional functions for complex repair tasks.
9
Hot Service Functions
covering your daily maintenance needs.
Electronic Throttle Control
Relearns throttle valve control parameters after resetting or replacing the throttle body.
EPB-Brake-Pad Reset (EPB)
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Steering Angle Reset (SAS)
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
DPF Regeneration
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Injector Coding
Relearns the injector control parameters when an injector is renewed or replaced.
ABS Bleeding
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Air Suspension Service
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Battery Management Service (BMS)
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
29
High-level Service Functions
for professional technicians.
TPMS Reset
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Air Conditioner Service
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
Head Lamp Service
Initializes the adaptive headlamp system.
Body Stability Control Service
Supports routine maintenance of DSC modules, including resetting or deleting adaptation values, and initializing the unit.
Engine Control Service
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Transmission Control Service
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Seat Service
Performs calibration after repairing or replacing the seat position drive motor.
Air-Bag Reset
Resets airbag data to clear the airbag (SRS) warning light after a collision.
Immobilizer Service
Anti-theft Matching, disable any lost keys and add new keys. ONLY for vehicles with basic Immobilizer system.
Door-Window-Roof
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
Engine Idle Service
Adjusts the engine idle speed.
ODO Meter Reset
Reads and verifies odometer values stored across multiple ECUs. (Note: this function does not alter mileage; it is intended for lawful service and verification only.)
Turbocharger
Performs turbocharger learning after component replacement, or resets stored learned values.
Exhaust Gas Recirculation
Recirculates a portion of engine exhaust gas back into the intake system.
Door Service
Performs full calibration after window lift motor repair or replacement.
AdBlue
Resets the AdBlue (urea) level counter after the diesel exhaust fluid is refilled or replaced.
Crankshaft Learning
Performs crankshaft position learning and related calibration after engine repair.
Clutch Matching
Learns the clutch contact point and engagement position where the clutch begins to transmit engine torque. Applicable after ECU replacement, transmission removal/replacement, or clutch replacement. For adaptive clutches only.
Head-Up Display
Used for learning and calibration of heads-up display.
High Voltage Battery
Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
Vehicle Language Setting
Changes the vehicle's system language.
Rain Sensor
Calibrates the rain sensor after windshield replacement or sensor renewal.
Radar/Camera
Performs radar and camera learning and calibration (ADAS).
Cylinder Shutoff Test
Tests each engine cylinder individually by disabling its fuel supply — useful for diagnosing cylinder-specific issues such as misfires or low compression.
Speed Limit Assist
Sets or removes the vehicle's maximum speed limit.
O2S (Oxygen Sensor)
Supports oxygen sensor replacement adaptation and initializes the three-way catalytic converter learned values.
Seat Belt
Performs seatbelt pretensioner reset and related maintenance after airbag deployment.
Mileage Verification
Checks and compares odometer data stored across multiple ECUs to detect mileage tampering.
VIN Verification
Reads and matches the VIN across all vehicle ECUs to detect inconsistencies or unauthorized module replacement.
Additional service functions are available in the Miscellaneous section.
⚠ Compatibility Notice: The specific diagnostic service functions vary by vehicle brand, model, production year, and ECU configuration.

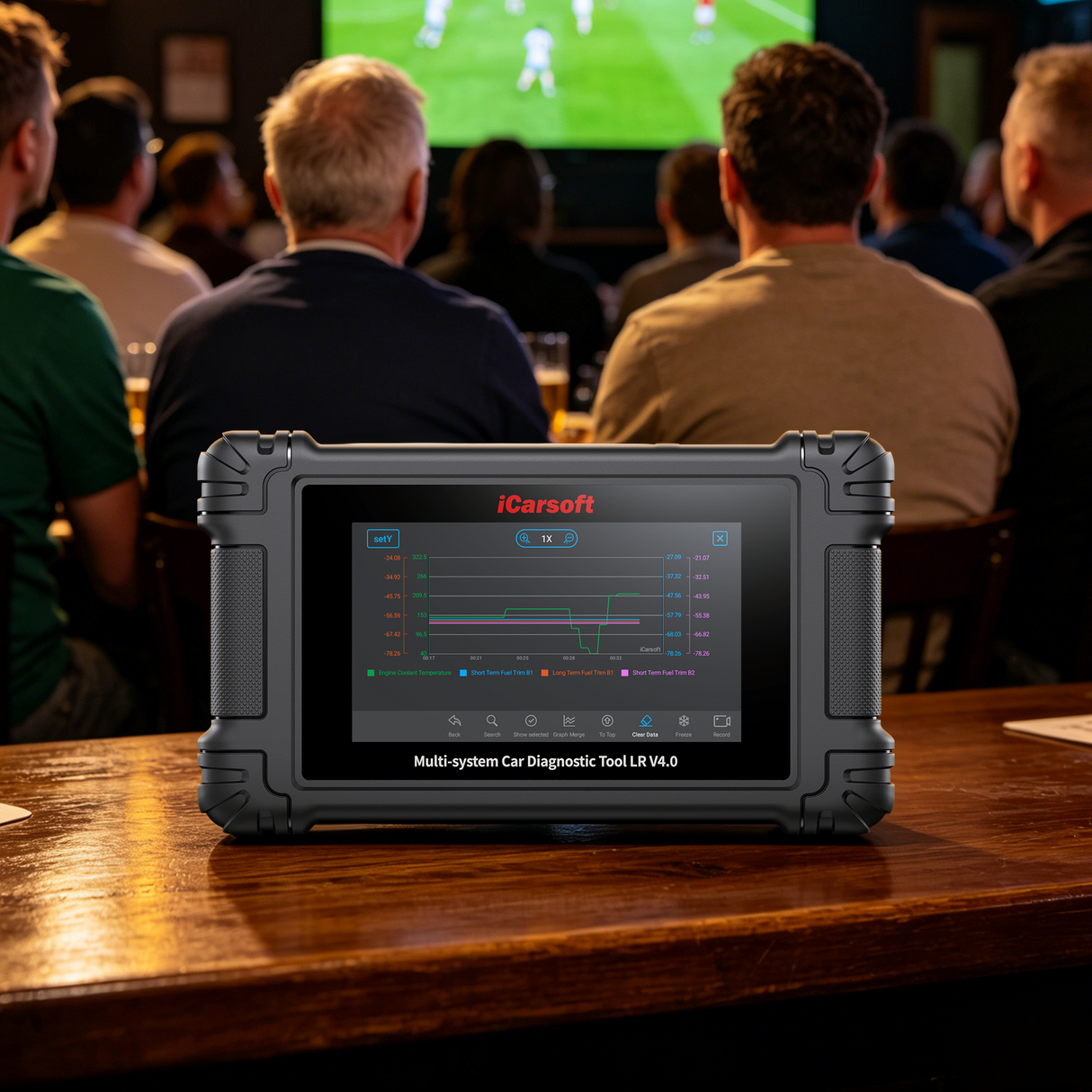

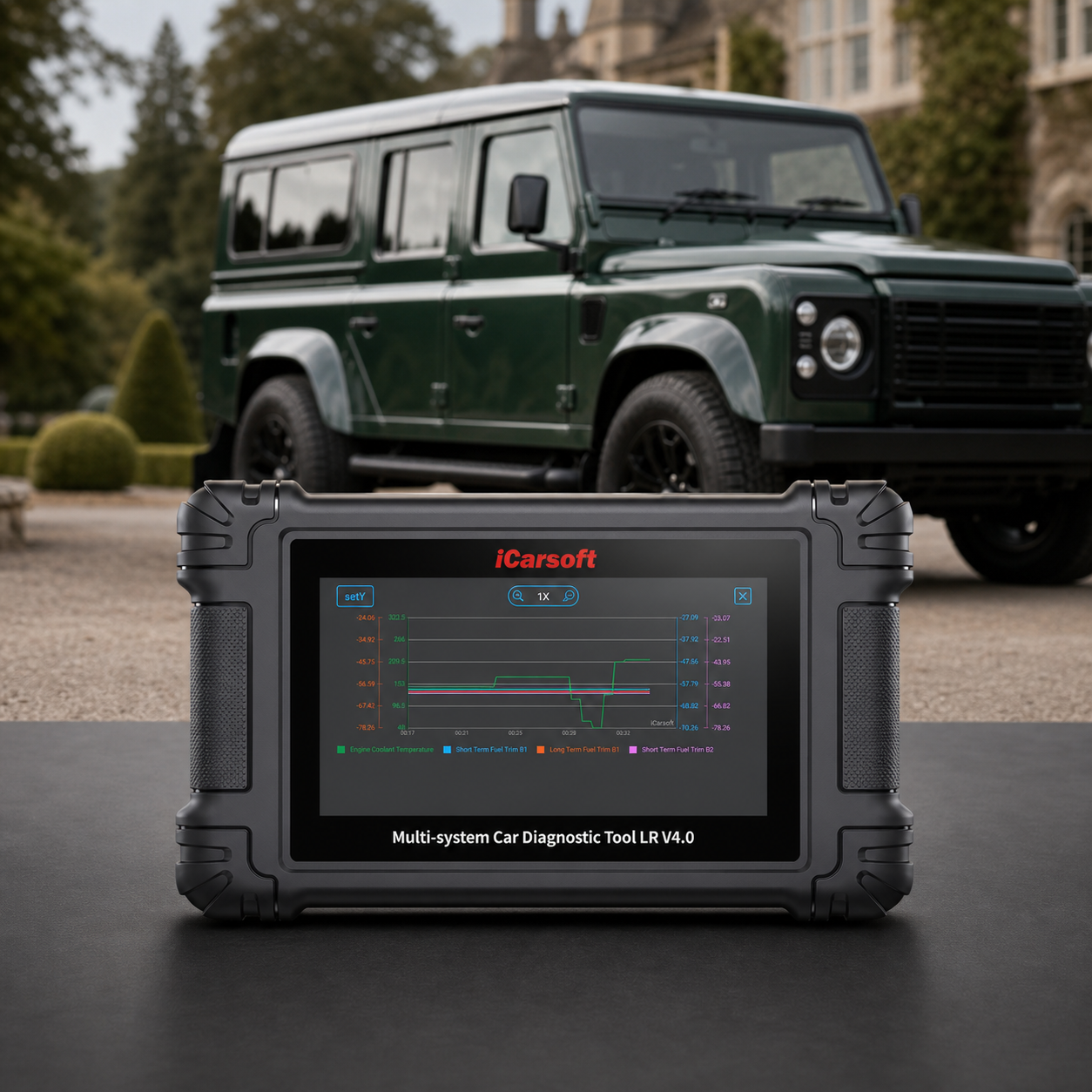

Data-Driven Diagnostics
Live PID Analysis & Real-Time Insights
Air Conditioner Service
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
See it in action on a real Jaguar / Land Rover →
09
Powerful full-system diagnostics
Beyond the four basics. Into every module.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the LR V4.0 provides diagnostic coverage for more complex vehicle systems.
Read & Clear DTCs
Read ECU Information
Read Live Data
Access All ECUs via OBDII-16
Read & Clear Freeze Frame Data
10
OE-Level Advanced Diagnostic Functions
Dealer-grade adaptations the cheap scanners can't touch.
Five adaptive procedures normally only found on the dealer's SDD tool — built directly into the LR V4.0 for Jaguar and Land Rover.
OE-Level Diagnostics
Equivalent to the dealer SDD procedure.
No more "take it to the dealer" for the hard stuff — five SDD-equivalent adaptations, one device.
01
Dealer-Level Yaw Rate Sensor Calibration
Calibrates the yaw rate sensor to OE standards after replacement or alignment — equivalent to the dealer SDD procedure.
02
Powertrain Configuration & Adaptation Reset
Wipes learned shift patterns to reset ECM/TCM adaptive, instantly curing harsh shifts and restoring factory-smooth drivability.
03
HVAC / Throttle Stepper Motor Initialization
Forces the PCM to relearn precise physical endpoints for throttles and blend doors, fixing erratic idles and ghost climate-control issues.
04
One-Touch Bulk Stepper Motor Re-Programming
Re-indexes all cabin blend-door actuators and temperature flaps simultaneously with a single tap, slashing hours off tedious dashboard overhauls.
05
Smart A/C Compressor Lockout Reset
Overrides and clears protective climate-control codes triggered by low voltage or low freon, unlocking the A/C clutch without a trip to the dealer.
11
Full OBD2 test modes — emission-ready
Every OBD2 mode. Every emissions standard.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII / EOBD / JOBD / KOBD / CAN / CAN-FD standards.
Read Codes
Erase Codes
I/M Readiness
Live Data
Freeze Frame
Vehicle Information
O2 Monitor Test
On-Board Monitor
EVAP System Test
CAN / CAN-FD
12
Supports Diagnostic History and Report Printing
Save it. Share it. Print it.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
13

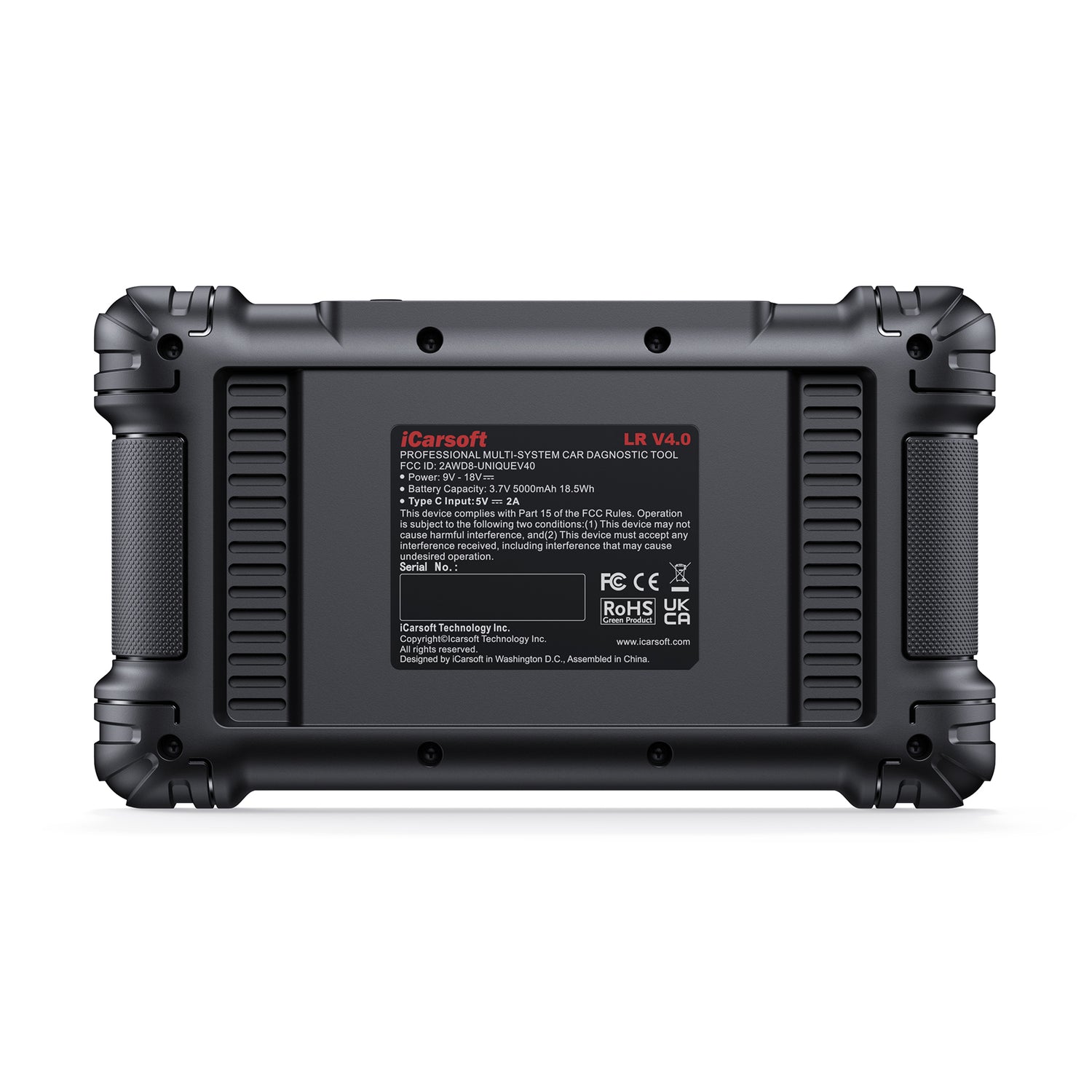

Product specifications
The specs, on one page.
Operating SystemAndroid
ProcessorQuad Core 1.3 GHz
Memory64 GB
Display5″ LCD · 854 × 480

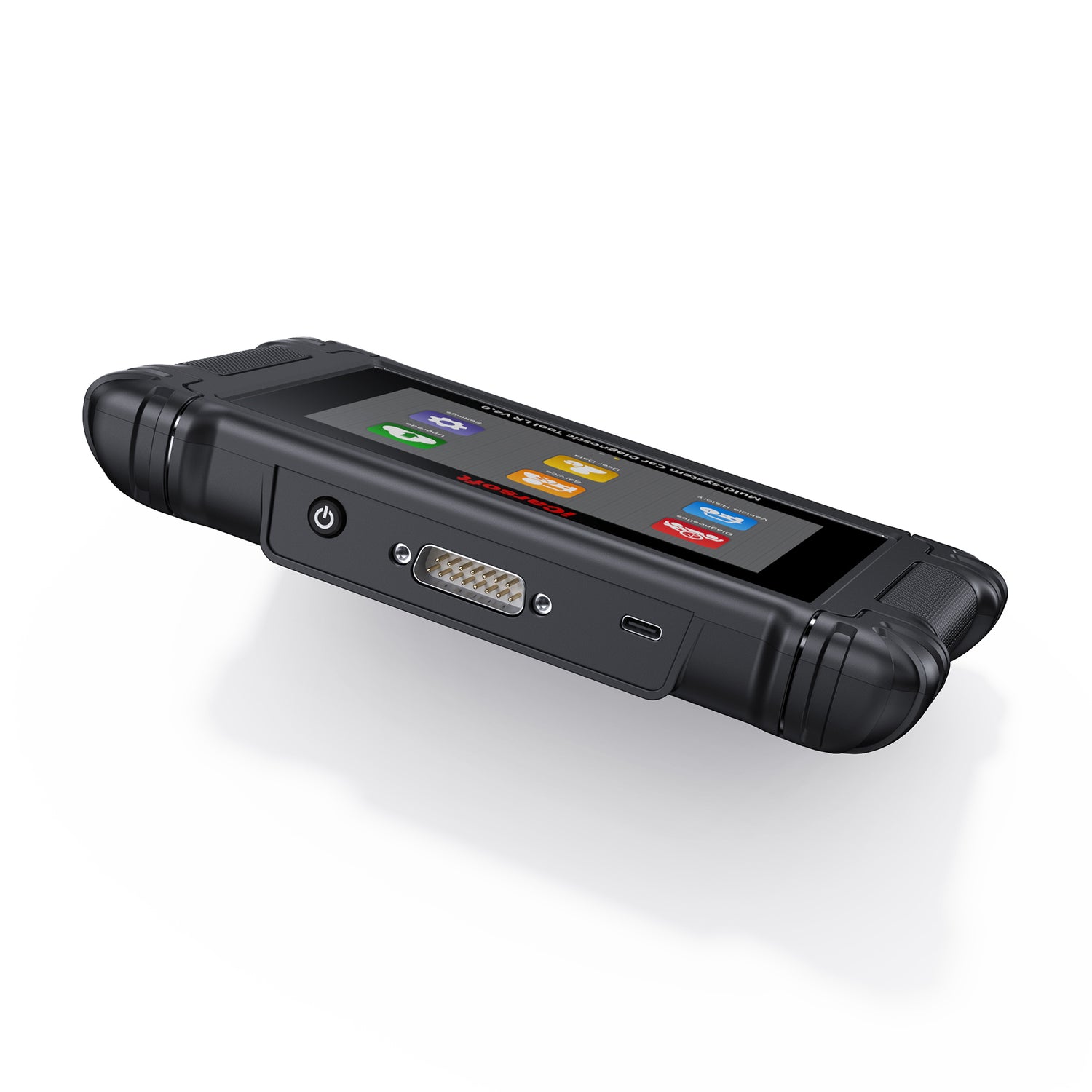

ConnectivityUSB 2.0 · Wi-Fi 2.4 GHz · OBDII
Type-C Input5 V / 2 A
Power9 – 18 V
Operating Current≤ 500 mA
Battery Capacity3.7 V · 5000 mAh · 18.5 Wh
Battery Life~ 6 hours
Power Consumption500 mA (LCD on, Wi-Fi on @ 3.7 V)
Operating Temp.0 – 50 °C (32 – 122 °F)
Storage Temp.−20 – 70 °C (−4 – 158 °F)
Operating Humidity5 – 95 % non-condensing
Dimensions W × H × D200 × 116 × 30.2 mm (7.87 × 4.57 × 1.19 in)
Net Weight≈ 380 g
Supported Automotive Protocols
16 standards
ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
14

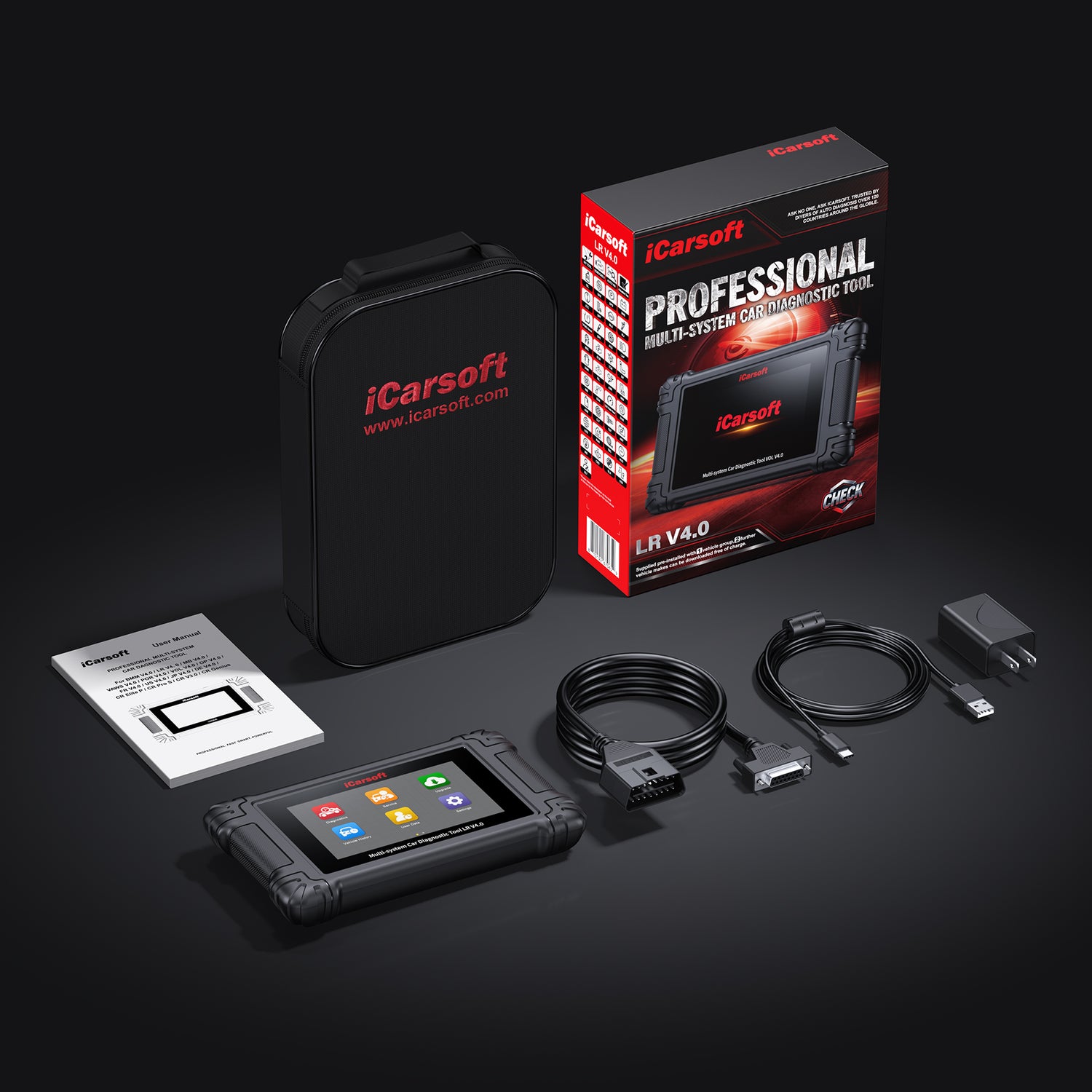

What's in the box
Everything you need. Out of the box.
Main Unit
Diagnostic tablet × 1
Carry Case
Hard shell × 1
OBD2 Main Cable
16-pin × 1
USB-C Cable
× 1
User Manual
Multi-language
Note: USB-C wall charger is not included. The LR V4.0 can be charged using any standard USB-C charger (5V / 2A recommended) or via a computer's USB port.
15
The LR range compared
How LR V4.0 compares to V1.0–V3.0.
| Feature | LR V1.0 | LR V2.0 | LR V3.0 | LR V4.0This model |
|---|---|---|---|---|
| Vehicle Coverage | Jaguar, Land Rover | Jaguar, Land Rover | Jaguar, Land Rover | Jaguar, Land Rover+ 2 free vehicle make groups |
| Display Size | 2.8″ | 4″ | 4″ | 5″ |
| Interaction | Physical buttons | Physical buttons | Physical buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✓ | ✓ | ✓ | ✓ |
| Bi-directional / Active Test | ✕ | ✕ | ✓ | ✓ |
| Oil Service Reset | ✓ | ✓ | ✓ | ✓ |
| SAS Reset | ✓ | ✓ | ✓ | ✓ |
| EPB / Brake-Pad Reset | ✕ | ✓ | ✓ | ✓ |
| Electronic Throttle Control | ✕ | ✓ | ✓ | ✓ |
| DPF Regeneration | ✕ | ✓ | ✓ | ✓ |
| Injector Coding | ✕ | ✓ | ✓ | ✓ |
| ABS Bleeding | ✕ | ✓ | ✓ | ✓ |
| BMS Reset | ✕ | ✓ | ✓ | ✓ |
| TPMS Reset | ✕ | ✓ | ✓ | ✓ |
| 29 High-Level Service Functions | ✕ | ✕ | ✓ | ✓ |
✓ Supported
✕ Not supported
Additional model-specific procedures available — varies by vehicle make, year and trim. See compatibility →
16
Frequently asked questions
Still deciding?
Is the software updated regularly? Are updates free?
Yes! The iCarsoft LR V4.0 includes lifetime free software upgrades via Wi-Fi. There are zero annual subscription fees or hidden costs. You pay once and get continuous software updates forever.
What's the difference between LR V4.0 and the older LR V3.0?
LR V4.0 is the update version of LR V3.0. Vehicle make coverage expansion: LR V4.0 enables users to download two extra vehicle make groups. Hardware upgrade: LR V4.0 features upgraded hardware (5-inch touchscreen, Android OS, Quad-Core processor, 64GB storage, 5000mAh battery).
The LR V4.0 cannot recognize my vehicle by AutoVIN, does it mean the device is faulty?
Not at all. AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, simply use the Manual Selection mode — all diagnostic and service functions will work perfectly. Meanwhile, please send your VIN to our support team; we will verify it and add it to our database in the next software update.
DTCs can be read normally but fail to be cleared or reappear after clearance, why?
Please keep ignition on and engine off. Record freeze frame data first before clearing codes. Persistent hardware faults need physical repair prior to code clearance. Some fault codes of systems like SRS and ABS can only be cleared after finishing bidirectional tests.
The scanner powers on but fails to establish a diagnostic connection. What causes this issue?
Check vehicle compatibility — ensure your vehicle is a Jaguar/Land Rover (1996-2025) or one of your 2 downloaded vehicle groups. Disable any eco/battery-saving modes on the vehicle that might shut down modules during diagnosis. Connect to Wi-Fi and update both the firmware and vehicle software to the latest versions. Ensure the vehicle key is turned to the "ON" position.
Does the LR V4.0 work on my Range Rover?
Yes, absolutely! The LR V4.0 offers deep, dealer-level diagnostic coverage for the entire Range Rover family, including the Range Rover Vogue, Range Rover Sport, Range Rover Evoque, and Range Rover Velar across all major production years.
The LR V4.0 comes pre-installed with 1 vehicle group (Land Rover and Jaguar) at the factory. After purchase, 2 further vehicle group can be downloaded free of charge. Please check the vehicle group table below.
