Can the MB V4.0 work on my older Mercedes without a standard OBD2 port?

Yes, with the optional iCarsoft 38-pin adapter (sold separately). Most Mercedes made before 2003 — C-Class W202, E-Class W210, S-Class W140, CLK W208, SLK R170, SL R129 — use a 38-pin round port.

Does it work on Sprinter T1N or early NCV3 vans?

Yes, with the optional 14-pin Sprinter adapter (sold separately), for 1995-2006 models.

Will it work on my 2022 Mercedes E-Class / S-Class?

Yes. MB V4.0 supports the CAN-FD protocol required for modern Mercedes platforms (W213, W223, W167).

Are software updates free?

Yes. MB V4.0 includes lifetime free Wi-Fi software upgrades. No annual subscription required.

1 8

iCarsoft MB V4.0 Diagnostic Tool [For Mercedes Benz+ 2 Extra Brands]

Name: iCarsoft MB V4.0 Diagnostic Tool [For Mercedes Benz+ 2 Extra Brands]
Brand: iCarsoft-us
Price: 229.95 USD
Availability: InStock
Rating: 4.7 (27 reviews)

$229.95 ~~$329.99~~

Shipping calculated at checkout.

Return Policy

Learn More

Warranty Terms

This warranty applies only to users and distributors who purchase iCarsoft products through normal procedures. Within one year from the date of delivery, iCarsoft warrants its electronic products for damages caused by defects in materials or workmanship. Damages to the equipment or components because of abuse, unauthorized modification, use for non - designed purposes, operation in a manner not specified in the instructions, etc. are not covered by this warranty. The compensation for dashboard damage caused by the defect of this equipment is limited to repair or replacement. iCarsoft does not bear any indirect and incidental losses. iCarsoft will judge the nature of the equipment damage according to its prescribed inspection methods. No agents, employees or business representatives of iCarsoft are authorized to make any confirmation, notice or promise related to iCarsoft products.

Products tutorial, videos, Q&A and coverage list are available on iCarsoft official website.

Delivery and Shipping

7-10 days delivered

Mercedes-Benz · Sprinter · Smart · Maybach

Dealer-level diagnostics,
clear as mountain air.

Covering every Mercedes system — engine, transmission, airbag, ABS and ECU adaptations — with full bidirectional control, 41 service functions and lifetime free updates. Compatible 1996–2025.

5″ Android Touch CAN-FD Supported 15 Languages ∞ Free Updates

Buy Now ▶ Watch the demo

Service Functions

1+2

Vehicle Groups

Languages

OBD2 Test Modes

01 / HARDWARE

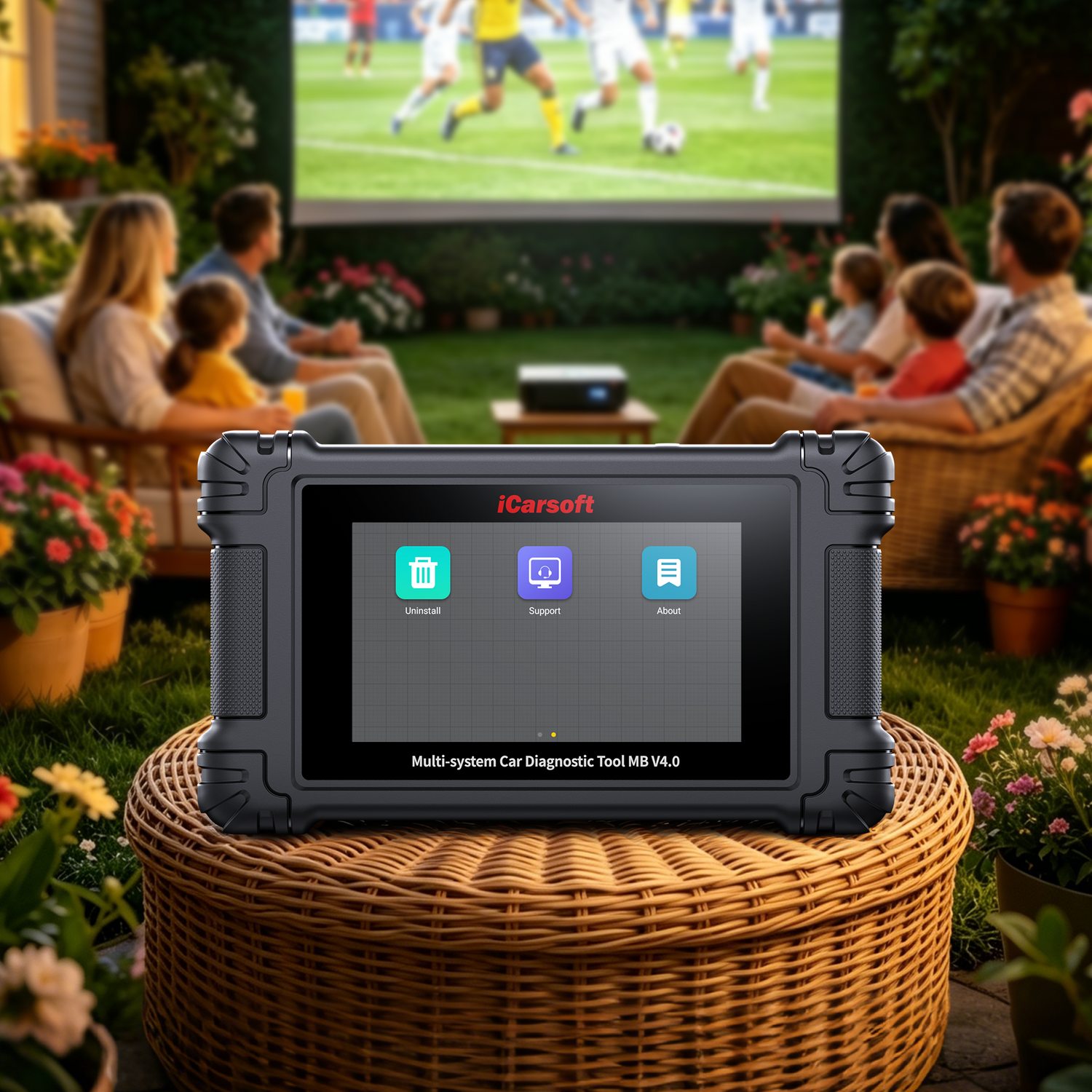

A 5-inch Android tablet, built to work.

Equipped with a 5-inch Ultra HD touchscreen, Android OS, a Quad-Core 1.3 GHz processor, 32GB of memory and a 5000mAh battery for around 6 hours of continuous use — a user-friendly interface and an ultra-smooth diagnostic experience.

5″Ultra HD

1.3GQuad-Core

32GBMemory

~6h5000mAh

02 / BI-DIRECTIONAL CONTROL

Command components. Not just read codes.

While ordinary OBD scanners only read fault codes, the MB V4.0 goes further with full bidirectional capability. Directly command individual components: cycle the ABS pump motor, operate window regulators, activate the fuel pump, control throttle opening, and run output tests on almost all onboard modules. Identify the faulty part in minutes — without trial-and-error.

System Capabilities

Always current. Always ready.

Pay once. Upgrade forever.No annual subscription. New diagnostic protocols and vehicle coverage delivered free over Wi-Fi, continuously.

Ready for 2020+ Mercedes.Full CAN-FD support — the protocol Mercedes adopted from 2020. Works on W213, W223, W167 and more.

Plug in. Identified in seconds.Skip manual VIN typing — no typos, no extra lookup time. More accurate, smoother diagnostics.

Vehicle Coverage

One device. 1 + 2 vehicle groups.

Pre-installed for Mercedes-Benz, Sprinter, Smart and Maybach — ready out of the box. Then download any two more vehicle make groups, free of charge, whenever you need them.

Pre-installedMercedes · Sprinter
Smart · MaybachReady out of the box.

Free DownloadsPick any two
groups belowFree over Wi-Fi, anytime.

01BMWMini · Rolls-Royce

02ChryslerDodge · Jeep

03DaewooAll models

04FiatAlfa · Ferrari · Maserati

05Ford—

06G.M—

07Holden—

08HondaAcura

09HyundaiKIA

10Isuzu—

11JLRJaguar · Land Rover

12Mazda—

13Mitsubishi—

14NissanInfiniti · GT-R

15OpelVauxhall

16Porsche—

17P.S.ACitroen · DS · Peugeot

18RenaultDacia · Samsung

19Saab—

20Subaru—

21Suzuki—

22ToyotaLexus · Scion

23V.A.GAudi · VW · Seat · Skoda

24Volvo—

Service Functions

41 functions. Far more than a code reader.

9 commonly-used service functions for daily maintenance, plus 32 advanced professional functions for complex repairs.

Hot Service Functions

Oil ResetReset oil life, lamp & intervals

Electronic Throttle ControlRelearn throttle valve parameters

EPB / Brake-Pad ResetRetract electric parking calipers

Steering Angle Reset (SAS)Calibrate steering to straight-ahead

DPF RegenerationDiesel particulate filter service

Injector CodingRelearn injector control parameters

ABS BleedingRestore ABS brake response

Air Suspension ServiceCalibration, height & reset

Battery Management (BMS)Register replacement, monitor state

High-Level Professional Functions

OE-LEVEL DIAGNOSTICS — DEALER-GRADE ADAPTATIONS

Diagnostic Depth

Every module. OE-level. Emission-ready.

Full System

Beyond the standard four.

Read/clear DTCs, ECU info, live data, freeze frame — access all ECU modules via OBDII-16 DLC, far beyond engine, ABS, airbag and transmission.

OE-Level

Dealer-grade adaptations.

Camshaft position teach-in, NOx storage catalytic adaptation, drive authorization teach-in, pedal angle sensor teach-in and more.

OBD2 Modes

All 10 modes — emission-ready.

For 1996+ OBDII/EOBD/JOBD/CAN/CAN-FD: I/M readiness, live data, freeze frame, O2 monitor, EVAP test and more.

Older Vehicle Connection

Optional adapters for classic models.

Standard 16-pin OBD2 connection included. Pre-2003 Mercedes and early Sprinter vans need an optional adapter (sold separately).

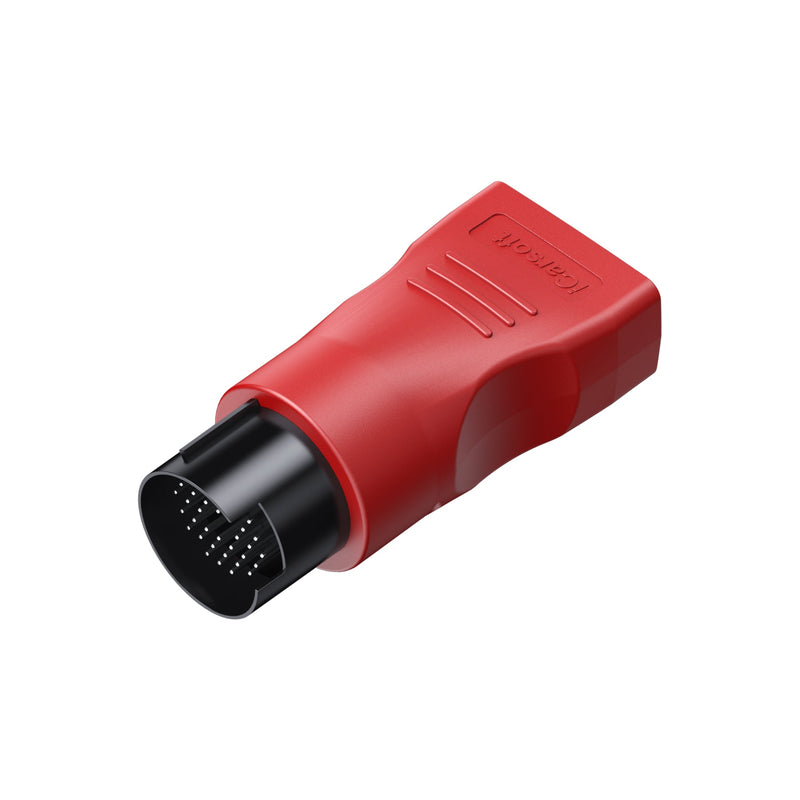

Pre-2003 Mercedes

38-Pin Adapter

C-Class W202 (to 2000), E-Class W210 (to 2002), S-Class W140 (to 1998), CLK W208 (to 2003), SLK R170, SL R129 (to 2002).

Shop adapter

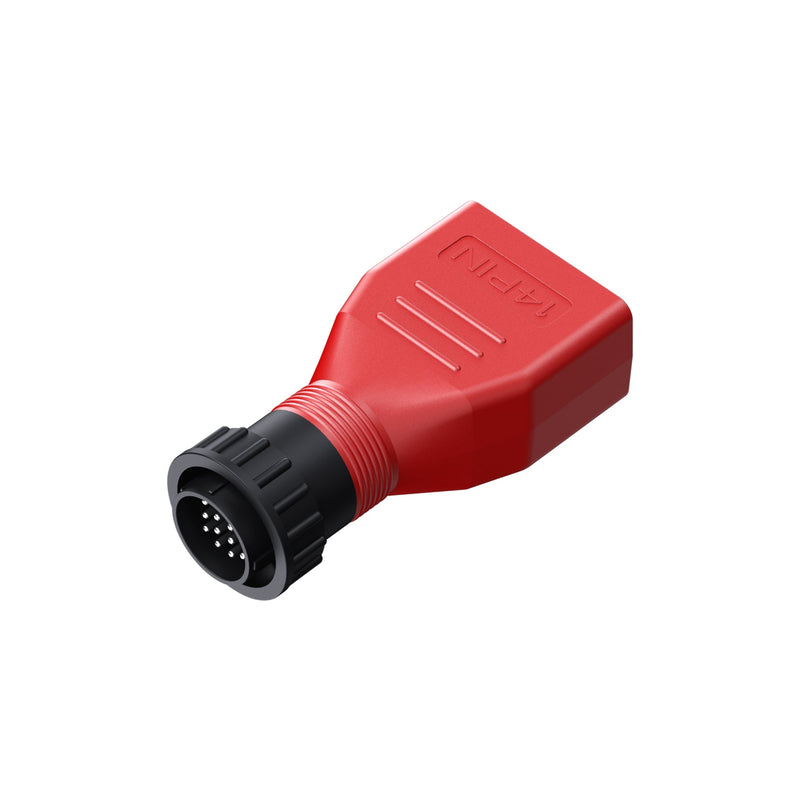

Early Sprinter Vans

14-Pin Sprinter Adapter

For Sprinter T1N & early NCV3 vans, 1995–2006 models.

Shop adapter

Not sure which one you need? Check compatibility by VIN, or contact support. Both adapters sold separately.

Tech Specs

Specifications.

Operating SystemAndroid

ProcessorQuad Core 1.3 GHz

Memory32GB

Display5-inch capacitive touch · 854×480

ConnectivityUSB 2.0 · Wi-Fi 2.4GHz · OBDII

Power9–18V · Type-C 5V/2A

Battery3.7V 5000mAh 7.4Wh · ~6 hours

Operating Temp0 to 50°C (32 to 122°F)

Dimensions200 × 116 × 30.2 mm · ≈380 g

Languages15 global languages

ProtocolsISO · SAE-J1850 · CAN · CAN-FD · TP2.0 & more

In the Box

Packing list.

Main Unit (Tablet) Carry Case OBD2 Cable (16-pin) USB-C Cable User Manual

Buy Now ▶ Watch the demo

Why Choose iCarsoft MB V4.0 for Your Mercedes-Benz or Sprinter?

The iCarsoft MB V4.0 is the ultimate specialized scanner designed for Mercedes-Benz, Sprinter (Van), and Smart vehicles. Whether you are dealing with the dreaded AdBlue countdown on your Sprinter, need to calibrate the Airmatic Suspension on your S-Class, or simply want to register a new battery, this tool allows you to perform dealer-level maintenance right from your driveway.

🎁 Exclusive V4.0 Bonus: Get Software for 2 More Brands!

Don't limit yourself to just Mercedes! The MB V4.0 comes with Mercedes software pre-installed, BUT you can also download diagnostic software for 2 additional vehicle makes (e.g., BMW, Ford, Toyota, or Honda) for free via the update tool.
Value Added: It's like getting 3 diagnostic tools for the price of one!

⚠️ Important Compatibility Note (Read Before Buying)

Supported Brands: Mercedes-Benz (All Classes), Sprinter (901-907/910), Smart, and Maybach.

For 2024+ New Models: Mercedes-Benz has introduced advanced Security Gateway protocols on many 2024 and newer models. Advanced functions may be restricted.
For Older Models (Pre-2000): Vehicles with the 38-Pin (Round) or 14-Pin (Sprinter) ports require specific adapters (sold separately).
NOTE: Available Active Tests (Bi-Directional Control) & Service Functions vary significantly by car model, year, and chassis. Not all functions are available on all vehicles.

👉 Unsure about compatibility? Please Contact Us with your VIN before purchasing. We will verify it for you within 24 hours.

Key Maintenance Functions:

Sprinter & Diesel Focus: DPF Regeneration (Force Regen), AdBlue/DEF Reset, Injector Coding.

Chassis & Body: Airmatic/Air Suspension Calibration, SBC Brake Bleeding, Steering Angle Sensor (SAS) Reset.

Routine Service: Oil Service Reset, Battery Management System (BMS) Registration, Electronic Parking Brake (EPB) Release.

Frequently Asked Questions (FAQ)

Can I use this scanner on other cars besides Mercedes?

Yes! This is a unique feature of the V4.0 series. While it comes pre-loaded with Mercedes/Sprinter/Smart software, you can download diagnostic software for 2 additional vehicle brands (such as BMW, Ford, Toyota, etc.) completely free of charge.

Will this work on my 2024 Mercedes GLE or 2025 Sprinter?

Compatibility for 2024 and newer models varies due to new Security Gateway protocols. While basic OBD2 functions may work, advanced functions (like DPF reset or Bi-directional control) might be restricted. Please send us your VIN number before purchasing for confirmation.

Does it support Sprinter Vans (Dodge/Freightliner/Mercedes)?

Yes! It covers Mercedes-Benz Sprinters (901-906, 907, 910). Excellent for AdBlue reset and DPF regeneration. *Requires adapter for older 14-pin models.

Does it have Bi-Directional Control (Active Test)?

Yes, the MB V4.0 supports Bi-Directional control for testing components (like ABS pumps, windows, fans).
Important Note: Available active tests vary significantly by car model, year, and chassis. Not all tests are available for every vehicle.

Are the software updates really free?

Yes, iCarsoft MB V4.0 comes with Lifetime Free Updates via WiFi.
