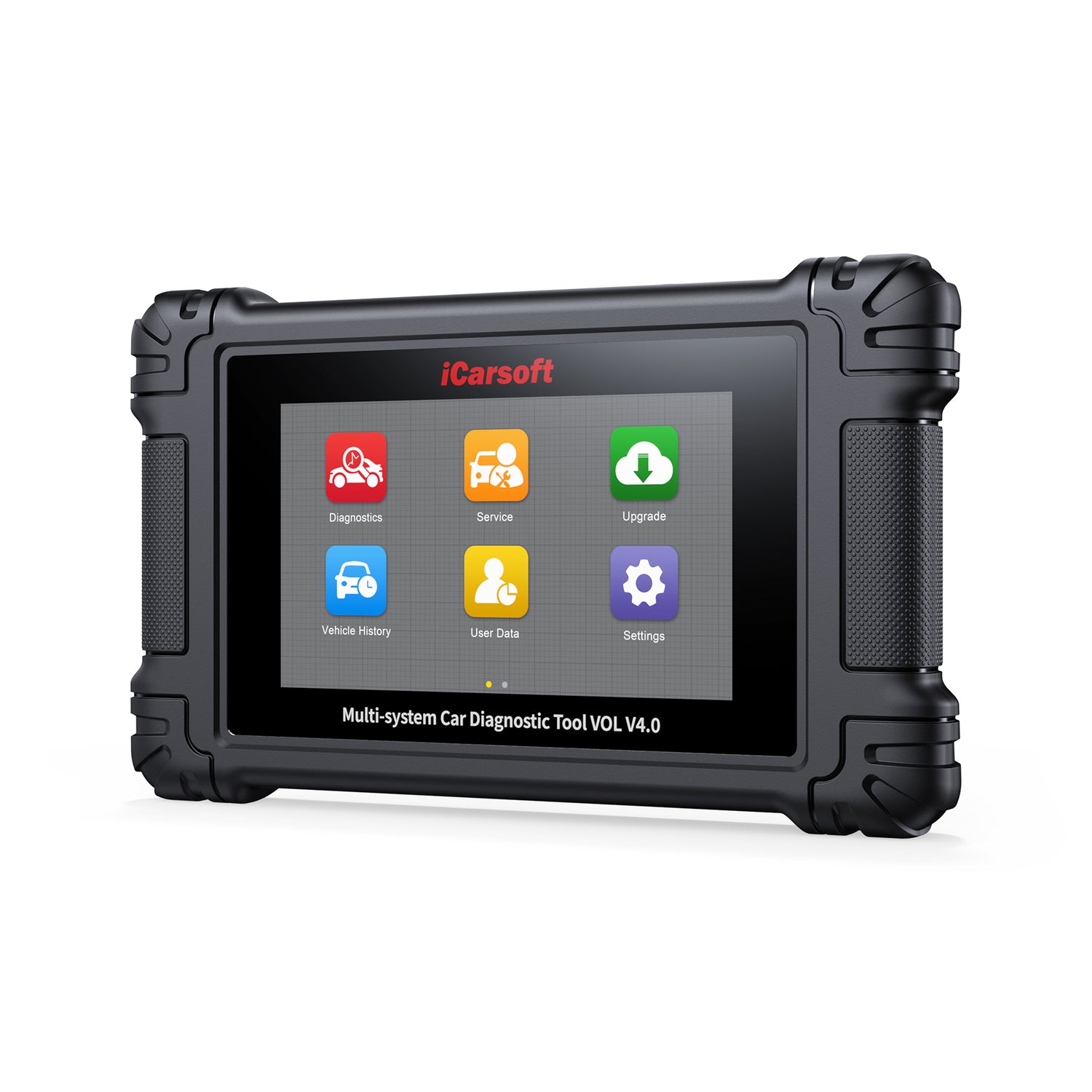

iCarsoft VOL V4.0 for Volvo/Saab Diagnostic Scanner
Unit price
/
Unavailable
Shipping calculated at checkout.
iCarsoft VOL V4.0 for Volvo/Saab Diagnostic Scanner is backordered and will ship as soon as it is back in stock.
Dealer-Level Diagnostics. Built for Owners and Professionals.
The VOL V4.0 covers every Volvo/Saab system — from engine and transmission to airbag, ABS, and ECU adaptations — with full bidirectional control, 30 service functions, and lifetime free software updates. Compatible with Volvo/Saab models from 1996 to 2025.
- 5" Android Touchscreen
- CAN-FD Supported
- 15 Languages
- Lifetime Free Updates
Couldn't load pickup availability
1-Year Warranty
Hardware coverage
120+ Countries
Global support
Before You Buy
Before You Buy
iCarsoft VOL V4.0 for Volvo/Saab Diagnostic Scanner
Unit price
/
Unavailable
30
Service functions
3
Vehicle make groups
1996–2025
Model year coverage
∞
Lifetime updates
01
One Device Covers 3 Vehicle Make Groups
Pre-installed for Volvo & Saab. Add 2 more free.
The iCarsoft VOL V4.0 comes pre-installed with software for Volvo/Saab, making it ready to use right out of the box. 2 additional vehicle groups can be downloaded free of charge whenever you need them.
iCARSOFT
VOL V4.0
CORE SYSTEM
PRE-INSTALLED
Volvo / Saab
1996 — present
+ 2 FREE DOWNLOADS
Slot 01 — Your pick
e.g. BMW / BENZ / V.A.G
Slot 02 — Your pick
e.g. Ford / Honda / JLR

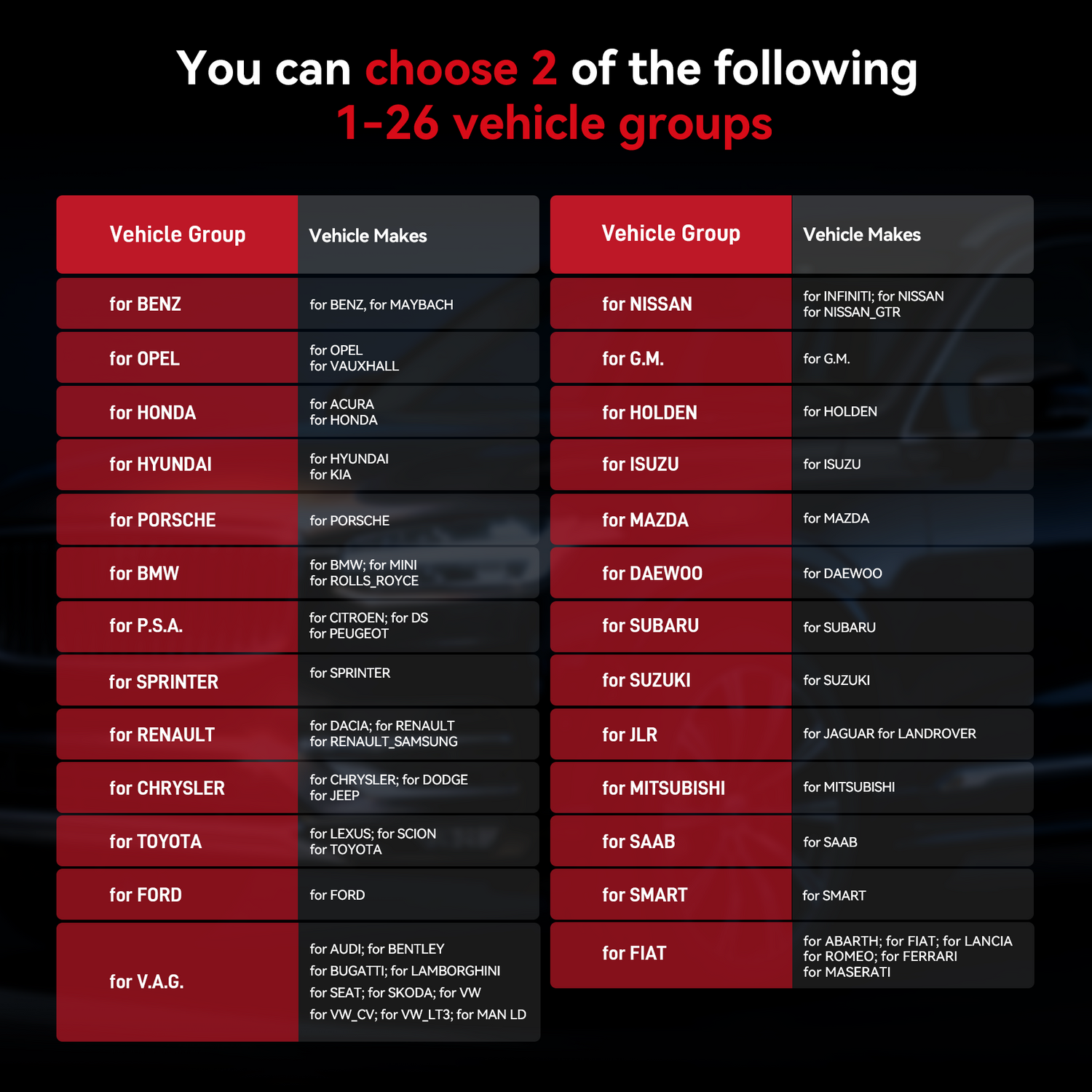

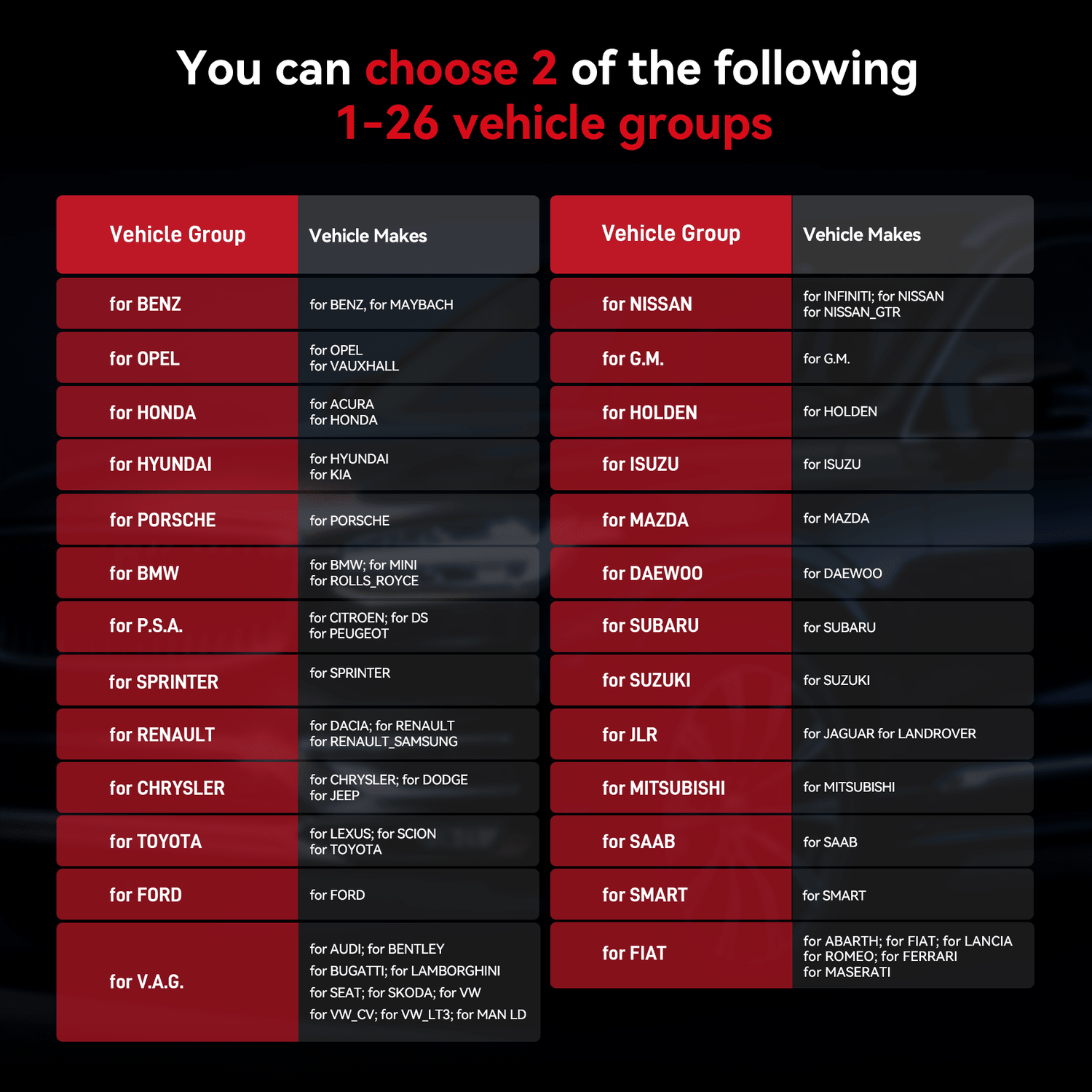

Choose from 25 supported vehicle make groups. Install over Wi-Fi. Free, forever.
For BMW
For BMW / For Mini / For Rolls-Royce
For BENZ
For BENZ / Maybach
For Sprinter
For Sprinter
For Smart
For Smart
For Chrysler
For Chrysler / For Dodge / For Jeep
For Daewoo
For Daewoo · Full coverage of all models and production years
For Fiat
For Abarth / For Fiat / For Lancia / For Alfa Romeo / For Ferrari / For Maserati
For Ford
For Ford
For G.M
For G.M
For Holden
For Holden
For Honda
For Acura / For Honda
For Hyundai
For Hyundai / For KIA
For Isuzu
For Isuzu
For JLR
For Jaguar / For Land Rover
For Mazda
For Mazda
For Mitsubishi
For Mitsubishi
For Nissan
For Infiniti / For Nissan / For Nissan GT-R
For Opel
For Opel / For Vauxhall
For P.S.A
For Citroen / For DS / For Peugeot
For Renault
For Dacia / For Renault / For Renault Samsung
For Porsche
For Porsche
For Subaru
For Subaru
For Suzuki
For Suzuki
For Toyota
For Lexus / For Scion / For Toyota
For V.A.G
For Audi / For Bentley / For Bugatti / For Lamborghini / For Seat / For Skoda / For VW / For VW Commercial Vehicles / For VW LT3 / For MAN Light-Duty

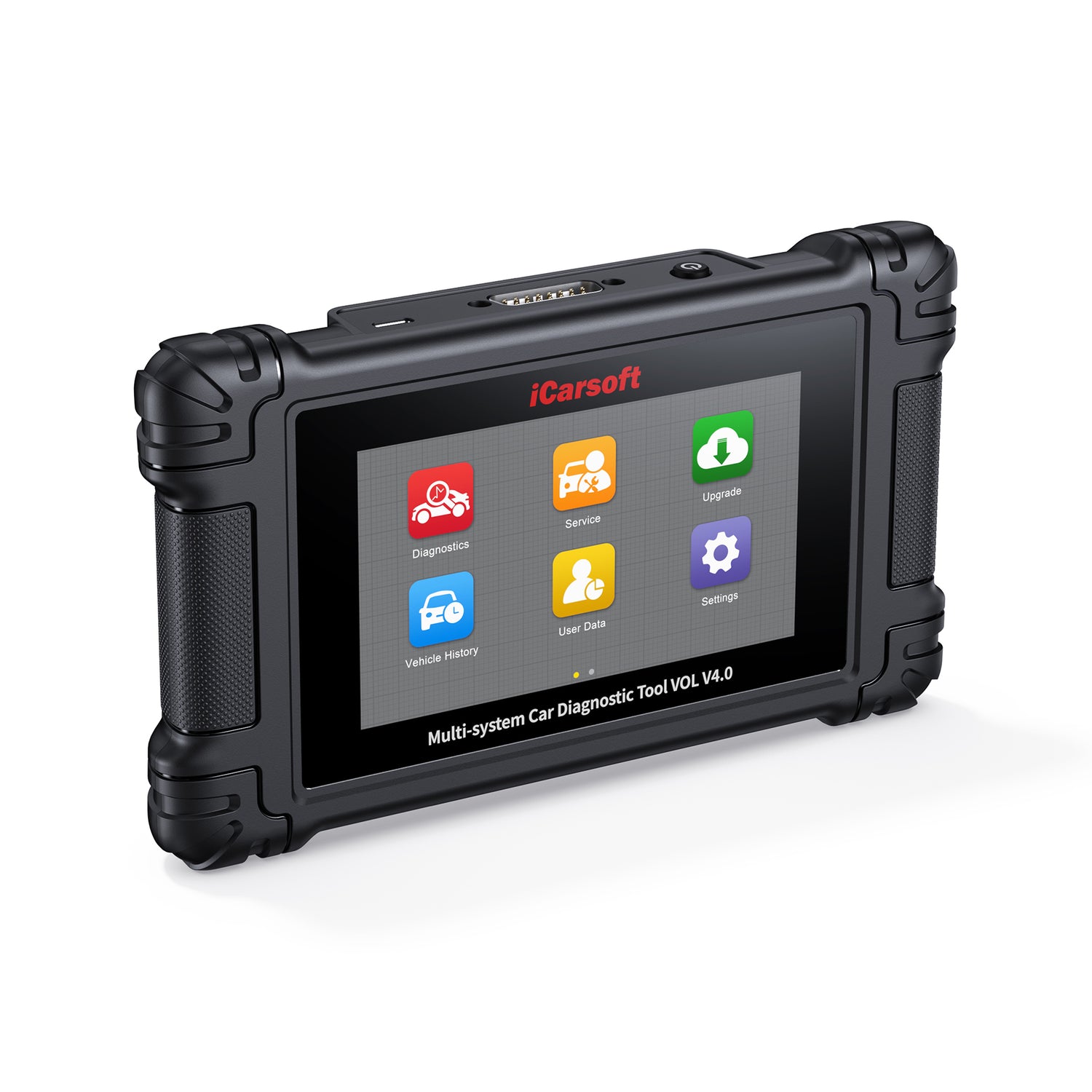

02 / Powerful Hardware

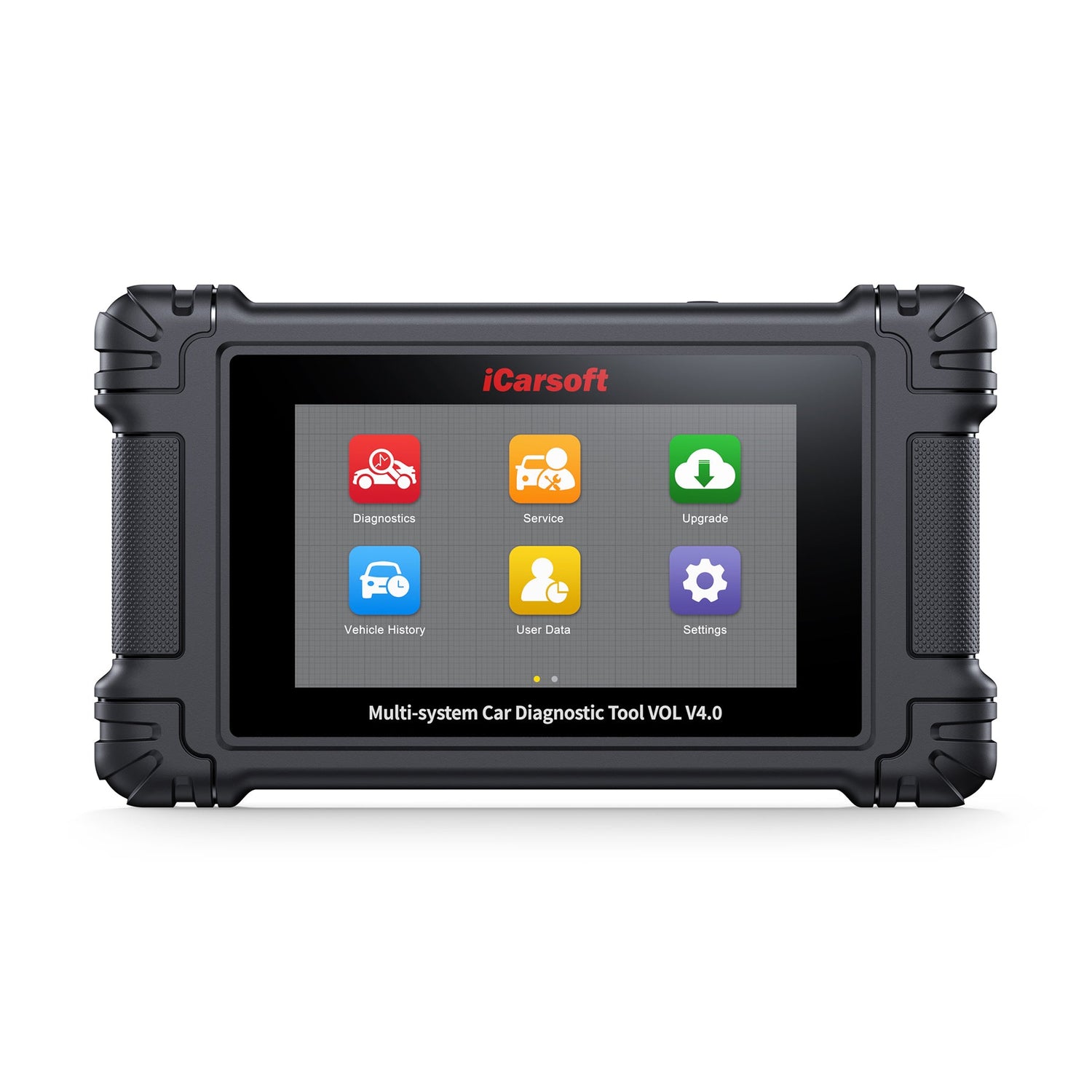

A 5-inch Android tablet, built to work.
iCarsoft VOL V4.0 car diagnostic tool is equipped with a 5-inch Ultra HD Touch Screen, Android operating system, Quad Core 1.3 GHz processor, 64GB memory and a 5000mAh battery for around 6 hours of continuous use. It offers a user-friendly interface and an ultra-smooth diagnostic experience.
5"
Ultra HD
1.3G
Quad-Core
64GB
Memory
~6h
5000 mAh
03
Lifetime Free Software Upgrades
Pay once. Upgrade forever.
Unlike other OBD scan tools on the market that require annual subscription fees, the VOL V4.0 offers lifetime free software upgrades. Updates are delivered wirelessly via Wi-Fi, with new diagnostic protocols and vehicle model coverage continuously released.
$0
YEAR 1Wi-Fi update
$0
YEAR 3New protocols
$0
YEAR 5Future models
$0
YEAR 10+Still free
No subscriptions. No surprise fees. No expired licenses.
04
Supports the Latest CAN-FD Protocol
CAN-FD ready for Volvo & Saab.
PROTOCOL SUPPORT
CAN-FD
Flexible Data-rate
Built for the next generation of Volvo & Saab.
CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation automotive communication protocol adopted by Volvo and Saab.
SPA (XC90 / XC60)
CMA (XC40)
S60 / V60
Recharge EV
Saab 9-3 / 9-5
05
Advanced bi-directional control
Read codes? Anyone can do that. Send commands? That's the VOL V4.0.
The iCarsoft VOL V4.0 bidirectional scan tool supports active component testing and full bidirectional control for most vehicle modules. It sends custom commands and retrieves real-time data to execute targeted functions, including window, mirror, and door lock testing, as well as throttle adjustment — allowing you to pinpoint faults quickly. While ordinary OBD scanners only read fault codes and give limited clues, the VOL V4.0 goes further with full bidirectional capability. You can directly command individual components: cycle the ABS pump motor, operate window regulators, activate the fuel pump, control throttle opening, and run output tests on almost all onboard modules. Identify the faulty part in minutes — without relying on trial-and-error.
06
Fast AutoVIN Identification
Plug in. Three seconds. Identified.
Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.
07
15 global languages
For owners and shops, in every market.
EN
English
DE
Deutsch
FR
Français
NL
Nederlands
ES
Español
CZ
Čeština
SV
Svenska
RU
Русский
HU
Magyar
NO
Norsk
PT
Português
IT
Italiano
PL
Polski
DA
Dansk
FI
Suomi
08
30 comprehensive service functions
Far more than a code reader.
The VOL V4.0 is far more than a basic code reader. It integrates 9 commonly-used service functions for daily maintenance and 21 advanced professional functions for complex repair tasks.
9
Hot Service Functions
covering your daily maintenance needs.
Electronic Throttle Control
Relearns throttle valve control parameters after resetting or replacing the throttle body.
EPB-Brake-Pad Reset (EPB)
Retracts the electric parking brake calipers and resets the brake pads after replacement.
Steering Angle Reset (SAS)
Calibrates the steering wheel to the straight-ahead position, or recalibrates the SAS after steering component replacement.
DPF Regeneration
Performs DPF regeneration, component replacement initialization, and DPF relearning after engine control unit replacement — for diesel particulate filter systems.
Injector Coding
Relearns the injector control parameters when an injector is renewed or replaced.
ABS Bleeding
Bleeds air from the system to restore ABS brake response, or performs a relearn procedure after ABS replacement.
Air Suspension Service
Supports calibration, height adjustment, system reset, and fault code clearing for air suspension systems. Lets you precisely set ride height, perform system initialization, and resolve common air suspension faults.
Battery Management Service (BMS)
Evaluates the battery charge state, monitors closed-circuit current, registers battery replacement, and activates the vehicle's sleep mode.
21
High-level Service Functions
for professional technicians.
TPMS Reset
Allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
Air Conditioner Service
Supports routine maintenance of A/C modules, including A/C system adaptation reset, compressor reset, compressor break-in, and stepper motor initialization.
Head Lamp Service
Initializes the adaptive headlamp system.
Engine Control Service
Supports routine maintenance of engine modules, including resetting or deleting adaptation values, and calculating fuel consumption.
Transmission Control Service
Supports routine maintenance of transmission modules, including resetting adaptation values and transmission fluid level adaptation.
Air-Bag Reset
Resets airbag data to clear the airbag (SRS) warning light after a collision.
Seat Service
Calibration after repairing or replacing the seat position drive motor.
Immobilizer Service
Anti-theft matching — disable any lost keys and add new keys. For vehicles with basic Immobilizer system only.
Door-Window-Roof
Learns the top position of the door window glass, enabling pinch protection and the one-touch-up function.
Engine Idle Service
Adjusts the engine idle speed.
Fuel Pump Service
Activates the fuel pump after replacement.
ODO Meter Reset
Reads odometer values stored in multiple ECUs (for service and verification purposes).
Turbocharger
Performs turbocharger learning after component replacement, or resets stored learned values.
Exhaust Gas Recirculation
Recirculates a portion of engine exhaust gas back into the intake system.
High Voltage Battery
Supports EV/hybrid high-voltage battery maintenance, including replacement adaptation and status monitoring.
Radar/Camera
Performs radar and camera learning and calibration (ADAS).
O2S (Oxygen Sensor)
Supports oxygen sensor replacement adaptation and initializes the three-way catalytic converter learned values.
Gas Particulate Filter
Performs service operations including GPF replacement and regeneration.
NOx Sensor
Resets NOx sensor-related learned values (e.g., catalytic converter parameters) stored in the ECU.
Mileage Verification
Checks and compares odometer data stored across multiple ECUs to detect mileage tampering.
VIN Verification
Reads and matches the VIN across all vehicle ECUs to detect inconsistencies or unauthorized module replacement.
Additional service functions are available in the Miscellaneous section.
⚠ Compatibility Notice: The specific diagnostic service functions vary by vehicle brand, model, production year, and ECU configuration.
Data-Driven Diagnostics
Live PID Analysis & Real-Time Insights
Oil Reset
Allows you to reset the engine oil life system, service lamp, service mileage, and service intervals after an oil change.
See it in action on a real Volvo / Saab →
09
Powerful full-system diagnostics
Beyond the four basics. Into every module.
In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the VOL V4.0 provides diagnostic coverage for more complex vehicle systems.
Read & Clear DTCs
Read ECU Information
Read Live Data
Access All ECUs via OBDII-16
Read & Clear Freeze Frame Data
10
OE-level advanced diagnostics
Adaptations the dealership runs. In your hands.
The deep, system-specific learning procedures that traditionally required dealership diagnostic equipment — now available on the VOL V4.0.
Calibration & Adaptation
04
- ✓ Air/Fuel Ratio Adaptation (Fuel Trim)
- ✓ Oil Level Sensor Learn
- ✓ Fuel Pressure Valve Adaptation
- ✓ IMU Sensor Calibration
Sensor & Actuator Learn
04
- ✓ Turbo Actuator Learn
- ✓ EGR Valve Learn
- ✓ Brake Pedal Sensor Calibration
- ✓ Gear Position Sensor Calibration
Actuation & Test
03
- ✓ Actuation / Bidirectional Test
- ✓ Gear Indicator Activation
- ✓ Oil Pump Air Purge
+
Additional model-specific procedures available — varies by vehicle make, year and trim. See compatibility →
11
Full OBD2 test modes — emission-ready
Every OBD2 mode. Every emissions standard.
Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII / EOBD / JOBD / KOBD / CAN / CAN-FD standards.
Read Codes
Erase Codes
I/M Readiness
Live Data
Freeze Frame
Vehicle Information
O2 Monitor Test
On-Board Monitor
EVAP System Test
CAN / CAN-FD
12
Supports Diagnostic History and Report Printing
Save it. Share it. Print it.
Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.
Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.
13

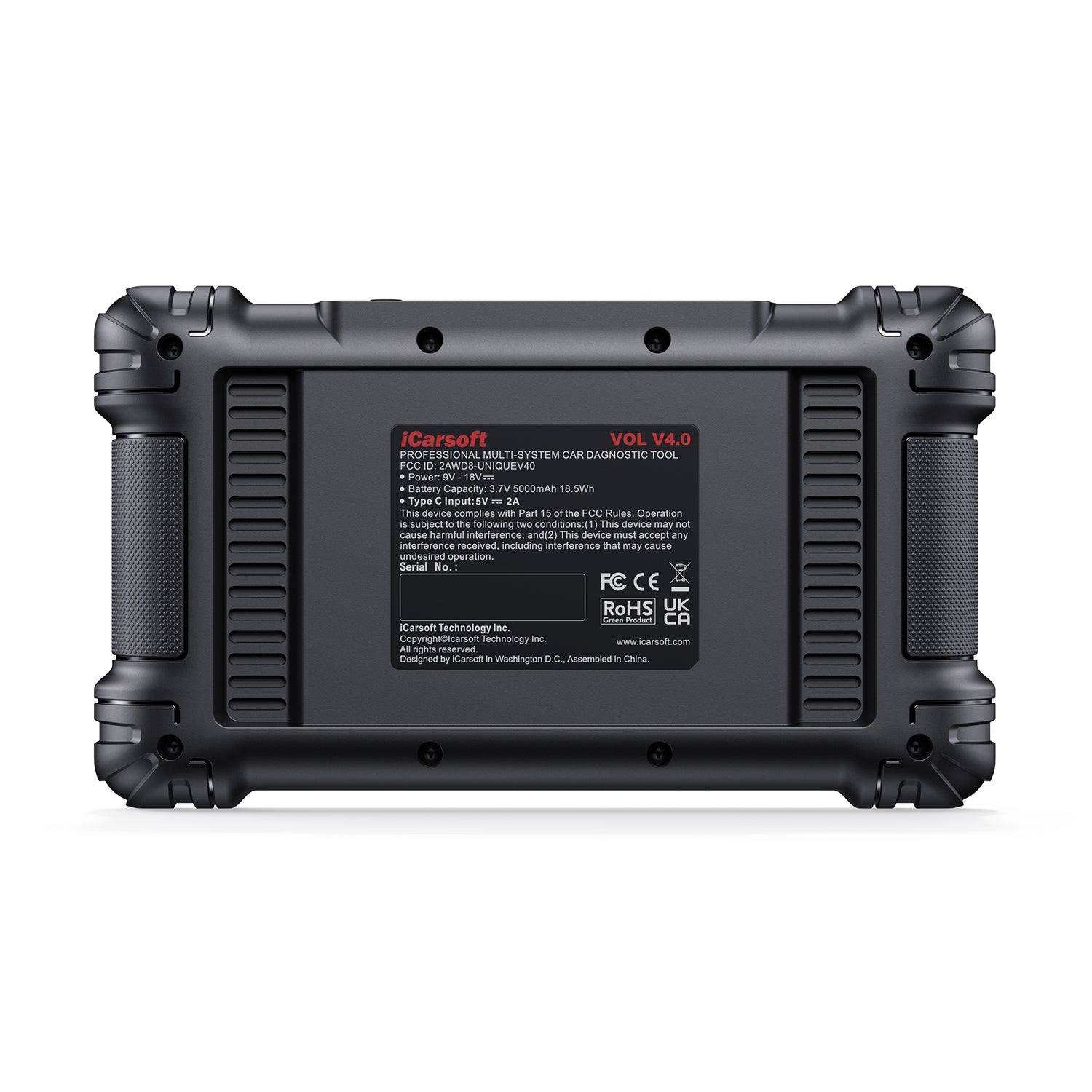

Product specifications
The specs, on one page.
Operating SystemAndroid
ProcessorQuad Core 1.3 GHz
Memory64 GB
Display5″ LCD · 854 × 480

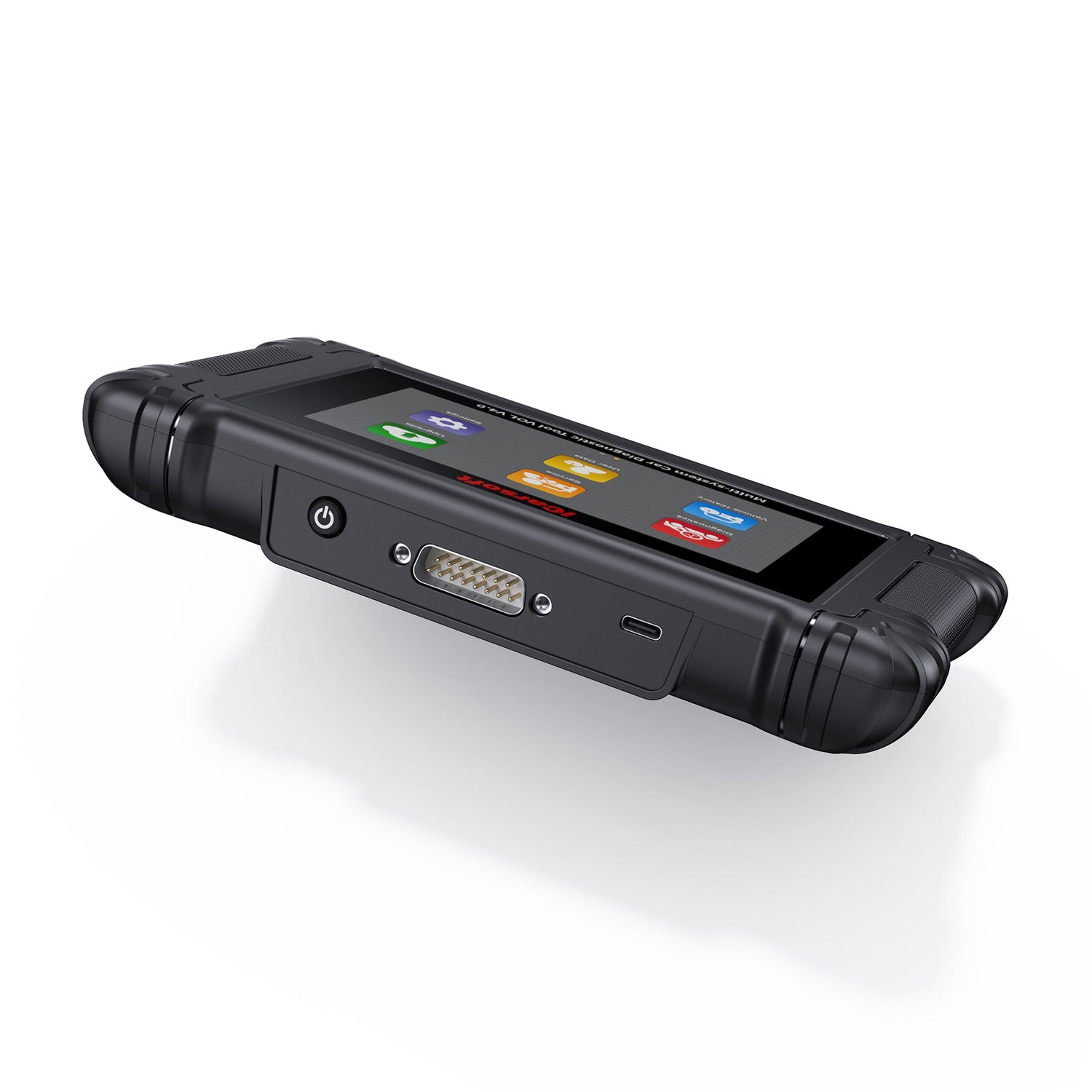

ConnectivityUSB 2.0 · Wi-Fi 2.4 GHz · OBDII
Type-C Input5 V / 2 A
Power9 – 18 V
Operating Current≤ 500 mA
Battery Capacity3.7 V · 5000 mAh · 18.5 Wh
Battery Life~ 6 hours
Power Consumption500 mA (LCD on, Wi-Fi on @ 3.7 V)
Operating Temp.0 – 50 °C (32 – 122 °F)
Storage Temp.−20 – 70 °C (−4 – 158 °F)
Operating Humidity5 – 95 % non-condensing
Dimensions W × H × D200 × 116 × 30.2 mm (7.87 × 4.57 × 1.19 in)
Net Weight≈ 380 g
Supported Automotive Protocols
16 standards
ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
14

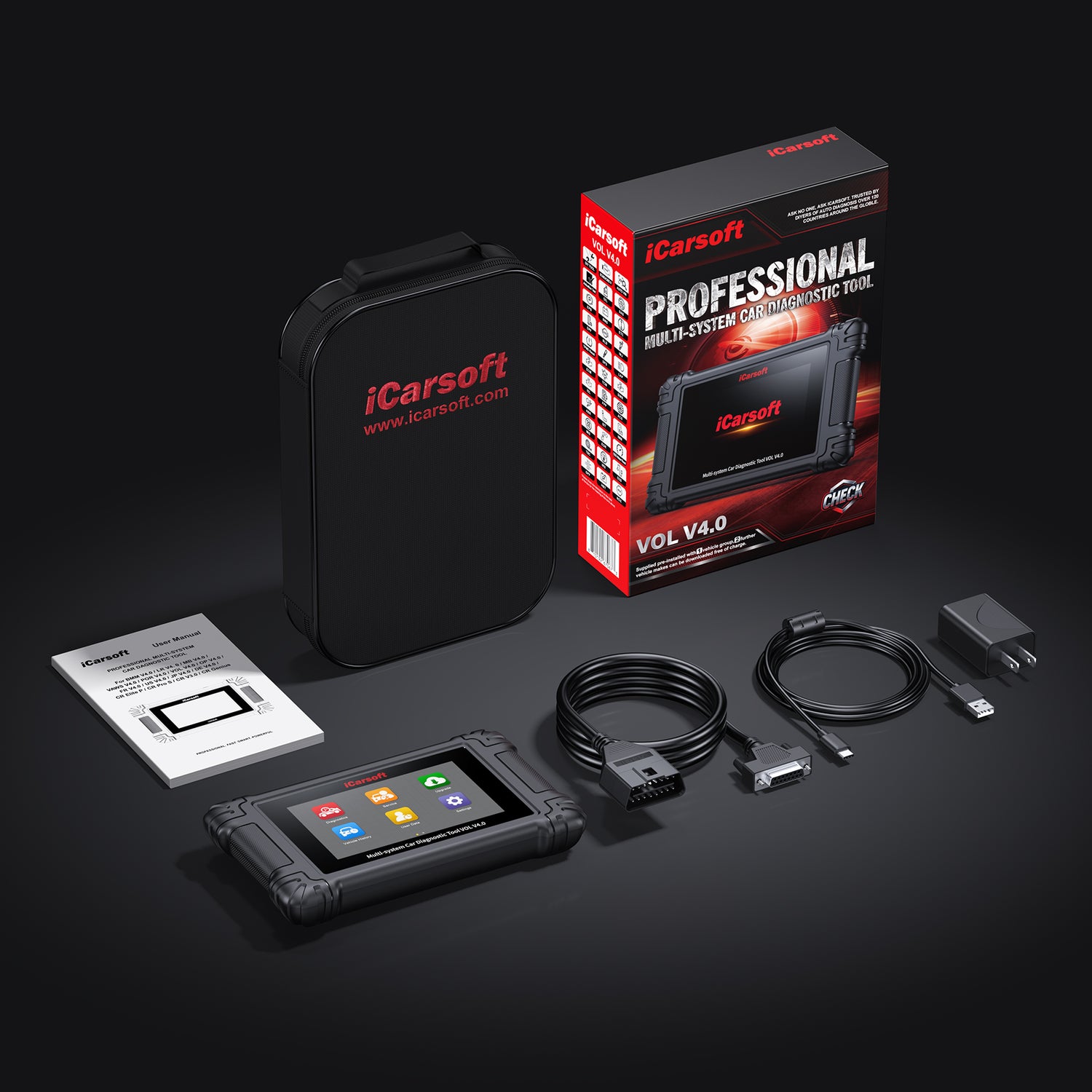

What's in the box
Everything you need. Out of the box.
Main Unit
Carry Case
OBD2 Main Cable
USB-C Cable
User Manual
Note: USB-C wall charger is not included. The VOL V4.0 can be charged using any standard USB-C charger (5V / 2A recommended) or via a computer's USB port.
15
The VOL range compared
How VOL V4.0 compares to V1.0–V3.0.
Every generation of the iCarsoft VOL scanner, side by side — from hardware to the full list of service functions.
| Feature | VOL V1.0 | VOL V2.0 | VOL V3.0 | VOL V4.0This model |
|---|---|---|---|---|
| Vehicle Coverage | Volvo, Saab | Volvo, Saab | Volvo, Saab | Volvo, Saab+ 2 free vehicle make groups |
| Display Size | 2.8″ | 4″ | 4″ | 5″ |
| Interaction | Physical buttons | Physical buttons | Physical buttons | Touchscreen |
| System Access | Full systems | Full systems | Full systems | Full systems |
| Update Method | USB | USB | USB | Wi-Fi |
| Free Lifetime Updates | ✓ | ✓ | ✓ | ✓ |
| Bi-directional / Active Test | ✕ | ✕ | ✓ | ✓ |
| Oil Service Reset | ✓ | ✓ | ✓ | ✓ |
| SAS Reset | ✓ | ✓ | ✓ | ✓ |
| EPB / Brake-Pad Reset | ✕ | ✓ | ✓ | ✓ |
| Electronic Throttle Control | ✕ | ✓ | ✓ | ✓ |
| DPF Regeneration | ✕ | ✓ | ✓ | ✓ |
| Injector Coding | ✕ | ✓ | ✓ | ✓ |
| ABS Bleeding | ✕ | ✓ | ✓ | ✓ |
| BMS Reset | ✕ | ✓ | ✓ | ✓ |
| TPMS Reset | ✕ | ✓ | ✓ | ✓ |
| 19 High-Level Service Functions | ✕ | ✕ | ✓ | ✓ |
✓ Supported
✕ Not supported
Frequently asked questions
Still deciding?
Is the software updated regularly? Are updates free?
Yes. The VOL V4.0 includes lifetime free Wi-Fi software upgrades — no annual subscription required.
What's the difference between the VOL V4.0 and the older VOL V3.0?
Two main upgrades. Vehicle coverage: the VOL V4.0 lets you download 2 additional vehicle make groups on top of the pre-installed Volvo/Saab software. Hardware: the V4.0 features a 5-inch touchscreen, Android OS, Quad-Core processor, 64GB storage, and a 5000mAh battery.
The VOL V4.0 cannot recognize my vehicle by AutoVIN — is the device faulty?
No, it does not mean the device is faulty. You can send your vehicle VIN to our support team and we will check whether AutoVIN supports your vehicle. If it is not available yet, you can manually select the vehicle model to diagnose — normal functions are not affected. Our R&D team will add your VIN to the database and release relevant updates later.
DTCs read normally but fail to clear, or reappear after clearing. Why?
Keep the ignition on and the engine off, and record freeze-frame data before clearing codes. Persistent hardware faults need physical repair before the code will clear. Some SRS and ABS codes can only be cleared after completing the related bidirectional tests.
The scanner powers on but fails to establish a diagnostic connection. What causes this issue?
Verify your vehicle model and production year — the VOL V4.0 supports Volvo, Saab and other downloaded brands — petrol from 2001 onward, diesel OBD2 from 2004 onward. Disable the vehicle's power-saving mode, and update the firmware and software to the latest version.
The VOL V4.0 comes pre-installed with 1 vehicle group (Volvo and SAAB) at the factory. After purchase, 2 further vehicle group can be downloaded free of charge. Please check the vehicle group table below.
