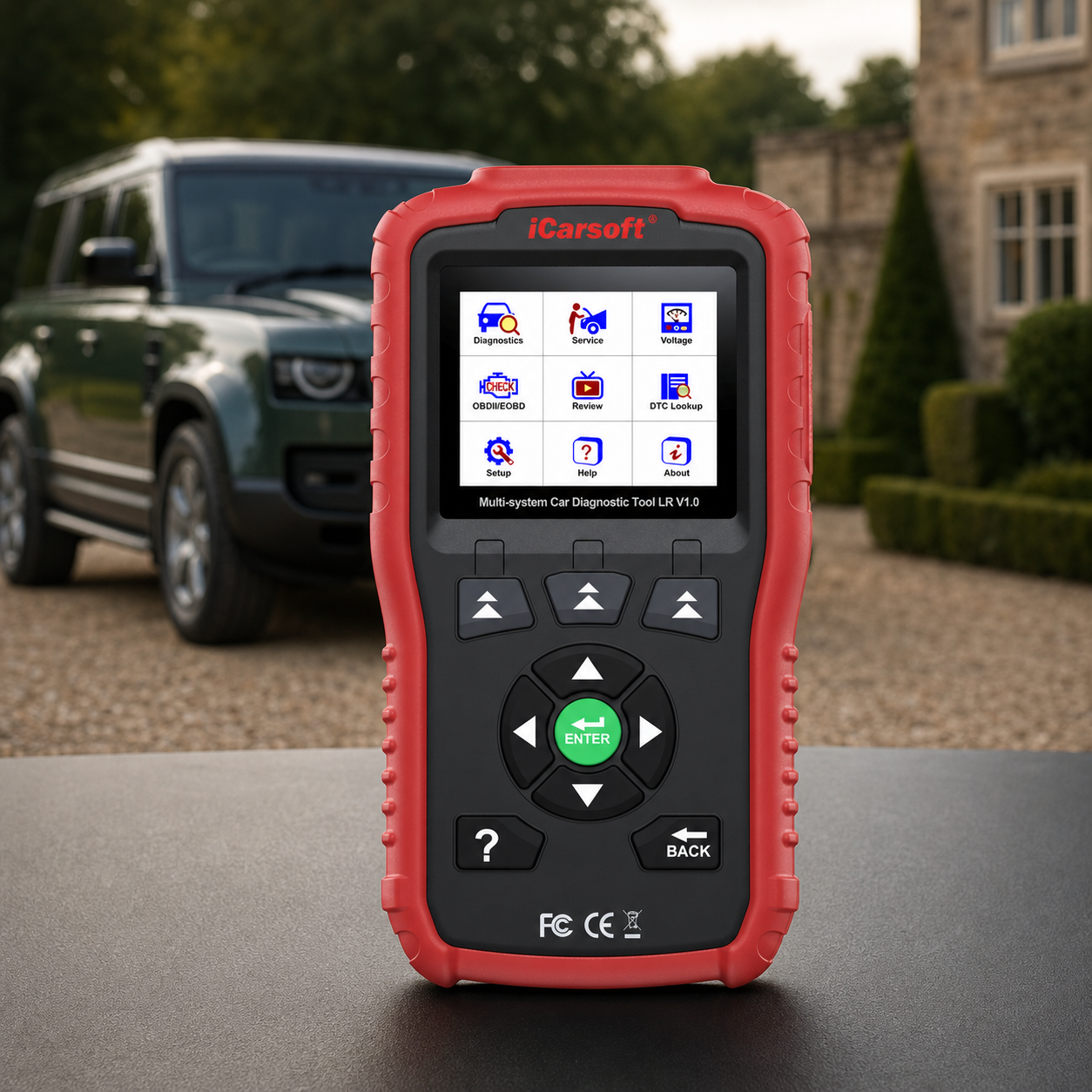

iCarsoft LR V1.0 Car Diagnostic Tool For LandRover/Jaguar

Name: iCarsoft LR V1.0 Car Diagnostic Tool For LandRover/Jaguar
Brand: iCarsoft
SKU: lr-v1-0
Price: 113.95 USD
Availability: InStock

(2)

$113.95

Shipping calculated at checkout.

Jaguar / Land Rover Diagnostic Scanner. Essential Diagnostics. Smart Value for Every Jaguar and Land Rover Owner.

The LR V1.0 covers a wide range of Jaguar and Land Rover electronic systems — from engine and transmission to airbag and ABS — providing comprehensive OE-level diagnostic scans, 2 essential service reset functions, and lifetime free software updates. It is the ultimate plug-and-play maintenance companion compatible with Jaguar and Land Rover models from 1996 to 2025.

Oil Service Reset
SAS Reset
CAN-FD Supported
6 Languages
Lifetime Free Updates

1-Year Warranty

Hardware coverage

Full-System Coverage

Every ECU module

16-Pin OBD2

Direct cable link

Before You Buy

Shipping Policy>

Refund Policy>

The Smart-Value JLR Choice

Full-system depth for your Jaguar or Land Rover — at a code-reader price.

The LR V1.0 is the budget-friendly entry into dedicated Jaguar and Land Rover diagnostics. It runs OE-level, full-system scans across both storied British badges, pairs that with the two resets every service actually needs — Oil and SAS — plus CAN-FD readiness and lifetime free updates. No subscription, no surprises.

Full-System Diagnostics

Read and clear codes and live data across a wide range of Jaguar and Land Rover electronic systems — from engine and transmission to airbag and ABS — and switch off the warning lights once repairs are done.

2 Essential Service Functions

The two resets every routine service calls for — Oil Reset after every oil change and Steering Angle Reset (SAS) after steering work — built right into the handheld.

CAN-FD Supported

Speaks the next-generation CAN-FD protocol increasingly adopted by modern Jaguar and Land Rover vehicles — ready for the newest platforms rolling into your driveway today.

Lifetime Free Updates

New coverage and protocols delivered free via USB and your PC — zero annual subscription fees, ever.

Choose Your LR

Start with the LR V1.0. Step up when the job calls for it.

All four share the same dedicated Jaguar & Land Rover coverage and lifetime free updates. The LR V1.0 is the most affordable way in — full-system access plus the Oil and SAS resets. The LR V2.0 widens the service set, while the LR V3.0 and LR V4.0 add bi-directional control and 29 high-level service functions.

1LR V1.0 → LR V2.0 → LR V3.0 → LR V4.0Compare the upgrade path

Feature	This modelEntry EssentialLR V1.0	Wider Service SetLR V2.0	Step UpLR V3.0	FlagshipLR V4.0
Coverage	Jaguar · Land Rover	Jaguar · Land Rover	Jaguar · Land Rover	Jaguar · Land Rover +2 make groups free
Display Size	2.8 inches	4 inches	4 inches	5 inches
Interaction	Physical Buttons	Physical Buttons	Physical Buttons	Touchscreen
System Access	Full systems	Full systems	Full systems	Full systems
Update Method	USB	USB	USB	Wi-Fi
Free Lifetime Updates
Bi-directional / Active Test	—	—
Oil Service Reset
SAS Reset
EPB/Brake-Pad Reset	—
Electronic Throttle Control	—
DPF Regeneration	—
Injector Coding	—
ABS Bleeding	—
BMS Reset	—
TPMS Reset	—
29 High Level Service Functions	—	—

The LR V1.0 keeps the rows that matter most on a budget — full-system access, lifetime free updates and the Oil & SAS resets. The LR V2.0 adds the remaining seven everyday service resets; bi-directional control and the 29 high-level service functions are reserved for the LR V3.0 and LR V4.0, with the flagship adding a 5" touchscreen, Wi-Fi updates and 2 extra make groups free.

Jaguar · Land Rover

From Coventry saloons to Solihull off-roaders — one scanner speaks them both.

No diluted "global" menus. Every line of the LR V1.0's software is dedicated to Jaguar and Land Rover — compatible with models from 1996 to 2025, including the entire Range Rover family. Confirm your vehicle by VIN below.

Find Your Brand

Search your vehicle brand below

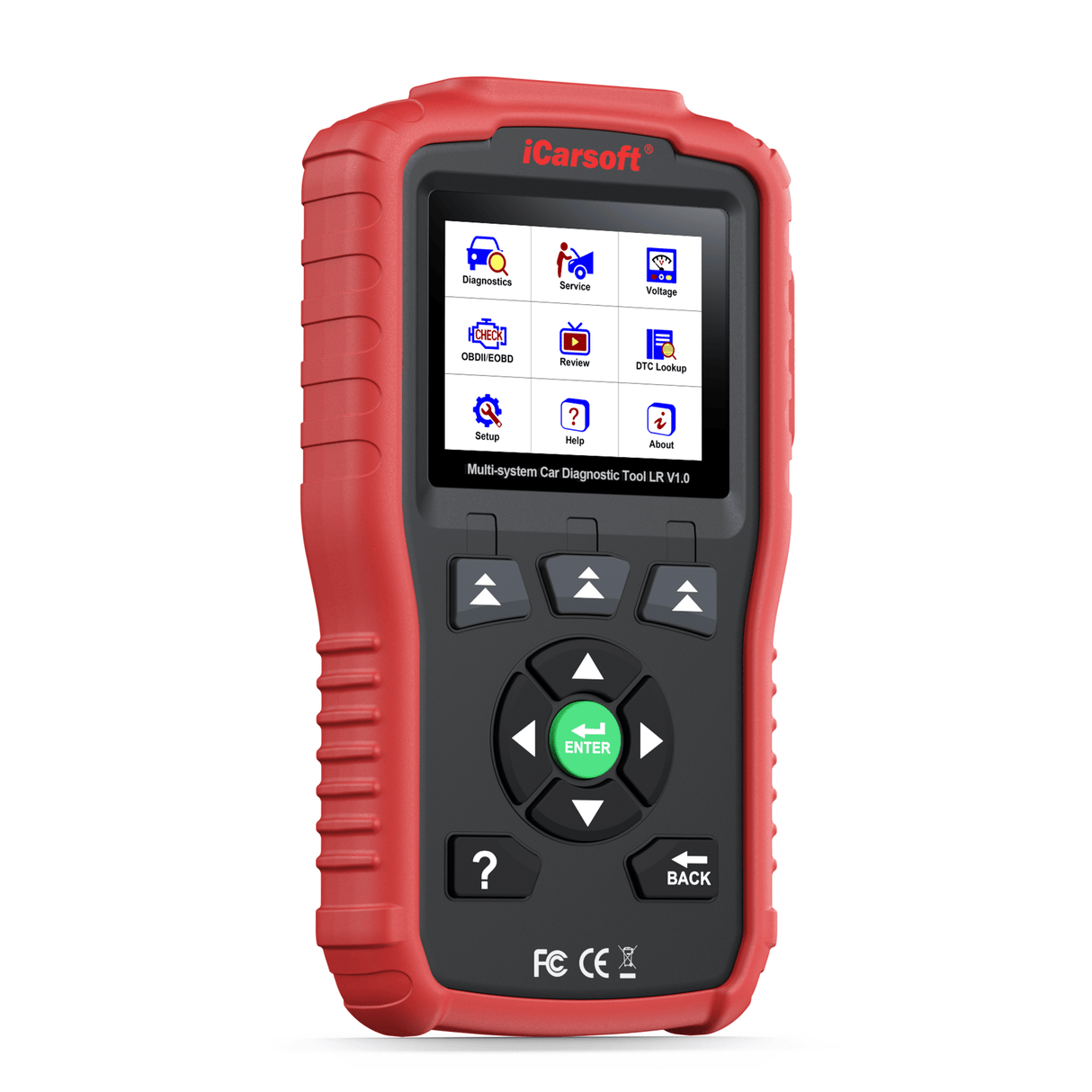

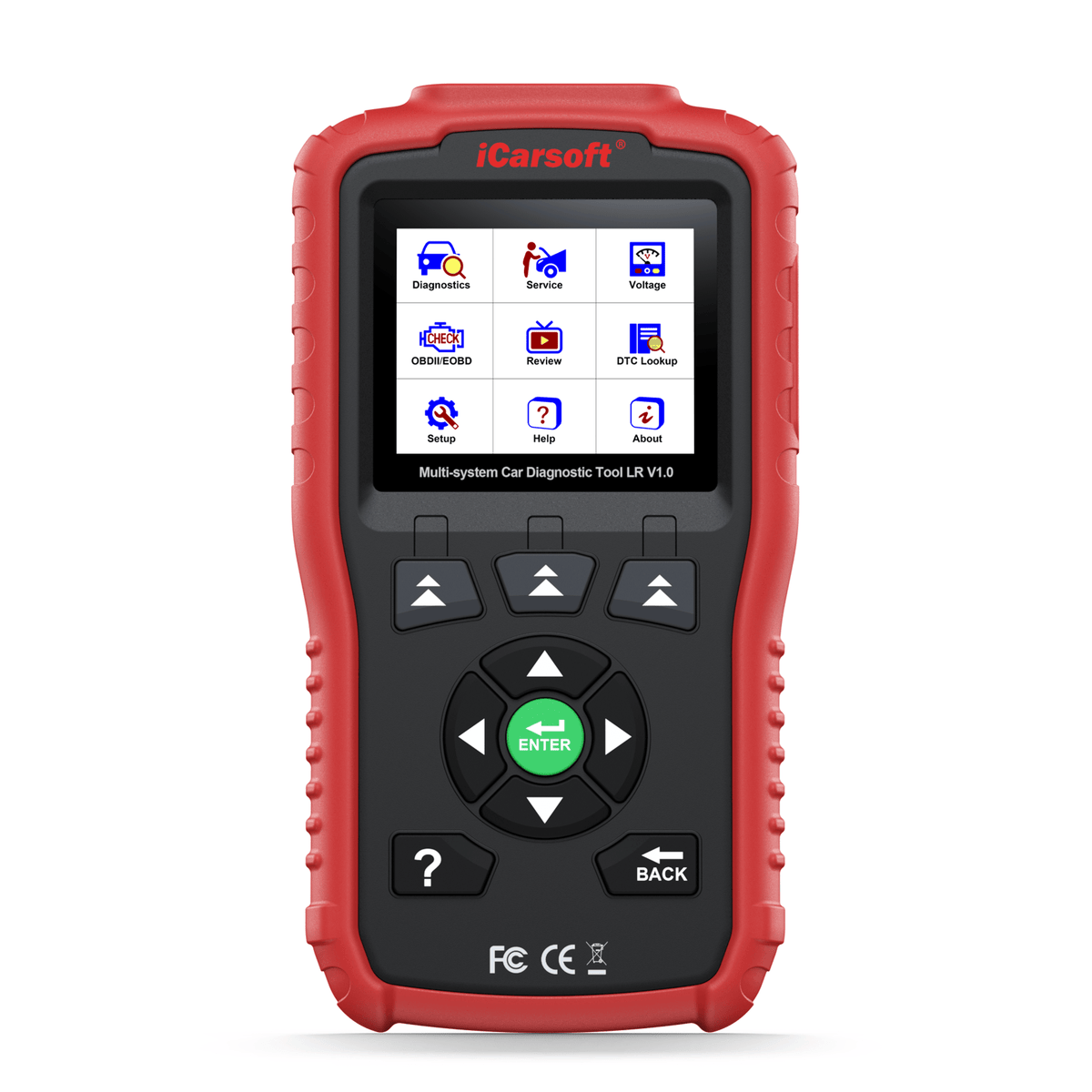

01Powerful Hardware

A pocket-sized workhorse built to grab and go.

The iCarsoft LR V1.0 features a vibrant 2.8-inch screen and intuitive button navigation for quick, effortless menu browsing. Supports seamless software and vehicle-database updates — no Wi-Fi needed, just update anytime via your PC.

2.8"

TFT LCD Display

320×240

Display Resolution

Button

Tactile Navigation

USB

PC Software Updates

9–18V

OBDII Powered

02 Lifetime Free Software Upgrades

Pay once. Upgrade forever.

Unlike other OBD scan tools on the market that require annual subscription fees, the LR V1.0 offers lifetime free software upgrades.

Year 1

Year 3

Year 10+

Forever

No subscription fees, ever

Update via USB & PC

New protocols & coverage

03Supports the Latest CAN-FD Protocol

Fluent in the protocol your newest cars speak.

CAN-FD (Controller Area Network – Flexible Data-rate) is a next-generation communication protocol increasingly adopted by modern Jaguar and Land Rover vehicles. Diagnoses the latest Land Rover platforms.

CAN-FD

Controller Area Network – Flexible Data-rate

Compatible with 2020+ Jaguar and Land Rover models including Range Rover, Defender, Discovery, Velar, Evoque, F-Pace, and I-Pace.

04Fast AutoVIN Identification

Plug in. It already knows your car.

Skip the manual VIN typing — simply plug in, and the tool identifies your vehicle in seconds. No typos, no extra lookup time. This boosts accuracy, eliminates input errors, and delivers a smoother, more reliable diagnostic experience.

05Supports 6 Languages

Six languages, one fluent technician.

062 Essential Service Functions: Oil Reset & Steering Angle Reset

Two dealership jobs, handled on your own driveway.

The LR V1.0 is far more than a basic code reader. It integrates 2 commonly-used service functions for daily maintenance.

No service functions match your search.

⚠ Compatibility Notice: The specific diagnostic service functions vary by vehicle brand, model, production year, and ECU configuration.

07Powerful Full Systems Diagnostics

From the big four to every ECU beyond.

In addition to the four standard systems (Engine, ABS, Airbags, and Transmission), the LR V1.0 provides diagnostic coverage for more complex vehicle systems.

For Engine

The LR V1.0 car scanner can read and erase DTCs, turn off the check engine light and view live data. It reads stored trouble codes and live data, helping you investigate common issues — such as a faulty oxygen sensor or worn spark plugs — and catch problems early, before they grow into a major engine repair.

Go beyond the standard four — read codes, data and ECU information across the more complex Jaguar and Land Rover systems:

Read and Clear DTCs

Read ECU Information

Read Live Data

Access all ECU modules via the standard 16-pin OBD2 port (DLC)

Read and Clear Freeze Frame Data

08Full OBD2 Test Modes — Emission-Ready

Emission-ready, so you clear the test the first time.

Supports all 10 OBD2 test modes for vehicles compliant with 1996+ OBDII/EOBD/JOBD/KOBD/CAN/CAN-FD standards: Read Codes, Erase Codes, I/M Readiness, Live Data, Freeze Frame, Vehicle Information, O2 Monitor Test, On-Board Monitor Test, EVAP System Test, and Pending Codes.

01Read Codes

02Erase Codes

03I/M Readiness

04Live Data

05Freeze Frame

06Vehicle Information

07O2 Monitor Test

08On-Board Monitor Test

09EVAP System Test

10Pending Codes

09Supports Diagnostic History and Report Printing

Every job documented, saved and ready to print.

Users can quickly access previously tested vehicle systems and save, share, and print diagnostic reports.

Use the Feedback function to report issues encountered during use — our technical team will review and provide assistance. Diagnostic data can also be printed for future reference by connecting the device to a Windows PC via USB.

Access previously tested vehicle systems in one tap

Save, share and print full diagnostic reports

Print to a Windows PC via USB for future reference

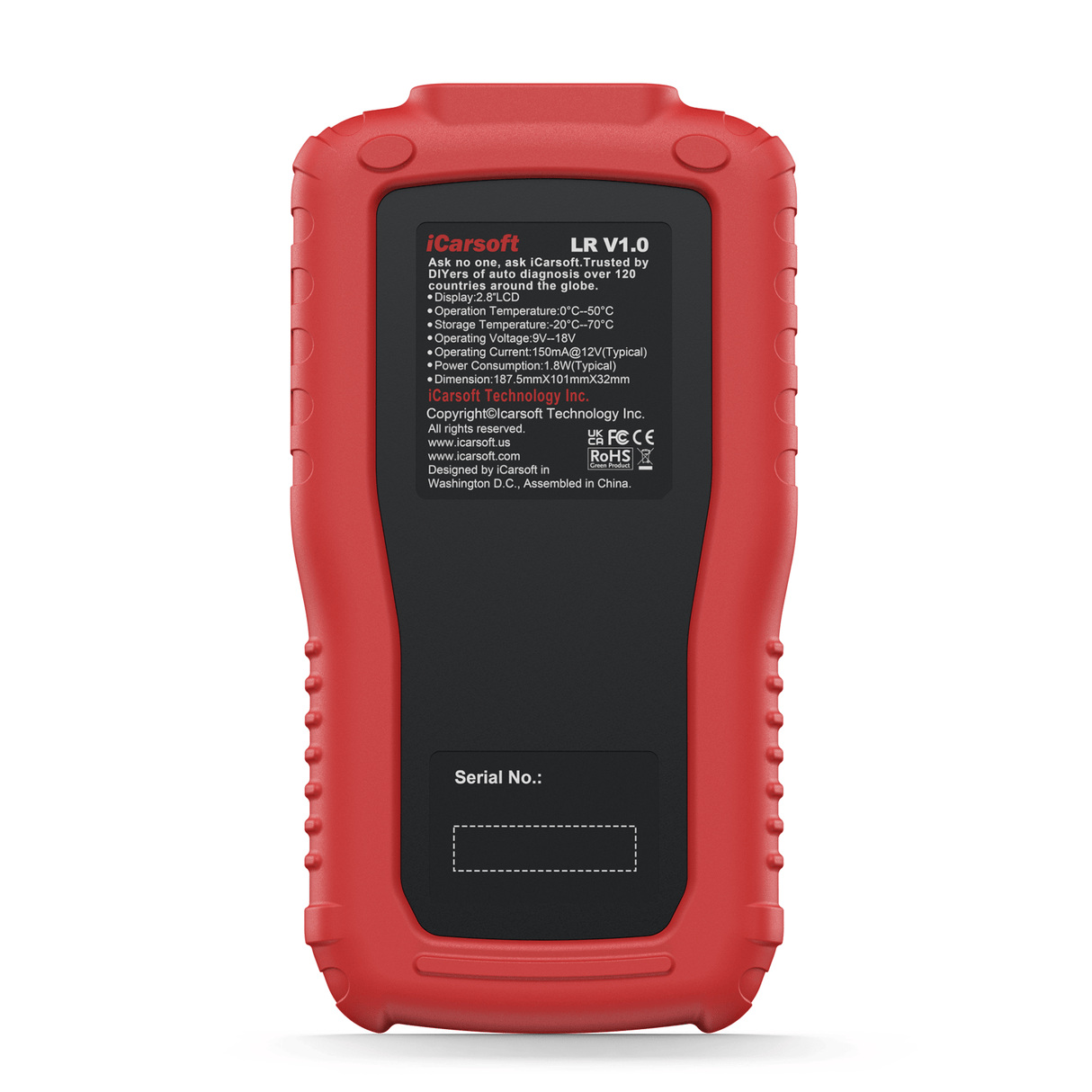

10Product Specifications

The complete technical rundown.

Display

2.8-inch TFT LCD color screen with 320 × 240 resolution

Operating Current

150 mA @ 12 V (Typical)

Power

9-18V

USB Type-C Input

5V / 500mA

Power Consumption

1.8W (Typical)

Operating Temp.

0 to 50°C (32 to 122°F)

Storage Temp.

-20 to 70°C (-4 to 158°F)

Operating Humidity

5% - 95% non-condensing

Dimensions (W × H × D)

187.5 × 101 × 32 mm (7.38 × 3.98 × 1.26 in)

Net Weight

< 400 g

Supported Automotive Protocols

ISO 9141-2, ISO 14230-2, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO 11898 (High-speed, Medium-speed, Low-speed, and Single-wire CAN), CAN-FD, SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

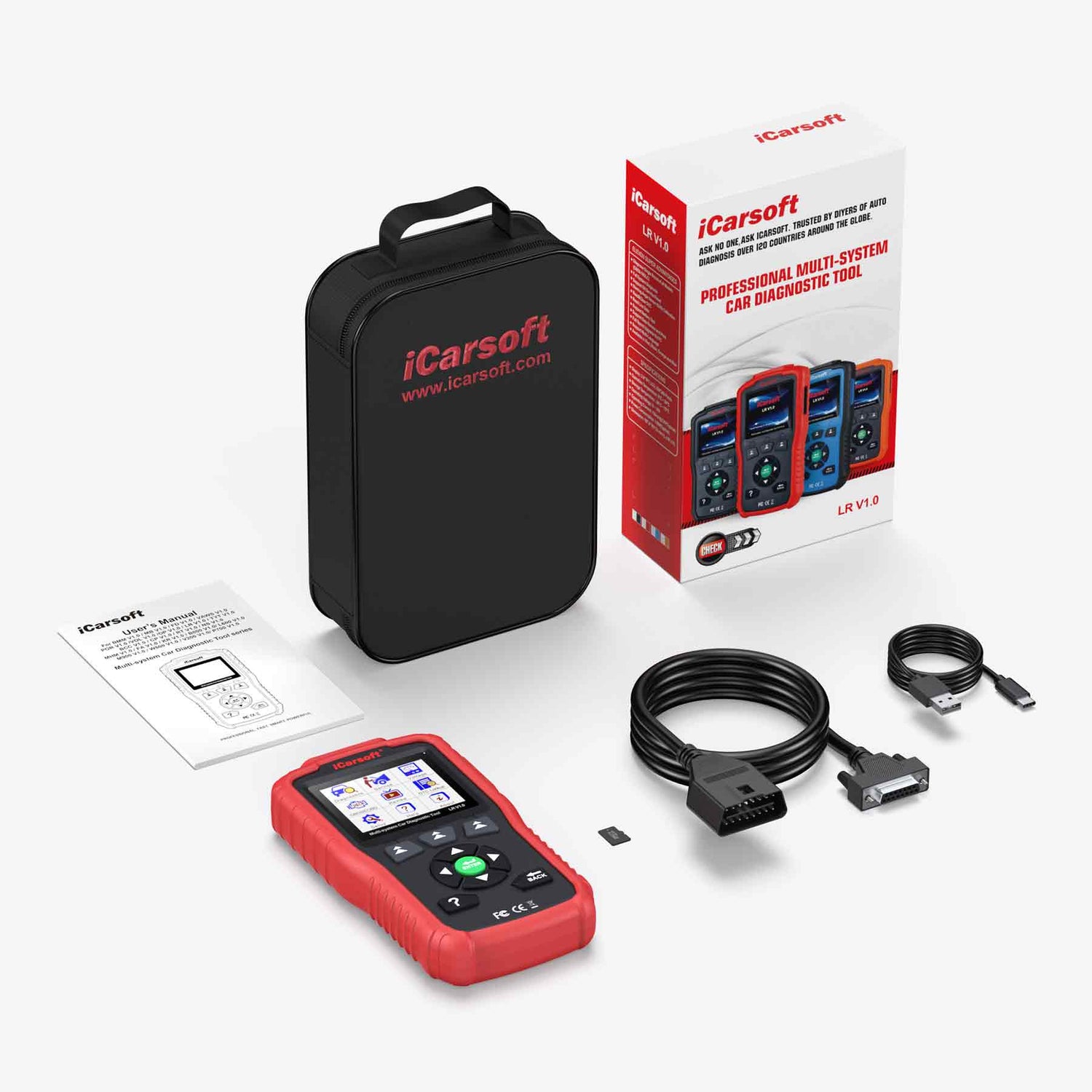

11Packing List

Open the box — everything's accounted for.

Core Device

Main Unit

Storage

Carry Case

Connectivity

OBD2 Main Cable (16-pin)

Connectivity

USB Type-C Cable

Documentation

Multi-Language User Manual

Frequently Asked

Good to know before you buy.

A: Yes! The iCarsoft LR V1.0 includes lifetime free software upgrades. There are zero annual subscription fees or hidden costs. You pay once and get continuous software updates forever.

A: The LR V2.0 adds a wider set of service functions and a larger display. The LR V1.0 focuses on full-system diagnostics plus the two most-used resets — Oil and SAS — making it the most affordable way to maintain your Jaguar or Land Rover.

A: Not at all. AutoVIN depends on individual vehicle ECU protocols. If AutoVIN skips your car, simply use the Manual Selection mode—all diagnostic and service functions will work perfectly. Meanwhile, please send your VIN to our support team; we will verify it and add it to our database in the next software update.

A: Please keep ignition on and engine off. Record freeze frame data first before clearing codes.

Persistent hardware faults need physical repair prior to code clearance.

A small number of SRS/ABS fault codes can only be cleared after completing active (bi-directional) tests, which require a tool with bi-directional control such as the LR V2.0 or higher

A: Please check the following steps to troubleshoot:

Check Vehicle Compatibility: Ensure your vehicle is a Jaguar/Land Rover (1996-2025).
Turn Off Power-Saving: Disable any eco/battery-saving modes on the vehicle that might shut down modules during diagnosis.
Update Device: Update both the firmware and vehicle software to the latest versions.
Check Ignition: Ensure the vehicle key is turned to the "ON" position.

A: Yes. The LR V1.0 supports the Range Rover family — including Range Rover, Range Rover Sport, Evoque, and Velar — with full-system diagnostics plus Oil and SAS reset. Available functions vary by model year and ECU configuration; send us your VIN if you’d like us to confirm coverage for your exact vehicle.
