Quick Answer
C0054 identifies steering wheel position sensor signal c. It does not prove that signal C, the sensor assembly, or a trailer/police accessory circuit is failed. Save the complete record, confirm the VIN-specific definition, and test the physical and electrical paths before selecting a repair.
1What Does the C0054 Code Mean?
NHTSA DOT HS 812 575 Appendix L Table L-1 lists C0054 as Steering Wheel Position Sensor Signal C (Subfault). Signal C is an OEM channel designation; confirm the reporting module, sensor architecture and full suffix before testing. The full fault record determines the test branch.
Steering-wheel position signal c as defined by the vin is an ECU-monitored path whose design, sensor type, module ownership and suffix meanings vary by vehicle. The code does not establish a failed component or a universal physical condition.
A TRM record on the specified Police Interceptor Utility may be an unused accessory-output condition. It does not prove a steering-wheel position sensor fault, and it does not authorize replacing a sensor or clock spring.
Ford SSM 49386 is a configuration-specific exception, not steering-sensor repair evidence. On 2020–2021 Police Interceptor Utility vehicles, the named codes may be stored in the Trailer Module when police steering-wheel output circuits are not connected to accessories; Ford says to ignore them when found during unrelated diagnosis. If the code is in an ABS, steering or other module, use that module's exact OEM procedure instead.
Use the full suffix, reporting module and VIN-specific service information. Preserve the original and final scans, document the failed test, and record OEM scope separately from confirmed repair evidence. A useful work order also records the operating state, connector or installation findings, measurement method, calibration result and reason for the final repair decision so another technician can reproduce the branch for later technical review.
Save the full module wording and suffix before clearing; they can change the test path.
Separate C0054 from adjacent fault families
| Code | General description | Key distinction |
|---|---|---|
| C0054 | Steering Wheel Position Sensor Signal C | Full suffix, module and OEM wording remain decisive. |
| P0504 | Brake Switch A/B Correlation | Separate monitor family; do not combine repair conclusions. |
| P0571 | Brake Switch A Circuit | Separate monitor family; do not combine repair conclusions. |
| P0556 | Brake-booster pressure sensor range/performance | Separate monitor family; do not combine repair conclusions. |
Record the complete C0054 description. The suffix, reporting module and companion faults can change the diagnostic path. Use the manufacturer's full wording and test procedure for the exact vehicle.
2C0054 Symptoms and Likely Causes
Record C0054 symptoms and fault status; symptoms alone cannot identify a failed part.
Check whether companion faults share a proven cause.
Record the warning, module and suffix. The base signal label does not prove loss of steering control or a failed sensor.
Where supported, compare the channel with the other angle channels, center reference and steering movement. Do not invent a waveform or voltage limit.
Check steering-center reference, calibration state, connector seating and supply history before condemning the sensor.
On the Ford Police Interceptor TRM, the code can be an unused steering-wheel output circuit; that is separate from an ABS or steering-angle sensor diagnosis.
Practical cause-checking order
- Confirm the complete fault: Channel C plausibility, calibration or signal evidence differs from the other angle channels.

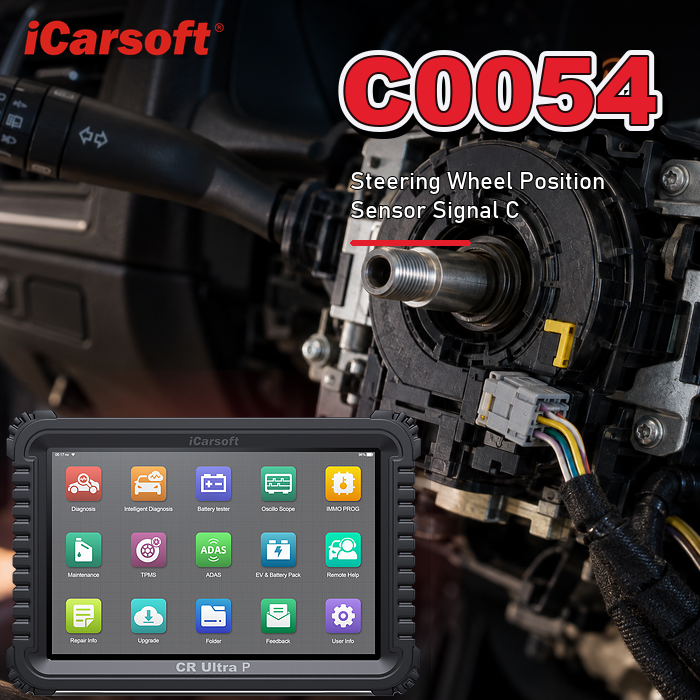

- Inspect installation and connections: Steering-wheel angle sensor mounting, clock-spring or connector condition can affect the reported channel.
- Prove the electrical or physical path: A changed steering center, alignment, low-voltage event or module software can create a plausibility fault without a failed sensor.
- Compare supported data and tests: Ford SSM 49386 is limited to unused police TRM accessory outputs and does not support steering-sensor replacement.
- Escalate only after external proof: Consider the sensor or module only after the VIN calibration, wiring and channel comparison support that branch.
Did C0054 appear after recent brake, wheel-end, steering, battery, module, calibration or accessory work? Recheck the documented connections, parts and setup steps affected by that work. Record battery and software history; a post-repair code does not prove the new part is defective.
3How Serious Is C0054, and Can You Drive?
Follow the owner manual and active warning messages. A steady warning with normal control may permit only a short, light-load trip to a safe repair location when the manual allows it. The code alone cannot establish a safe distance or prove braking and steering assistance are available.
Record temperature, load, speed, start state and recent service. Do not reproduce a severe symptom on public roads; another warning can make the situation more urgent. If the vehicle enters a reduced-power strategy, develops abnormal noise, leaks fluid, overheats or shows a red stop warning, the safety condition overrides any plan to complete a drive cycle.
Stop and arrange a tow if abnormal pedal feel, increased stopping distance, fluid leak, red brake warning, unsafe steering, severe pull, or loss of stability assistance.
Brake hydraulics, automatic fans, hot components, moving steering parts and possible high-voltage systems require the exact shutdown, support and pressure-release procedure. Do not force a steering wheel, jumper an unidentified circuit, or induce a stability event on a public road.
4How to Diagnose C0054 in the Right Order
-
Save Signal C and angle data
Save the full suffix, reporting module, all available steering-angle channels, center reference, freeze frame and companion codes before clearing.
-
Identify the channel architecture
Use the VIN diagram and module data to learn how Signal C is declared. Do not infer a terminal number, polarity or physical sensor position from the letter.
-
Check center and installation
Inspect the steering sensor, clock-spring or column-area mounting, connector and recent alignment work safely. Confirm the vehicle is mechanically centered before calibration.
-
Compare angle channels
Compare Signal C with the other available angle channels through the specified steering movement. Use the OEM comparison and center procedure; do not apply a universal waveform, voltage or phase threshold.
-
Separate TRM accessory records
If the record is in a 2020–2021 Police Interceptor TRM, check whether the police steering-wheel output circuits are intentionally unused and follow Ford's instruction to ignore that unrelated record.
-
Verify calibration and steering
Complete the OEM center/calibration procedure when required, save the final data and confirm warnings, steering response and module codes before release.
Specifications are vehicle-specific. Use the exact VIN specifications, approved test points and required operating state. No generic value or drive cycle can replace the applicable procedure. Manufacturer examples here do not establish specifications for other applications.
5C0054 Repairs and Cost Planning
A C0054 repair must address the demonstrated failure. Do not replace an assembly from the code alone.
Recheck installation and required setup after repair. A repair estimate should name the proven failure and the exact serviceable assembly. Integrated units, sensors, harnesses and calibration may have different service paths.
Ask the shop to name the failed branch and the measurement supporting each proposed repair.
Authorize diagnosis before parts while the cause remains uncertain.
| Possible path | Quote basis |
|---|---|
| Repair the proven connector, harness or reference path | VIN-specific quote |
| Correct the documented mechanical or installation condition | VIN-specific quote |
| Replace only the component that fails the VIN-specific test | VIN-specific quote |
| Complete required calibration, setup and safe functional verification | VIN-specific quote |
These are alternative repair paths, not prices to add together. Request a VIN-specific quote separating diagnosis, parts, labor, fluids, taxes, required setup and verification. Ask which failed test supports the proposed repair and whether warranty coverage applies.
6Using iCarsoft CR Ultra P for C0054
On a supported vehicle, iCarsoft CR Ultra P can save accessible faults, available freeze frame, live data and diagnostic reports. Preserve the C0054 evidence before clearing.
Use the report as a record of what the controller knew at the time. It helps compare code status, freeze-frame conditions and available PIDs before and after repair. It does not replace the wiring diagram, service procedure, safe access instructions or physical measurement required to prove the failed branch.
Preserve the steering-wheel position signal C as defined by the VIN evidence
iCarsoft CR Ultra P
Review supported codes and relevant live data together. Confirm the exact VIN, controller access, PIDs and any requested active test with iCarsoft before purchase; generic product capabilities do not guarantee a C0054-specific function.
Check current CR Ultra P price and availabilityCheck CR Ultra P compatibility by VINThe official product page describes supported full-system diagnostics, available live data, freeze frame and diagnostic reports; exact controller coverage and active tests depend on the VIN and software. Confirm the requested function by VIN before purchase. Follow OEM prerequisites and stop for abnormal operation.
Know the measurement boundary. Scan data describes ECU-provided information; it does not directly prove the physical condition of the steering-wheel position signal C as defined by the VIN. Where required, use the specified multimeter, scope, pressure equipment or steering-calibration equipment and compare reported values with the relevant measured evidence.
7Verify the C0054 Repair
After repair, verify connectors, harness clearance, setup and controller supply. Save post-repair findings, then clear only erasable records through the approved procedure. Battery disconnection is not a repair.
Run the manufacturer's applicable verification conditions in a safe workshop or route. Compare the original operating state with current data for the steering-wheel position signal C as defined by the VIN, and check current and pending faults in related modules. A clean start or idle period does not prove the repair; use the OEM functional check for this chassis system.
Compare the original and final scans, including fault status, operating conditions and required setup. Record whether the required functional check passed and whether the original event returned.
If C0054 returns, compare its suffix, status, failure order and operating conditions with the saved baseline before replacing another part. Revisit the failed branch and inspect anything disturbed. Confirm the prescribed brake or steering verification separately from code clearing.
Verification follows the system involved. After saving the original evidence, use the OEM procedure to clear erasable records, complete any required calibration or functional check, and compare the final module status with the original warning and fault conditions.
8Related Steering-Wheel Position Signal C As Defined By The VIN Code Guides
Compare the related monitor families below. Shared symptoms or components do not make their repair procedures interchangeable.
9C0054 Frequently Asked Questions
Does C0054 mean I need to replace the named component?
No. C0054 describes a monitored result or application-specific code meaning. It does not prove that signal C, the sensor assembly, or a trailer/police accessory circuit is failed. Confirm the VIN, suffix and failed test first.
What should I check first for C0054?
Save every module's codes and freeze frame before clearing. Confirm the full definition, suffix and VIN architecture. Then inspect recent brake, wheel-end, steering, battery, module, calibration or accessory work, connectors and shared supplies. Those facts determine whether the next test needs the specified multimeter, scope, pressure equipment or steering-calibration equipment or a manufacturer-specific functional procedure.
Can I drive with the C0054 code?
Follow the owner manual and active warning messages. A steady warning with normal control may permit only a short, light-load trip to a safe repair location when the manual allows it. The code alone cannot establish a safe distance or prove braking and steering assistance are available.
Why did C0054 return after a part was replaced?
If the code returns, compare the saved suffix, status and operating conditions with the post-repair record before buying another part.
What should a C0054 repair estimate include?
Ask for the failed-test evidence and a VIN-specific breakdown of diagnosis, parts, labor, taxes, required setup and verification. A code alone cannot establish the repair price.
Can CR Ultra P diagnose and clear C0054?
On a supported vehicle, CR Ultra P can organize available faults, freeze frame, live data and reports, and can clear erasable records after repair. Confirm exact ECU coverage. It cannot replace the OEM functional procedure or physical measurements for the steering-wheel position signal C as defined by the VIN.
The iCarsoft Official Store Technical Team maintains the store's fault-code library. This guide organizes published technical references and verified product information; it does not document a hands-on test of a particular vehicle or claim an individual engineer's review.
