If you already own an iCarsoft diagnostic tablet—or if you are planning to get one—you know the importance of having reliable data at your fingertips. But there is one critical component that standard OBDII scanning often overlooks until it’s too late: the battery.

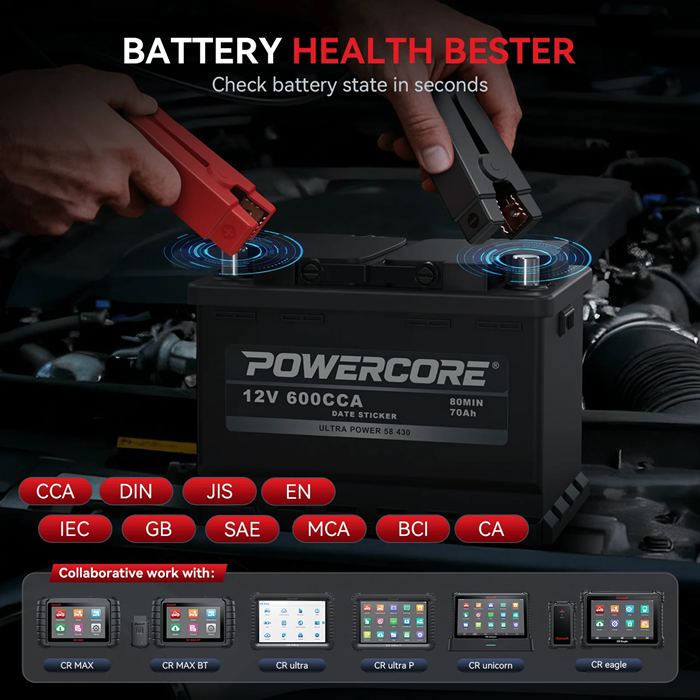

Instead of buying a separate, bulky handheld battery tester, the iCarsoft BT900 Battery Test Clip offers a smarter solution. It is a "smart battery detection clip" designed to integrate seamlessly with your existing diagnostic tool.
Why Add the BT900 to Your Toolbox?
The BT900 isn't a standalone device. It connects to compatible iCarsoft tablets like the CR MAX, CR MAX BT, CR Eagle, and MT PRO. Here is how it helps in real-world situations:
Winter is tough on batteries. Before a long trip, use the BT900 to check the Cold Cranking Amps (CCA). It tells you if your battery has enough life left to start the engine in freezing temps.
Buying a used car? A battery might look new but be internally weak. The BT900 performs a comprehensive Charging System Test to reveal hidden alternator issues before you pay.
See It in Action: 1-Minute Setup
Using the BT900 is plug-and-play. It transforms your scanner into a powerful battery analyzer in seconds. Watch the quick demo below:
Simple Operation Steps:
- Connect: Plug the BT900 clip into the diagnostic port of your iCarsoft tablet.
- Clamp: Attach the red clamp to the positive (+) and black clamp to the negative (-) battery terminals.
- Select: On your tablet screen, select the "Battery Test" function.
- Analyze: Choose your battery standard (e.g., CCA, EN) and view the detailed health report instantly.
Deep Dive: What Can It Test?
Beyond simple voltage checks, the BT900 supports a complete range of electrical system tests for automobiles, motorcycles, and more.
| Feature | Specification |
|---|---|
| Voltage Range | 9V - 30V |
| Supported Vehicles | Automobiles, Motorcycles |
| CCA Range | 100 - 2000 |
| Standards | CCA, DIN, JIS, EN, IEC, GB, SAE, MCA, BCI, CA |
💰 Bundle & Save: CR MAX BT + BT900
Get the complete diagnostic package. Combine the wireless diagnostics of the CR MAX BT with the electrical precision of the BT900 and save.
Perfect for DIY enthusiasts and professional mechanics alike.
FAQ: Frequently Asked Questions
Does the BT900 require its own battery to work?
No. The BT900 is powered through the connection to the vehicle battery and your diagnostic tool. You don't need to worry about charging it separately.
Will this work with future iCarsoft products?
Yes. While it currently supports models like the CR MAX and MT PRO, iCarsoft has stated that more items will be compatible in the near future.
What is the measurement range for CCA?
The BT900 covers a wide range of 100 to 2000 CCA, which covers the vast majority of passenger vehicles, light trucks, and motorcycles.
