iCarsoft MB V4.0 Mercedes Diagnostic Tool Guide

What MB V4.0 is designed to do

A generic OBD-II reader concentrates on emissions-related engine data. MB V4.0 adds manufacturer-specific access to supported Mercedes-family modules. That can include the engine, transmission, ABS, SRS, electronic parking brake, body control, suspension, climate, and other controllers fitted to the vehicle. You can read and clear diagnostic trouble codes, view ECU information, inspect live values, and save reports for later comparison.

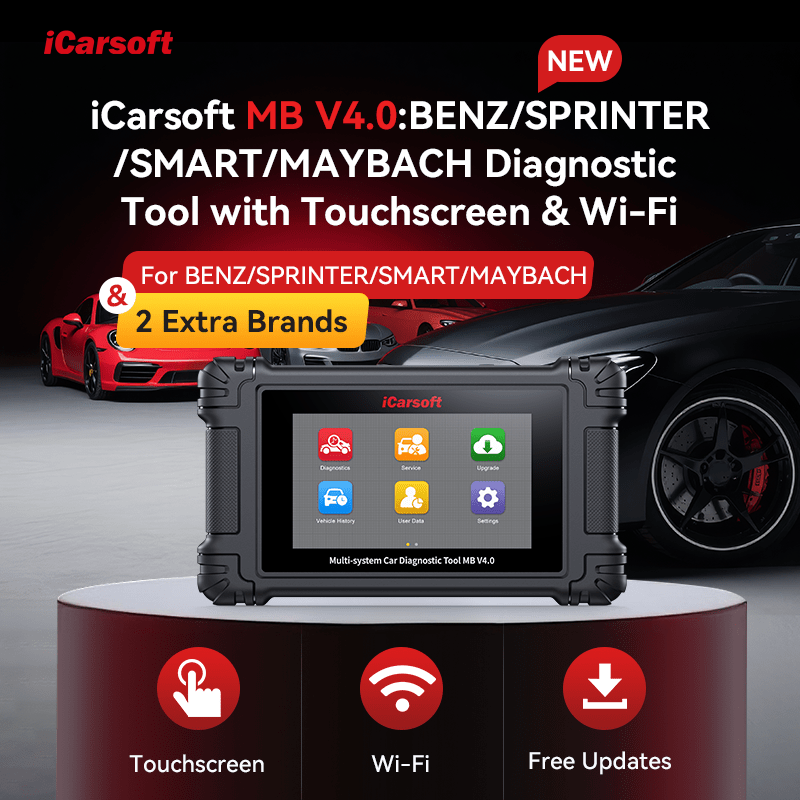

The hardware uses an Android interface with a 5-inch, 854 by 480 touchscreen, a quad-core 1.3 GHz processor, 64 GB of storage, and a 5000 mAh battery. It connects to the vehicle through the diagnostic cable and to 2.4 GHz Wi-Fi for updates. A USB-C cable is included; the current product specification says a wall charger is not included.

Wireless updates are a practical difference from older iCarsoft MB generations that use a Windows PC and removable storage. Install updates before a planned repair, then confirm that the vehicle and required function appear in the current software. An update can expand coverage, but it cannot make an ECU support a routine that the manufacturer never implemented.

One installed group covers four Mercedes-family brands

MB V4.0 is pre-installed for Mercedes-Benz passenger vehicles, Sprinter vans, Smart, and Maybach. The product page describes broad 1996 and newer coverage, but the diagnostic connector and accessible modules vary across that period. A 16-pin connector alone does not guarantee the same depth on a 1990s car and a current CAN-FD platform.

Some older Mercedes-Benz vehicles use a round 38-pin diagnostic port. The product documentation identifies examples including C-Class W202 through 2000, E-Class W210 through 2002, S-Class W140 through 1998, CLK W208 through 2003, SLK R170, and SL R129 through 2002. Those applications need the optional iCarsoft 38-pin adapter. Early Sprinter T1N and early NCV3 vehicles from the listed 1995-2006 range may need the optional 14-pin Sprinter adapter.

After setting up the installed Mercedes group, the owner can download two more supported vehicle make groups over Wi-Fi without an additional software charge. Select those groups with future vehicles in mind. The choice expands the brands on the scanner but does not include every make or guarantee identical functions across the added group.

Full-system diagnostics and bi-directional testing

A full-system scan gives you a map of which modules are reporting faults. That context matters because one low-voltage event or network fault can place codes in several controllers. Save the first scan before clearing anything. The time stamps, status, freeze-frame data, and cross-module pattern can guide the next electrical test.

Live data lets you watch values reported by a supported ECU. Use it to compare commanded and measured states, not as proof that the named component is faulty. A sensor value can be wrong because of wiring, a reference-voltage problem, a mechanical condition, or the sensor itself. Compare the reading with service information and an independent measurement where possible.

Bi-directional control sends a command to a module and observes the response. Depending on the vehicle, available tests can include operating a window or door lock, activating a fuel pump, cycling an ABS pump, moving a mirror, or commanding a throttle actuator. The tool does not physically verify that a part moved; the technician still needs to watch, listen, or measure the circuit.

Active tests also carry risk when used without service information. Commanding a pump, valve, motor, or brake component at the wrong time can create an unsafe condition. Secure the vehicle, keep people clear of moving parts, support stable battery voltage, and follow the manufacturer's test prerequisites.

Service functions, resets, and adaptations

The current MB V4.0 product page lists 41 service-function categories: nine common maintenance services and 32 higher-level categories. Common listings include oil-service reset, electronic parking brake service, steering-angle reset, DPF regeneration, injector coding, ABS bleeding, air-suspension service, and battery management. Higher-level listings include model-dependent procedures for NOx sensors, transmission adaptations, windows and roofs, rain or light sensors, AdBlue systems, crankshaft learning, and other modules.

The category count needs context. A service icon can contain different procedures for different vehicles, and some vehicles will show no supported routine inside a category. A security gateway may allow read-only diagnosis while restricting a reset, coding action, or active test. Factory authorization requirements remain in force.

A diagnostic workflow that preserves evidence

1. Verify the complaint and battery condition. Low system voltage can create communication errors and unrelated module codes. Stabilize voltage before an extended scan or programming-related routine.
2. Identify the vehicle. Use AutoVIN when it succeeds. If recognition fails, select the chassis, production year, engine, and market manually rather than choosing the closest name.
3. Run and save a complete scan. Record every module and code before clearing data. Note which codes are current, stored, or intermittent.
4. Work from service information. Use wiring diagrams, code criteria, connector locations, and test values for the VIN. The scanner supplies data and commands; the repair decision still needs measurements.
5. Use active tests to narrow the fault. Command one relevant component and verify the electrical and physical response. Stop if the tool reports a prerequisite or communication failure.
6. Perform the service routine after the repair. Resets and adaptations belong at the point specified by the workshop procedure. They should not be used to hide an unresolved code.
7. Scan again and road-test safely. Compare the post-repair report, confirm monitor status, and check that the original complaint is gone under the conditions that produced it.

This approach avoids the invented success stories often attached to scan-tool marketing. MB V4.0 can expose data and run supported procedures. It cannot establish a diagnosis without the technician testing the vehicle.

Compatibility and security limits to confirm

Mercedes-Benz, Sprinter, Smart, and Maybach span many generations of electronics. Module access can change within one chassis after a production update. Options such as air suspension, diesel aftertreatment, driver-assistance systems, and hybrid components also change the available menu.

Newer vehicles may use a security gateway that limits write access, active tests, coding, or adaptations. Some procedures require manufacturer credentials or an online OE session. MB V4.0 ownership does not bypass those protections. Ask for VIN-level confirmation when the job depends on one protected action.

AutoVIN is useful, but manual identification remains important. A failed AutoVIN lookup does not by itself mean the scanner cannot communicate with the vehicle. Select the correct platform manually and run a scan. If the required module still does not appear, verify the connector, adapter, power, software version, and coverage before continuing.

Frequently asked questions

Does MB V4.0 work with Mercedes-Benz, Sprinter, Smart, and Maybach?

Yes, software for those four brands is included in the pre-installed Mercedes vehicle group. Module and function coverage varies by chassis, year, configuration, and security access.

Are software updates free?

The product includes lifetime free software updates delivered over Wi-Fi. No annual software subscription is listed for the scanner. Internet access is needed to download updates, not for every offline diagnostic session.

Can I add other vehicle brands?

Yes. After purchase, you can download two supported vehicle make groups at no charge. The list of available groups can change, so review the current product page before choosing.

Will it work on a pre-2003 Mercedes?

Some older models are supported with the optional 38-pin adapter. Check the chassis, production year, connector, and desired module. Early Sprinter applications may require the optional 14-pin adapter instead.

Can MB V4.0 perform every listed service function on my car?

No scanner has the same function set on every vehicle. A listed category is available only when the vehicle ECU, software, and security access support the procedure. Confirm by VIN when one function is essential.

How much does MB V4.0 cost?

As of July 15, 2026, the iCarsoft US price is $229.95 and the product is in stock. Price and availability can change, so check the product page at the time of purchase.
