Quick Answer
P0004 means Fuel Volume Regulator Control Circuit High. The powertrain controller detected an electrical result above its calibrated limit in the circuit that controls fuel volume. It does not prove that fuel pressure is physically high or that the regulator has failed. Save the code status and freeze frame before inspecting the exact circuit.
1What Does the P0004 Code Mean?
The standardized description of P0004 is Fuel Volume Regulator Control Circuit High. The fuel volume regulator may also be called a volume control valve, fuel metering valve, inlet metering valve, or suction control valve. Its name, location, wiring strategy, and normal position depend on the engine and fuel system.
The controller uses this electrically operated device to influence how much fuel enters a pump or pressure-control path. P0004 says the monitored control circuit was classified as high under the manufacturer's enabling conditions. “High” describes the electrical monitor result; it is not a universal fuel-pressure reading, duty-cycle value, or valve position.
Some engines place the valve on or inside a high-pressure pump, while other systems use a different pressure-control layout. Confirm the VIN, engine code, connector view, and wiring diagram before naming a part. A generic scanner label cannot establish which terminal, driver design, or pressure strategy the vehicle uses.
P0004 compared with nearby fuel-control codes
| Code | General description | Key distinction |
|---|---|---|
| P0001 | Fuel Volume Regulator Control Circuit/Open | General circuit or open classification, not specifically high or low. |
| P0002 | Fuel Volume Regulator Control Circuit Range/Performance | Command or response does not perform as expected; not the same as circuit high. |
| P0003 | Fuel Volume Regulator Control Circuit Low | Electrical result is classified low under the OEM monitor. |
| P0004 | Fuel Volume Regulator Control Circuit High | Electrical result is classified high; physical pressure still requires separate proof. |
| P0088 | Fuel Rail/System Pressure Too High | Pressure feedback is above the allowed target or limit, not simply a control-circuit-high result. |
OEM example, not a universal test value. Ford's 2018 diesel OBD system summary lists P0001 through P0004 under fuel volume control valve checks. That document shows why the exact OEM monitor and architecture matter; its strategy must not be copied to an unrelated vehicle.
2P0004 Symptoms and Likely Causes
P0004 symptoms depend on how the controller reacts when it loses reliable control of fuel volume. The warning light may be the only symptom, or the controller may limit output and set companion fuel-pressure or supply-voltage codes.
An intermittent connector or harness fault may store P0004 before the driver notices a performance change.
Incorrect metering or a disabled control strategy can prevent the fuel system from reaching the required condition.
Fail-safe operation may limit torque, acceleration, or engine speed to protect the fuel system.
Unstable fuel delivery can cause hesitation, surging, rough idle, misfire, or an unexpected stall.
Practical cause-checking order
- Connector and terminal problems: loose engagement, corrosion, water intrusion, spread terminals, damaged locks, or pins pushed back during recent work.
- Harness damage: a control wire shorted to voltage, rubbed through near a bracket, melted near heat, pinched under a cover, or incorrectly routed after pump or engine service.
- Power or ground faults: abnormal supply, poor ground, shared-circuit trouble, an incorrect fuse, or a relay and distribution problem that changes the driver's electrical result.
- Regulator or metering-valve electrical failure: an internal winding or connector fault can alter current flow, but the component must be tested by the VIN-specific procedure.
- Installation or calibration issues: the wrong part, damaged seal or connector, incomplete setup, or mismatched software can follow recent repairs.
- Controller or driver failure: possible, but uncommon enough to remain last after the external circuit and load have been proven.
Do not treat clogged injectors as the default P0004 cause. Restrictions and hydraulic faults can create separate fuel-pressure symptoms, but this code's standardized wording identifies a control-circuit-high result. Diagnose companion codes independently.
3How Serious Is P0004, and Can You Drive?
If the malfunction indicator is steady, the engine starts normally, power is predictable, and there is no leak, odor, smoke, misfire, or stalling, the owner's manual may permit a short, light-load trip for diagnosis. Avoid towing, hard acceleration, and remote travel because fuel control can deteriorate without warning.
Stop and arrange a tow if the engine repeatedly stalls, will not start safely, loses power in traffic, has a flashing malfunction light or severe misfire, leaks fuel, smells strongly of fuel, produces heavy smoke, overheats, or develops abnormal combustion or mechanical noise.
Direct-injection gasoline and common-rail diesel systems can retain dangerous pressure after shutdown. Never loosen a rail, injector pipe, pump fitting, regulator, or sensor to “see whether fuel comes out.” Keep ignition sources away, follow the OEM depressurization procedure, and leave high-pressure work to trained personnel with approved equipment.
4How to Diagnose P0004 in the Right Order
-
Save every code and the failure evidence
Scan all modules and record P0004 status, pending or permanent state, freeze frame, failure order, battery voltage, and companion fuel-pressure, supply, communication, or driver codes. Do this before clearing anything; an intermittent fault may disappear when the connector is moved.
-
Identify the exact VIN-specific control design
Use service information to locate the correct fuel volume regulator, controller pin, connector face, power and ground path, driver type, monitor criteria, and relevant bulletins. Confirm whether the device is serviceable separately or integrated with a pump or assembly.
-
Inspect the cool, depressurized system and harness
With the system made safe, check connector locks, pin fit, corrosion, fluid intrusion, harness rub points, hot areas, brackets, and evidence of recent repair. Inspect but do not open high-pressure fittings. A terminal-tension test must use the specified probe, not an oversized test lead.
-
Prove the electrical path with proper instruments
Follow the OEM test plan with a high-impedance digital multimeter, approved breakout leads, load testing, voltage-drop testing, or current measurement as specified. Test supply, ground, control continuity, shorts, and the commanded load without jumping a controller terminal directly to battery or ground.
-
Compare supported command, feedback, and pressure data
On a supported vehicle, graph regulator command with actual fuel-pressure feedback and related supply data. Use an active test only when the exact ECU offers it and the OEM procedure says conditions are safe. Scan data can show disagreement, but a mechanical gauge or approved pressure equipment proves physical pressure.
-
Confirm the failed branch and plan setup
Condemn the regulator, pump assembly, or controller only after its wiring and load pass the specified tests. Check whether replacement requires priming, calibration, coding, or relearn. Repair the proven cause, then preserve before-and-after readings and complete the actual monitor verification.
Specifications are vehicle-specific. Do not import voltage, resistance, current, pressure, duty-cycle, timer, or drive-cycle values from another engine. Use the units, conditions, connector method, and limits in the service information for the exact VIN.
5P0004 Repairs and Typical Costs
The correct P0004 fix follows the failed test. Common outcomes include terminal repair, harness repair, restoring a supply or ground, replacing a proven fuel metering or volume-control device, replacing an integrated pump assembly when the valve is not separately serviceable, completing required setup, or repairing a controller driver only after every external path passes.
| Possible path | Current US estimate |
|---|---|
| Professional Check Engine Light diagnosis and testing | $122–$233 |
| Connector, terminal, supply, ground, or harness repair | VIN-specific quote |
| Fuel volume regulator or metering-valve replacement | VIN-specific quote |
| Integrated high-pressure pump or control assembly | VIN-specific quote |
| Software, setup, controller, or driver repair | VIN-specific quote |
RepairPal's Check Engine Light Diagnosis & Testing Cost Estimate shows $122–$233 and states “Estimates last updated August 7, 2026.” It excludes taxes, fees, location differences, and related repairs. The other paths vary too widely by architecture and access for a responsible national figure. These rows are alternatives, not amounts to add together.
If P0004 appeared immediately after a pump, engine-harness, battery, fuse-box, or fuel-system repair, ask the shop to recheck connector seating, pin placement, grounds, harness routing, and the installed part number first. That recent-work evidence can shorten diagnosis and prevent a second component from being fitted unnecessarily.
6Using iCarsoft CR MAX for P0004
On a supported vehicle, iCarsoft CR MAX can access the engine controller, save P0004 status and available freeze-frame data, display ECU-provided live data, and save a diagnostic report. Relevant regulator command, fuel-pressure feedback, or active tests may be available only when the exact VIN, ECU, and software expose them.
Evidence before parts

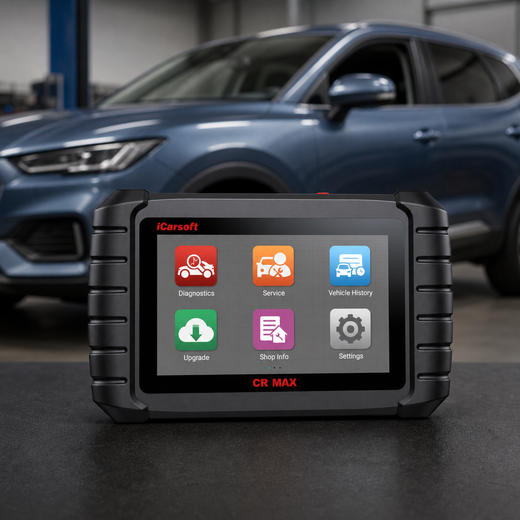

iCarsoft CR MAX
Save fault evidence, compare supported live data, and document the repair on compatible vehicles. Confirm the exact functions for your VIN before purchase.
Check current CR MAX price and availabilityCheck CR MAX compatibility by VINThe official product page lists full-system diagnostics, live data, reports, and bidirectional control, while also noting that functions vary by vehicle brand, model, year, and ECU configuration. If the ECU does not expose a PID or active test, that missing coverage is not evidence that the vehicle component failed.
Know the measurement boundary. CR MAX does not physically measure circuit voltage, current, resistance, voltage drop, terminal tension, fuel pressure, leakage, or internal valve travel. Use the specified multimeter, breakout leads, load tool, pressure equipment, and hands-on inspection alongside scan evidence.
7Verify the P0004 Repair
Save post-repair scan data and physical measurements before clearing erasable faults by the OEM procedure. Confirm that the connector is locked, the harness is secured away from heat and abrasion, and any opened fuel-system connection has passed the specified leak and safety inspection.
Run any required priming, calibration, coding, or relearn. Then reproduce the OEM monitor conditions or safely approximate the original freeze-frame load. Compare supported command and feedback, verify stable starting and drivability, and rescan for current, pending, and companion codes. One clean idle period is not proof when the monitor requires other conditions.
For an intermittent repair, gently move only the accessible low-pressure wiring while watching the verified signal and keep hands clear of belts, fans, and hot parts. A stable result during the same conditions that originally stored P0004 is stronger evidence than clearing the light and returning the vehicle immediately.
A permanent P0004 can remain immediately after a successful repair. If the vehicle stores it as a permanent DTC, a scan tool or battery disconnect cannot erase it. Once current and pending faults are absent, the OBD system removes the permanent record only after the applicable monitor reruns and passes.
8Related Fuel-System Code Guides
9P0004 Frequently Asked Questions
Does P0004 mean the fuel volume regulator is bad?
No. P0004 identifies a high electrical result in the regulator control circuit. Connector damage, a short to voltage, supply or ground trouble, harness damage, the regulator's electrical load, installation issues, or a controller driver can produce it. Test the exact circuit before replacing parts.
Is P0004 the same as high fuel pressure?
No. P0004 is a control-circuit-high code. P0088 is the generic fuel rail/system pressure-too-high code. A vehicle may store both, but physical pressure must be confirmed with the OEM procedure and approved equipment rather than inferred from P0004 alone.
Can I drive with the P0004 code?
A short, light-load service trip may be reasonable only when the warning light is steady, operation is normal, and there is no leak, odor, smoke, misfire, stalling, or power loss. Stop and tow for any unsafe symptom or when the owner's manual requires it.
Will replacing the fuel filter fix P0004?
Not by default. A restricted filter can affect fuel delivery on applicable systems, but P0004 describes an electrical control-circuit result. Check companion pressure codes and prove the connector, harness, supply, ground, control load, and OEM monitor before choosing a hydraulic repair.
How much does P0004 diagnosis or repair cost?
RepairPal lists professional Check Engine Light diagnosis and testing at $122–$233, updated August 7, 2026, before taxes, fees, location differences, and repairs. Wiring, regulator, integrated-pump, setup, and controller costs need a VIN-specific quote because access and architecture vary.
Can iCarsoft CR MAX diagnose P0004?
On a supported vehicle, CR MAX can read code status and freeze frame, graph exposed engine and fuel data, save reports, and run supported active tests. It cannot physically prove voltage, current, resistance, pressure, leakage, terminal fit, or internal mechanical condition; confirm VIN coverage and use external tests.
