Quick Answer
P0046 is a turbocharger/supercharger boost-control “A” circuit range/performance fault. Manufacturer wording can differ; GM describes it as turbocharger boost-control position performance on the applications discussed below. The code does not identify a failed turbo, boost sensor or solenoid by itself. Save the fault conditions and test power supply, command, feedback and mechanical movement for the exact system.
What Does the P0046 Code Mean?
The controller regulates boost using the equipment fitted to the engine. That may include an electronically driven wastegate, variable-geometry turbo actuator, or a control valve and vacuum-operated mechanism. Identify the architecture first: an electrical actuator and a vacuum solenoid cannot be tested with the same assumptions.
P0046 concerns whether the boost-control system operates within its expected range or performance. The controller may monitor an actuator position or another response relevant to that design. The letter “A” is a circuit designation, not a universal left/right location or instruction to replace a particular valve.
A boost pressure sensor measures pressure; an actuator changes a mechanism; a control valve may regulate the force applied to that mechanism. These functions are related but distinct. Replacing whichever part a parts search calls a “boost controller” can miss the actual fault.
The operating moment is useful evidence. A code appearing during cranking raises different questions from one appearing under load after a turbo replacement. Save the available freeze-frame and recent repair history so the diagnosis can reproduce the relevant conditions safely. Keep startup faults separate from faults recorded during loaded driving; that distinction helps the technician choose the first measurement and avoids an irrelevant parts test.
P0046 compared with neighboring boost faults
| Code | General description | Key distinction |
|---|---|---|
| P0046 | Boost-control range/performance | Compare command, feedback and mechanism response. |
| P0045 / P0047 | Control circuit open / low | Follow the specified electrical circuit checks. |
| P0299 / P0234 | Underboost / overboost | Investigate pressure outcome and its possible causes. |
A pressure fault and a control-performance fault can share a cause, but neither automatically confirms the turbocharger assembly is defective.
P0046 Symptoms and Likely Causes
The warning lamp may be the only symptom, or the vehicle may limit power. Record whether the fault occurs at startup, during acceleration, after heat soak or following service.
P0046 may be stored alone or with position, voltage or boost codes.
The controller may limit engine output when control is unreliable.
Acceleration may vary with the operating conditions that reveal the fault.
Some applications set the code when actuator learning is disrupted during cranking.
Practical cause-checking order
- Unstable power or ground: weak starting voltage, loose battery connections or a circuit voltage drop can disrupt actuator operation.
- Connector or harness damage: inspect heat-exposed wiring, pin fit, seals and areas disturbed during recent turbo work.
- Actuator, control valve or feedback failure: prove which function is absent before selecting a replacement.
- Loose mounting or linkage: actuator movement may not translate into the expected turbo mechanism movement.
- Mechanical restriction: a wastegate or variable-geometry mechanism may bind; test according to the fitted design.
- Applicable calibration or setup issue: check current VIN-specific bulletins and required learning after repairs.
GM 21-NA-113 (September 2022) describes a cranking-voltage/actuator-learning issue on listed L5P/L5D trucks. GM 22-NA-021 (February 2022) identifies loose actuator bolts on listed 3.0L LM2 trucks. These are different, limited applications, not universal P0046 fixes.
How Serious Is P0046, and Can You Drive?
If the owner's manual permits travel and the vehicle has a steady MIL with adequate, predictable power, arrange prompt diagnosis and drive gently to a suitable repair facility. Avoid towing and high-load operation until the control fault is understood.
Do not test the repair with repeated hard acceleration on public roads. A vehicle that unexpectedly loses power can be unsafe in traffic. Boost-related noises, smoke and other warnings should change the transport plan even when the original code was described as a circuit fault.
Stop and arrange a tow Stop safely for severe power loss, smoke, unusual turbo or engine noise, overheating or an oil-pressure warning. Follow the owner's manual and arrange recovery if safe operation is uncertain.
Let turbocharger and exhaust parts cool before inspection. Keep hands clear of actuator arms, fans and belts; commanded or automatic movement can occur. Do not force linkage, disconnect an actuator while it is moving or apply battery voltage to unidentified terminals. Use a qualified technician for inaccessible turbo mechanisms or complex circuit tests.
How to Diagnose P0046 in the Right Order
-
Save codes and identify the control design
Read the complete engine scan, code status and available freeze-frame data before clearing anything. Record battery voltage, engine speed, load, requested/actual boost and actuator position where available. Note recent battery, turbo, intake or software work.
Use the VIN, engine code and manufacturer fault text to identify the boost-control hardware. Check companion supply, communication and position codes first where the service procedure directs. Locate applicable bulletins by exact engine and model year rather than by P0046 alone.
-
Check battery and actuator supply under the relevant condition
Inspect battery connections, grounds and the actuator supply circuit. If the code occurred during cranking, use appropriate equipment to evaluate starting voltage and connection integrity under load. A normal key-on voltage reading does not rule out a brief startup supply problem.
GM 21-NA-113 covers specific Silverado/Sierra L5P and L5D applications and describes an interrupted actuator learn associated with low cranking voltage. It is a reason to check this path on a matching vehicle, not permission to apply its learn procedure or voltage assumptions to unrelated engines.
-
Inspect wiring, mounting and any fitted vacuum circuit
Check accessible connectors for loose locks, contamination, damaged seals and terminal problems. Inspect wiring near exhaust heat, brackets and previous repairs. Verify that the actuator is securely mounted and that accessible linkage or hoses are routed correctly.
On a vacuum-operated design, test the supply, control valve, hoses and actuator using the stated procedure. GM 22-NA-021 addresses actuator mounting on listed 2020–2022 LM2 trucks; confirm bulletin applicability and use its hardware instructions only for the covered vehicles.
-
Compare commanded operation with feedback and movement
Run the manufacturer-specified output test only when the diagnostic tool supports it for this ECU and all prerequisites are met. Compare the requested position or state with available actual feedback while observing the mechanism from a safe position.
No response can result from absent power, a missing command, failed drive electronics or binding. A changing feedback value can still be misleading if the linkage is disconnected. Do not assume a universal sweep percentage, movement direction or ignition state. Record exactly what moved and what the data showed.
-
Separate circuit failure from mechanical restriction
Use the correct wiring diagram and suitable test equipment to evaluate supply, ground, command and feedback circuits. Follow the specified loading and isolation method; a continuity check alone may not expose a high-resistance connection. Do not measure resistance on powered electronics.
If the circuit passes, inspect the mechanism according to the repair manual. Determine whether the actuator, linkage or turbo mechanism is restricted. Some assemblies require matched calibration or are not separately serviceable. Forcing an arm or fitting an unmatched actuator can create another fault.
-
Apply the confirmed repair and required learning
Repair the proven wiring, supply, vacuum, mounting or mechanical defect. Confirm serviceability and part fitment before replacing an actuator or turbocharger. If a current bulletin identifies a calibration issue, have the applicable update performed with the correct equipment and stable power support.
GM 22-NA-037 (February 2022) discusses an ECM software path for listed 2018 L5P trucks. That does not make programming the first repair for every P0046. Perform a position learn or adaptation only when required for the exact vehicle, then repeat the relevant response and monitor checks.
Specifications are vehicle-specific. There is no universal P0046 actuator resistance, command duty cycle, sweep range, boost target or cranking-voltage pass/fail limit. Use the exact engine's current service information.
P0046 Repairs and Cost Factors
A sound repair recommendation links a test result to a component: a supply drop measured under load, a damaged terminal, a vacuum leak, an actuator that fails with correct control, or a mechanism that binds under the approved test. The code description alone does not justify a complete turbo replacement.
If an actuator is replaced separately, confirm matching, calibration and installation requirements. If a turbo assembly is required, investigate why it failed and follow the manufacturer's oil, intake and exhaust inspection instructions. Replacing hardware without correcting its underlying cause can leave the control problem unresolved.
| Possible path | US quote requirements |
|---|---|
| Battery connection, wiring or vacuum repair | Quote after the defect is located |
| Applicable software or position-learning work | VIN-specific procedure and labor quote |
| Actuator or turbocharger assembly | Correct part, access labor and setup quoted separately |
US repair cost varies greatly between a connector repair, an engine-specific actuator and a turbocharger assembly. Ask for an itemized estimate showing diagnosis, the proven failed component, labor and required setup. A generic turbo price is not an estimate for a vehicle that may only have a supply or mounting fault.
Check applicable warranty and campaign status by VIN. A published bulletin describes a condition and procedure; it does not automatically grant free repairs. If a large replacement is proposed, ask what circuit and movement tests ruled out the less extensive repair paths.
Using iCarsoft CR MAX for P0046
On supported vehicles, save the pre-repair report and inspect available boost or position data. Comparing requested and actual behavior can guide the next physical test. Read the complete module record because generic code text may omit manufacturer-specific context.
Save evidence before choosing a repair

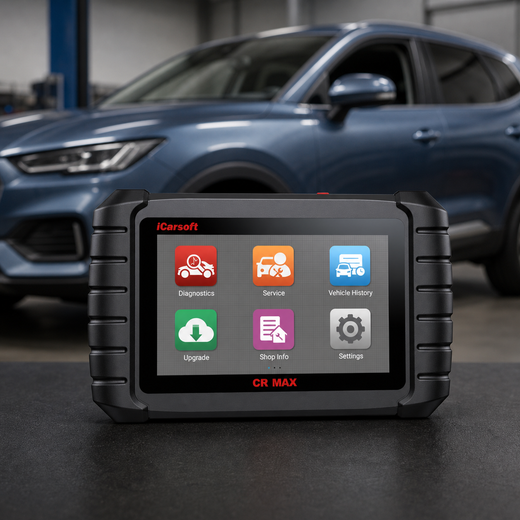

iCarsoft CR MAX
Use the iCarsoft CR MAX to capture supported fault, live-data and actuator-test evidence. Check coverage for the specific vehicle and boost-control function before purchase.
Check current CR MAX price and availabilityCheck CR MAX compatibility by VINA supported bidirectional test may help observe actuator response under controlled conditions. Availability varies by ECU and software. The product's diagnostic functions do not guarantee OEM programming, every turbo position learn or the same test menu shown in a GM bulletin.
Know the measurement boundary. A scan tool does not physically measure circuit voltage drop, vacuum, boost leakage or mechanical binding. Use the appropriate meter, gauges and inspection procedure to confirm the cause.
Verify the P0046 Repair
Confirm the repaired circuit and mechanism operate correctly before road testing. Restore harness clips, heat shields and hose routing, then complete any required position learning. Save the successful command-and-feedback result and a post-repair scan.
Clear codes after the repair and repeat the original operating condition safely using the manufacturer's verification procedure. For a cranking-related fault, that includes the relevant start condition; for a load-related fault, use a controlled test that does not require unsafe acceleration.
Check current and pending codes and verify that power delivery is predictable. Do not treat a lamp cleared by the scanner as proof of a passed monitor. If P0046 returns, compare the new fault conditions with the saved report and revisit the unproven part of the control chain.
A permanent P0046 can remain immediately after a successful repair. If the vehicle stores it as a permanent DTC, a scan tool or battery disconnect cannot erase it. Once current and pending faults are absent, the OBD system removes the permanent record only after the applicable monitor reruns and passes.
Related turbo and boost control Code Guides
P0046 Frequently Asked Questions
Does P0046 mean the turbocharger is bad?
No. Power supply, wiring, control hardware, linkage, binding or application-specific learning can be involved. Test the control chain before approving a turbo replacement.
Can a weak battery cause P0046?
On some applications, yes. GM 21-NA-113 documents a cranking-voltage issue that interferes with actuator learning on listed trucks. Confirm applicability and test the actual supply conditions.
Is P0046 the same as P0299?
No. P0046 concerns boost-control range/performance; P0299 identifies an underboost condition. They may coexist but require interpretation within the fitted system.
Should I replace the boost pressure sensor first?
Only if its own testing identifies it as faulty. A pressure sensor, control valve and actuator perform different functions. P0046 alone does not select one of them.
Will clearing P0046 relearn the turbo actuator?
Not necessarily. Code clearing and actuator learning are different functions. Follow the exact vehicle procedure and confirm that the diagnostic equipment supports the required routine.
Can CR MAX run every turbo test?
No universal coverage claim applies. Verify the vehicle, ECU, software and specific output test or learn function. Fault reading support does not guarantee OEM programming or every adaptation.
Technical references
- GM 21-NA-113 — P0046 during cranking, September 2022
- GM 22-NA-021 — actuator mounting diagnostic tip, February 2022
- GM 22-NA-037 — applicable ECM update guidance, February 2022
Product information: Official iCarsoft CR MAX page.
Editorial note: Use current manufacturer instructions for your VIN and qualified help for work beyond your training. A code identifies a test result, not a confirmed failed part.
