P0045 Code Fix: Turbocharger Boost Control "A" Circuit/Open Guide

iCarsoft Technical Team · OBD-II Specialists · 15+ years in automotive diagnostics · About our team →

Quick Reference — P0045 DTC

What Does the P0045 Code Mean?

P0045 is a generic OBD-II powertrain trouble code defined as “Turbocharger / Supercharger Boost Control Solenoid ‘A’ Circuit / Open.” The Powertrain Control Module (PCM) commands the boost control solenoid — sometimes called the VGT solenoid, wastegate solenoid, or EBP solenoid — to regulate intake manifold pressure on turbocharged or supercharged engines.

When the PCM detects that the electrical circuit to this solenoid is open (no current flow or an out-of-range duty-cycle response), it sets the P0045 DTC and turns on the Check Engine Light.

Because boost can no longer be controlled, the PCM forces the vehicle into limp mode to protect the turbo from over-boosting or under-boosting. Expect a dramatic loss of horsepower until the fault is repaired.

Common Symptoms of P0045

• Check Engine Light (MIL) illuminated
• Severe loss of acceleration — limp mode
• Whistling, hissing, or fluttering noise from the turbo
• Black smoke from the exhaust (diesel) or rich / lean running (gasoline)
• Engine surge or hesitation under load
• Reduced fuel economy
• Related codes often present: P0046, P0047, P0048, P0234, P0299

Common Causes of P0045 (Ranked by Likelihood)

P0045 is an electrical-circuit code, not a mechanical boost-pressure code. In order of likelihood:

1. Failed boost control solenoid — internal coil open. The #1 cause.
2. Open or chafed wiring between the PCM and the solenoid (heat damage near the exhaust manifold).
3. Corroded or unseated connector at the solenoid — common after winter road salt.
4. Bad ground on the PCM-to-solenoid return circuit.
5. Blown fuse feeding the boost-control circuit (rare but easy to check).
6. Faulty PCM driver — only diagnose after every other cause is ruled out.

Step-by-Step P0045 Diagnosis

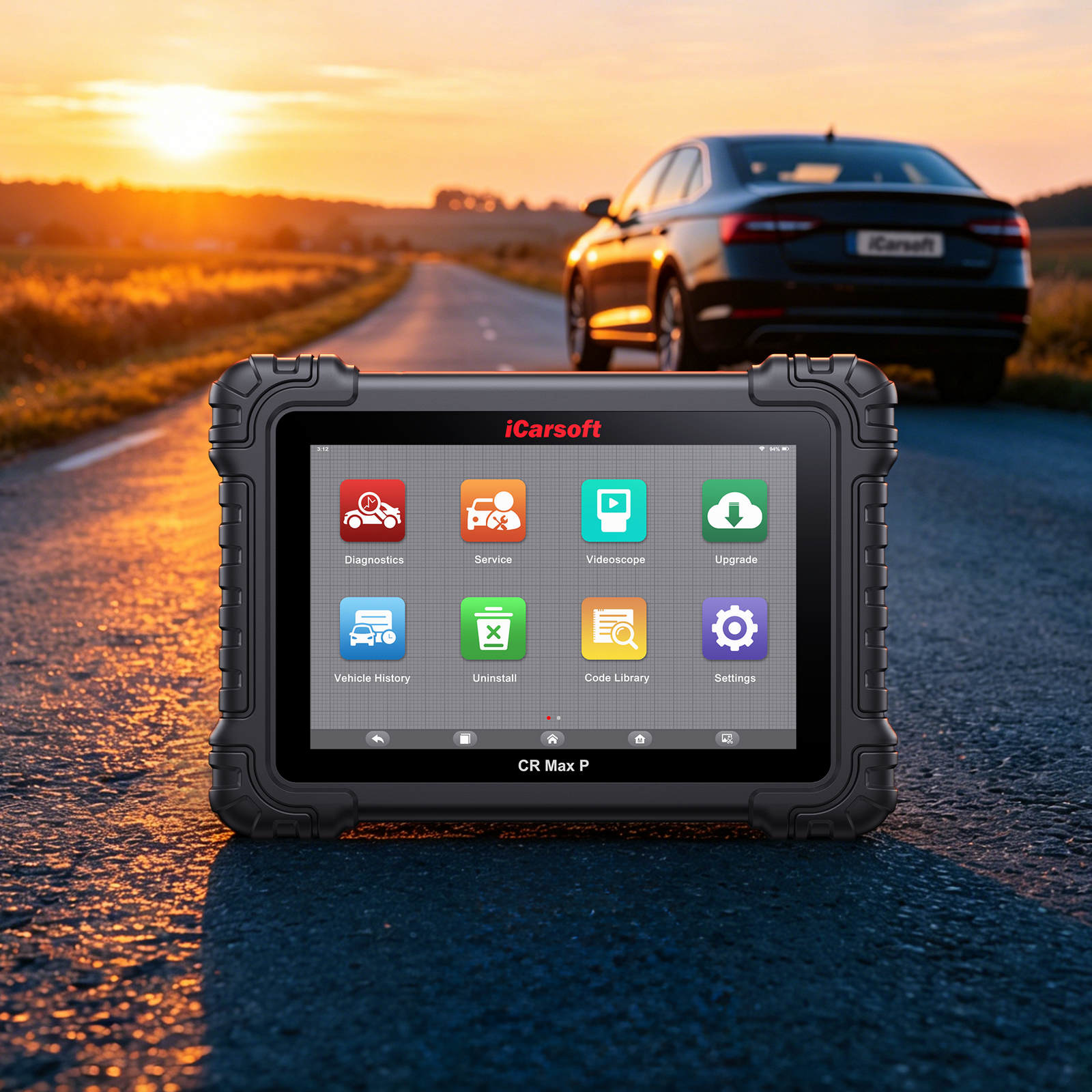

Follow this procedure exactly to avoid replacing parts you do not need. Every step assumes a bi-directional scanner such as the CR Max P.

Step 1 — Pull All Codes & Freeze-Frame Data

Connect the scanner, read every stored and pending DTC, and save the freeze-frame data. If P0046, P0047, or P0048 are stored alongside P0045, the same circuit is involved and the fault narrows quickly.

Step 2 — Visual Inspection of the Solenoid & Harness

Locate the boost control solenoid (usually on or near the turbocharger, or on the firewall) and inspect:

• Connector — clean pins, no green corrosion, locking tab intact
• Wiring — no melted insulation against the exhaust manifold, no rodent damage
• Vacuum / pressure hoses — not collapsed or cracked (rules out related issues)

Step 3 — Bi-Directional Actuator Test

Using the iCarsoft CR Max P → Actuation Test menu, command the boost control solenoid on/off. A healthy solenoid clicks audibly. No click = the coil is open or the PCM is not driving the circuit. This single test eliminates 70% of guesswork.

Step 4 — Measure Solenoid Resistance

Disconnect the solenoid. Measure resistance across the two terminals with a DMM. Typical spec is 20–40 Ω (check your vehicle’s service info). An OL / infinite reading confirms an open coil — replace the solenoid.

Step 5 — Verify PCM Drive Signal

With the connector unplugged and the key in RUN, back-probe the harness side. You should see a switched 12 V on one wire and a PCM ground driver on the other while the bi-directional test is active. Missing 12 V = trace the fuse and supply circuit. PCM driver never pulls low = suspect a wiring break before condemning the PCM.

Step 6 — Repair, Clear Codes, Road Test

Replace the failed component, clear DTCs with the CR Max P, and complete a drive cycle. Monitor Commanded Boost vs Actual Boost live data — the two values should track within ±1 psi at part-throttle.

How to Fix the P0045 Code

The repair depends on what Steps 1–6 revealed:

• Open solenoid coil → replace the boost control solenoid ($40 – $220)
• Damaged wiring → repair with solder and adhesive-lined heat-shrink, route away from heat
• Corroded connector → replace pigtail, apply dielectric grease
• Blown fuse → replace and inspect for a short to ground
• Faulty PCM (rare) → reprogram or replace and re-flash

P0045 Frequently Asked Questions

Is it safe to drive with a P0045 code?

Not for long. Most vehicles enter limp mode with reduced boost. Driving extended distances can damage the turbo, wastegate actuator, or catalytic converter. Repair as soon as possible.

What are the most common causes of P0045?

A failed boost control solenoid is #1, followed by an open or chafed harness, a corroded connector, and — rarely — a faulty PCM driver circuit.

Can I fix P0045 myself?

Yes. The repair usually requires a bi-directional scan tool such as the iCarsoft CR Max P, a digital multimeter, and basic hand tools. The solenoid is one of the easier emissions components to replace.

How much does it cost to fix a P0045 code?

Parts typically run $40 – $220 for the solenoid, plus wiring or connector repair if needed. Independent shops usually charge 0.5 – 1.5 hours of labor. DIY with a bi-directional scanner saves the full diagnostic fee.

Will the P0045 code clear itself after repair?

No. After the repair you must clear the DTC with a scan tool and complete a drive cycle. The CR Max P clears codes and confirms readiness in real time.

What is the difference between P0045 and P0046, P0047, P0048?

All four codes involve the boost control solenoid “A” circuit. P0045 = circuit open. P0046 = performance / range. P0047 = circuit low (short to ground). P0048 = circuit high (short to voltage).
