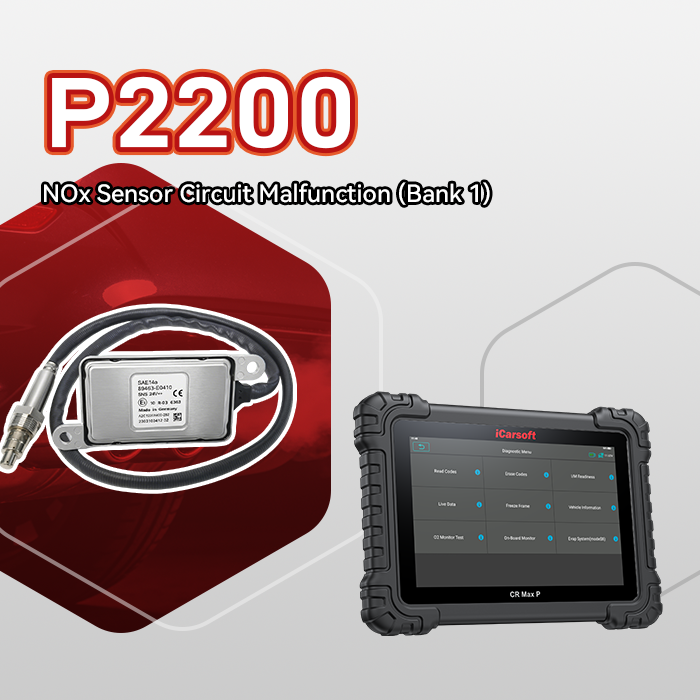

P2200 NOx Sensor Circuit / Open Bank 1 Sensor 1 — Complete Diagnostic & Repair Guide
When the Engine Control Module (ECM) detects an open-circuit condition in the upstream NOx sensor on Bank 1, your vehicle may derate power, block DPF regen, illuminate the MIL, and put you on a countdown clock to a no-start. This expert guide walks you through symptoms, root causes, step-by-step diagnostics, and the smartest repair path before the SCR system locks you out.
If your scan tool just returned P2200 — NOx Sensor Circuit / Open Bank 1 Sensor 1, the ECM is telling you that the upstream (pre-catalyst) NOx sensor on the side of the engine containing cylinder #1 has stopped communicating or its heater circuit has gone open. On modern diesels — Cummins, Duramax, Power Stroke, VAG TDI, BMW B57/N57, Mercedes OM651 — this single failure can lock the SCR system into a countdown that ends with engine derate and a 5-mph crawl-home mode. On lean-burn gasoline platforms (BMW N20/N55, Audi 2.0T), it blocks readiness monitors and fails emissions inspections. The good news: 38% of these faults are a dead heater element you can pinpoint in 20 minutes with the right scan tool. The next 12 minutes you spend here will save you from buying the wrong $700 part.
What Does P2200 Actually Mean?
The upstream NOx sensor (Bank 1 Sensor 1) is mounted in the exhaust stream before the SCR (Selective Catalytic Reduction) catalyst, downstream of the DPF on most diesel architectures. Unlike a traditional O2 sensor that returns an analog 0–1V signal, a modern NOx sensor is a smart sensor: it contains an integrated controller IC inside the cable-mounted module that powers the ceramic element, performs internal compensation math, and reports NOx concentration (in parts per million) and oxygen content directly to the ECM over the CAN bus. The sensor only works correctly above ~600°F element temperature, which is why it carries its own electric heater that ramps from approximately 3A at cold start down to under 1A in steady-state operation.
P2200 sets when the ECM cannot establish or maintain that CAN-bus conversation with the upstream sensor controller, or when it detects an open-circuit fault in the heater drive path. The diagnostic monitor typically requires two consecutive drive cycles of failure before storing the code as confirmed and lighting the MIL. On SCR-equipped diesels, the ECM also uses NOx data to meter DEF (Diesel Exhaust Fluid) injection — lose the upstream NOx reading and the entire after-treatment loop is blind. That is why P2200 cascades quickly into DEF-system faults, blocked regens, and the OEM-mandated speed-restriction countdown.
It is important to understand the failure topology: because the sensor is essentially a small computer, the "open circuit" the ECM reports may not literally be a broken wire. It can be an internally failed heater element, a dead controller IC, a corroded connector, or a lost CAN message — all of which the ECM lumps under "open." That ambiguity is why blindly replacing the sensor before diagnosis is the #1 reason customers come back with the same code in 500 miles.
Symptoms You'll Notice
Symptom severity depends on platform and how long the code has been active. On diesels the countdown timer is the biggest concern. Drivers most commonly report:
- Check Engine Light on, often paired with a yellow or red DEF/SCR system warning lamp.
- "Service exhaust system" / engine derate countdown — diesel platforms typically warn at 200, 100, then 55 miles before forcing a 5-mph crawl-home mode.
- Power reduction — ECU cuts torque output by 20–40% to stay within EPA limits without functioning NOx feedback.
- DPF regen blocked — active regeneration cycles fail to initiate, causing DPF soot load to climb past 80%.
- DEF consumption appears normal or zero — without upstream NOx data, dosing is forced to a default low rate.
- Fuel economy drop of 5–12% on diesels as the ECM enriches injection timing to compensate.
- Failed state emissions inspection — readiness monitors for NOx adsorber/SCR system will not set to "Ready" with P2200 active.
- On lean-burn gasoline turbo engines (BMW N20/N55, Audi 2.0T), a faint sulfur smell at idle and rough cold-start behavior.
The 7 Most Common Root Causes (Ranked)
After two decades of pulling NOx sensors off heat-soaked exhausts, here is the realistic distribution of what's actually failed when a scan tool throws P2200:
| Likelihood | Cause | Why it happens |
|---|---|---|
| ~38% | NOx heater element open-circuit failure | The platinum heater coil sees 1,200°F continuously and dies long before the ceramic sensing element does. |
| ~22% | Sensor controller IC failure | The cable-mounted module overheats from engine bay radiated heat, killing the CAN transceiver. |
| ~14% | Exhaust-routed harness damage | Road rocks, heat shield rub-through, or melted insulation against a hot exhaust pipe open the conductors. |
| ~10% | Connector corrosion / melted pigtail | Water ingress at the under-body connector or a missing heat shield melts the plastic body and lifts pins. |
| ~8% | CAN bus communication failure | A failed bus terminator, broken twisted-pair, or another node dragging the bus stops messages from reaching the ECM. |
| ~5% | Probe-tip soot or DEF crystal contamination | A failed DEF injector or excessive idling cakes the element, eventually killing it electrically. |
| ~3% | ECM input fault / outdated calibration | A blown internal driver or an old flash misinterprets a healthy sensor — OE TSBs often fix this. |
Step-by-Step Diagnostic Procedure
This is the exact sequence a senior emissions technician follows. Do not skip steps — condemning a $600 NOx sensor without confirmation is the #1 reason customers return with the code reappearing within a week.
Step 1 — Confirm the code & capture freeze-frame. Connect a professional bi-directional scan tool such as the iCarsoft CR MAX P, pull all powertrain & after-treatment DTCs (current, pending, history), and screenshot freeze-frame data — especially engine coolant temp, exhaust temp upstream of SCR, vehicle speed, run time since start, and battery voltage at the moment of the fault. Note any companion codes in the P2201–P2208 family.
Step 2 — Check for an OEM reflash before touching hardware. Query the VIN against the manufacturer service portal or a TSB database. Roughly 15% of P2200 cases trace back to a known calibration bug that was corrected with an ECM/ACM update — particularly on 2017–2021 Cummins, Duramax L5P, and VAG EA288 platforms. A $150 reflash beats a $700 sensor every time.
Step 3 — Visual harness & connector inspection. Lift the vehicle and trace the sensor cable from the exhaust probe to the chassis connector. Look for melted insulation, missing heat shielding, rodent damage, and white/green corrosion at the connector pins. Wiggle-test the pigtail with the engine running while watching the scan tool — intermittent dropouts confirm a wiring fault rather than a sensor fault.
Step 4 — Heater pin-to-pin resistance test. With the connector unplugged and the sensor at ambient temperature, measure resistance across the two heater pins on the sensor side. A healthy heater reads 8–15Ω cold. Infinite resistance (OL) confirms an open heater — replace the sensor. A reading below 4Ω or above 25Ω also indicates a failing element.
Step 5 — Verify heater supply voltage & ground integrity. Reconnect, key on engine off. The heater supply pin (vehicle-harness side) should pulse to battery voltage (12.4–14.7V) within 5 seconds of cranking. Measure voltage drop along the ground return under load — anything over 0.3V indicates corrosion or a damaged chassis ground point that will keep killing replacement sensors.
Step 6 — Live-data CAN bus & sensor-ready check (CR MAX P bi-directional). Using the CR MAX P after-treatment live data screen, watch NOx ppm, heater current, and the sensor-ready flag while the engine warms up. Heater current should ramp from ~3A at startup and taper to under 1A within 2–3 minutes; the ready flag must flip true once element temperature exceeds 600°F. If current stays at 0A or the ready flag never sets while electrical supply is good, the sensor controller IC is dead. Verify CAN-H/CAN-L at the connector reads 2.5V dominant with a 1.5V/3.5V differential during traffic — flat lines mean a bus problem upstream.
Step 7 — Probe-tip visual inspection. Remove the sensor (it requires a 22 mm offset NOx socket and a cool exhaust — never pull a sensor hot). Inspect the ceramic tip: white or pale tan = healthy, matte gray soot = excessive idling or failed DPF regen, glossy white crystals = DEF doser leak, melted ceramic / vitrified glaze = exhaust over-temp event that killed the sensor electrically. Soot or DEF contamination means you must fix the upstream root cause or the new sensor will fail in months.
Step 8 — Install, calibrate, and verify. Torque the new sensor to 35–50 Nm with anti-seize on the threads only (never on the probe). Clear codes, perform any required SCR adaptation reset, and drive a full thermal cycle: cold start, 20 minutes highway, idle, shut down. Re-scan after the cycle — readiness monitors must transition to "Ready" and NOx ppm should track between 50–400 ppm during steady cruise. Anything outside that window points to an upstream emissions or fueling issue, not the sensor you just installed.
Realistic Repair Cost Breakdown
Prices reflect typical 2024–2026 US labor rates ($120–$160/hr) and OE-quality parts. Heavy-duty diesel platforms (RAM Cummins, Ford 6.7 Power Stroke, GM L5P Duramax) and European brands trend toward the upper end. Independent diesel specialists are usually 20–30% cheaper than the dealer.
| Repair | Parts | Labor | Total |
|---|---|---|---|
| Professional diagnosis | — | $120–$200 | $120–$200 |
| ECM/ACM reflash to latest OE calibration | — | $100–$200 | $100–$200 |
| Connector / pigtail repair | $45–$140 | $110–$260 | $150–$400 |
| Upstream NOx sensor (Bank 1 Sensor 1) replacement | $400–$900 | $200–$450 | $600–$1,350 |
| Exhaust-routed harness replacement | $120–$320 | $180–$380 | $300–$700 |
| DEF system service (doser, lines, filter) | $120–$300 | $200–$400 | $200–$500 |
| ECM replacement & programming | $650–$1,400 | $250–$500 | $900–$1,900 |
| Full SCR system overhaul (worst case) | $1,800–$3,500 | $900–$1,500 | $2,700–$5,000 |
Why the iCarsoft CR MAX P is the right tool for P2200
P2200 cannot be solved with a $30 generic code reader. The fault lives on the CAN bus, behind an ECM, inside an after-treatment system that demands manufacturer-specific live data, bi-directional control, and SCR/DPF adaptation resets. The CR MAX P delivers all of that across diesel and gasoline platforms in a single tool.
- Full-system access for 140+ vehicle brands including Cummins, Duramax, Power Stroke, BMW, Mercedes, VAG, and Volvo SCR architectures.
- Live NOx ppm, heater current, and sensor-ready flag graphing for both upstream and downstream sensors.
- Bi-directional control of DEF doser, DPF active regen, and after-treatment heater circuits for in-bay verification.
- SCR adaptation reset and NOx sensor learning routines — mandatory after sensor replacement on European diesels.
- OBD-II Mode 6 and CAN-bus traffic capture for diagnosing the 8% of P2200 cases that are actually a network fault, not a sensor fault.
Preventive Maintenance — Stop P2200 Before It Returns
NOx sensors are wear items, but their service life varies from 60,000 miles (heavy idling diesel) to 180,000 miles (clean highway driver). Follow these workshop-proven habits to maximize sensor life:
- Use only OE-spec DEF — off-brand or contaminated fluid leaves crystals that coat the upstream sensor and accelerate heater death.
- Avoid extended idling over 20 minutes — cold-soaked exhaust traps moisture and soot at the probe; one weekly highway run of 30+ minutes burns it off.
- Complete every DPF regen cycle — never shut the engine down during an active regen; an interrupted regen leaves DPF soot load at 90%+, which contaminates the upstream NOx sensor.
- Keep heat shielding intact — if you drop the exhaust for any service, reinstall every heat shield. Missing shielding cooks the cable-mounted controller IC within months.
- Update ECM/ACM software at every dealer or capable-tool visit — OE TSBs frequently relax NOx monitor thresholds that were too aggressive on early production calibrations.
- Scan quarterly with a professional bi-directional tool. Pending P2200 codes appear 500–3,000 miles before they confirm — catching one early lets you plan a $700 sensor swap instead of a roadside derate event.
Frequently Asked Questions
Is it safe to drive with P2200?
Short term, yes — the engine will still run normally for the first few drive cycles. But on EPA-regulated diesels, the ECM starts a countdown timer the moment the code confirms. You typically have 200, then 100, then 55 miles of warning before the engine derates to a 5-mph crawl-home mode. Treat P2200 as a 1–2 week repair window, not a "drive it for months" issue.
Will P2200 derate or shut down the engine?
On 2010+ EPA-certified diesels (Cummins, Duramax, Power Stroke, Sprinter, Ram EcoDiesel) and all Euro 6 diesels, yes. The derate logic is hard-coded for emissions compliance — not even the OEM can disable it without a calibration unlock. Gasoline lean-burn platforms (BMW N20/N55, Audi 2.0T) typically only set the MIL and block readiness monitors without a derate.
Will P2200 stop DPF regeneration?
Yes. The ECM uses upstream NOx data as one of the pre-conditions to initiate an active regen. With P2200 active, regens are inhibited and DPF soot load climbs steadily — once it passes 85%, you risk a forced manual regen at a dealer ($200–$400) or, worst case, a clogged DPF that requires removal and bake-out ($800–$2,500).
What role does the DEF tank play in P2200?
The DEF tank does not directly cause P2200, but a leaking DEF injector, blocked doser, or contaminated DEF fluid can coat the upstream NOx probe with urea crystals that fail the sensor electrically. If you find white crystalline deposits on the sensor tip during inspection, repair the DEF system first or the new sensor will fail within 5,000–10,000 miles.
Will P2200 fail an emissions inspection?
Yes, in two ways. First, the MIL is illuminated — an automatic failure in every US state with OBD-II testing. Second, the catalyst and NOx-adsorber readiness monitors will not transition to "Ready" while P2200 is stored, which is itself a separate failure criterion. Both must be resolved before a re-test.
Why does the heater die before the sensing element?
The platinum heater coil sees a continuous 1,200°F operating environment plus thermal cycling every key cycle. After roughly 5–10 million heat cycles, the platinum element thins and opens — classic filament failure. The ceramic sensing element itself can outlast the heater by 2–3x, which is why "heater open" is the dominant P2200 failure mode and not a signal-range fault.
Are aftermarket NOx sensors OK?
Genuine OE sensors (Continental, NGK, Bosch first-fit) are the safe choice and cost $400–$900. Tier-2 aftermarket parts at $150–$250 sometimes work but commonly fail to handshake on the CAN bus on Mercedes, BMW, and 6.7L Cummins platforms, immediately re-setting P2200 along with a fresh "implausible signal" code. If you choose aftermarket, buy from a brand that explicitly lists CAN handshake compatibility for your VIN.
Bottom Line
P2200 is one of the most binary emissions codes — the upstream NOx sensor is either talking to the ECM or it isn't — but jumping straight to a $700 sensor swap is exactly how shops earn warranty comebacks. The fault distribution is clear: 38% dead heater, 22% dead controller IC, 24% wiring or connector, 8% CAN bus, 5% contamination, and 3% ECM or calibration. Run the 8-step procedure above with the iCarsoft CR MAX P, check for an OEM reflash first, verify heater resistance and supply integrity, and read live NOx and heater-current data before condemning the sensor. That's how you stop the derate countdown without paying twice.
