P2237: O2 Sensor Positive Current Control Circuit/Open, Bank 1 Sensor 1
P2237 is an electrical diagnostic code associated with the upstream wide-range oxygen sensor on Bank 1. The exact monitor, circuit names and test values depend on the sensor design and the vehicle manufacturer.
Quick answer: P2237 means the engine control module detected an open or nonresponsive positive pump-current control circuit for Bank 1 Sensor 1. A damaged harness, loose terminal, internal sensor fault or vehicle-specific software issue can produce the code. Save freeze-frame data, identify the sensor type, inspect the connector and wiring, and follow the OEM pinpoint test before replacing the sensor.
What does P2237 mean?

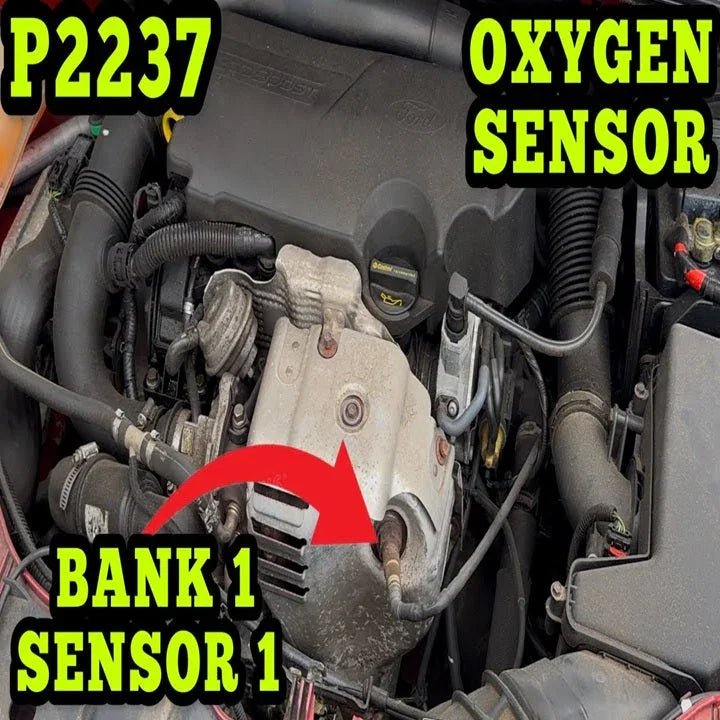

The common description is O2 Sensor Positive Current Control Circuit/Open, Bank 1 Sensor 1. Bank 1 is the engine bank that contains cylinder 1. Sensor 1 normally identifies the air-fuel or oxygen sensor ahead of the main catalytic converter, but the service manual should confirm its location.
Many vehicles that use P2237 have a wide-range oxygen sensor, also called a UEGO or air-fuel ratio sensor. Unlike a conventional narrow-band oxygen sensor, a wide-range sensor uses a controlled pump cell. The module drives current through that cell so the sensing chamber stays at a target oxygen condition. P2237 concerns the positive current-control side of that circuit or the module's ability to see the expected sensor response.
The word open describes an electrical or monitor result. It does not mean there is an open exhaust valve, and it does not by itself prove the engine is running lean. It also does not prove the sensor element has failed. The circuit includes the sensor, terminals, harness and control electronics.
Why manufacturer and sensor differences matter
P2237 has a common code description, but manufacturers do not all detect it in the same way. Sensor construction, control hardware, enabling conditions and failure thresholds can differ by engine and model year.
| Published example | What it shows | How to use it |
|---|---|---|
| Ford gasoline OBD summary, 2020-2023 model years | Ford describes a lack-of-movement monitor for an open pump-current circuit on certain Bosch UEGO systems. It separately notes that P2237 can represent an open IP circuit on certain NTK UEGO applications. | Use this to understand why one generic voltage rule is not valid for every wide-range sensor. Apply Ford values only to the listed Ford strategy and hardware. |
| Volkswagen bulletin for specified 2013-2014 Jetta and Beetle 2.0L engines | The bulletin links P2237 or P2414 to a catalyst-heating process that could damage the front oxygen sensor. Its repair includes specified programming and sensor work. | Check VIN-specific bulletins and current calibration before treating every P2237 as a simple wiring or sensor failure. |
| Other OEM service information | Terminal names, expected current, scan-data labels, connector views and test equipment vary. | Use the wiring diagram and pinpoint test for the exact VIN. Do not transfer resistance or voltage specifications from another vehicle. |
Important: A basic scanner may label every upstream sensor as an O2 sensor even when the vehicle uses a wide-range air-fuel sensor. Identify the sensor technology before using a meter or interpreting the PID.
How serious is P2237?
P2237 often allows the engine to start and run, but the module may lose accurate upstream mixture feedback and substitute a default strategy. The immediate effect varies. Some vehicles show only the malfunction indicator lamp. Others may develop rough running, hesitation or increased fuel use.
Arrange diagnosis soon because the upstream sensor is part of fuel control and emissions monitoring. Stop driving and investigate immediately if the malfunction lamp flashes, the engine misfires, power drops sharply, the exhaust glows, or there is a strong raw-fuel smell. Those symptoms indicate a broader problem than P2237 alone.
Possible symptoms
- Check Engine light
- No obvious drivability change
- Unstable idle, hesitation or reduced response on some applications
- Fuel trims or commanded equivalence ratio that no longer respond normally
- Failed emissions inspection
- Related oxygen-sensor, heater, fuel-control or catalyst codes
Likely causes of P2237
- Connector or terminal fault: a partially seated plug, backed-out pin, corrosion, moisture or poor terminal tension can interrupt the pump-current circuit.
- Harness damage: insulation can melt near the exhaust, chafe against a bracket or break inside the loom after repeated heat cycles.
- Internal sensor fault: the pump cell or an internal connection can open even when the heater circuit still operates.
- Incorrect sensor or installation: the wrong part, a stretched pigtail or wiring routed against the exhaust can cause an immediate or repeat fault.
- Power, ground or shared circuit problem: some designs share feeds or grounds with other engine-control components. Companion codes help identify this.
- Calibration or application-specific condition: an OEM bulletin may call for software and a defined repair sequence.
- Control module or connector fault: possible after the external circuit and applicable service information have been checked, but it should not be the first assumption.
How to diagnose P2237 in the right order
- Save the evidence. Run a complete vehicle scan and record stored, pending and permanent codes, freeze-frame data and readiness status. Do this before clearing anything.
- Check companion codes. Heater, reference-voltage, negative-current, fuel-trim, misfire and power-supply codes can change the diagnostic path. Address shared power or ground faults first when the OEM procedure directs it.
- Confirm the exact sensor. Use VIN-based service information to locate Bank 1 Sensor 1 and identify whether it is Bosch UEGO, NTK UEGO or another design. Confirm the connector pinout.
- Inspect cold. With the exhaust cool and ignition off, examine the pigtail from the sensor to the main harness. Look for melted insulation, contact with a heat shield, oil or coolant intrusion, rodent damage, loose locks and displaced terminals.
- Review scan data. Observe the OEM air-fuel sensor PIDs, heater status and fuel-control state. Compare banks only when the engine design and operating conditions make the comparison valid. A generic 0.1 to 0.9 volt narrow-band rule does not apply to most wide-range sensors.
- Follow the OEM electrical test. Use the specified breakout leads and meter settings. Test feeds, grounds and circuit continuity only at the points directed by the service manual.
- Protect the electronics. Do not apply battery voltage, use an incandescent test light or measure sensor resistance unless the OEM procedure explicitly permits it. Incorrect probing can damage the sensor controller or module.
- Perform a controlled wiggle test. If service information allows live monitoring, move the harness near hot or tight routing points and watch for a repeatable dropout. Do not work near a hot or moving component.
- Check bulletins and calibration. Match the VIN, engine, production range, software level and symptoms. A bulletin for one Volkswagen engine or one Ford sensor strategy is not a universal repair.
- Replace only the proven part. If the harness and module-side tests pass and the sensor fails the specified test, install the correct sensor and route the pigtail exactly as designed.
Safety: Oxygen sensors and nearby exhaust parts remain hot long after shutdown. Let the system cool, support the vehicle correctly if it must be raised, and keep wiring clear of the exhaust when the engine is running.
Repair and verification
The repair may be a terminal adjustment, connector replacement, localized harness repair, sensor replacement or an OEM programming procedure. Use sealed, heat-rated wiring repairs where the manufacturer allows them. Do not twist wires together or route a repair against the exhaust.
When installing a sensor, use the correct part number and tightening method. Keep grease, cleaner and anti-seize away from the sensing openings. Many new sensors have the specified thread coating already applied. Follow the part and service instructions.
After the repair, clear codes only when the recorded data is no longer needed. Start the engine from the same temperature condition that produced the fault. Confirm that the upstream sensor reaches its normal operating state, the PIDs respond, fuel control returns to normal, and P2237 does not reset. Complete the OEM drive cycle when required, then rescan for pending codes.
Using a scan tool without overpromising
A capable scan tool can preserve freeze-frame data, display manufacturer-enhanced oxygen-sensor PIDs and show whether related modules have codes. It cannot prove the sensor is bad without the correct wiring and test procedure.
Keep the original P2237 tool option
The iCarsoft CR MAX BT can read and clear diagnostic codes and display live data on supported vehicles. Coverage and available PIDs/functions vary by vehicle, module and software; verify coverage for the exact vehicle. Graphing, active tests and service functions also differ by application.
View iCarsoft CR MAX BTP2237 FAQ
Does P2237 always mean the oxygen sensor is bad?
No. An open wire, poor terminal, connector damage, shared circuit fault or applicable software issue can produce the same code. Test the circuit before ordering a sensor.
Is Bank 1 Sensor 1 before or after the catalytic converter?
Sensor 1 is normally the upstream sensor used for fuel control. Confirm the physical location in VIN-specific service information because exhaust layouts and naming can differ.
Can I test this sensor like a conventional 0.1 to 0.9 volt O2 sensor?
Usually not. P2237 is commonly associated with a wide-range sensor that uses pump-current control. Its data and electrical tests differ from a conventional narrow-band sensor.
Can a blown heater fuse set P2237?
It depends on the circuit design. A heater fault often has its own code, but shared feeds or grounds can affect more than one circuit. Use the wiring diagram and all stored codes.
Can I drive with P2237?
A vehicle with only a steady warning light may remain drivable for a short trip to diagnosis, but fuel control and emissions monitoring may be reduced. Do not drive with a flashing warning light, severe misfire, major power loss or a strong fuel smell.
Why did P2237 return after sensor replacement?
The original problem may be in the harness or connector, the wrong sensor may have been installed, the pigtail may be routed near the exhaust, or an OEM software procedure may still be required.
Official technical sources
- Ford 2020-2023 gasoline OBD system operation summary: UEGO circuit monitoring and P2237
- Volkswagen bulletin 01-15-01: P2237 on specified 2013-2014 Jetta and Beetle applications
- Audi Q7 quick reference specification book: application-specific P2237 description and threshold
This article provides general diagnostic information. Connector views, circuit names, thresholds and repair procedures vary by vehicle. Use current factory service information for the VIN. Programming and advanced electrical diagnosis should be performed with approved equipment.
