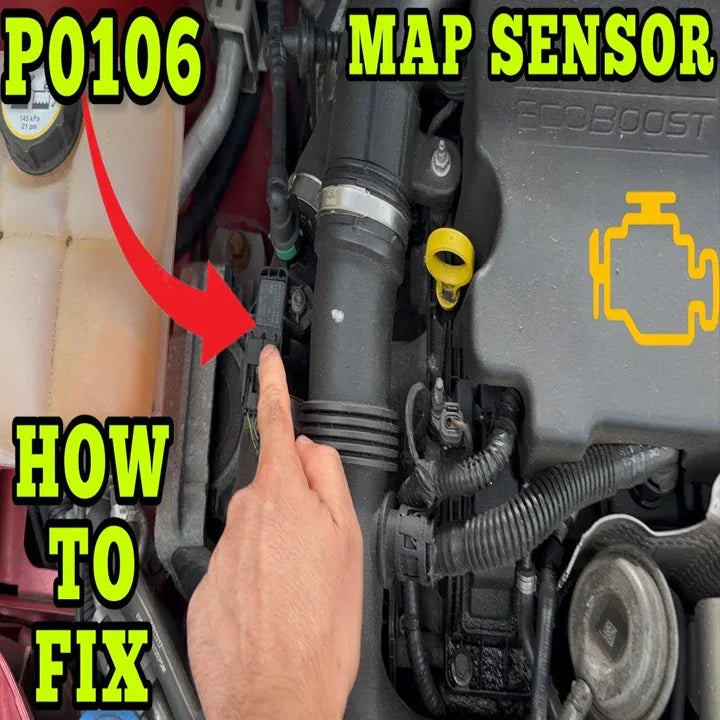

How to Diagnose & Fix Ford P0106 (MAP Sensor) — Use iCarsoft CR-MAX BT to Read, Test and Clear Codes
Code P0106 means your vehicle’s PCM has detected that the MAP (Manifold Absolute Pressure) or barometric pressure circuit is out of range. On many Ford vehicles this is commonly caused by sensor contamination, vacuum leaks, damaged wiring, or sensor failure. This article walks you through the symptoms, step-by-step diagnostics, and how the iCarsoft CR-MAX BT can speed up troubleshooting and resolve the issue (read/clear codes, view live MAP data, freeze frame, and perform system tests).
iCarsoft CR-MAX BT — Bluetooth Diagnostic Scanner
Full system & OE-level diagnostics, live data graphs, freeze frame, DTC library lookup, and service functions — ideal for diagnosing P0106 and related MAP/baro issues on Ford and many other makes.
View CR-MAX BT on iCarsoft-USWhat does P0106 (MAP Sensor) mean?
P0106 indicates the Engine Control Module (ECM/PCM) is receiving MAP or barometric pressure data outside the expected range. In practice that means the PCM can't correctly calculate air mass for fuel/ignition timing which leads to poor idle, reduced fuel economy and drivability issues.
Common symptoms
- Check Engine Light (CEL) illuminated with P0106 stored
- Rough idle, stalling, hesitation or surging
- Decreased fuel economy
- Hard starting in extreme cases
Step-by-step diagnostic & repair guide (works for Ford vehicles)
Tools you’ll need
- OBD-II scanner capable of reading live data (recommended: iCarsoft CR-MAX BT)
- Basic hand tools for accessing the MAP sensor
- Electronic parts cleaner (for safe MAP sensor cleaning) and gloves
- Multimeter (for wiring and connector checks)
1. Read the trouble code & capture live data
Connect the CR-MAX BT (or your scanner) to the vehicle’s OBD-II port. Read stored codes and live MAP readings. Watch MAP voltage/pressure at idle and during a brief throttle change — if the MAP value is stuck, noisy, or out of the manufacturer’s range, the sensor or wiring may be faulty.
2. Visual inspection
Check vacuum hoses, intake piping and sensor mounting. Small vacuum leaks can cause P0106-like symptoms. Inspect the MAP sensor connector for corrosion, bent pins, or loose terminals.
3. Electrical checks
Using a multimeter measure: reference voltage (usually 5V), ground continuity, and sensor signal voltage while the engine runs. Compare to Ford specifications in repair manual. If power/ground are missing or intermittent, repair the wiring before replacing the sensor.
4. Clean or replace the MAP sensor
If the sensor diaphragm is contaminated (oil/soot), some MAP sensors can be gently cleaned with an electronics cleaner—do not use harsh solvents. If readings remain incorrect after cleaning, replace the MAP sensor.
5. Clear codes and retest
Clear the stored DTC with your scanner and perform a test drive while monitoring live MAP values. If P0106 returns immediately, further wiring/PCM diagnostics are recommended.
Why choose iCarsoft CR-MAX BT for P0106 (practical advantages)
- Bluetooth/Wi-Fi/USB connectivity — work without cables and read data from a tablet/phone or on the unit.
- Live graphing and 4-in-1 live data views — lets you watch MAP values vs RPM in real time.
- Freeze frame & DTC library — see exact conditions when code was set and quick code lookup.
- OE-level all-system diagnostics — helpful if P0106 is accompanied by other codes (EGR, MAF, etc.).
Quick troubleshooting checklist (summary)
- Confirm P0106 with scanner and capture live MAP readings
- Check for vacuum leaks and intake damage
- Inspect connector pins and wiring for corrosion or damage
- Clean sensor only if manufacturer allows; otherwise replace
- Clear codes, retest; if code returns — deeper electrical diagnostics needed
FAQ — P0106 & CR-MAX BT
What does P0106 mean on my Ford?
P0106 means the ECM detected the MAP/barometric pressure circuit is out of the expected range. It often points to the MAP sensor, vacuum leaks, or wiring issues.
Can I fix P0106 myself?
Yes, if it's caused by contamination, a loose connector, or vacuum leaks. Use an OBD-II scanner (like the iCarsoft CR-MAX BT) to confirm the issue, then clean/replace the sensor or fix wiring as required.
Will CR-MAX BT clear the P0106 code?
Yes — it reads and clears codes. But clearing the code doesn't fix the root cause; you must diagnose why P0106 set in the first place and address that issue.
Is P0106 dangerous to drive with?
It may reduce performance and fuel economy and can cause stalling in extreme cases. Drive cautiously and diagnose soon; prolonged driving with unresolved DTCs can lead to other issues.
Short technical checklist — using a scanner (example)
1) Plug OBD-II scanner into vehicle port (under dash). 2) Turn ignition to ON (engine off) or start engine as scanner instructs. 3) Select > Read Codes. Confirm P0106 is present. 4) Open live data, add MAP sensor signal to watch list. 5) Observe MAP value at idle, at 2000 RPM, and during throttle snap. 6) If abnormal, inspect wiring/vacuum. If sensor suspect, remove & clean or replace. 7) After repairs, Clear Codes > Retest drive and confirm P0106 does NOT return.
Want a fast, reliable way to diagnose and fix P0106? The iCarsoft CR-MAX BT offers live data, OE-level diagnostics and useful service functions to help you identify root causes quickly.
