Quick answer
P0105 is commonly labeled Manifold Absolute Pressure/Barometric Pressure Circuit Malfunction. It means the engine controller detected a fault in the MAP/BARO information path, but the exact monitor varies by vehicle. The problem may involve a sensor, connector, shared reference or ground, pressure port or hose, digital communication, or a reading that is implausible for the operating conditions. Record the complete code and subcode, identify the VIN-specific sensor design, and test the circuit and pressure path before replacing parts.
P0105 is easy to oversimplify because many descriptions call it a MAP sensor code. On one vehicle the controller may monitor a conventional analog signal; on another it may receive a digital SENT message or evaluate a combined MAP/IAT or TMAP sensor. BARO may come from a dedicated sensor, be inferred from another input, or be updated only under calibrated conditions. Those differences change the pinout, expected data and correct test.
1What Does P0105 Mean?
The familiar generic description is Manifold Absolute Pressure/Barometric Pressure Circuit Malfunction. Treat that as a starting point, not a component verdict. Some OEM documents use P0105 for an open circuit or a short to a reference supply; others use it for an invalid digital status, communication problem, out-of-limit value or a failure-type subcode that maps to low, high, intermittent or range/performance behavior.
Often uses reference, signal and sensor-ground circuits. Use the exact connector view and transfer function.
MAP may share a housing and terminals with intake-air temperature or charge-pressure sensing.
A SENT or other data interface can set a status or communication fault that an analog voltage rule cannot diagnose.
Atmospheric pressure may be measured, inferred or temporarily defaulted. A battery reset can affect what the PID shows.
No universal specification: do not apply one 0.5–4.5 V range, sea-level kPa value, vacuum target, KOEO difference or drive cycle to every P0105 vehicle.
2How the MAP/BARO Path Is Monitored
The controller uses manifold-pressure information with other inputs for load, fueling, ignition, boost or EGR strategy as equipped. The diagnostic may check circuit integrity, digital status, pressure response or plausibility against BARO, throttle, MAF, engine speed or another pressure sensor. Only the OEM description for the exact VIN tells you which comparison matters.
3Possible P0105 Symptoms
- Check Engine Light or a powertrain warning.
- Rough idle, hesitation, surging, hard starting or stalling.
- Reduced power or a fail-safe operating mode.
- Poor throttle response or boost control on some applications.
- Rich or lean operation, fuel odor, smoke or increased fuel use.
- No obvious symptom when the fault is intermittent or stored as history.
4What Can Cause P0105?
Loose terminal tension, corrosion, chafing, heat damage, an open circuit or a short can corrupt the signal.
A shared reference or sensor ground can affect several sensors and create a cluster of related codes.
A restricted port, kinked hose, oil, carbon, water or a proven intake/charge leak can distort pressure response.
The MAP, combined MAP/IAT, TMAP or digital pressure sensor may fail internally after its circuit is verified.
An incorrect reference input can make valid MAP data appear implausible on applications that compare the two.
A VIN-specific calibration or module fault is possible, but it is a late-stage conclusion after physical testing.
Companion codes are evidence. Diagnose direct low, high, intermittent, communication or shared-reference faults before treating P0105 as an isolated sensor problem.
5Can You Drive with P0105?
A vehicle that starts, idles steadily and has normal throttle response may be driven a short distance for diagnosis. Avoid heavy load or boost until the cause is known. Stop and arrange service if it stalls, has severe power loss, flashes the MIL, smells strongly of raw fuel, produces heavy smoke or behaves unpredictably. Do not assume clearing the light makes the vehicle safe.
6How to Diagnose P0105 Step by Step
-
Save the complete fault record
Record current, pending and history codes from every available module, including the failure-type byte or manufacturer suffix. Save freeze-frame data before clearing or disconnecting the battery.
-
Identify the VIN-specific architecture
Use OEM information to find the sensor package, BARO strategy, pressure plumbing, connector view, signal type, shared reference/ground circuits and monitor enable conditions.
-
Resolve direct companion codes first
Prioritize low, high, intermittent, lost-communication and shared-reference codes. Multiple affected sensors can point to a common circuit rather than several failed parts.
-
Compare KOEO data only as the OEM directs
After any required key-off soak, compare MAP, BARO and boost or TIP data against the specified window. A recent keep-alive-memory reset may temporarily change learned BARO behavior.
-
Inspect the pressure path
Check the MAP port or hose for oil, carbon, water, a kink, restriction or leak. Inspect intake and charge plumbing only where the engine design and evidence make it relevant.
-
Inspect terminals and the harness
Look for poor pin fit, corrosion, backed-out terminals and chafing, especially near heat and vibration. Check every sensor sharing a suspect reference or ground.
-
Test the circuit under load
Follow the OEM pinout for back-probing, voltage-drop, terminal-load or digital communication tests. A scan PID cannot prove wire or terminal integrity; use the required meter or scope.
-
Verify pressure response
Where the OEM procedure allows it, apply a known vacuum or pressure and compare the sensor output with the specified transfer data. Do not improvise limits from another vehicle.
-
Check bulletins, repair and verify
Apply a TSB or calibration only to the listed VIN and conditions. After repair, clear codes, run the specified monitor or road test, and rescan current, pending and permanent status.
7Repair Paths After Testing
- Connector or wiring: restore terminal fit, sealed splices, routing and strain relief; repair shared reference or ground faults before replacing sensors.
- Pressure path: clear an approved serviceable port or replace a damaged hose, seal or intake component after the leak or restriction is confirmed.
- Sensor: replace the correct MAP, MAP/IAT or TMAP assembly only when circuit and pressure-path tests prove its output is wrong.
- Software or controller: follow the exact bulletin, programming prerequisites and post-repair setup. Do not use a generic reflash as a P0105 shortcut.
About cleaning: do not spray or probe a sensing element unless the component maker or OEM procedure allows it. Some combined and digital sensors are easily damaged.
8Using CR Eagle During P0105 Diagnosis
On supported vehicles, CR Eagle can scan available modules, save codes and freeze-frame data, and graph MAP, BARO, MAF, throttle, engine-speed or boost PIDs exposed by the ECU. That makes it useful for spotting a flat, noisy or implausible relationship and for confirming that the code does not return after repair. PID availability, active tests, relearns and module access vary by VIN, year, ECU and software.
Tool boundary: CR Eagle does not replace a multimeter, oscilloscope, pressure/vacuum gauge, smoke machine or OEM service information. It cannot prove terminal integrity or directly electrically test every MAP sensor.
Recommended diagnostic platform for P0105

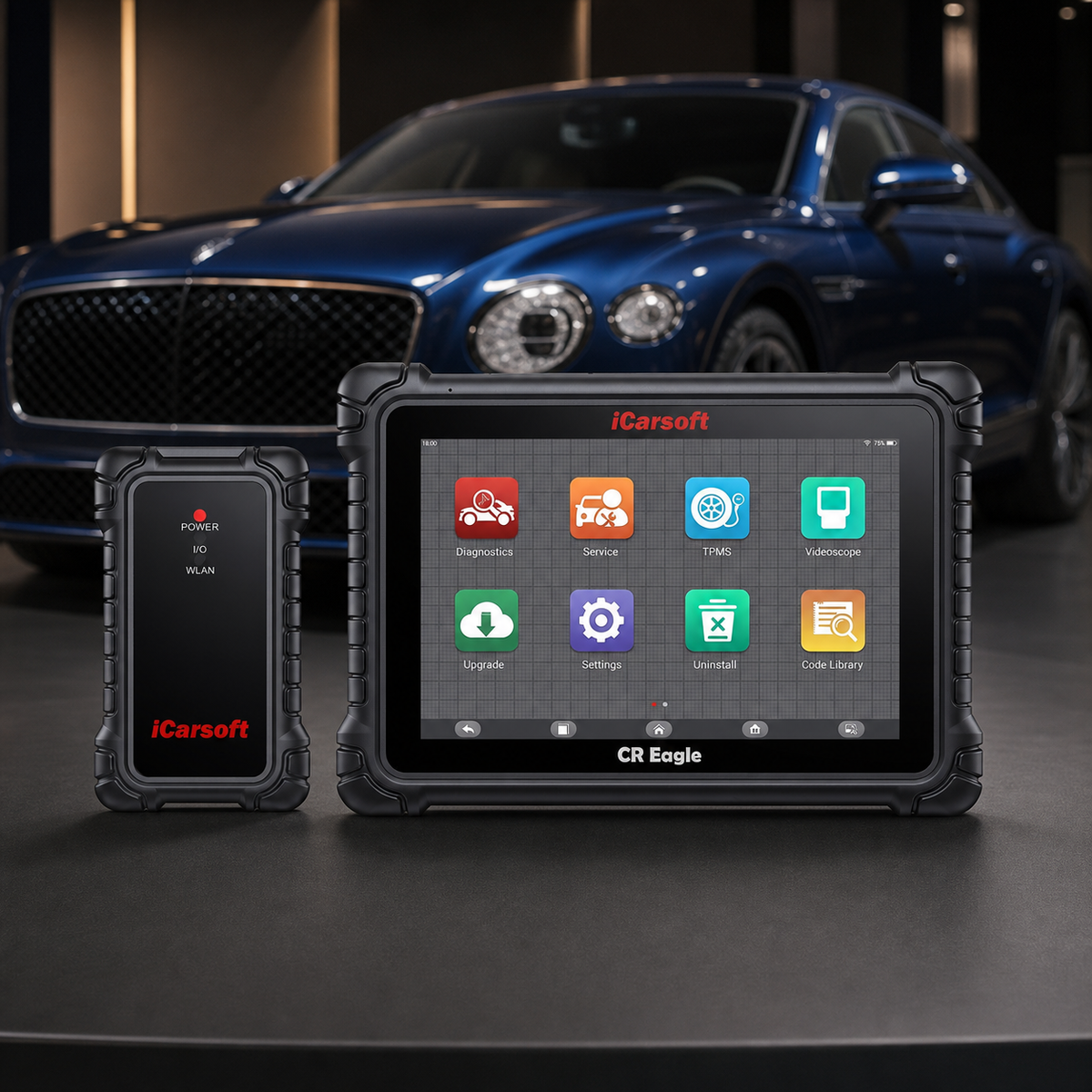

iCarsoft CR Eagle
Use full-system scanning, freeze frame and supported live-data graphing to preserve evidence and compare the pressure-related PIDs your vehicle exposes. Always verify wiring and pressure with the appropriate physical tools.
See current price & availability · lifetime free updates
View CR Eagle Check compatibility by VINView the original source graphics in full size
9Typical P0105 Repair Cost
These are broad US planning ranges for parts and labor, not quotes. Vehicle access, combined-sensor packaging, diagnosis time, local labor, programming, taxes and fees can change the total. Confirm the failed path before authorizing parts.
| Repair | Typical US range |
|---|---|
| Professional diagnosis | $120–$230 |
| MAP or TMAP sensor replacement | $150–$450 |
| Connector or local wiring repair | $150–$600 |
| Hose, pressure-port or minor leak service | $100–$350 |
| Intake manifold gasket, if proven | $680–$830 |
| PCM replacement, if conclusively proven | $1,100–$1,200 |
10Related MAP/BARO Codes and Guides
The full code set helps separate a general P0105 fault from a specific circuit direction, performance problem or combined-sensor case:
11P0105 Frequently Asked Questions
What does P0105 mean?
P0105 is a MAP/barometric-pressure circuit fault family. The exact monitor may describe an analog circuit, a combined pressure-temperature sensor, a digital data signal or an OEM-specific plausibility check, so read the full VIN-specific definition and subcode.
Is P0105 always a bad MAP sensor?
No. Wiring, connector terminals, shared reference or ground circuits, a blocked pressure path, a digital communication fault, a comparison input or software can cause P0105. Replace the sensor only after the relevant tests prove it is wrong.
Can I drive with P0105?
A short trip for diagnosis may be reasonable if the engine runs normally. Stop driving if it stalls, loses severe power, flashes the warning light, emits heavy smoke, smells strongly of fuel or develops unsafe boost behavior.
What is the difference between P0105 and P0106?
P0105 is commonly a general MAP/BARO circuit-malfunction family, while P0106 is commonly a range/performance fault. Some manufacturers map failure-type subcodes differently, so the complete code and OEM definition still control the diagnosis.
Can a vacuum leak cause P0105?
It can on an application whose monitor is affected by the intake-pressure path, but it is not a universal cause. Use freeze frame, companion codes, live data and the OEM procedure before smoke-testing or repairing an intake leak.
Can CR Eagle test the MAP sensor circuit?
CR Eagle can display supported codes, freeze frame and live PIDs, but it cannot prove wire or terminal integrity by itself. Use the OEM diagram plus the specified multimeter, scope, pressure/vacuum or smoke test equipment.
How do I clear P0105 after repair?
Save the original data first, complete the proven repair, then clear the code with a compatible scan tool. Run the OEM verification procedure or monitor and rescan current, pending and permanent status instead of assuming a cleared light confirms success.
Technical and cost references
- Ford 2024 MY OBD System Operation Summary — official examples of MAP subcodes, application-specific thresholds and monitor logic.
- Ford 2023 Diesel OBD Summary and NHTSA-hosted Triumph Technical Bulletin 209 — contrasting digital-status, circuit and pressure-pipe definitions.
- Official iCarsoft CR Eagle product page — current diagnostic features, product details and vehicle-dependent function notice.
- RepairPal diagnosis estimate, MAP sensor estimate and intake gasket estimate — US cost anchors accessed August 6, 2026.
- RepairPal PCM estimate and AAA 2026 labor-rate overview — context for uncommon controller work and non-standard local repairs.
Editorial note: This article provides general diagnostic education, not a substitute for the exact OEM service procedure. Code wording, sensor architecture, test limits and repair access vary by VIN. Verify compatibility and supported functions before purchasing a scan tool. Prices are planning estimates and exclude taxes, fees and regional variation.
