Quick answer
On a Vauxhall, code P0597 means “Thermostat Heater Control Circuit / Open.” The 1.4 petrol engine uses an electronically controlled (map-cooled) thermostat with a small heater that lets the ECM fine-tune coolant temperature. P0597 sets when that heater control circuit reads open — most often a failed integrated thermostat, or corroded wiring/connector. The car frequently defaults to extra cooling (fan running, engine running cool), and in some cases temperatures fluctuate or it overheats.
Got a Vauxhall throwing the P0597 fault code? It points to a problem in the engine coolant thermostat heater control circuit, which often shows up as a cooling fan that runs constantly or, in some cases, overheating. Based on a helpful walkthrough from SA Diagnostics, this guide shows how to locate and fix it on a Vauxhall Corsa, Astra or Insignia with the 1.4 petrol engine — and how to reset the code afterward with the iCarsoft CR Max BT.
1What Is the P0597 Fault Code?
P0597 is defined by the SAE J2012 standard as “Engine Coolant Thermostat Heater Control Circuit / Open.” On your Vauxhall’s 1.4 petrol engine, the thermostat isn’t a simple wax mechanical unit — it’s electronically controlled, with a small heater the ECM uses to nudge it open or closed and regulate engine temperature for efficiency and emissions.
P0597 sets when the ECM detects an open circuit in that heater control — a broken connection rather than a short. The walkthrough this guide is based on pinpoints the thermostat housing as the culprit, secured by two or three screws and connected to the coolant pipes.
2Symptoms
- Check engine light on with P0597 stored.
- A cooling fan that runs constantly.
- Fluctuating engine temperature, or the engine running cooler than normal.
- In some cases, overheating.
3Common Causes
- Failed integrated thermostat — the heater element inside the map-controlled thermostat goes open. This is the usual Vauxhall fix.
- Damaged or corroded wiring / connector — “green crusties” on the pins, or coolant seeping into the plug from a weeping seal.
- Blown fuse on the thermostat-heater circuit.
- PCM driver fault — the computer’s internal control for the thermostat fails (rare).
4How Serious Is P0597? Can You Keep Driving?
Don’t ignore a cooling-system code. P0597 can leave the fan running constantly or, in some cases, allow the engine temperature to climb. Overheating can cause serious, expensive engine damage, so repair it as soon as possible — and if the temperature gauge starts to rise, stop driving and let the engine cool.
5How to Fix the P0597 Fault Code
This repair follows the SA Diagnostics walkthrough — watch it first, then work through the steps below.
Walkthrough by SA Diagnostics — the thermostat housing location is shown at 00:52 (watch on YouTube).
Work on a cold engine only. Coolant under pressure is scalding hot — let the engine cool fully before opening the cooling system, and catch any coolant that drains out.

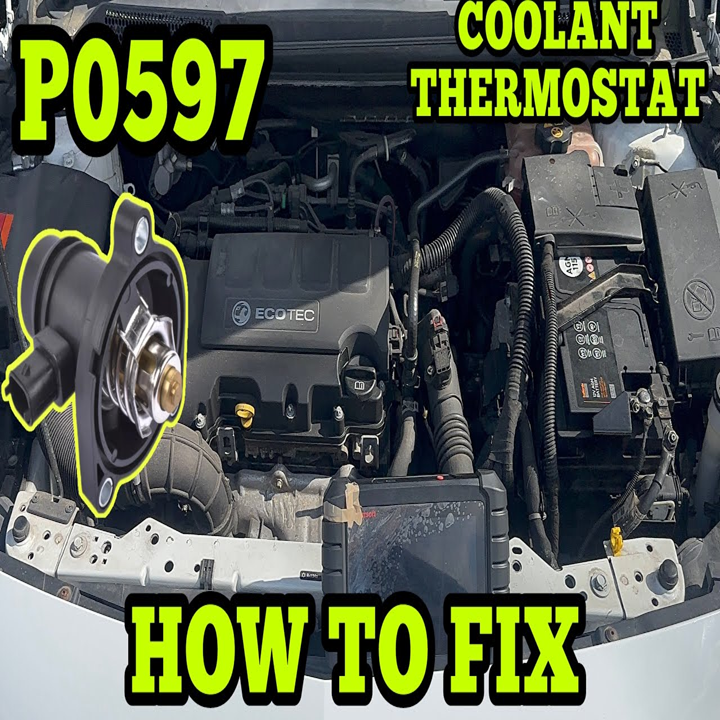

- Locate the thermostat housing. On the 1.4 petrol it’s held by two or three screws and connected to the coolant pipes (shown at 00:52 in the video).
- Remove the housing. Carefully unscrew the bolts and detach the coolant pipes, pulling the housing back gently to avoid damaging surrounding components.
- Inspect and replace. Check the thermostat for wear or damage and inspect the connector for corrosion. Fit a new thermostat, making sure the seal is secure to prevent leaks.
- Reassemble and test. Refit the housing, reconnect the pipes, top up the coolant, then run the engine and check for leaks.
- Clear the code. Use the iCarsoft CR Max BT to clear P0597.
- Test drive. Drive the car and monitor the engine temperature to confirm the issue is resolved.
6P0597 Repair Cost
| Repair | Typical cost (parts + labor) |
|---|---|
| Electronic thermostat / housing replacement | $130–$350 |
| Wiring / connector repair | $50–$200 |
| Diagnostic (scan + circuit test) | $50–$120 |
Doing the thermostat yourself with the video and a scan tool keeps it at the low end — most of the professional cost is labor.
7Clear the Code & Retest
After the repair, clear P0597 with the CR Max BT, then test-drive while watching the live coolant temperature. With a good thermostat fitted, the engine should warm up to normal operating temperature and hold steady, and the fan should cycle normally instead of running non-stop. Remember: resetting the code without replacing the faulty thermostat only hides the problem — it will come back.
8Real-World Examples
Mike — 2016 Vauxhall Corsa. Mike’s Corsa had a constantly running fan and a stored P0597. He followed the video, replaced the thermostat housing, and reset the code with the iCarsoft scanner. The temperature stabilized and the fan issue was gone.
Emma — Vauxhall Astra. Emma’s Astra was overheating sporadically. After locating the thermostat with the video’s help, she replaced it and cleared the code with the CR Max BT. The car now runs smoothly.
9Related Trouble Codes
P0597 is the “open circuit” member of the thermostat-heater family — its siblings are P0598 (circuit low / short to ground) and P0599 (circuit high / short to power).
10The Right Scan Tool for P0597
You’ll need a scanner that supports Vauxhall/Opel to read and clear P0597 and to confirm the fix with live coolant-temperature data. The iCarsoft CR Max BT does exactly that, wirelessly — handy for a DIY thermostat job.
Recommended for P0597
iCarsoft CR Max BT
Wireless Bluetooth, full-system diagnostics with live coolant-temperature data, freeze frame and one-tap code clearing — strong Vauxhall/Opel coverage and ideal for a DIY thermostat repair and reset.
$409.99
Shop CR Max BT Compare pro scanners11P0597 — Frequently Asked Questions
What causes the P0597 code in a Vauxhall?
A fault in the thermostat heater control circuit — usually a failed integrated thermostat (an open heater element), damaged wiring, a corroded connector, or a faulty seal letting coolant into the plug.
Can I drive with a P0597 code?
It’s risky. It can cause overheating or a constantly running fan, which can damage the engine, so fix it as soon as possible — and stop driving if the temperature gauge climbs.
How do I know if the thermostat is faulty?
Symptoms include a constantly running fan, overheating, or fluctuating temperatures. Inspect the thermostat and its wiring; a multimeter check of the heater confirms it — a healthy element reads a few ohms, while an open one reads OL (infinite).
Is the iCarsoft CR Max BT good for Vauxhall diagnostics?
Yes — it reliably reads and clears fault codes on Vauxhall models, with Bluetooth for easy use and live data to confirm the repair worked.
Can a bad thermostat cause other fault codes?
Yes — a faulty thermostat can affect engine performance and trigger related codes such as P0115 (coolant temperature sensor) or P0128 (coolant below regulating temperature).
How often should I replace the thermostat?
Typically every 60,000–100,000 miles, or sooner if you notice symptoms like overheating or constant fan operation.
Will resetting the code fix the issue?
No — resetting clears the code but doesn’t fix the underlying problem. Replace or repair the thermostat first, then clear the code and retest.
12References
- SAE International, J2012 — Diagnostic Trouble Code Definitions (the standard that defines P0597).
- SA Diagnostics, Vauxhall P0597 thermostat location & fix (YouTube walkthrough this guide is based on).
- Wikipedia, Thermostat — background on how engine thermostats regulate coolant temperature.
