Quick Answer

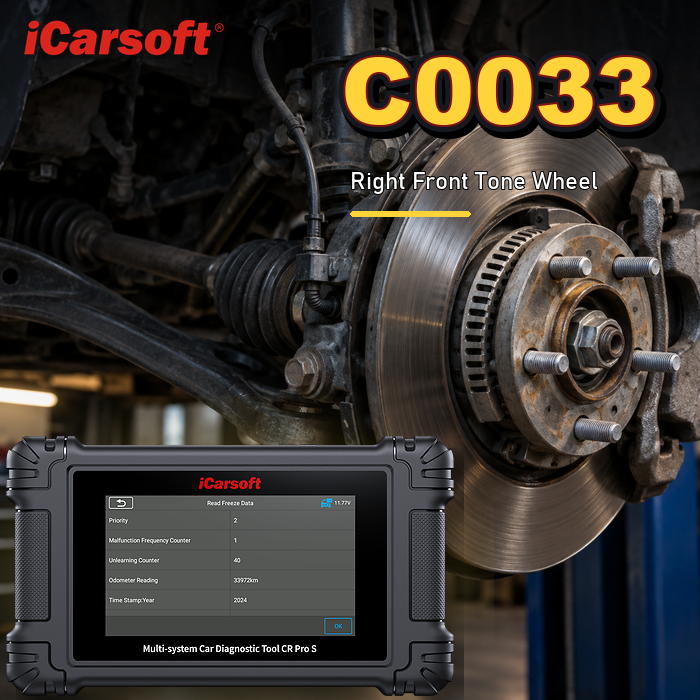

The C0033 code identifies the right front tone wheel in the cited reference. Confirm the OEM definition and full suffix first. The label does not prove the sensor is defective. Establish the installed ring or encoder design, inspect the correct wheel end and connect any physical finding to the recorded signal problem.
What Does the C0033 Code Mean?
NHTSA Appendix K lists C0033 as Right Front Tone Wheel with a subfault. This guide uses that label only when the vehicle’s complete OEM wording agrees. The full fault record determines the test branch.
The rotating reference gives a wheel-speed sensor something to detect. Depending on the vehicle, that reference may be a toothed ring or an integrated magnetic encoder. Its construction, location and serviceability vary. A generic image of an exposed ring is not a reliable map of your vehicle, and the absence of a visible ring does not prove that a part is missing.
Begin with wheel identity. Right front means the vehicle’s right-front corner in the relevant service information, not whichever side is closest to the observer. Confirm the labeled live-data channel and the physical part before testing. A complete record should connect the code, module, channel and wheel location so that a good component on the opposite side is not replaced by mistake.
NHTSA’s selected chassis-code table distinguishes C0033 Right Front Tone Wheel, C0034 Right Front Wheel Speed Sensor and C0035 Right Front Wheel Speed Sensor Supply. The three labels describe related but separate diagnostic branches. The table does not establish a universal air gap, tooth count, encoder orientation, bearing adjustment or replacement procedure for every vehicle using these codes.
If the fault appeared after a hub or bearing job, compare the installed part number and required installation method with the vehicle’s build information. A visually similar part may not establish the correct sensing arrangement. Keep removed-part observations and the original scan record where available, but do not assume that the latest repair was wrong merely because the warning followed it.
Preserve the module wording and suffix before clearing.
Separate C0033 from adjacent fault families
| Code | General description | Key distinction |
|---|---|---|
| C0033 | Right Front Tone Wheel | Rotating-reference family; confirm the OEM failure type. |
| C0034 | Right Front Wheel Speed Sensor | Sensor path and signal checks are a separate branch. |
| C0035 | Right Front Wheel Speed Sensor Supply | Supply fault requires the proper circuit measurements. |
| C0030 | Left Front Tone Wheel | Opposite front wheel; do not confuse physical location. |
Record the complete C0033 description. Use the exact module, suffix and OEM procedure to select the test path.
C0033 Symptoms and Likely Causes
Record C0033 symptoms and fault status; symptoms alone cannot identify a failed part.
Check whether companion faults share a proven cause.
The controller may record an unreliable right-front wheel input and report unavailable assistance. Record the message and fault status; the warning itself does not reveal a damaged ring.
A repeatable anomaly in the supported right-front channel can help focus inspection. A graph without test conditions or time context cannot prove encoder damage.
Noise, looseness, rubbing or an abnormal wheel condition needs prompt mechanical assessment. Stop testing if wheel security or braking safety is uncertain.
The service sequence can identify which area to inspect first. Check part identity and installation evidence rather than automatically condemning the recently fitted part.
Practical cause-checking order
- Confirm the wheel and suffix: Read the complete OEM wording and identify the right-front channel; another model’s legacy meaning may require a different procedure.
- Identify the reference design: Locate the actual tone wheel or encoder in the service information. Do not assume all references are exposed metal rings that can be cleaned or adjusted.
- Inspect installation evidence: Review hub, bearing, axle and mounting condition by the prescribed method. Use model-specific limits instead of judging play or seating by a generic code guide.
- Separate the electrical branch: Inspect the associated sensor connector and cable when the failure type or observations point to the electrical path. Physical and wiring issues can coexist.
- Require proof before module work: An internal control-unit diagnosis requires its prescribed input, power and wiring tests. A tone-wheel name alone is not evidence of a failed ABS controller.
Did C0033 appear after recent right-front hub, bearing, axle, brake or suspension work? Recheck the documented connections, parts and setup steps affected by that work. Record battery and software history; a post-repair code does not prove the new part is defective.
How Serious Is C0033, and Can You Drive?
Arrange prompt brake diagnosis and follow the owner manual. Do not assume ABS or stability assistance remains available. Abnormal pedal effort, pulling, fluid loss, dragging or a red brake warning requires stopping safely and arranging recovery. The code cannot establish a safe driving distance.
Record brake warnings, pedal changes, fluid loss and recent service. Do not induce wheel slip or emergency braking to test assistance on public roads; warning-state assessment comes before any functional verification.
Stop and arrange a tow if braking changes, pedal effort or travel is abnormal, a wheel drags, fluid leaks or a red brake warning appears.
Follow the exact shutdown and pressure-release procedure before accessing brake components. Support a raised vehicle securely, keep clear of moving parts and never energize unidentified circuits. Do not perform public-road emergency-stop experiments.
How to Diagnose C0033 in the Right Order
-
Preserve the right-front event and wheel identity
Save C0033 with the reporting module, full failure-type suffix, status and available event data. Identify the right-front live-data channel and record when the warning began. Note recent hub, axle, bearing or brake work and any mechanical symptoms. If the wheel or brakes appear unsafe, secure the vehicle rather than continuing a drive just to produce a clearer diagnostic recording.
-
Map the ring or encoder before physical access
Use the VIN, brake-system variant and parts information to locate the sensor’s rotating reference. Determine whether the relevant component is an exposed ring or an integrated encoder and which inspection is permitted. Confirm component serviceability before planning disassembly. Do not apply a magnet, scraper or arbitrary gap adjustment to a part whose construction and repair instructions have not been identified.
-
Inspect the wheel end using its actual design
With proper support and the required shutdown precautions, inspect the right-front mounting, routing and wheel-end condition. Review documented part numbers and installation steps after recent work. Follow the manufacturer’s method for checking bearing or seating concerns. Avoid loosening safety-critical fasteners or disturbing press-fit components merely to see whether the warning changes; those actions can create a new mechanical problem.
-
Record a meaningful right-front signal comparison
Compare the supported right-front wheel-speed record with the other channels under an approved safe test. Save vehicle state and recording conditions. A difference during a turn or while one wheel is stationary is not automatically a fault. Distinguish a persistent missing input, a repeated disturbance and an intermittent drop before choosing the next physical or electrical test.
-
Connect the physical finding to the failed check
Use the applicable physical inspection and signal procedure to determine whether the rotating reference, mounting or sensor circuit explains the record. Document the failed check before ordering a ring, hub, bearing or sensor. When the evidence instead indicates a supply or connection problem, follow that electrical branch. Do not treat an uncertain observation as permission to replace every component around the wheel.
-
Verify installation and the completed confirmation
Repair only the established fault and complete the specified wheel-end installation, setup and safety checks. Run the applicable confirmation procedure after the vehicle is safe. Preserve final fault status and supported signal evidence. If the original event returns, compare its suffix and conditions with the baseline and state what remains unverified instead of claiming that clearing the lamp completed the repair.
Specifications are vehicle-specific. Use the exact VIN specifications, approved test points and required operating state. No generic value or drive cycle can replace the applicable procedure. Manufacturer examples here do not establish specifications for other applications.
C0033 Repairs and Cost Planning
A C0033 repair must address the demonstrated failure. Do not replace an assembly from the code alone.
Recheck installation and required setup after repair. A physical mark and an electrical event must be connected by evidence. Surface dirt near a sensor does not, by itself, prove a damaged rotating reference. Likewise, an apparently intact visible surface cannot establish the condition of an integrated encoder. Use the inspection method suited to the actual part, and leave inaccessible or untested conditions identified as limitations rather than treating them as passed checks.
Ask the shop to name the failed branch and the measurement supporting each proposed repair.
Authorize diagnosis before parts while the cause remains uncertain.
| Possible path | Quote basis |
|---|---|
| Repair the connector or harness after a documented circuit failure | VIN-specific quote |
| Correct the demonstrated physical or installation fault | VIN-specific quote |
| Replace only the component that fails its prescribed test | VIN-specific quote |
| Complete required setup and safe functional verification | VIN-specific quote |
Request an itemized, VIN-specific quote for the proven repair, setup and verification. Check applicable warranty coverage.

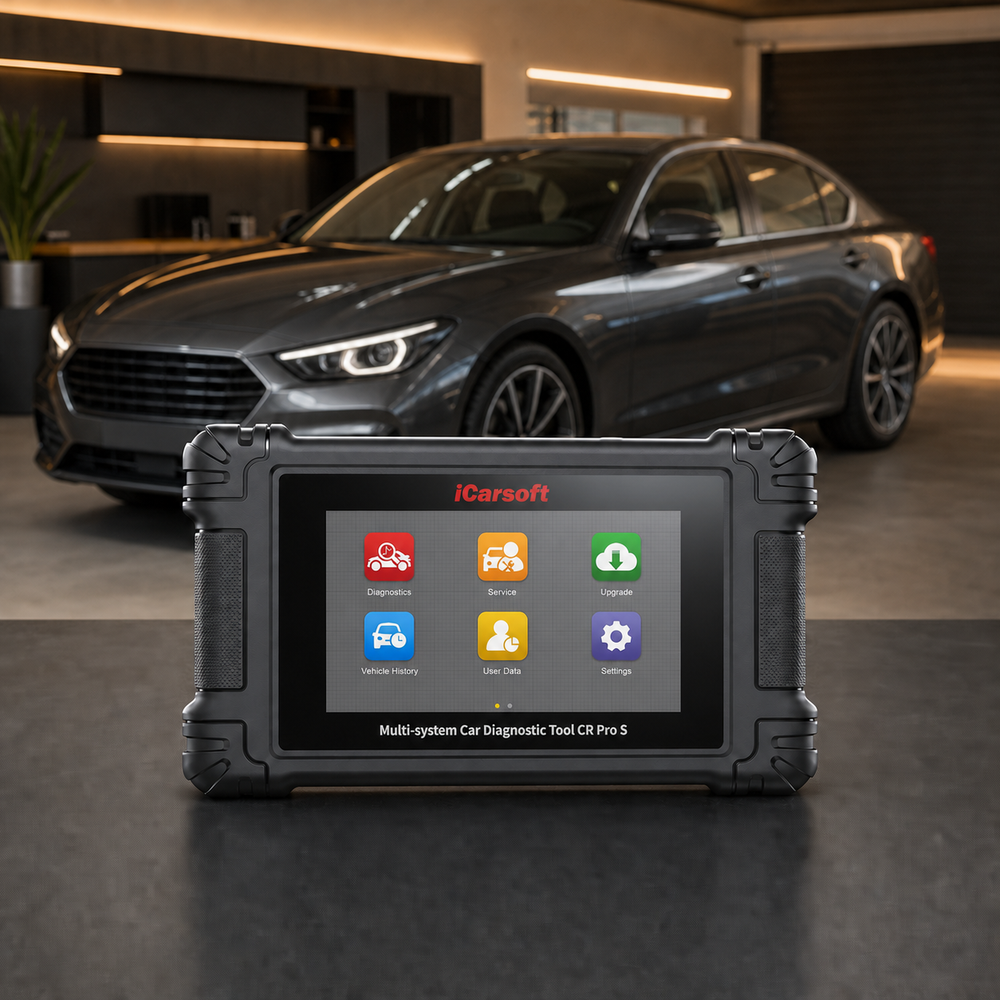

Using iCarsoft CR Pro S for C0033
On a supported vehicle, iCarsoft CR Pro S can save accessible faults, available freeze frame, live data and diagnostic reports. Preserve the C0033 evidence before clearing.
Compare available brake-controller records before and after repair. The report supports diagnosis but cannot replace the OEM physical and functional checks.
Preserve the right-front rotating-reference diagnosis evidence
iCarsoft CR Pro S
Review supported codes and relevant live data together. Confirm the exact VIN, controller access, PIDs and any requested active test with iCarsoft before purchase; generic product capabilities do not guarantee a C0033-specific function.
Check current CR Pro S price and availabilityCheck CR Pro S compatibility by VINThe official product page describes supported full-system diagnostics, available live data, freeze frame and diagnostic reports; exact controller coverage and active tests depend on the VIN and software. Confirm the requested function by VIN before purchase. Follow OEM prerequisites and stop for abnormal operation.
Know the measurement boundary. Scan data describes ECU-provided information; it does not directly prove the physical condition of the right-front rotating-reference diagnosis. Use the prescribed independent measurements when required.
Verify the C0033 Repair
After repair, verify connectors, harness clearance, setup and controller supply. Save post-repair findings, then clear only erasable records through the approved procedure. Battery disconnection is not a repair.
Run the manufacturer's applicable verification conditions in a safe workshop or route. Compare the original operating state with current data for the right-front rotating-reference diagnosis, and check current and pending faults in related modules. One clean start or idle period does not prove that every conditional monitor has completed.
Compare baseline and final scans, required setup and fault confirmation. Record whether the original event returned.
If C0033 returns, compare its suffix, status, failure order and operating conditions with the saved baseline before replacing another part. Revisit the failed branch and inspect anything disturbed. Confirm the prescribed brake-system verification separately from code clearing.
Stored and Active brake-control faults require different decisions. Preserve the original record and follow the OEM confirmation procedure. A cleared display does not prove restored assistance or safe braking.
Related Right-Front Rotating-Reference Diagnosis Code Guides
Use each related code's own diagnostic procedure.
C0033 Frequently Asked Questions
Does C0033 require replacing the right front hub?
Not from the code alone. First confirm the OEM wording and actual ring or encoder design. Depending on the demonstrated failure and serviceability, the correct repair may involve a connection, mounting, sensor or wheel-end component. Identify the failed test before deciding which part is needed.
What should I check first for C0033?
Save every module's codes and freeze frame before clearing. Confirm the full definition, suffix and VIN architecture. Then inspect recent right-front hub, bearing, axle, brake or suspension work, connectors and shared supplies. Those facts determine whether the next test needs the specified multimeter, oscilloscope and approved brake-system test equipment or a manufacturer-specific functional procedure.
Can I drive with the C0033 code?
Arrange prompt brake diagnosis and follow the owner manual. Do not assume ABS or stability assistance remains available. Abnormal pedal effort, pulling, fluid loss, dragging or a red brake warning requires stopping safely and arranging recovery. The code cannot establish a safe driving distance.
Why did C0033 return after a part was replaced?
A recurring fault after replacement calls for a comparison of the original and returning failure types. Confirm the replacement variant, mounting and route before assuming the new assembly is defective. If the signal concern changed into an electrical fault, investigate that new branch separately. Replacing increasingly large assemblies without recording a failed check loses the distinction between diagnosis and trial-and-error parts replacement.
What should a C0033 repair estimate include?
Request failed-test evidence and itemized diagnosis, parts, labor, setup and verification costs. The code cannot determine the price.
Can CR Pro S diagnose and clear C0033?
On a supported vehicle, CR Pro S can organize available faults, freeze frame, live data and reports, and can clear erasable records after repair. Confirm exact ECU coverage. It cannot establish safe braking from an erase command or replace physical measurements for the right-front rotating-reference diagnosis.
The iCarsoft Official Store Technical Team maintains the store's fault-code library. This guide organizes published technical references and verified product information; it does not document a hands-on test of a particular vehicle or claim an individual engineer's review.
