CR MAX P Adds Topology Mapping: What It Shows and Which Vehicles Support It

What the CR MAX P topology map shows

A standard Auto Scan finds the control units that respond on the selected vehicle. Topology Mapping arranges supported scan results in a connected visual layout. Instead of moving through a long module list, you can see the electronic systems and their network relationships at a glance.

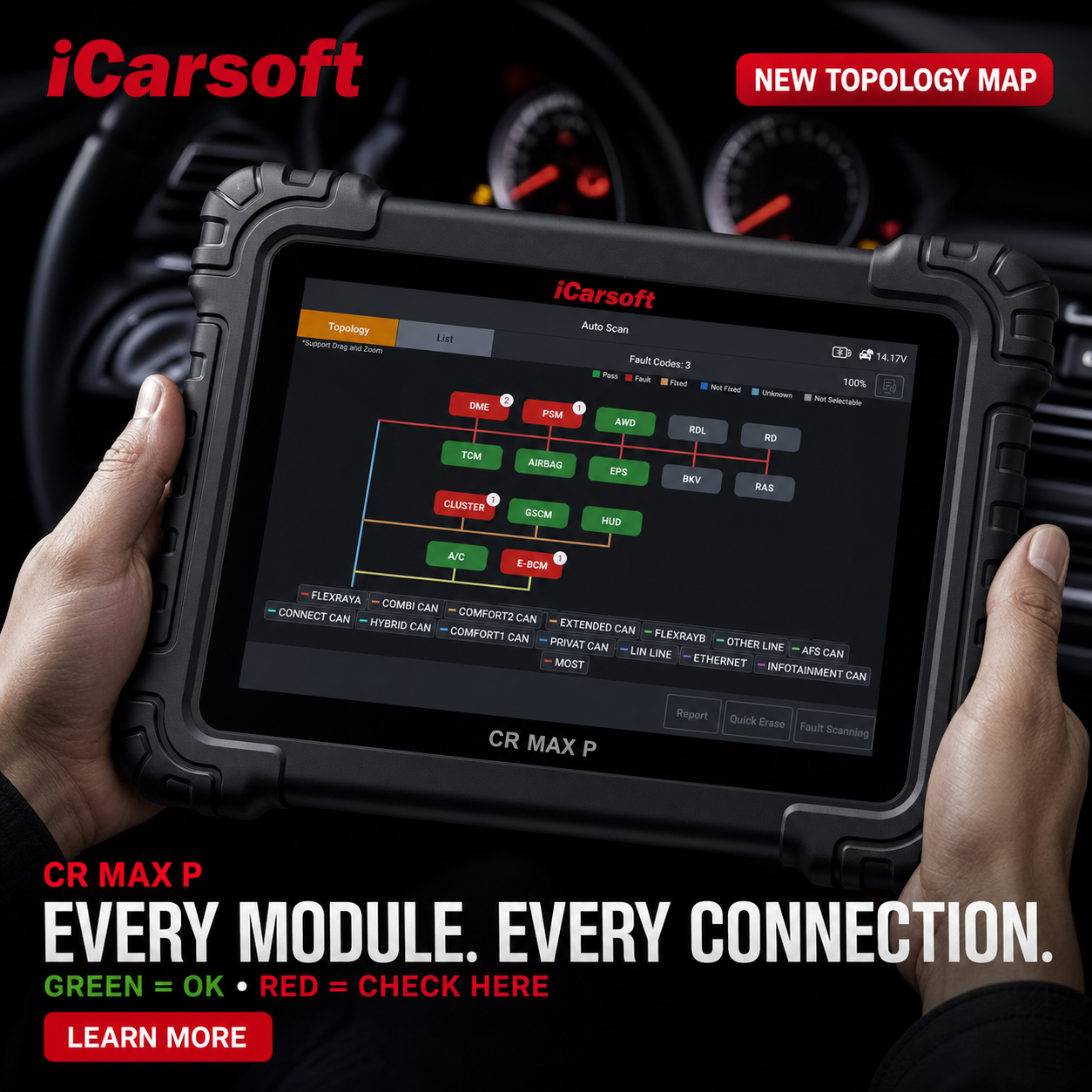

The current CR MAX P interface includes Topology and List tabs. The map supports drag and zoom, which helps on vehicles with many control units. The screen can also provide access to the diagnostic report, Quick Erase and fault scanning controls.

How to read module status without jumping to conclusions

The official interface legend includes Pass, Fault, Fitted, Not Fitted, Unknown and Not Selectable. These labels matter because a gray module is not automatically faulty, and a red module does not prove that the ECU itself has failed.

A communication problem can make several modules report faults at the same time. Low system voltage, a gateway issue, damaged wiring or one offline module can affect other ECUs that share the same bus. The map helps establish an order of inspection; DTC details, wiring information, voltage tests and live data still determine the repair. Our U0073 control-module communication guide explains why a bus fault can create a cluster of warnings across the vehicle.

Topology view versus the standard Auto Scan list

Both views are useful. Topology gives supported vehicles a visual overview, while List view remains the practical fallback for vehicles that do not provide a topology layout.

Why Topology Mapping is not available on every vehicle

CR MAX P is a multi-brand diagnostic platform, while each manufacturer defines its own network architecture, ECU naming and diagnostic data. Even two vehicles from the same brand can use different networks when the platform, model year, powertrain or equipment package changes.

Topology support can depend on:

• vehicle make, model and production year;
• regional version and vehicle platform;
• the ECUs installed in that individual vehicle;
• gateway and network architecture;
• the CR MAX P system version and downloaded brand package; and
• manufacturer security restrictions.

Many 2024 and newer vehicles use security gateways such as SFD or FCSC to restrict third-party access. CR MAX P may still provide basic OBD2 data or other supported diagnostics, while protected commands, coding or adaptations can require manufacturer authorization. Topology availability and access to an advanced function must be checked as separate items.

How to get Topology Mapping on CR MAX P

CR MAX P includes lifetime free Wi-Fi software updates. Existing owners do not need an annual subscription to install available feature and vehicle-package updates.

1. Connect the CR MAX P tablet to a stable Wi-Fi network and keep the battery charged.
2. Open the Upgrade application from the home screen.
3. Install the available system update and the latest diagnostic package for the vehicle make you plan to scan.
4. Connect the VCI, identify the vehicle and open Diagnostics > Auto Scan.
5. On a supported vehicle, select the Topology tab. Use the List tab when the map is unavailable or when you prefer a conventional module list.

The iCarsoft user manual download center provides current operating documentation. Update packages can add coverage or features, but an update does not make every vehicle topology-compatible.

A practical topology-assisted diagnostic workflow

1. Run a complete pre-scan. Save the vehicle identification and report before clearing any codes.
2. Review the whole map. Look for fault clusters, non-responding modules and shared network branches.
3. Open the first relevant ECU. Read its DTC descriptions, status and freeze-frame or live data where available.
4. Check causes outside the module. Confirm battery voltage, fuses, grounds, connectors and network wiring before condemning an ECU.
5. Use supported tests. Active tests, service functions and coding can help confirm the repair, but their availability varies by vehicle and control unit.
6. Repair, clear and rescan. Compare the post-scan map with the original report and confirm that returning faults are understood.

Topology Mapping works alongside the CR MAX P full-system scan, live data, bidirectional control, service functions and supported ECU coding. The map improves navigation and triage. It does not unlock a control unit or function that the vehicle software cannot access.

If the Topology tab does not appear

Start with the software before assuming the tablet has a fault:

• install all available CR MAX P system and vehicle-brand updates;
• confirm that AutoVIN selected the correct make, model and year, or choose the vehicle manually;
• run a complete Auto Scan and check for a Topology/List selector;
• continue with List view if the selected application has no topology layout; and
• contact iCarsoft US with the VIN, software version and a photo of the Auto Scan screen.

A vehicle can support code reading, live data, service functions or active tests even when it uses List view. Each function has its own coverage, so verify the specific job instead of using the presence of a topology map as a general compatibility test.

Where CR MAX P fits in the workshop

The new topology view is useful for independent workshops, mobile technicians and experienced DIY owners who work across several vehicle makes. CR MAX P combines the 10-inch Android display with CAN-FD, DoIP, full-system diagnostics, bidirectional control and lifetime free updates. Its larger screen gives a dense module map enough space to remain readable on a workbench or inside the vehicle.

Buyers comparing another model in the range can browse the CR MAX diagnostic tool family. Compare the exact functions you use most, then request VIN confirmation for topology, coding, active tests or service work that must be available on a specific vehicle.
