Is your Mini Countryman or BMW experiencing sudden "juttering," loss of power on the highway, or refusing to start entirely? If your diagnostic scan reveals code P0193, you are dealing with a failure in the High-Pressure Fuel Rail Sensor.
In this guide, analyzed from a SA Diagnostic's repair case, we’ll cover the location, the fix, and the critical safety steps most videos skip. Plus, learn how to verify the repair using the iCarsoft CR ULTRA P.

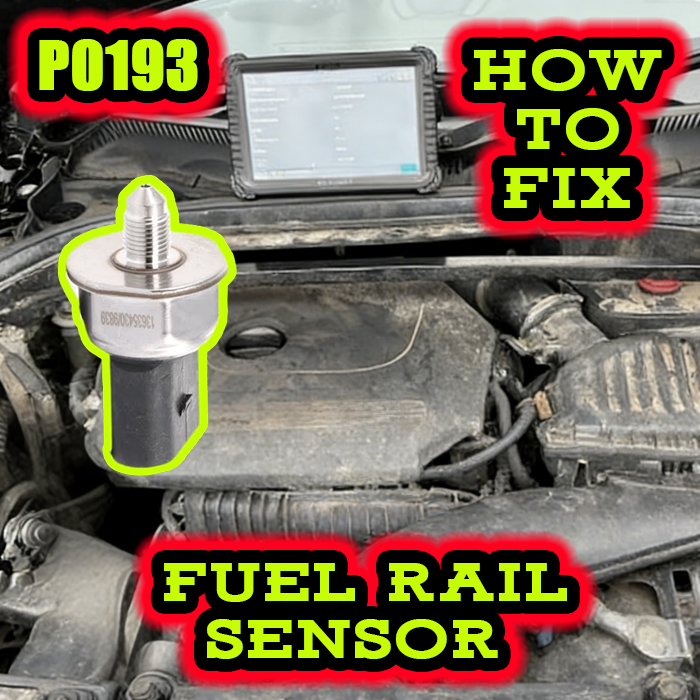

The sensor is screwed into the end of the metal fuel rail, monitoring the immense pressure needed for direct injection.
The fuel rail on modern BMW/Mini engines operates at extremely high pressures (up to 2000+ psi). Never crack open fuel lines while the engine is hot or running. Wear safety glasses and have a fire extinguisher nearby.
What is Code P0193?
P0193: Fuel Rail Pressure Sensor "A" Circuit High Input.
This means the Engine Control Unit (ECU) is seeing a voltage signal that is pegged at the maximum limit (usually 5V). This tells the computer that either the pressure is dangerously high (unlikely) or the sensor circuit is broken/shorted (most likely). The car cuts power to protect the engine.
Technical Resource: How Fuel Pressure Sensors Work (Delphi Auto Parts).
Video Tutorial: Sensor Replacement Guide
Watch the technician locate the sensor on the 1.5L Petrol engine:
Step-by-Step Fix Strategy
1. Advanced Diagnosis (Live Data)
Before you wrench, you must verify. Connect your iCarsoft CR ULTRA P and select "Live Data" for the DME (Engine Electronics).
- Look for "Rail Pressure Actual".
- If the engine is off (ignition on) and it reads an insanely high number (like 200 bar) or stays static, the sensor or wiring is faulty.
- Wiggle the wiring harness. If the value jumps, you have a broken wire, not a bad sensor.
2. Replacement: OEM Parts Only
As emphasized in the video: "Get an original OEM sensor."
Cheap aftermarket sensors often leak fuel or give inaccurate readings, leading to piston damage.
The Process:
1. Disconnect the battery (Safety first!).
2. Unplug the sensor connector.
3. Use the correct deep socket to unscrew the old sensor.
4. Screw in the new OEM sensor and torque it to spec (do not overtighten!).
Using Live Data to verify the new sensor is reading actual pressure correctly.
3. The "First Start" Procedure
When you start the car after this repair, it might not catch immediately.
"Your car may not start straight away there might be air within the fueling system," says the technician.
Professional Tip: Instead of just cranking the starter motor endlessly (which kills your battery), use the iCarsoft CR ULTRA P to check if there is a "Fuel System Bleed" function available for your specific model. Even if not, clearing the Fuel Adaptations helps the ECU learn the new sensor faster.
Why Generic Scanners Fail Here
A basic OBD2 reader gives you the code P0193. It doesn't tell you the Live Voltage to check wiring, nor does it allow you to reset the DME Adaptations after the repair. The CR ULTRA P provides the full diagnostic picture, ensuring you don't replace expensive parts unnecessarily.
Related Guide: Fixing Air Mass (P0103) Faults on BMW/Mini.
Frequently Asked Questions (FAQ)
Is P0193 the fuel pump or the sensor?
P0193 specifically refers to the electrical circuit of the sensor. If the fuel pump were bad, you would likely see P0087 (System Pressure Too Low). However, a shorted sensor can mask other problems, so fix the sensor first.
Can I drive with a P0193 code?
We strongly advise against it. If the ECU doesn't know the fuel pressure, it cannot control the injectors correctly. This can lead to running too lean (engine damage) or too rich (catalytic converter damage).
What if the code comes back after replacing the sensor?
If you used an OEM sensor and the code returns, check the connector pins for corrosion or expansion. Also, trace the wiring loom back to the ECU for any breaks, especially near hot engine parts.
