Your car feels sluggish, fuel economy has dropped, or maybe you have a P0171 (System Too Lean) code. You suspect the Mass Air Flow (MAF) Sensor, but you don't want to spend $150 on a new part just to guess.
In this guide, inspired by a brilliant tutorial from DocMack Garage, we’ll teach you a "mechanic's hack" to test your MAF sensor in 2 minutes without opening the hood. All you need is a scanner that reads Live Data, like the wireless iCarsoft CR MAX BT.
Live Data reveals the truth: Is your engine breathing correctly?
The "Displacement Rule" (The Hack)
This is the golden rule of diagnostics mentioned in the video:
At a warm idle, your MAF sensor reading in grams/second (g/s) should be roughly equal to your engine's displacement in Liters.
- 2.0L Engine ≈ 2.0 g/s
- 3.5L Engine ≈ 3.5 g/s
- 5.0L Engine ≈ 5.0 g/s
If you have a 3.5L V6 engine but your scanner reads 1.2 g/s at idle, your sensor is "under-reporting" air (often dirty or failing), causing a Lean condition.
Video Tutorial: Testing in Action

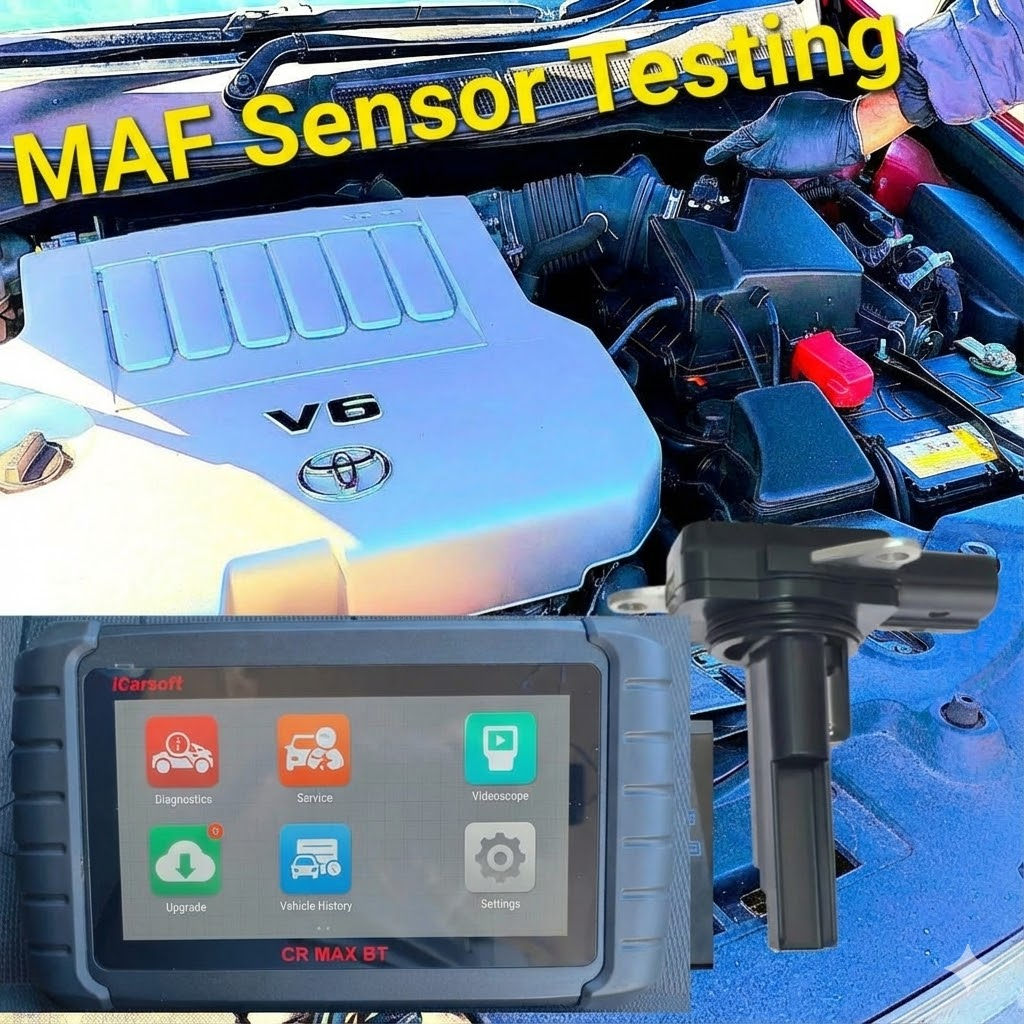

Watch how easy it is to verify this on a Toyota Camry 3.5L V6:
Step-by-Step Diagnostic Guide
1. Connect and Setup
Plug your iCarsoft CR MAX BT dongle into the OBD2 port. Because it uses Bluetooth, you can sit comfortably in the driver's seat without cables dangling over your pedals.
Navigate to: Diagnostics > [Your Car Brand] > Engine Control Unit > View Data.
2. Select Your PIDs (Parameter IDs)
You need to graph two data points together:
- Engine Speed (RPM)
- Mass Air Flow (g/s or gm/s)
3. The Idle Test
With the engine fully warmed up (AC off), look at the g/s value.
Example from video: On the 3.5L Toyota engine, the reading is hovering around 3.5 g/s. This confirms the sensor is calibrated correctly at idle.
The MAF sensor is your engine's "nose." If it's stuffed up, performance suffers.
4. The Throttle Snap Test
Now, gently raise the RPM. The airflow should increase proportionally.
If you double the RPM (e.g., 700 to 1400), the airflow should roughly double (e.g., 3.5 to ~7.0 g/s).
If the graph is flat or erratic: The sensor is slow to respond. Try cleaning it first.
Related Guide: How to Clean and Reset MAF Sensors on Land Rovers.
Why iCarsoft CR MAX BT?
While basic code readers just give you a P-code, the CR MAX BT offers:
- Fast Refresh Rate: Crucial for catching "glitches" in the air flow signal.
- Graphing Mode: Visualize the relationship between RPM and Air Flow instantly.
- Wireless Freedom: Diagnose from the driver's seat or even outside the car while checking the engine bay.
Learn more about air intake systems from Denso (OEM Supplier).
Frequently Asked Questions (FAQ)
What if my MAF reading is too high?
If your 2.0L engine reads 4.0 g/s at idle, you might have a "rich" condition, or a short circuit in the sensor wiring. Check for blocked air filters or wiring damage.
Does this rule apply to Turbo engines?
At idle (off-boost), yes, the rule generally applies. However, under load, turbo engines will flow significantly more air than their displacement suggests due to forced induction.
Can I clean the MAF sensor?
Yes. Use specific "MAF Sensor Cleaner." Do not use brake cleaner or carburetor cleaner, as these can melt the plastic housing or damage the sensitive hot wire element.
