Quick answer

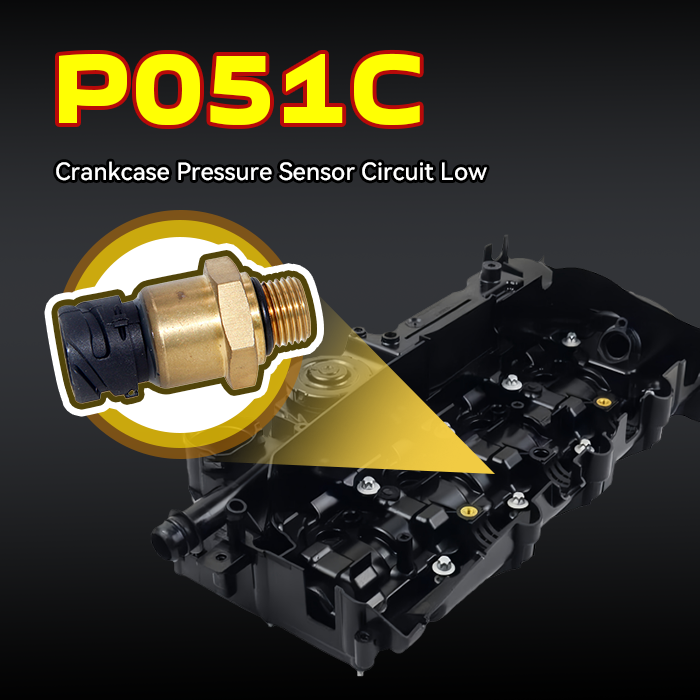

Code P051C is “Crankcase Pressure Sensor Circuit Low.” The ECM has detected a low-voltage condition on the crankcase pressure sensor signal circuit — the reading is below its calibrated range, so the module can no longer reliably monitor crankcase pressure (part of the PCV / crankcase ventilation system). Common causes are a failed sensor, wiring or connector faults, or a PCV-system restriction.
The P051C trouble code points to a low-voltage fault in the crankcase pressure sensor circuit, which the ECM uses to keep the PCV / crankcase ventilation system in a safe range. This guide covers the symptoms, causes and fixes for P051C, and shows where live data on a scan tool like the iCarsoft CR Max P reads the sensor.
1What Does the P051C Code Mean?
P051C is a generic powertrain DTC set when the ECM sees the crankcase pressure sensor signal below its expected calibrated range. That sensor feeds the PCV / crankcase ventilation system, letting the ECM keep crankcase pressure in a safe band and recycle blow-by fumes. When the signal reads low, the ECM can no longer trust that monitoring and stores P051C.
2Symptoms of the P051C Code
- Check engine light on (often the only obvious sign).
- Reduced fuel economy.
- Mild performance degradation or slightly rough running.
- Fuel or oil odors around the engine.
- Oil sludge accumulation inside the engine.
- Oil leaks from gaskets, seals or O-rings (from abnormal crankcase pressure).
- Possible soot or black smoke from the exhaust.
3Common Causes of the P051C Code
- Faulty crankcase pressure sensor (internal electrical failure).
- Open, shorted, chafed or corroded sensor wiring or connector.
- Poor electrical connection (loose pin, corrosion) in the sensor circuit.
- PCV valve stuck or blocked, or a PCV-system restriction.
- Damaged, cracked or disconnected PCV / crankcase ventilation lines.
- Contaminated or moisture-laden oil, or an overfilled crankcase.
- ECM fault or programming error (rare — verify last).
4How Serious Is P051C? Can You Keep Driving?
P051C won't strand you, but don't ignore it long-term. An unmonitored or malfunctioning crankcase-pressure / PCV system risks oil sludge and pressure-driven gasket, seal and O-ring leaks over time. It's safe to keep driving short-term, but address it soon to protect the engine.
5How to Diagnose the P051C Code
The focus is the sensor circuit and the PCV system:
- Pull codes and freeze-frame with a scan tool such as the iCarsoft CR Max P.
- View live data: watch the crankcase pressure sensor voltage at idle and on a brief throttle blip — a value stuck low points to the sensor or wiring.
- Inspect the connector and harness for corrosion, bent pins or chafing; wiggle-test for an intermittent low signal.
- Confirm the 5V reference, ground and signal voltage against spec with a multimeter.
- Inspect the PCV valve and ventilation hoses for blockage, cracks or disconnection; check the oil level and condition.
6Steps to Fix the P051C Error Code
- Confirm the code and freeze-frame; clear and re-scan to verify it's current.
- Inspect and repair the connector and harness — fix corrosion, broken pins or shorted/open wiring first.
- Verify the 5V reference and ground at the sensor; repair circuit faults found.
- Inspect the PCV valve and ventilation hoses; replace any blocked, cracked or disconnected parts.
- Correct oil issues (drain overfill, change contaminated or moisture-laden oil).
- If the signal is still low with good wiring and reference, replace the crankcase pressure sensor.
- Clear the code, road-test, and re-scan with live data to confirm normal readings.
7Why Crankcase Pressure Matters
As an engine runs, some combustion gases slip past the rings into the crankcase — blow-by. The PCV system vents that back into the intake to be burned, and the crankcase pressure sensor lets the ECM make sure that pressure stays in a safe band. If it can't read that pressure, sludge can build and abnormal pressure can push oil past seals — which is why keeping the sensor and PCV system healthy matters even though the engine still runs.
8Which iCarsoft Tool to Use
The iCarsoft CR Max P is well suited to a P051C. Its live data shows the crankcase pressure sensor signal in real time, so you can see whether it's flat-lined low (sensor or wiring) or simply reading an out-of-range PCV condition — a far faster path than a basic code reader.
With CAN-FD support and coverage for 58 vehicle makes, it also confirms the sensor reads normally again after the repair.
Recommended for P051C
iCarsoft CR Max P
Pro bi-directional scan tool with live sensor data, CAN-FD and full-system diagnostics across 58 car brands — to read the crankcase pressure sensor and verify a P051C repair.
$599.99 · was $819.99 · lifelong free updates
Shop CR Max P See full specs9P051C Repair Cost
Cost depends on whether it's the sensor, the PCV system or wiring. Typical ranges (parts + labor):
| Repair | Typical cost |
|---|---|
| Diagnostic (scan) | $75–$150 |
| Crankcase pressure sensor replacement | $150–$400 |
| PCV valve replacement | $50–$200 |
| Wiring / connector repair | $75–$250 |
| Oil change (contamination / overfill) | $50–$120 |
These are general estimates — get a quote once the specific cause is confirmed.
10Prevention & Regular Maintenance
- Change oil on schedule and never overfill — excess oil and sludge raise crankcase pressure.
- Replace the PCV valve at recommended intervals to keep ventilation flowing.
- Periodically inspect PCV / crankcase hoses for cracks, hardening or disconnection.
- Keep the sensor connector clean, dry and corrosion-free.
- Address oil leaks and moisture intrusion promptly to protect oil quality.
11Related Trouble Codes
12P051C — Frequently Asked Questions
Can I drive with a P051C?
Yes, short-term, but fix it soon — prolonged abnormal crankcase pressure can cause gasket and seal leaks.
Is it always the sensor?
No — wiring/connector faults and PCV problems are common. Verify the circuit before replacing the sensor.
Will it cause a failed emissions test?
It can — a malfunctioning PCV / crankcase system affects emissions and will fail an OBD readiness check with the light on.
Can a bad PCV hose trigger it?
Indirectly — a disconnected or leaking PCV line can disturb crankcase pressure and set related faults, so always check the ventilation parts.
How do I reset the P051C code?
Repair the underlying fault first, then clear the code with a scan tool such as the iCarsoft CR Max P and confirm normal live data.
13References
- SAE International, J2012 — Diagnostic Trouble Code Definitions (the standard that defines P051C).
- Wikipedia, Crankcase ventilation system — background on PCV and blow-by management.
