Quick Answer
The P062D code means Fuel Injector Driver Circuit Performance (Bank 1). The controller detected that its Bank 1 injector-driver operation did not meet the calibrated performance test. It does not prove that an injector or the PCM has failed. Save code status and freeze frame first, then identify the VIN-specific driver design and inspect its connectors, supply and harness.
What Does the P062D Code Mean?
The P062D code is a standardized powertrain DTC for Fuel Injector Driver Circuit Performance (Bank 1). The injector driver is the electronic output stage that controls or supports the injector circuit. “Performance” means the controller's monitored driver behavior fell outside its calibrated expectation; it is not the same as a simple open, low or high circuit label.
Bank 1 is the cylinder bank containing cylinder 1. On an inline engine there is normally only one bank, while a V engine can have Bank 1 and Bank 2. The physical left or right side is manufacturer-specific, so confirm the engine code, cylinder-numbering diagram and which module stored P062D before touching a connector.
The exact monitor also varies. Ford's 2023 diesel OBD summary uses P062D and P062E for injector-driver high-voltage-supply logic on listed applications. A different gasoline or diesel design may supervise driver initialization, current response, boost supply or another internal calculation. Treat that Ford description as an application example, not a universal threshold or test method.
How P062D differs from nearby injector codes
| Code | General description | Key distinction |
|---|---|---|
| P062D | Fuel Injector Driver Circuit Performance (Bank 1) | Bank 1 driver-performance result; no individual injector is identified. |
| P062E | Fuel Injector Driver Circuit Performance (Bank 2) | Corresponding driver-performance result for Bank 2 where used. |
| P062B | Internal Control Module Fuel Injector Control Performance | Internal module-level injector-control performance rather than the Bank 1 driver label. |
| P0201 | Injector Circuit/Open – Cylinder 1 | Points to the OEM-designated cylinder 1 injector circuit, not the whole Bank 1 driver path. |
| P2147 | Fuel Injector Group “A” Supply Voltage Circuit Low | Classifies the Group A injector supply as low; group A is not automatically the same as Bank 1. |
Why companion codes matter. Cylinder-specific open/low/high codes, supply-voltage faults, charging codes, communication faults or multiple-bank driver codes can narrow the branch. Diagnose their status and failure order together instead of treating P062D in isolation.
P062D Symptoms and Likely Causes
P062D code symptoms depend on whether the fault is intermittent, affects one injector event or disables a shared driver path. Some vehicles may show only a steady MIL, while others enter fail-safe, shut off injection to affected cylinders or will not start. Record the complaint before clearing anything.
A steady or flashing Check Engine light may appear with pending, current or permanent P062D status.
Uneven idle, shaking, hesitation or companion cylinder-misfire codes can follow disrupted injection.
The controller may limit torque, disable an output or prevent starting when it cannot control injection safely.
Incorrect combustion may change exhaust appearance or fuel use, but these signs are not unique to this code.
Practical cause-checking order
- Connector and harness faults: loose locks, backed-out or spread terminals, corrosion, water entry, rub-through, heat damage, rodent damage or a connector disturbed during recent engine work.
- Power, ground and system-voltage problems: weak battery support, charging ripple, voltage drop, damaged fuse or relay paths, shared grounds or poor module connections that disturb the driver supply.
- Injector or branch-circuit faults: an electrically abnormal injector, shorted/open control path or a problem that overloads the driver. The correct test depends on port, gasoline-direct or diesel injection architecture.
- Installation, coding or calibration issues: crossed connectors, incorrect injector coding where required, incomplete setup, low-voltage programming history or an applicable OEM software update.
- Internal driver or control-module failure: possible only after external loads, supplies, grounds, wiring and current OEM information pass. Controller replacement is the last branch, not the first.
Recent-work clue: if P062D began after injector, intake, cylinder-head, harness, battery or module work, recheck connector seating, routing, grounds, injector identity and required coding before buying another part.
How Serious Is P062D, and Can You Drive?
P062D deserves prompt diagnosis because injector control directly affects combustion. If the MIL is steady, the engine starts and runs normally, there is no fuel odor or leakage, and the owner's manual permits driving, the shortest light-load trip to a safe diagnostic location may be reasonable. Avoid towing, hard acceleration and extended operation until the failure mode is known.
Stop and arrange a tow for a flashing MIL or severe misfire, repeated stalling, a no-start in an unsafe place, major power loss, heavy smoke, raw-fuel odor or leakage, a burning smell, abnormal knocking, overheating, oil-pressure warning or any condition that makes vehicle control uncertain.
Fuel systems can remain pressurized after shutdown, and gasoline direct-injection or diesel systems can operate at hazardous pressure. Keep ignition sources away, allow hot parts to cool, disable automatic starting where applicable, and follow the OEM depressurization and high-voltage-hybrid procedures. Do not probe an injector circuit or disconnect a running high-pressure system casually.
How to Diagnose P062D in the Right Order
-
Save the complete failure record
Scan every module and save P062D status, freeze frame, failure order, permanent status and companion injector, misfire, supply-voltage or communication codes. Note the symptom and recent work. Clearing now can erase the conditions needed to reproduce an intermittent driver fault.
-
Identify the exact VIN architecture
Confirm engine, fuel system, Bank 1 location, injector-driver module or PCM arrangement, wiring diagram, shared supplies and OEM test plan. Check bulletins by VIN. GM PIP5916B, for example, links P062D on specified 2024 L5P trucks to an ECM software condition and says not to replace the ECM before checking for an update.
-
Inspect the cool system and physical path
With the vehicle safely powered down, inspect module and injector connectors, terminal locks, seals, splices, grounds and harness sections near heat, brackets and recent repairs. Look for fuel leakage before any powered test. Verify that injector connectors are not crossed and that required injector identification or coding is correct.
-
Prove supplies, grounds and circuit loading
Use the OEM diagram and specified equipment to test battery condition, charging quality, loaded voltage drops, module powers and grounds, and the correct injector branch. A DVOM, lab scope, current probe or approved breakout equipment may be required. Isolate the controller before resistance tests when the manual directs; do not jump driver pins to battery or ground.
-
Compare supported commands and feedback
Review exposed injector command, contribution, misfire, voltage and module data under safe enable conditions. Run an injector cutout or output test only when the exact VIN supports it and the OEM procedure allows it. A command with no response is useful evidence, but scan data cannot prove terminal tension, physical voltage, current waveform or injector flow.
-
Confirm the failed path and required setup
Substitute or isolate loads only by the service procedure, verify repairs under the original conditions, and check whether coding, relearn or programming is required. Condemn a PCM or separate injector driver only after external circuits and loads pass and applicable software is current. Save post-repair results for comparison.
Specifications are vehicle-specific. Do not transfer a voltage, resistance, current, pressure, waveform, timer or drive-cycle value from another engine. Direct-injection driver circuits may use hazardous boosted voltage and require manufacturer-approved test points and equipment.
P062D Repairs and Typical Costs
The correct P062D code fix follows the proven failure: reseat or repair a connector, restore a power or ground path, repair the harness, replace a failed injector, update software, complete injector coding, or replace a driver/module only when OEM tests justify it. Do not add the alternatives below together; one diagnosis should lead to the applicable path.
| Possible path | Current US estimate |
|---|---|
| Electrical system diagnosis before parts replacement | $122–$179 |
| Confirmed fuel injector replacement where the injector is the failed load | $764–$949 |
| Confirmed powertrain control module replacement after circuit proof | $1,126–$1,196 |
| Connector, harness, driver-module, software update, coding or application-specific repair | VIN-specific quote |
Each national range comes from its matching RepairPal page, and each page displayed “Estimates last updated August 7, 2026” when checked. The figures exclude location, taxes, fees and related work. Injector access and quantity vary widely; module programming or immobilizer setup may add work. A software-only bulletin path can cost far less than an unnecessary controller.

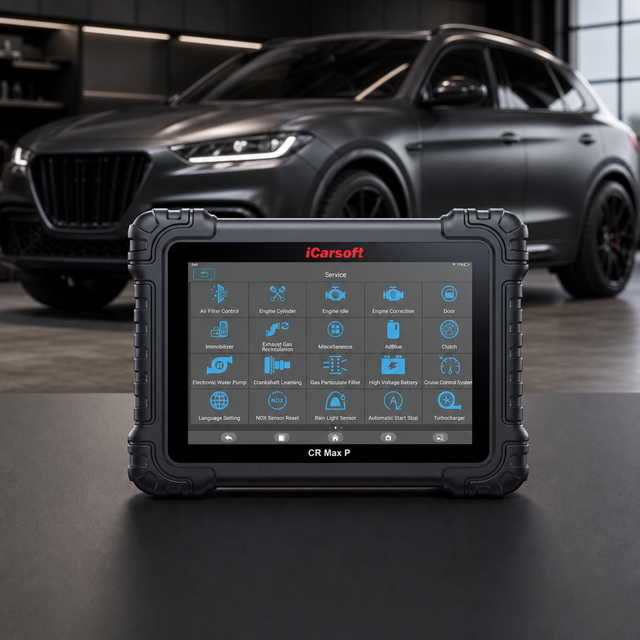

Using iCarsoft CR Max P for P062D
On a supported vehicle, iCarsoft CR Max P can scan the reporting engine or injector-control module, preserve P062D status and available freeze frame, scan companion modules, display ECU-provided live data and save a diagnostic report. Its official page also lists full-system diagnostics and bidirectional active tests, but exact functions depend on make, model, year, ECU and software.
Evidence before expensive parts
iCarsoft CR Max P
Preserve the complete scan, compare supported engine data and document the repair while keeping physical circuit proof separate.
Check current CR Max P price and availabilityCheck CR Max P compatibility by VINWhen the exact VIN/ECU exposes injector cutout, contribution or output tests, use them only within the service procedure and safe operating conditions. Missing data or a grayed-out active test means that function is not offered in that session; it is not evidence that the vehicle component failed. Confirm the required PIDs and tests by VIN before purchase.
Know the measurement boundary. CR Max P does not directly measure injector-driver voltage, current waveform, resistance, terminal tension, charging ripple, fuel leakage or injector flow. Use the correct DVOM, scope/current probe, fuel-safe inspection equipment and OEM breakout procedure alongside scan evidence.
Verify the P062D Repair
Keep the before-scan and save a post-repair scan. After the confirmed repair and any required coding, relearn or programming, use the OEM clearing procedure for erasable DTCs. Reproduce the relevant operating conditions safely or complete the specified monitor enable conditions; a clean idle alone is not proof when the driver monitor needs injection under other loads.
Confirm that current and pending P062D are absent, Bank 1 injection is operating normally, and companion misfire, supply or communication faults do not return. Compare supported command, contribution or feedback data with the saved baseline, check for leaks and abnormal engine behavior, and verify that the MIL and readiness state agree with the repair.
A permanent P062D can remain immediately after a successful repair. If the vehicle stores it as a permanent DTC, a scan tool or battery disconnect cannot erase it. Once current and pending faults are absent, the OBD system removes the permanent record only after the applicable monitor reruns and passes.
Related Fuel Injector Circuit Code Guides
P062D Frequently Asked Questions
Does the P062D code mean the PCM is bad?
No. P062D reports a Bank 1 injector-driver performance result, and external supplies, grounds, connectors, wiring or injector loads can create that result. Some VINs also have software guidance. Prove every external path and check current OEM bulletins before condemning the PCM or driver module.
What is the difference between P062D and P062E?
P062D identifies Fuel Injector Driver Circuit Performance for Bank 1; P062E is the corresponding Bank 2 code where the engine and monitor use two banks. Bank 1 contains cylinder 1, but its physical side must be confirmed from the VIN-specific engine diagram.
Can I drive with P062D?
Only consider the shortest light-load diagnostic trip when the MIL is steady, the engine runs normally, there is no leak, smoke, fuel odor, stalling or power loss, and the owner's manual allows it. Stop and tow for a flashing MIL, severe misfire, unsafe power loss, no-start, leak or abnormal noise.
Will replacing or cleaning the injectors fix P062D?
Not unless testing proves an injector is the failed or overloading electrical load. P062D is a driver-performance code, not a fuel-flow or deposit diagnosis. Cleaning cannot repair a damaged connector, supply, control wire, internal driver or software condition.
How much does P062D cost to repair?
Current national planning ranges are $122–$179 for electrical diagnosis, $764–$949 for a confirmed fuel injector replacement and $1,126–$1,196 for a proven PCM replacement. Each RepairPal page was updated August 7, 2026. Wiring, software, coding and exact parts require a VIN-specific quote.
Can iCarsoft CR Max P diagnose P062D?
On supported vehicles, CR Max P can save codes and freeze frame, scan related modules, graph exposed engine data and run available active tests. Coverage varies by VIN. It cannot physically measure driver voltage, current waveform, resistance, terminal tension or injector flow, so external test equipment remains necessary.
Technical and cost references
- SAE J2012DA_202607 (Current), Digital Annex of Diagnostic Trouble Code Definitions and Failure Type Byte Definitions, released July 29, 2026.
- Ford 2023 Diesel System Operation Summary, Fuel Injector Driver Circuit Monitor Operation; revision date August 25, 2023.
- GM Preliminary Information PIP5916B, published May 31, 2023; software-specific P062D example for listed 2024 L5P trucks.
- RepairPal Electrical System Diagnosis Cost Estimate — $122–$179; estimates last updated August 7, 2026.
- RepairPal Fuel Injector Replacement Cost Estimate — $764–$949; estimates last updated August 7, 2026.
- RepairPal Powertrain Control Module Replacement Cost Estimate — $1,126–$1,196; estimates last updated August 7, 2026.
- California Bureau of Automotive Repair On-Board Diagnostic Test Reference for permanent-DTC clearing behavior.
Product information: Official iCarsoft CR Max P page.
Editorial note: Educational information only. This guide cannot replace the wiring diagram, injector safety procedure, test limits, bulletins and programming instructions for a specific VIN. Fuel pressure, boosted injector-driver circuits, hot parts, automatic fans and hybrid high voltage can cause serious injury. Cost figures are US planning estimates, not quotes; confirm product coverage and local pricing before work.
