P2564 quick answer
P2564 means the engine control module sees a low signal in the turbocharger boost control position sensor "A" circuit. On Volkswagen Group vehicles, the displayed wording may refer to the charge-pressure actuator position sensor or boost-pressure controller position sensor.
Start with the connector, wiring, reference voltage, ground, and signal circuit. A low-circuit code does not prove that the whole turbocharger is bad. Use the wiring diagram and test values for the exact engine code and actuator type.
What P2564 means on VW, Audi, Skoda, and SEAT

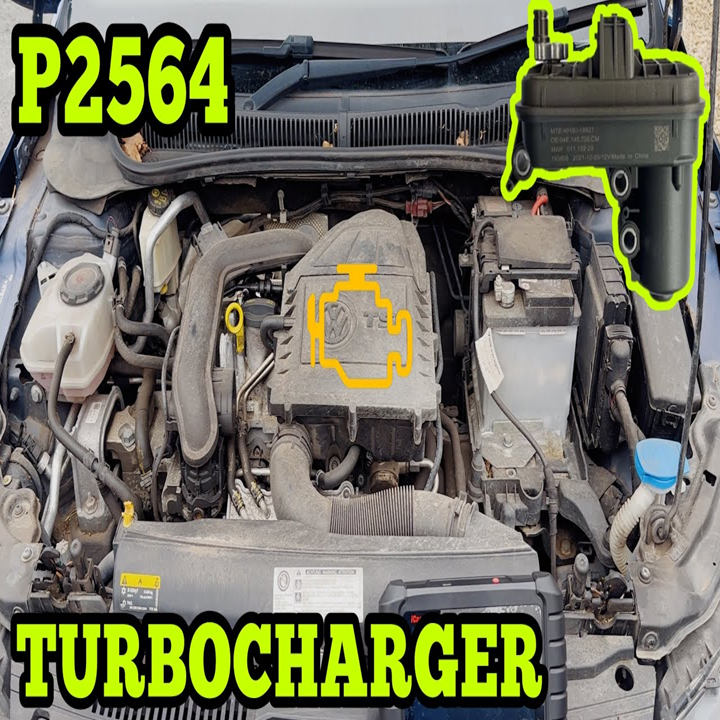

The turbocharger control system uses an actuator to move the wastegate or variable-geometry mechanism on equipped engines. A position sensor reports actuator travel to the engine control module. P2564 sets when the reported sensor signal falls below the permitted electrical range for the required time.
Actuator design varies. Some engines use an electronic actuator, while others use a vacuum diaphragm with a position sensor. Pin assignments, expected voltage, basic settings, and mechanical adjustment also vary by engine code. The label on a generic scanner is a starting point; VAG-compatible data and factory service information provide the test details.
Symptoms and driving advice
- Check engine light or glow-plug warning on some diesel applications.
- Reduced power or limp mode.
- Little or inconsistent boost during acceleration.
- Companion underboost, overboost, actuator, or electrical codes.
- No strong drivability symptom when the signal fault is intermittent.
A vehicle in limp mode may reach a safe parking place, but it should not be used for hard acceleration, towing, or highway merging where reduced power creates risk. Stop if warning messages call for it, the engine runs poorly, smoke increases, or abnormal turbo noise appears.
Likely causes
- An open, short-to-ground, or high-resistance fault in the sensor circuit.
- Connector corrosion, oil or water contamination, loose terminals, or a damaged lock.
- Loss of the specified reference supply or sensor ground.
- A failed position sensor or actuator assembly.
- Binding linkage, incorrect actuator adjustment, or restricted variable vanes on applications that monitor travel.
- A vehicle-specific vacuum leak, boost leak, turbo hardware issue, or ECM software condition associated with other turbo codes.
Volkswagen bulletin 21-15-06 lists P2564 among several turbo-control codes for a limited set of applications. Its diagnostic background includes kinked or leaking vacuum hoses, a leaking vacuum diaphragm, boost-pipe leaks, turbo adjustment outside tolerance, and ECM software level. Use that bulletin only after confirming that the vehicle and engine fall within its scope.
How to diagnose P2564
- Save the complete scan. Record P2564 status, freeze-frame load and RPM, boost request, actual boost, actuator position, and any related P0299, P00AF, P2562, P2563, P2565, or communication codes.
- Identify the exact system. Use the VIN and engine code to locate the wiring diagram, actuator type, connector view, test plan, and any required basic setting.
- Inspect the circuit. Check the harness where heat, vibration, clips, and prior turbo work can damage it. Inspect terminal fit and look for moisture, corrosion, or oil inside the connector.
- Measure with the circuit loaded. Test reference voltage, ground voltage drop, and signal voltage under the conditions specified by the manual. Back-probe only where the procedure permits it.
- Compare command and feedback. Use supported live data or an actuator test to watch travel. Keep clear of the linkage. A signal pinned low suggests an electrical fault; a signal that changes but fails to reach target can point toward travel or adjustment.
- Check vacuum and boost hardware when applicable. Inspect hoses, diaphragm integrity, charge pipes, and intercooler connections if the engine uses them or companion codes support that path.
- Check software and adaptation requirements. Do not move stops or adjust an actuator rod without the manufacturer procedure. Some repairs need a basic setting or adaptation.
Repair and verification
Repair the proven circuit fault with approved wiring and terminals. Replace a sensor or actuator only when its supply and wiring pass but its output or travel fails the OEM test. Follow the specified procedure for vacuum components, turbo hardware, software updates, and actuator adjustment. Some applications service the actuator separately; others require a matched turbocharger assembly.
Clear all codes after the repair and complete the required basic setting. Watch requested and actual actuator position through a full permitted range, then road-test while comparing requested and actual boost. Rescan for pending codes. The repair is incomplete if P2564 returns or actuator feedback drops out with heat or vibration.
Using the existing iCarsoft CR MAX BT
The iCarsoft CR MAX BT can read full-system faults and show supported turbocharger live data on covered VW, Audi, Skoda, and SEAT vehicles. Supported actuator tests, basic settings, adaptations, and PID names vary by vehicle, engine, ECU, model year, and software.
Confirm coverage for the exact vehicle. Use a wiring diagram and meter for circuit proof; scan data cannot replace voltage-drop and continuity tests.
Review CR MAX BT details and coverageP2564 FAQ
Does P2564 mean the turbocharger has failed?
No. P2564 describes a low position-sensor circuit signal. Wiring, connectors, reference supply, ground, the sensor, or the actuator may cause it. Mechanical or boost faults need separate proof.
Can a boost leak cause P2564?
A boost leak fits some manufacturer diagnostic paths, often with companion boost-control codes. A pure low-circuit signal still calls for electrical checks first.
Can I replace only the actuator?
Serviceability depends on the turbo and engine. Some actuators are replaceable and require calibration; other systems use a matched assembly. Follow the parts catalog and repair manual for the VIN.
Will P2564 clear after a repair?
The code may remain stored until cleared. Some repairs also require a basic setting or adaptation. Confirm stable feedback and a code-free road test instead of relying on the warning light alone.
