Land Rover Battery Replacement and BMS Reset Guide

What a Land Rover BMS reset does

The BMS uses a sensor at the battery connection and stored values in the vehicle to monitor battery condition and charging activity. When you install a new battery, the hardware has changed but the monitor can still retain information associated with the previous battery. The Battery replacement service tells the vehicle that a new battery has been fitted and resets the applicable stored monitor values.

JLR links this reset to correct charging-system and Intelligent Stop/Start operation. That is a narrower and more defensible claim than saying a missed reset will always overcharge a battery, halve its life, or cause a specific warning. Battery behavior varies with the vehicle and the underlying fault. A reset updates the monitor; it does not repair a weak alternator, an excessive key-off draw, damaged wiring, or an incorrectly specified battery.

When should you perform Battery replacement or BMS reset?

Run the applicable service routine after installing a new primary or secondary battery in a BMS-equipped vehicle. JLR SSM66617 makes this requirement explicit for the models covered by that bulletin. SSM73688 extends the same service requirement to a successfully recharged primary or secondary battery on its listed vehicles, where the Battery replacement function is available.

A low-battery message or unavailable Eco Stop/Start function does not prove that the stored values are the only problem. In SSM72615, JLR traced those symptoms on specified Discovery Sport, LR4, Range Rover, Range Rover Evoque, and Range Rover Sport applications to a BMS clamp that was not seated correctly on the main battery post. The bulletin instructs technicians to reposition the clamp, reset the BMS, test the battery, and confirm that it is fully charged.

Connect a charger so the battery monitor can see the current

Charging-lead placement matters on a BMS-equipped Land Rover. JLR SSM66617 says that, during normal charging with the battery connected to the vehicle, the charger's negative lead should go to the suitable chassis or engine earth point identified in TOPIx. This routes charging current through the monitored path so the BMS can account for it. Use the designated earth point for your exact model rather than choosing a convenient bolt.

The same bulletin gives a specific exception for Midtronics GR1, GRX, and GR8 diagnostic chargers. For correct battery analysis with those units, JLR instructs technicians to remove both battery leads from the vehicle and connect the diagnostic charger directly to the isolated battery terminals. That exception should not be copied to a different charger without its instructions and the current JLR workshop procedure.

Land Rover battery replacement and BMS reset steps

The physical battery procedure differs across Discovery, Range Rover, Defender, and earlier LR models. Use the current workshop manual for removal and installation. The sequence below covers the diagnostic portion without pretending that one menu path fits every software version.

1. Confirm the battery specification. Match the required technology and rating for the VIN. Do not change between flooded, enhanced flooded, or AGM types based on size alone.
2. Test and document the vehicle. Save a pre-repair scan, note low-voltage codes, and verify why replacement is needed. A discharged serviceable battery may need charging and testing rather than replacement.
3. Shut the vehicle down correctly. Follow the JLR wait times and key-location instructions before disconnecting power. Battery disconnection can erase customer settings, which SSM66617 says to restore as appropriate.
4. Install the battery and BMS clamp. Keep the monitor and cable free from strain. SSM72615 warns against levering the BMS clamp off the post because that can damage its internal circuitry. Seat the clamp in the position and tighten it to the value specified for the model.

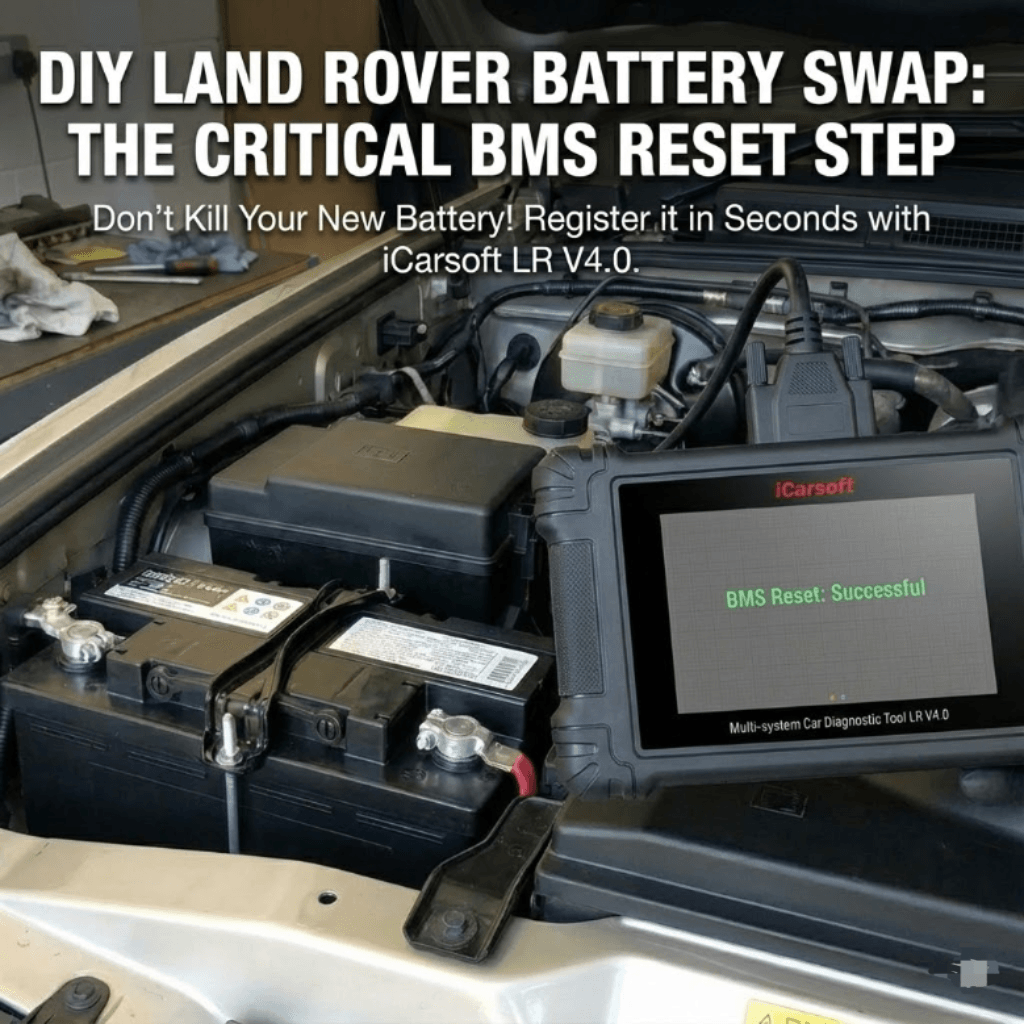

5. Connect the diagnostic tool. With the battery installed and stable voltage available, connect the LR V4.0 to the 16-pin diagnostic port. Follow the vehicle's required ignition state.
6. Identify the exact vehicle. Use AutoVIN if it recognizes the vehicle. If it does not, select the model and year manually. Failure of AutoVIN alone does not establish that the BMS routine is unsupported.
7. Open the Land Rover BMS service. Depending on software and vehicle, look under Service, BMS, Battery Management, or the relevant body/power-supply module. Select Battery replacement or the equivalent new-battery registration routine.
8. Read every prompt before confirming. If the routine requests battery data, enter only values verified from the battery label and service information. Do not guess a type or capacity to make the routine continue.
9. Save the result. Wait for the tool to report completion, then retain a screen capture or diagnostic report. Do not disconnect the tool while the module is writing data.

Checks after the reset

Run a full vehicle scan and compare it with the pre-repair report. Record any codes before clearing low-voltage history. Check battery voltage and charging-system data using the specifications and test conditions in the workshop manual. Confirm that the battery terminals, BMS connector, and grounds are secure.

Intelligent Stop/Start may remain unavailable until its other operating conditions are met. Temperature, battery state of charge, electrical load, climate demand, and stored faults can all influence it. A reset confirmation followed by a disabled Stop/Start message calls for diagnosis, not repeated resets.

Where the iCarsoft LR V4.0 fits

The LR V4.0 comes with Jaguar and Land Rover software installed. It has a 5-inch touchscreen, Wi-Fi delivery of lifetime free software updates, and two additional vehicle make groups that the owner can download at no charge. Its listed Land Rover service coverage includes Battery Management Service, including battery-replacement registration on supported applications.

Those specifications do not guarantee the Battery replacement routine on every Land Rover. Availability changes with platform, production year, module software, market, and vehicle configuration. Some vehicles can also restrict active tests or service functions behind a security gateway. The scanner does not bypass factory security controls. Check the VIN and required procedure before buying a tool for one specific job.

Frequently asked questions

Can I replace a Land Rover battery without resetting the BMS?

The engine may start, but JLR service information requires a BMS reset after a new battery is installed on vehicles fitted with the system. Complete the Battery replacement routine rather than treating a successful start as proof that the job is finished.

Does charging a flat battery also require a BMS reset?

JLR SSM73688 instructs technicians to perform the Battery replacement service function, where applicable, after successfully recharging a primary or secondary battery on the bulletin's listed vehicles. Check the procedure for your model and year.

Should the charger's negative lead connect to the battery terminal?

With a BMS-equipped battery connected to the vehicle, JLR directs normal charging through the designated chassis or engine earth so the monitor can see the current. SSM66617 contains a direct-to-terminal exception for specified Midtronics diagnostic chargers after both vehicle leads are removed. Follow the instructions for your charger and vehicle.

Will a BMS reset fix a recurring Low Battery warning?

It fixes stale monitor values when that is the cause. It cannot correct a weak battery, poor clamp connection, charging fault, excessive standby draw, or damaged sensor wiring. Test those items if the warning returns.

Can LR V4.0 change the battery type or capacity?

Some vehicles and routines may present battery configuration choices. Use them only when the function is available for the VIN and the requested values match JLR service information. A basic reset should not be used to code an unsupported battery specification.
