Quick Answer
The P2202 code means NOx Sensor Circuit Low, Bank 1; many OEM lists identify Bank 1 Sensor 1. Its controller detected a signal below the calibrated limit. The code does not prove the sensor failed. Save code status and freeze frame, identify the exact sensor by VIN, then inspect its connector, harness, supply, ground and companion faults before replacing parts.
1What Does the P2202 Code Mean?
The P2202 code is a generic powertrain DTC for NOx Sensor Circuit Low, Bank 1. SAE J2012 defines the code family, while vehicle makers decide the exact monitor and service test. BMW, Volkswagen and Stellantis documents commonly map P2202 to Bank 1 Sensor 1, but the VIN-specific wiring and exhaust diagram remains the authority.
A modern nitrogen-oxides sensor is more than a probe. Its exhaust-mounted element connects by a permanent pigtail to electronics that manage heating, processing and communication. The controller may monitor a reported NOx value, sensor status, supply path or data message.
That distinction matters because “circuit low” is a classification, not a diagnosis. A NHTSA-hosted Volkswagen example sets P2202 from an abnormally low reported NOx value. Other architectures may use different logic. Never transfer that example's numerical threshold, pin voltage or test conditions to another vehicle.
Stellantis uses several names for this device on covered vehicles, including upstream, engine-out, NOx A and Bank 1 Sensor 1. Bank 1 is associated with the cylinder bank containing cylinder 1; it is not a universal left, right, driver-side or passenger-side location.
P2202 compared with nearby NOx codes
| Code | General description | Key distinction |
|---|---|---|
| P2200 | NOx Sensor Circuit, Bank 1 | General circuit fault; the OEM subtype may identify an open or communication path. |
| P2201 | NOx Sensor Circuit Range/Performance, Bank 1 | The available signal or response is implausible rather than classified specifically low or high. |
| P2202 | NOx Sensor Circuit Low, Bank 1 | The main-sensor circuit or reported value is below the maker's calibrated criterion. |
| P2203 | NOx Sensor Circuit High, Bank 1 | The high member of the same main-sensor family; it is not the heater-sense code. |
| P2209 | NOx Sensor Heater Sense Circuit Range/Performance, Bank 1 | Targets the heater-sense path rather than the primary low-result classification. |
| P229F | NOx Sensor Circuit Range/Performance, Bank 1 Sensor 2 | Typically concerns the second or downstream sensor instead of Sensor 1. |
Identify the architecture first. On many SCR diesels, Sensor 1 is before the SCR catalyst and Sensor 2 is after it. Stellantis's cited document places its upstream sensor toward the DPF inlet, showing why a generic “before the catalyst” shortcut can still be incomplete.
2P2202 Symptoms and Likely Causes
Symptoms depend on the vehicle, code status and companion faults. A longer-running aftertreatment fault can affect readiness, DEF/SCR strategies or permitted engine operation.
A steady MIL is common. Diesel vehicles may also show Service Emissions, DEF/AdBlue or SCR messages.
The vehicle may feel normal while the controller substitutes a value or stops trusting the affected sensor.
Some platforms later impose torque, speed, idle-only, mileage or restart restrictions under manufacturer-specific rules.
An active MIL, stored emissions fault or incomplete monitor can prevent an OBD emissions pass.
Practical cause-checking order
- Connector and harness faults: loose locks, spread or corroded terminals, water or road-salt intrusion, chafing, melted insulation, poor previous repairs, missing clips or lost heat protection.
- Power, ground or communication problems: low system voltage, excessive voltage drop under load, a shared supply fault, poor ground, damaged network wiring or a failed sensor-module power stage.
- Sensor assembly or installation issues: internal electronics failure, contaminated or damaged probe, wrong part, swapped connectors, strained pigtail, incorrect routing or an assembly not seated as specified.
- Exhaust and operating influences: leaks, condensation, fluid contamination, upstream combustion faults or other aftertreatment problems that alter the sensor's operating environment or reported relationship.
- Calibration and controller paths: VIN-specific software, service actions or controller faults come after external circuits, loads, network integrity and the sensor assembly have been tested.
Recent-repair clue: If P2202 appeared after a NOx sensor, exhaust, battery, DEF, DPF or wiring repair, recheck part identity, connector locks, pins, grounds, routing, heat shields and any required initialization before buying another sensor.
3How Serious Is P2202, and Can You Drive?
The P2202 code requires prompt diagnosis. If the MIL is steady, power is normal, no countdown or red warning appears, and the owner's manual permits it, a short light-load trip to service may be reasonable. Avoid towing, heavy load and long journeys.
Stop and arrange a tow if the MIL flashes, the engine misfires heavily, power loss makes traffic unsafe, the engine stalls repeatedly, a red STOP, oil-pressure or temperature warning appears, or you notice smoke, fuel or pressurized-fluid leakage, a burning odor, or new knocking, scraping or contact noise. Follow any emissions countdown or no-restart instruction immediately.
Let the exhaust cool fully before touching the sensor or harness. Support the vehicle correctly, keep clear of automatic fans and moving parts, and use the OEM procedure before opening a pressurized DEF line. Hybrid high-voltage components require the maker's isolation procedure and qualified equipment. Do not delete, bypass or disable emissions hardware or software.
4How to Diagnose P2202 in the Right Order
-
Save every code, status and freeze frame
Run a complete scan before clearing. Record current, pending, permanent and history status; failure order; freeze frame; readiness; battery condition; and companion SCR, DEF, DPF, network, supply or sensor codes. A shared power or communication code can change the path.
-
Identify the exact VIN architecture
Use current service information to locate Bank 1 Sensor 1, its module, fuse or shared feed, grounds, connectors, network and exhaust position. Check OEM bulletins, campaigns and calibration history. Confirm whether the maker calls it upstream, engine-out, NOx A, upper or another term.
-
Inspect the cool system and physical path
With the exhaust cold and the vehicle safely supported, inspect the probe, attached pigtail, module mount, connector locks, terminals, harness clips, heat shields and nearby exhaust joints. Look for water, salt, soot tracks, chafing, pin drag, backed-out terminals and insulation melted against hot hardware. Do not separate a permanently attached probe-to-module pigtail.
-
Prove power, ground and network integrity
Follow the OEM pinpoint test with a wiring diagram, multimeter and specified load tool. Test power and ground under load, then check voltage drop, terminal tension and network integrity. An unloaded reading can hide resistance. Never jump an unidentified controller pin to battery or ground.
-
Compare supported command, status and feedback
When the exact VIN and ECU expose useful PIDs, graph sensor status, NOx data, temperatures, engine load and relevant upstream/downstream information under valid conditions. Use supported output tests only when the OEM procedure calls for them. Scan data can reveal correlation, but it cannot physically prove wire voltage, heater current, exhaust leakage or terminal grip.
-
Confirm the failed path, setup and monitor result
Repair or replace only what fails its specified test. Verify part number, serviceability, seals, routing and heat protection, then perform any required coding, initialization, learned-value reset or software update. Consider a controller last, after powers, grounds, wiring, communications, sensor load and calibration all pass. Finish by rerunning the actual monitor.
Specifications are vehicle-specific. Do not reuse another model's voltage, resistance, current, NOx concentration, temperature, time, load, drive-cycle or trip-count threshold. Even two vehicles using a similar sensor can apply different enable conditions and fault logic.
5P2202 Repairs and Typical Costs
A P2202 code repair follows the failed test. Plausible paths include restoring a connector or harness, correcting supply or ground voltage drop, repairing an exhaust leak, replacing a confirmed NOx sensor/module assembly, installing applicable software, or completing a required setup procedure. Do not splice or clean the sensor pigtail unless the exact OEM instructions allow it.
| Possible path | Current US estimate |
|---|---|
| Check-engine-light diagnosis and testing | $122–$233 |
| Emission-control-system inspection | $61–$90 |
| Connector, wiring, supply, ground or exhaust-leak repair | VIN-specific quote |
| Bank 1 NOx sensor/module assembly replacement | VIN-specific quote |
| Applicable software, initialization or controller work | VIN-specific quote |
RepairPal displayed $122–$233 for Check Engine Light Diagnosis & Testing and $61–$90 for an Emission Control System Inspect, with both pages updated August 7, 2026. These are separate alternative services, not values to add together. They exclude taxes, fees, location and related work.
A NOx sensor is not a conventional oxygen sensor, so a national O2-sensor replacement estimate is not a sound proxy. The probe, cable and module may be sold as one assembly, access differs, and setup can be VIN-specific. Obtain a diagnosis-based quote for the exact part and procedure.

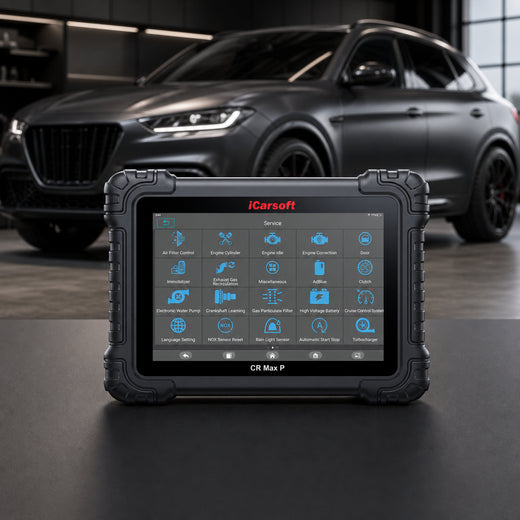

6Using iCarsoft CR Max P for P2202
On a supported vehicle, iCarsoft CR Max P can scan the relevant modules, preserve P2202 code status and available freeze frame, display ECU-provided live data and save diagnostic results. Useful NOx, temperature, supply-status or aftertreatment PIDs may be available when the exact VIN, ECU and installed software expose them.
Evidence-first multi-brand diagnostics
iCarsoft CR Max P
Full-system scanning, ECU-provided live data, report saving and supported active tests on compatible vehicles. Exact NOx PIDs, tests and special functions vary by VIN, ECU and software.
Check current CR Max P price and availabilityCheck CR Max P compatibility by VINCR Max P supports bidirectional testing generally, but that does not guarantee a NOx-sensor, heater, DEF-doser or reset command on every vehicle. Use an active test only when the exact ECU exposes it and the OEM procedure permits it. Missing menu coverage is not evidence that the vehicle component failed.
Know the measurement boundary. CR Max P does not directly measure physical voltage, current, resistance, voltage drop, terminal tension, exhaust leakage, gas concentration or internal sensor condition. Use the specified multimeter, load tool, smoke or pressure equipment, visual inspection and OEM procedure alongside scan evidence.
7Verify the P2202 Repair
Save post-repair scan results, then use the OEM clearing procedure for erasable DTCs after the original evidence is protected. Recheck the connector, harness routing, heat protection and repaired exhaust joint. Confirm system voltage and that current or pending supply, network and sensor faults are absent.
Run the manufacturer's actual monitor enable conditions or safely reproduce the relevant freeze-frame operating region. Review supported sensor status, NOx response, temperatures and companion data only under conditions where the sensor is expected to be ready. One clean idle, one key cycle or one code-free start does not prove the monitor completed.
Re-scan every relevant module and verify P2202 remains absent as current and pending. Confirm readiness or the OEM completion indicator, and check that no new SCR, DEF, DPF, exhaust-temperature or communication code appeared. If the fault returns, compare the new evidence with the original instead of repeating the same part replacement.
A permanent P2202 can remain immediately after a successful repair. If the vehicle stores it as a permanent DTC, a scan tool or battery disconnect cannot erase it. Once current and pending faults are absent, the OBD system removes the permanent record only after the applicable monitor reruns and passes.
8Related NOx and SCR Code Guides
9P2202 Frequently Asked Questions
Does P2202 always mean the NOx sensor is bad?
No. The sensor/module assembly can fail, but connector damage, heat-affected wiring, poor power or ground, network faults, installation problems and VIN-specific software can create the same low-classified result. Test the complete path before replacing the assembly.
What is the difference between P2201 and P2202?
P2201 is a range/performance or plausibility fault. P2202 is the low member of the main NOx-sensor circuit family. Neither supplies a universal voltage or concentration threshold, so the exact vehicle's test procedure is required.
Where is Bank 1 Sensor 1 for P2202?
Bank 1 is associated with the cylinder bank containing cylinder 1. Many OEMs use Bank 1 Sensor 1 for an upstream or engine-out NOx sensor, but its position relative to the DPF and SCR catalyst varies. Confirm the VIN-specific exhaust diagram.
Can cleaning the NOx sensor fix the code?
Do not spray, scrape or clean the sensing element unless the manufacturer publishes an approved procedure. Cleaning cannot repair failed electronics, a heater, wiring, terminals or communication, and it can damage a serviceable sensor.
How much does it cost to diagnose or fix P2202?
RepairPal's August 7, 2026 national estimates were $122–$233 for check-engine-light diagnosis and $61–$90 for an emission-system inspection. Wiring, exhaust, sensor/module and setup costs vary by VIN, so request a diagnosis-based quote.
Can iCarsoft CR Max P diagnose P2202?
On a supported vehicle, CR Max P can read P2202 and companion codes, preserve available freeze frame, display ECU-exposed live data and save results. Relevant PIDs or active tests vary by VIN. The tool cannot physically prove voltage, current, leakage, terminal tension or sensor condition.
Technical and cost references
- SAE International, J2012_202509 Diagnostic Trouble Code Definitions — current base recommended practice, revised September 1, 2025.
- SAE International, J2012DA_202607 Digital Annex — current DTC annex published July 29, 2026.
- Stellantis STAR Case S1625000003 REV. A, NOx Sensor DTC Diagnosis Information — released January 2023; identifies P2202 with the upstream NOx Sensor 1 family and warns that the probe-to-module pigtail is permanent.
- Volkswagen Touareg Quick Reference Specification Book — February 2014; application-specific P2200/P2201/P2202/P2203/P2209 monitor examples.
- RepairPal, Check Engine Light Diagnosis & Testing Cost Estimate — $122–$233; updated August 7, 2026.
- RepairPal, Emission Control System Inspect Cost Estimate — $61–$90; updated August 7, 2026.
Product information: Official iCarsoft CR Max P page.
Editorial note: This guide is general educational information, not a substitute for current service information for the exact VIN. DTC wording, sensor location, monitor thresholds, warning strategy, test methods, repair procedures and scan-tool coverage vary by vehicle. Follow the owner's manual and OEM safety instructions, and use a qualified technician when diagnosis requires hot-exhaust, under-vehicle, electrical, pressurized-system or high-voltage work. Sources and product page checked August 25, 2026.
